Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

15 part groups · 4 illustrations

Illustrations

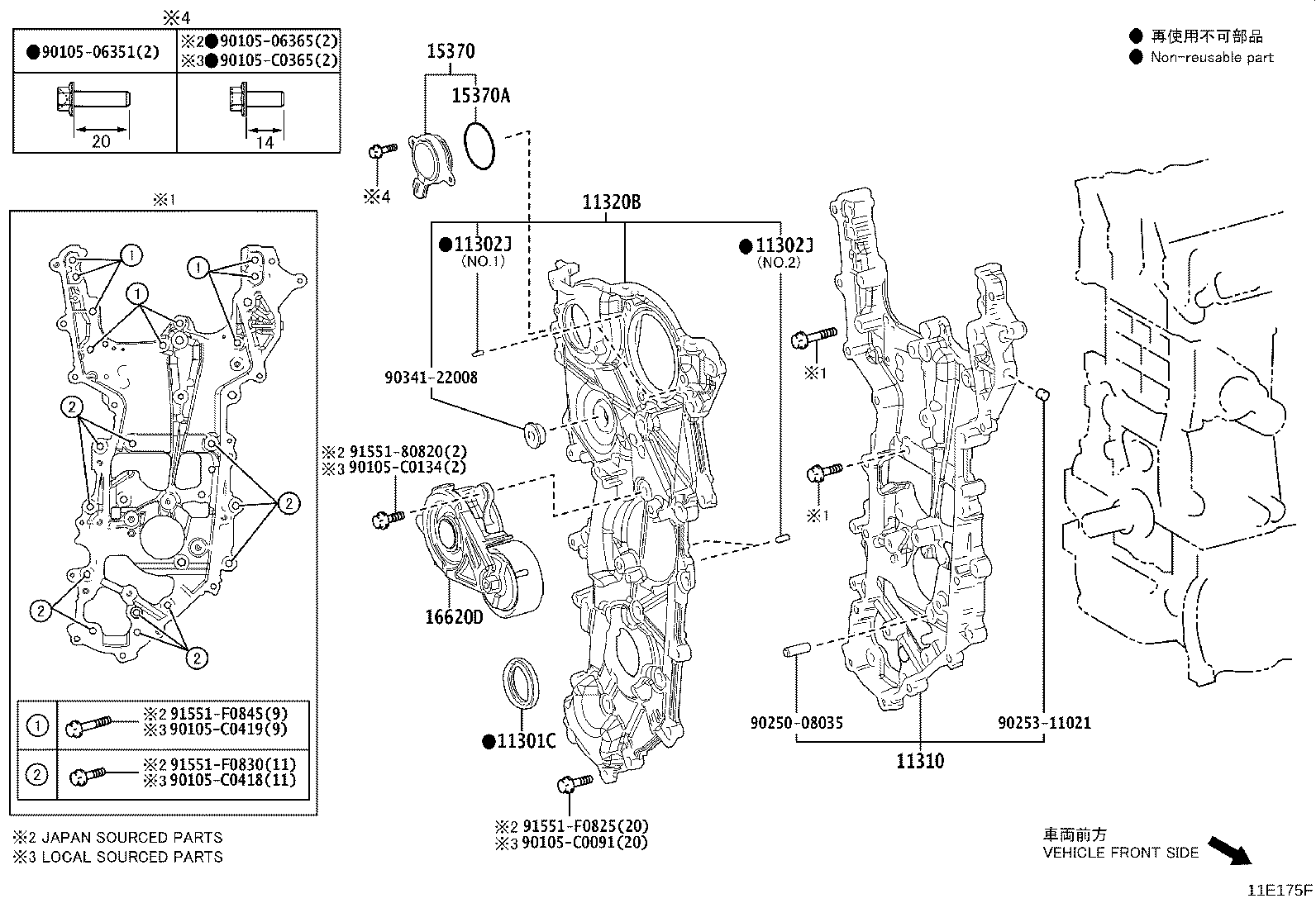

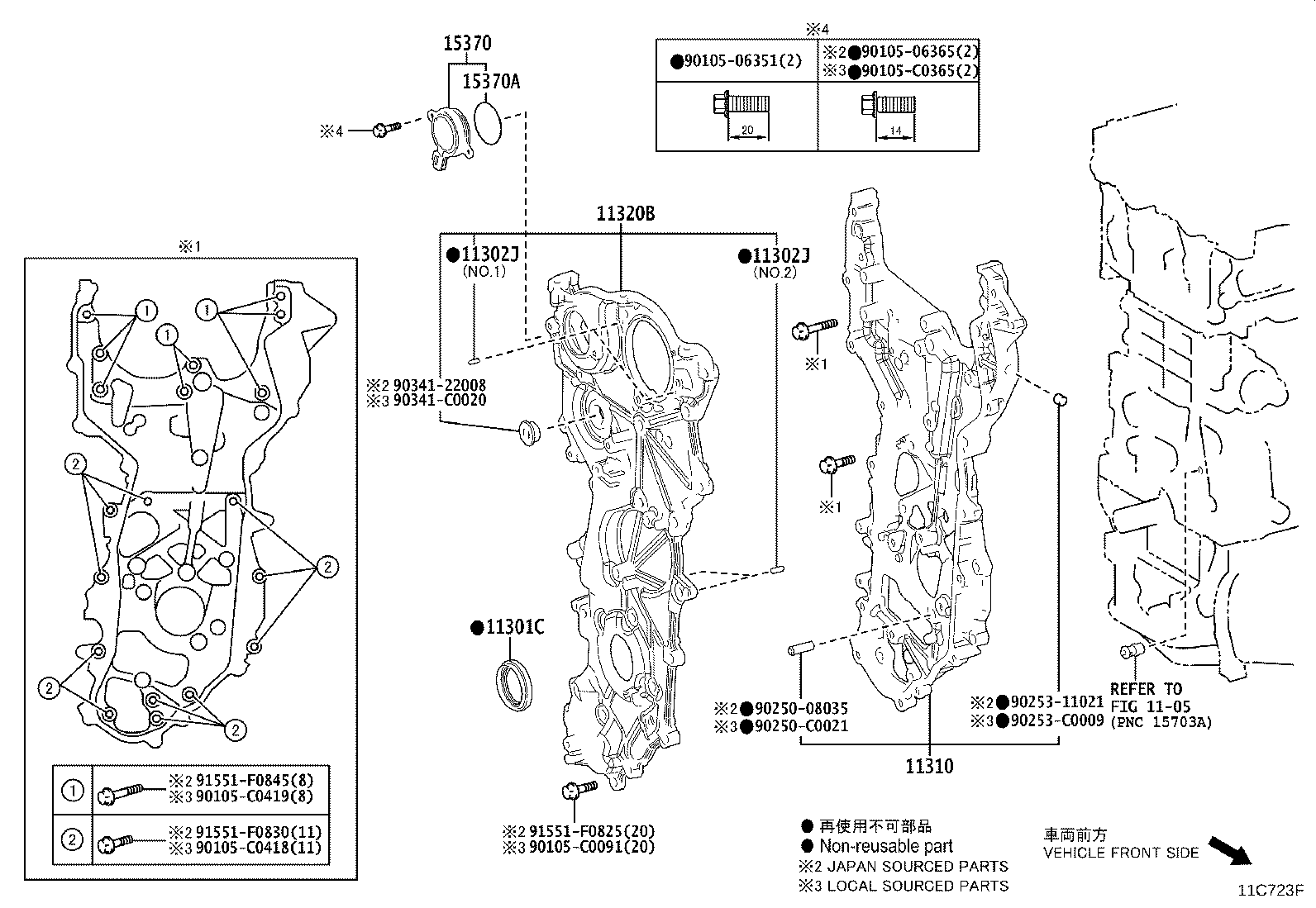

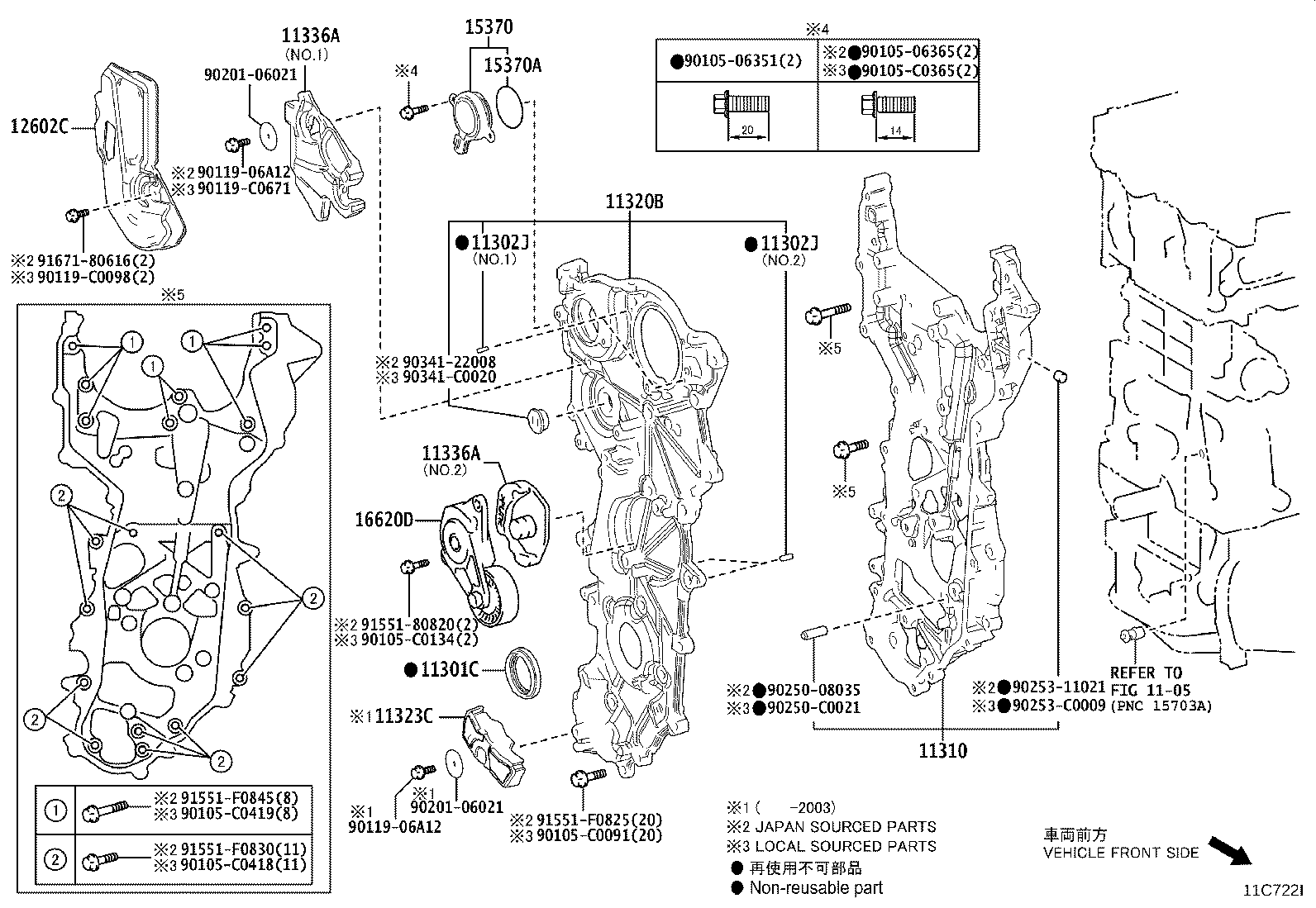

Figure 11C721A 11C721A 2017-12 → — Figure 11C722I 11C722I 2017-12 → — Figure 11C723F 11C723F 2017-12 → — Figure 11E175F 11E175F 2019-03 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11323C Cover, Timing Chain, NO.3
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11336A Insulator, Timing Gear Cover
11496A Gasket, Oil Hole Cover
12602C Cover, Engine, NO.2
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
