Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

10 part groups · 4 illustrations

Illustrations

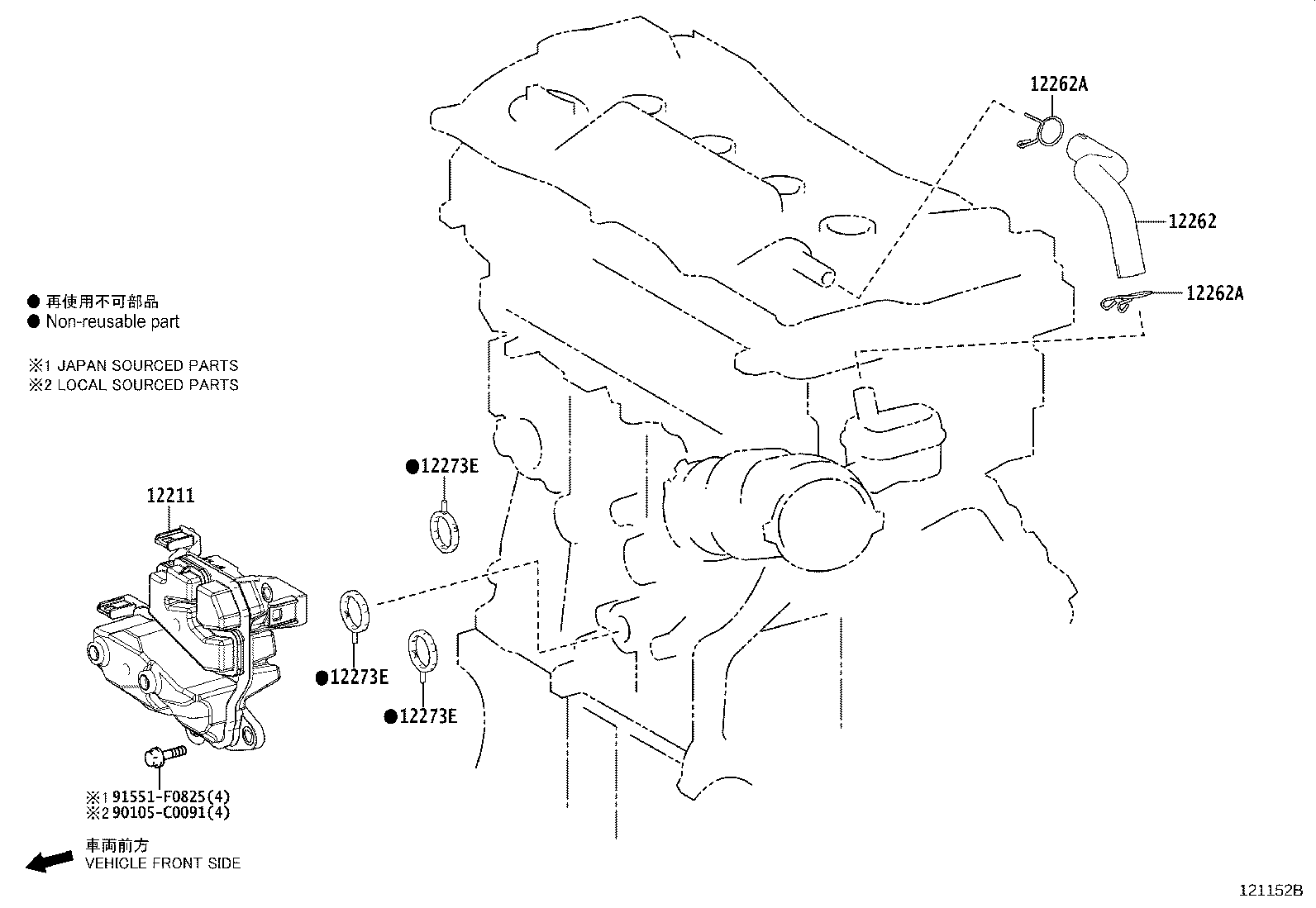

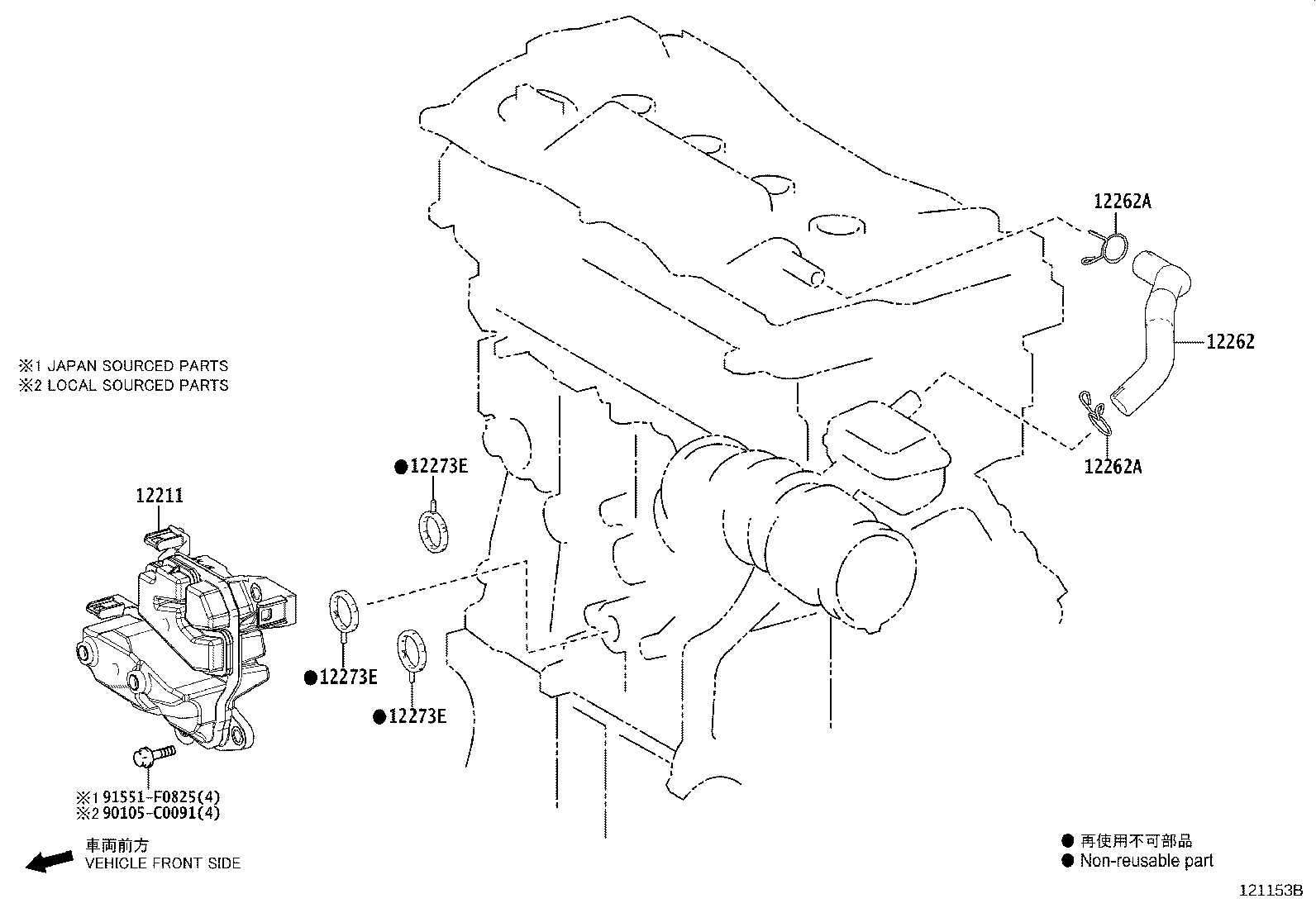

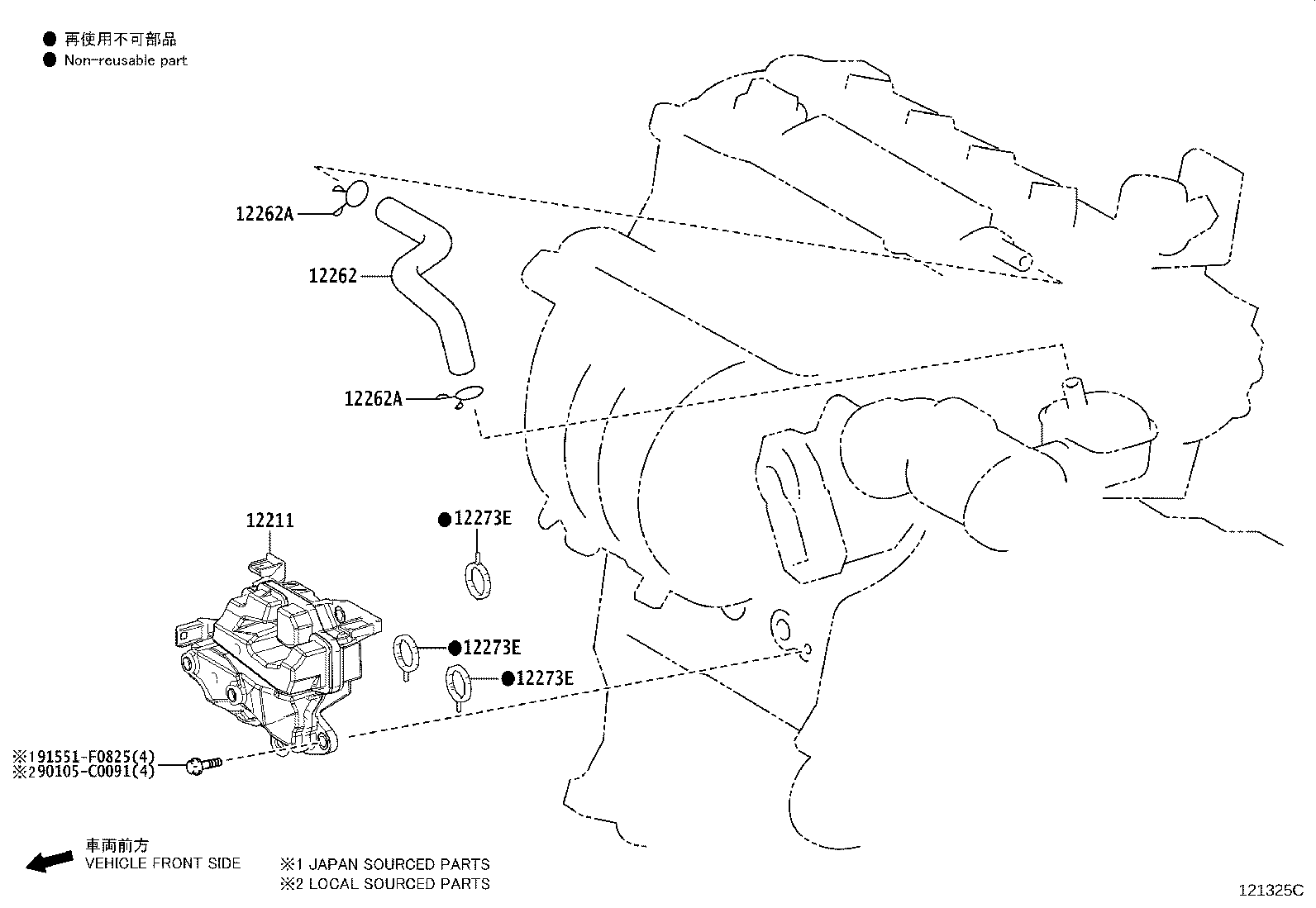

Figure 121151A 121151A 2017-12 → — Figure 121152B 121152B 2017-12 → — Figure 121153B 121153B 2017-12 → — Figure 121325C 121325C 2019-03 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12205A Ring, O(FOR VENTILATION CASE)
12211 Case, Ventilation, NO.1
12215 Separator, Case
12260 Hose Assy, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
