Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

8 part groups · 3 illustrations

Illustrations

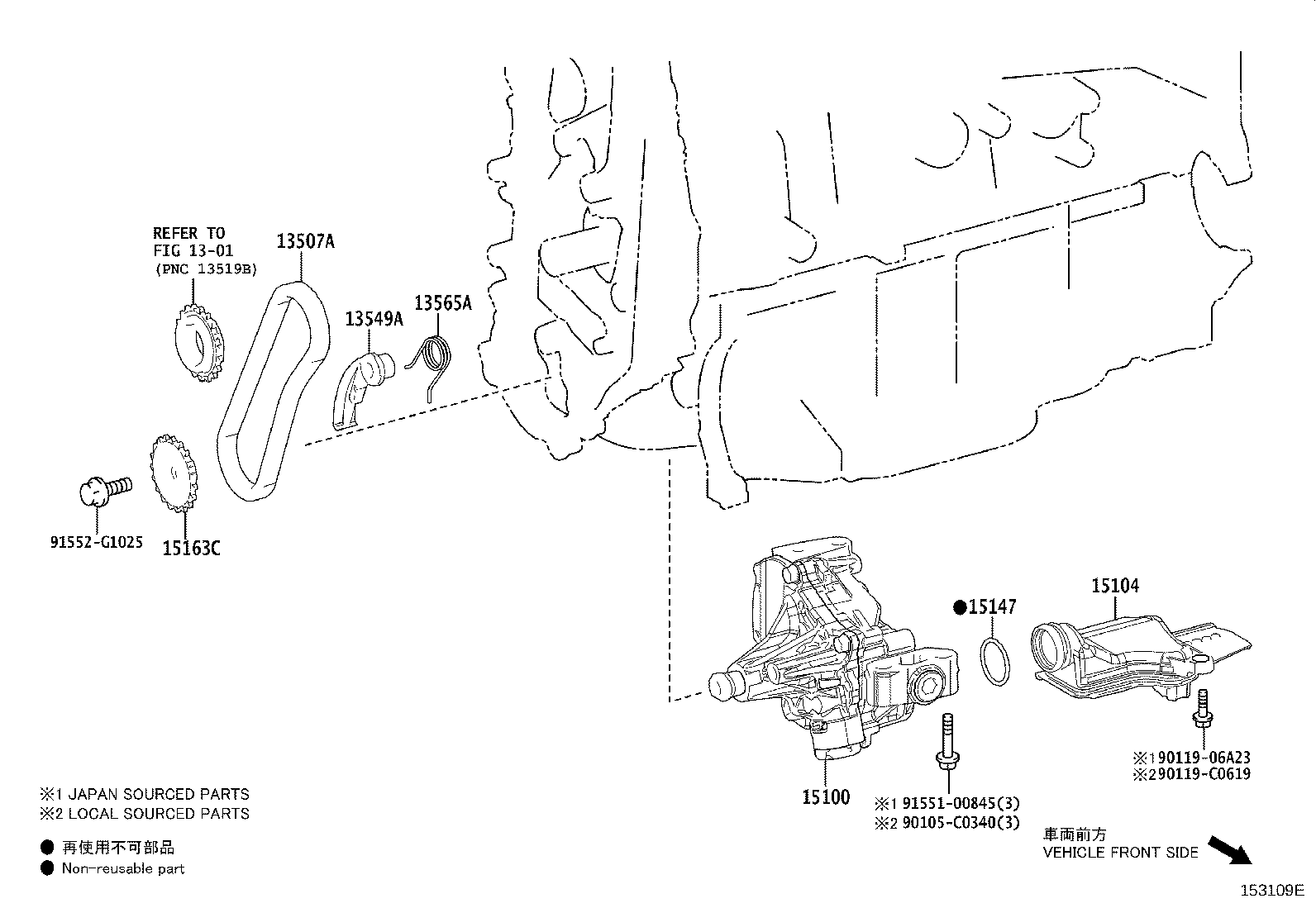

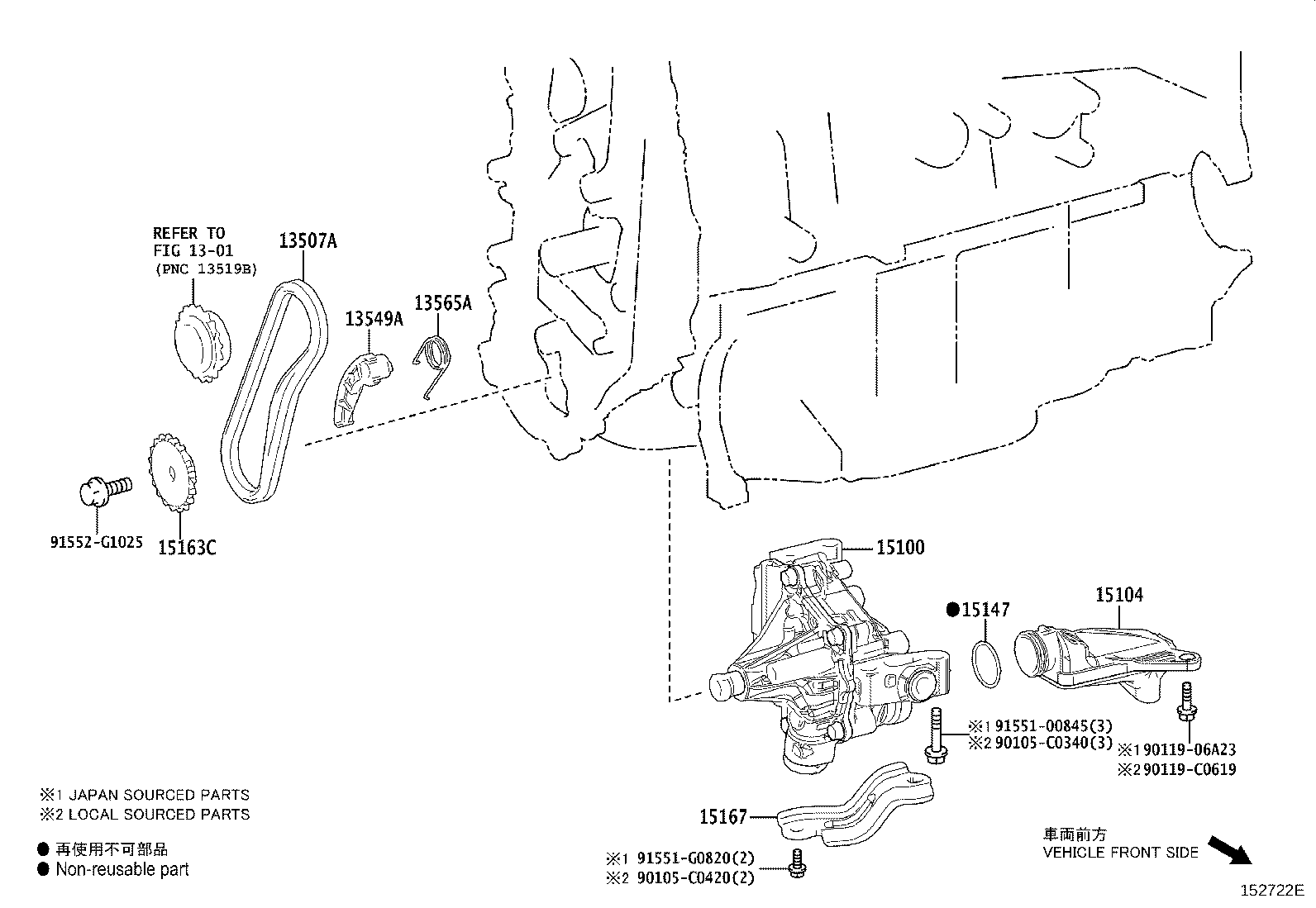

Figure 152721A 152721A 2017-12 → — Figure 152722E 152722E 2017-12 → — Figure 153109E 153109E 2019-03 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
13549A Plate, Chain Tensioner
13565A Spring, Chain Damper
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15147 Gasket, Oil Strainer
15163C Sprocket, Oil Pump Drive Shaft
15167 Bracket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
