Toyota Camry/Hybrid (CHINA)
2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General
Supported model
Data version 2021-02

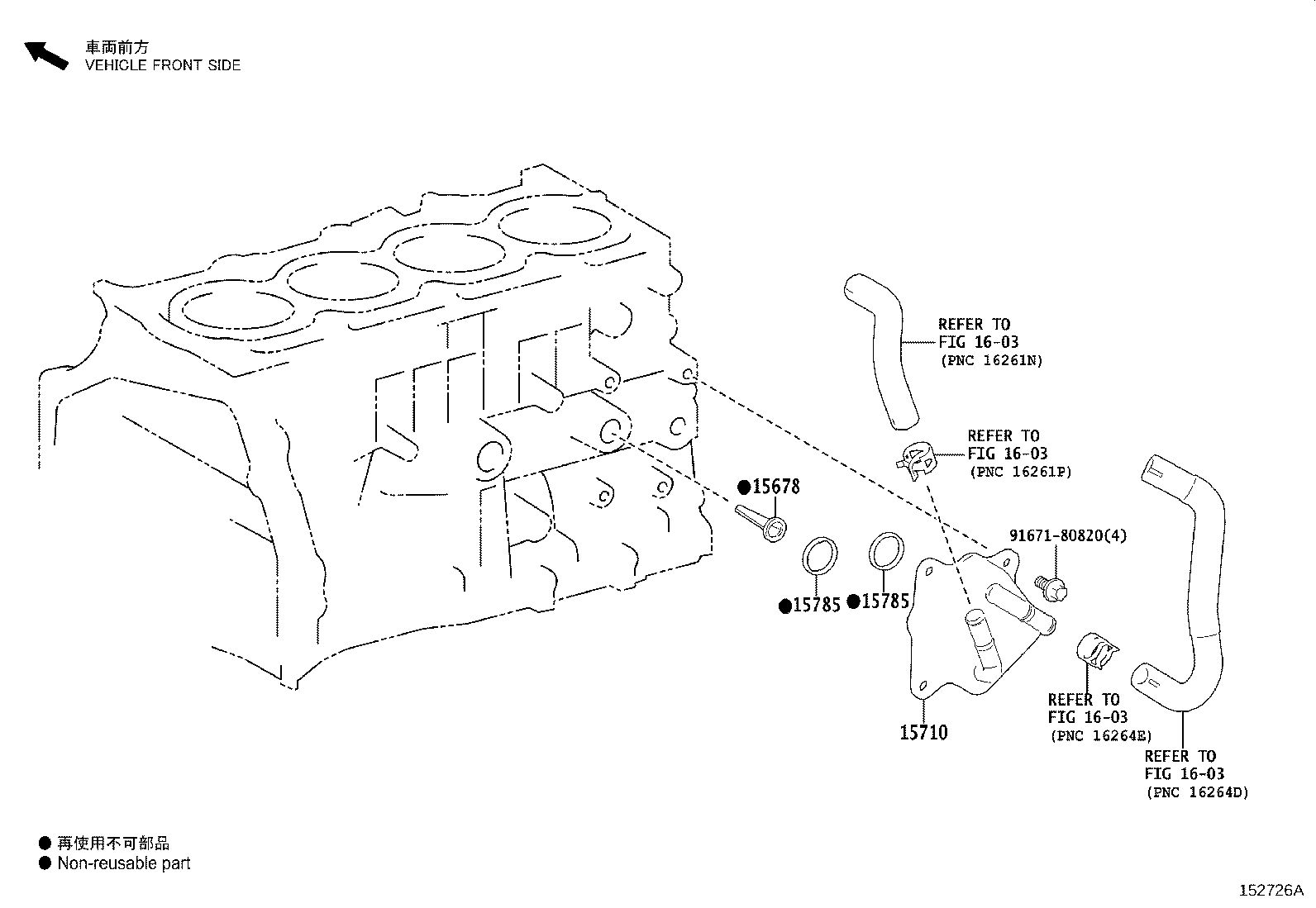

Engine Oil Cooler
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15678 | Filter, Oil Control Valve |
| 15695 | Bolt, Oil Cooler Union |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15725 | Gasket, Oil Cooler Cover |
| 15785 | Gasket, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
