Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

13 part groups · 7 illustrations

Illustrations

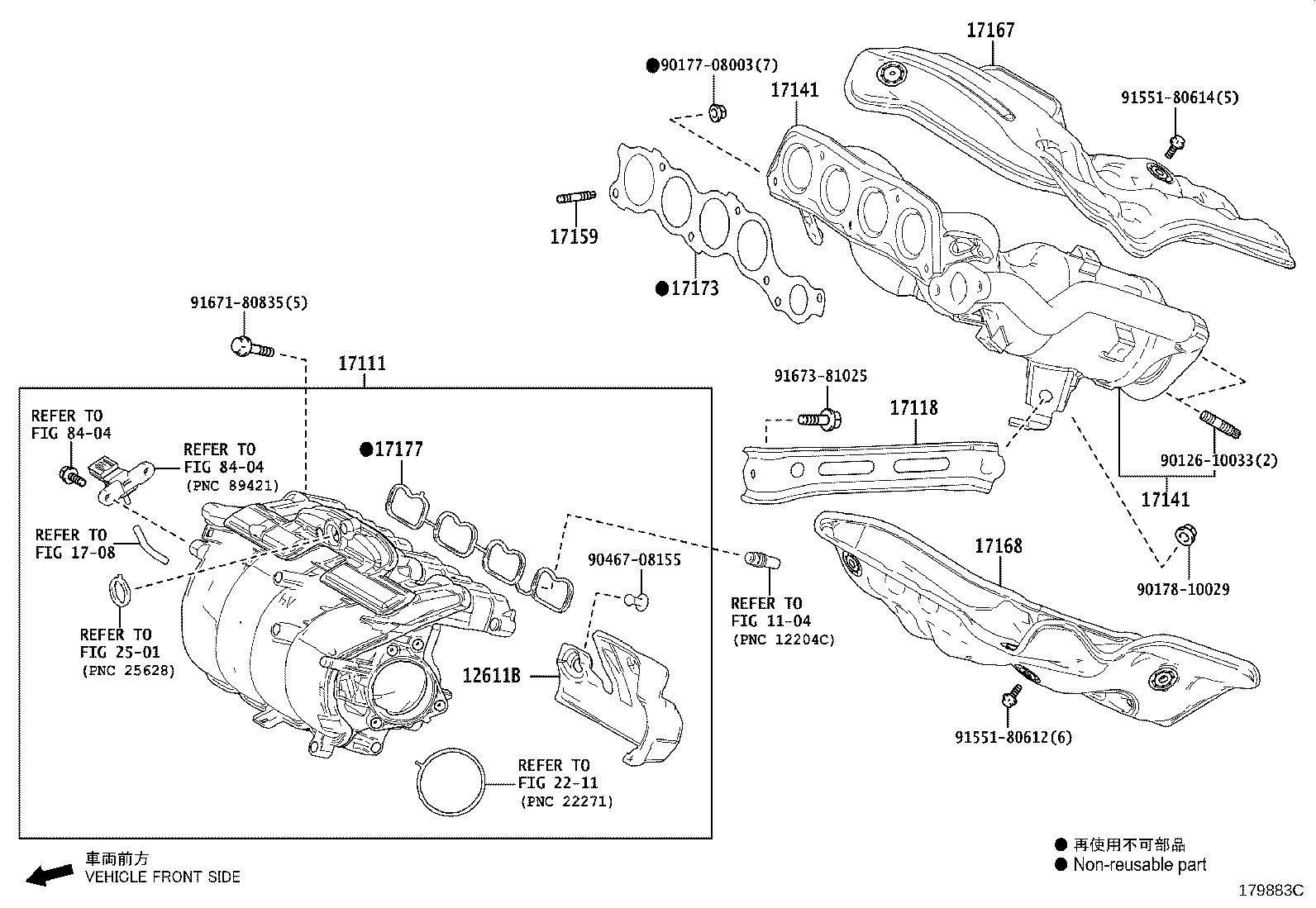

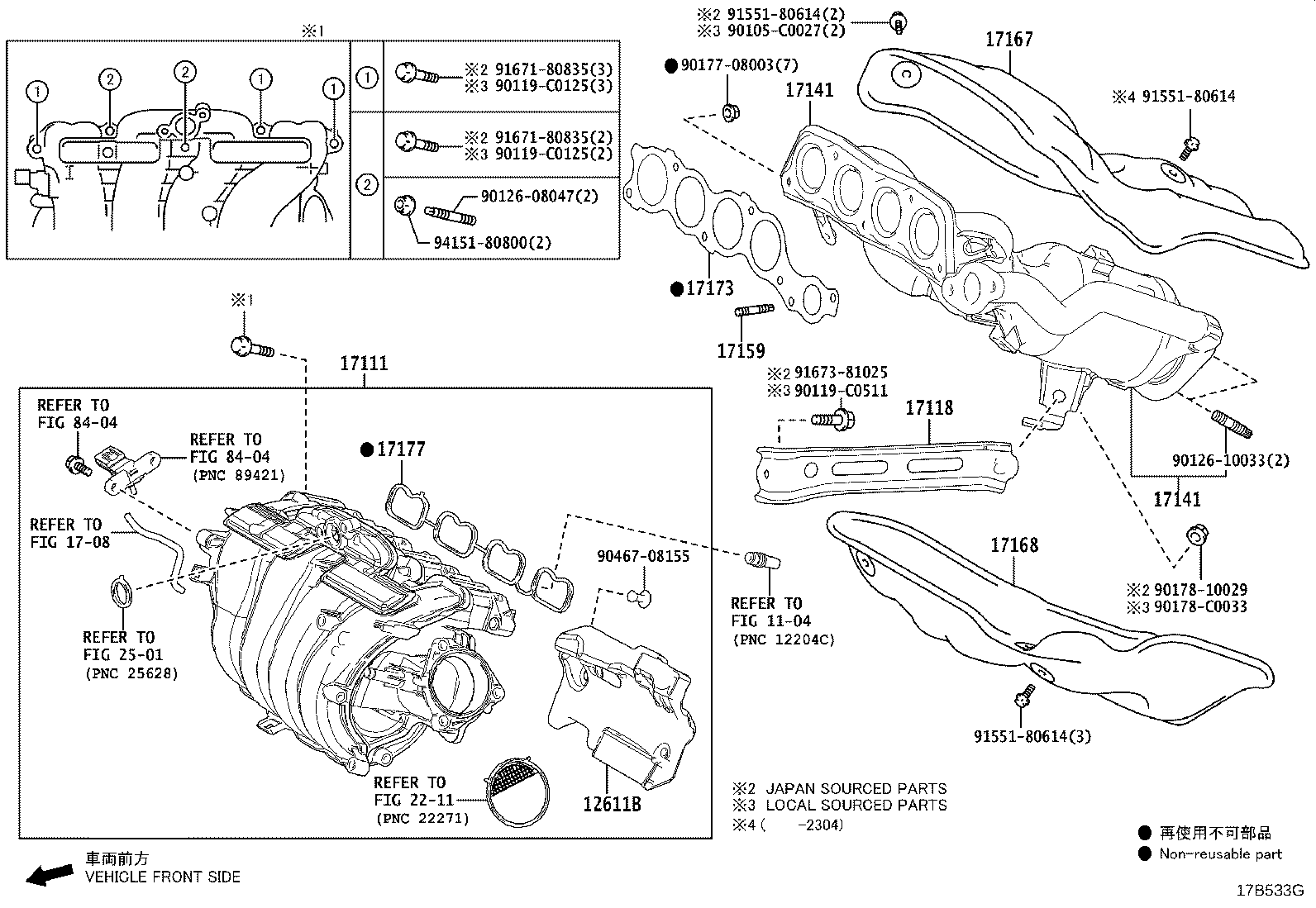

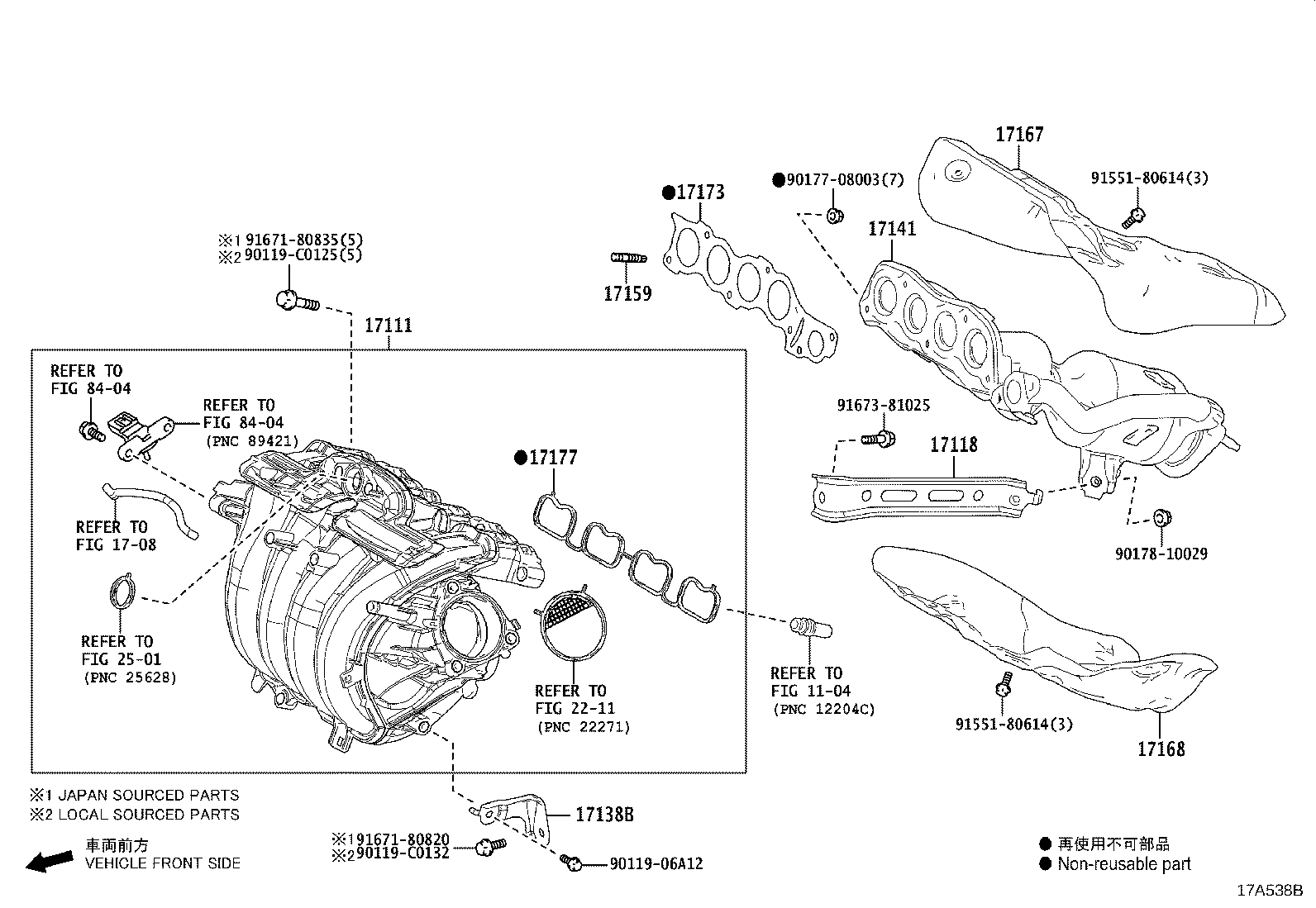

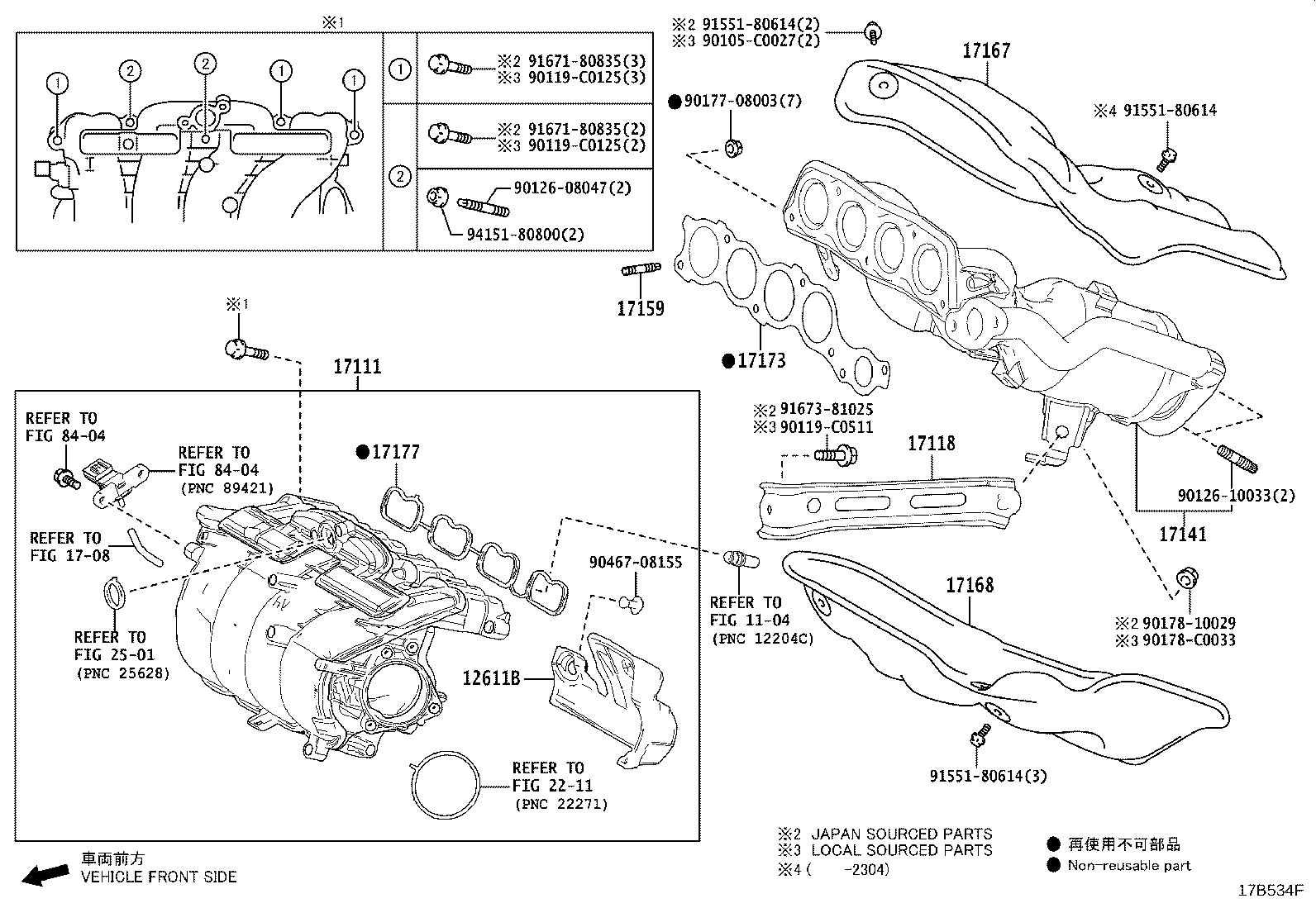

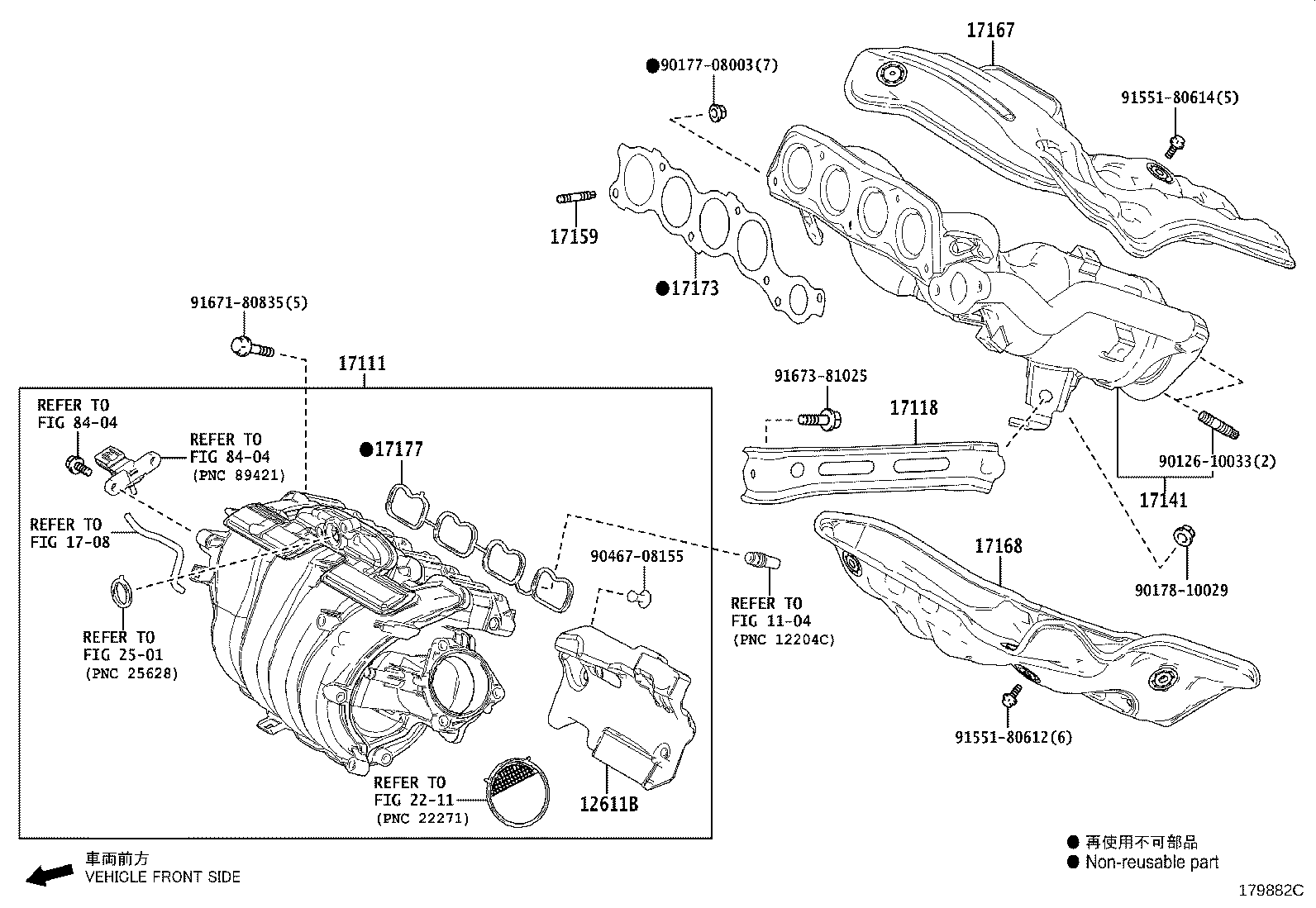

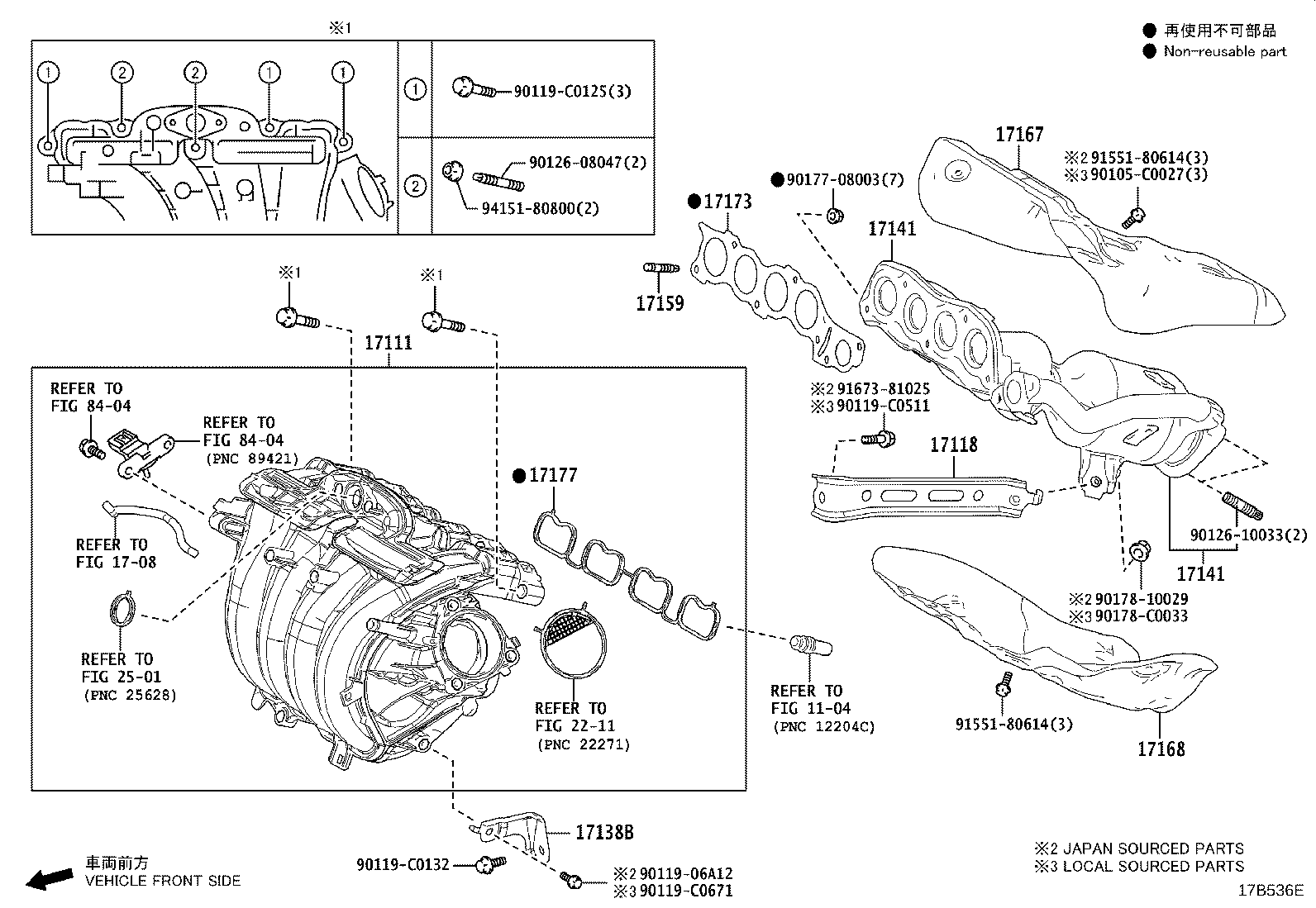

Figure 179881B 179881B 2017-12 → — Figure 179882C 179882C 2017-12 → 2021-03 Figure 17B533G 17B533G 2021-03 → — Figure 179883C 179883C 2017-12 → 2021-03 Figure 17B534F 17B534F 2021-03 → — Figure 17A538B 17A538B 2019-03 → 2021-03 Figure 17B536E 17B536E 2021-03 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
