Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

18 part groups · 5 illustrations

Illustrations

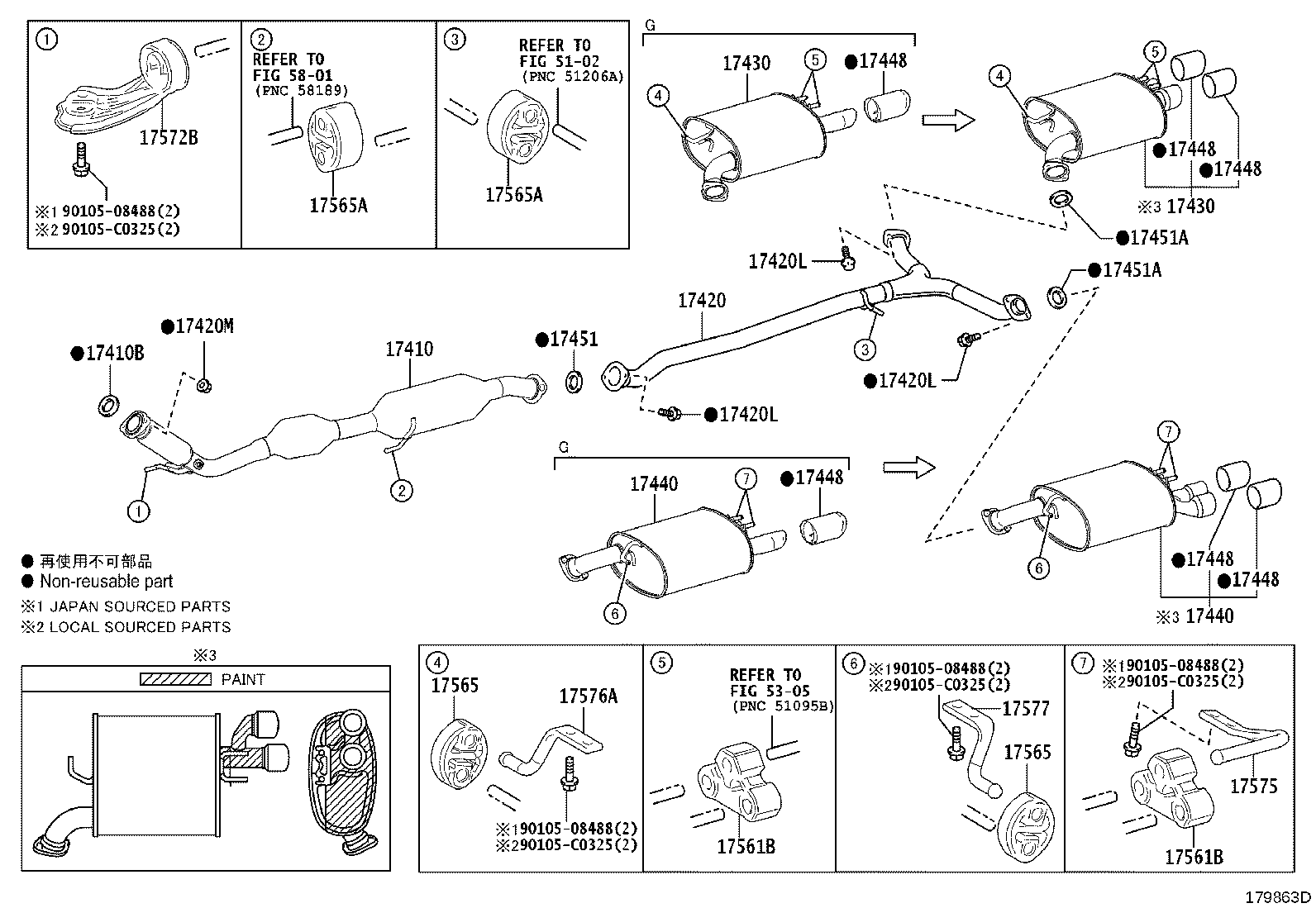

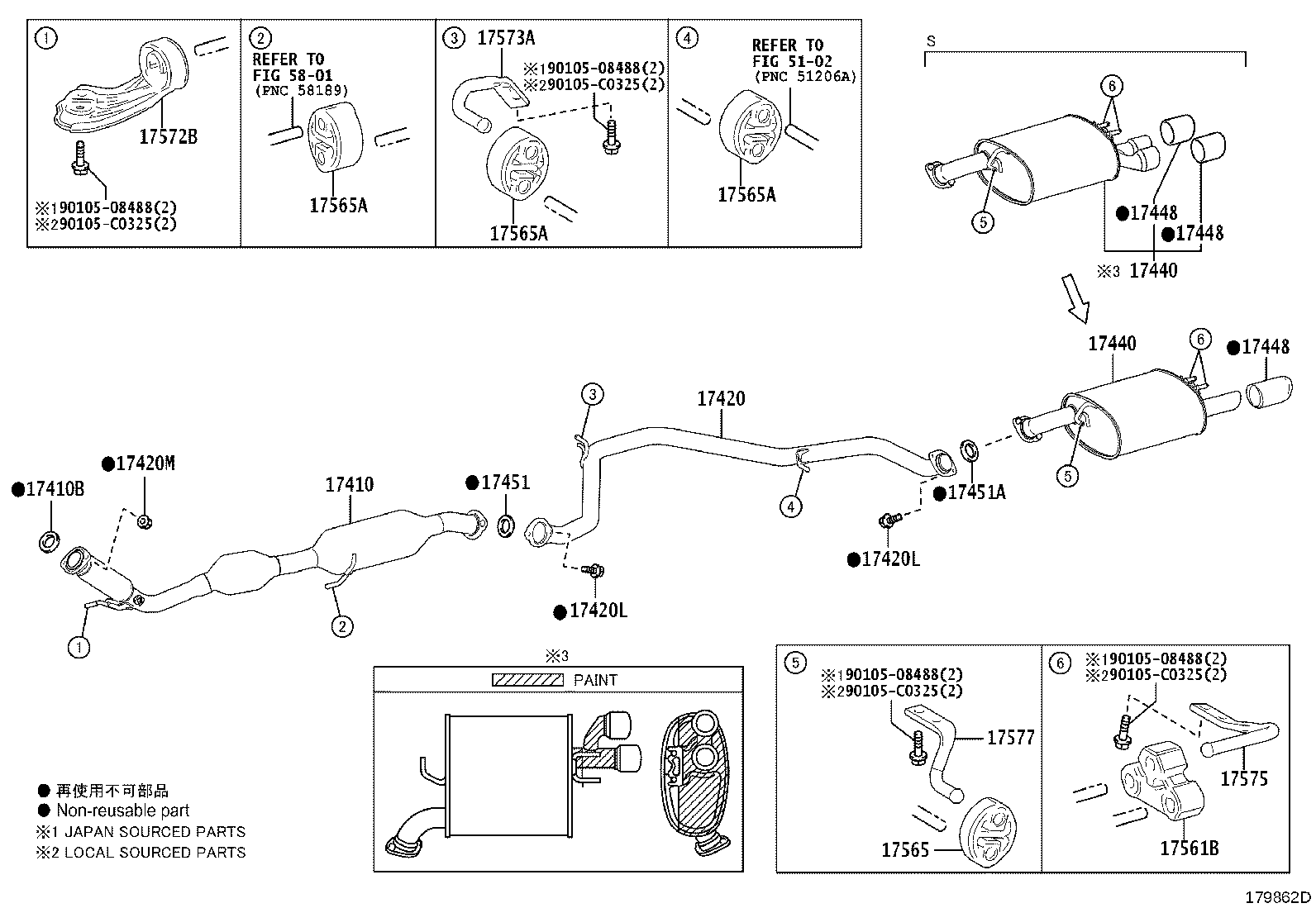

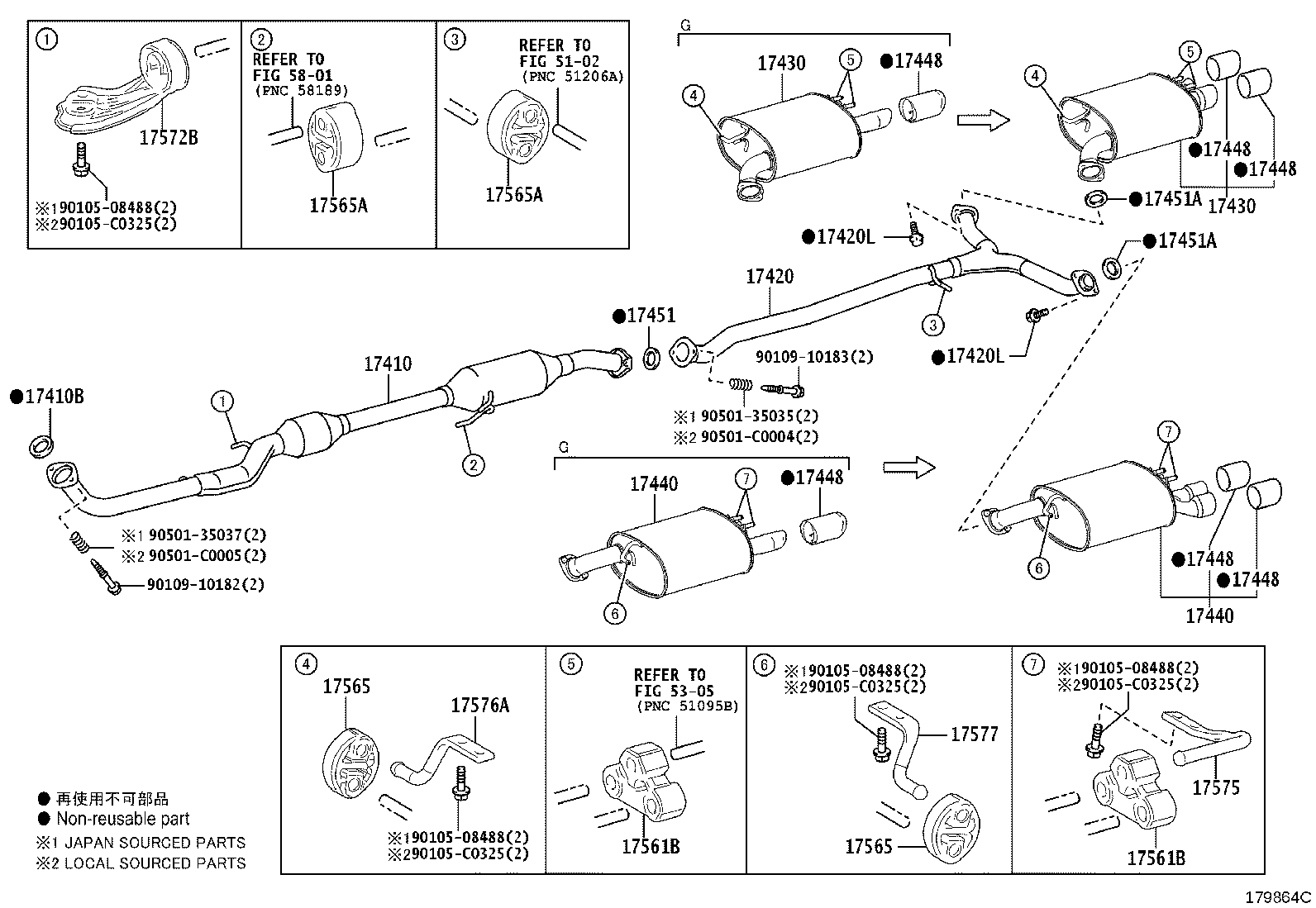

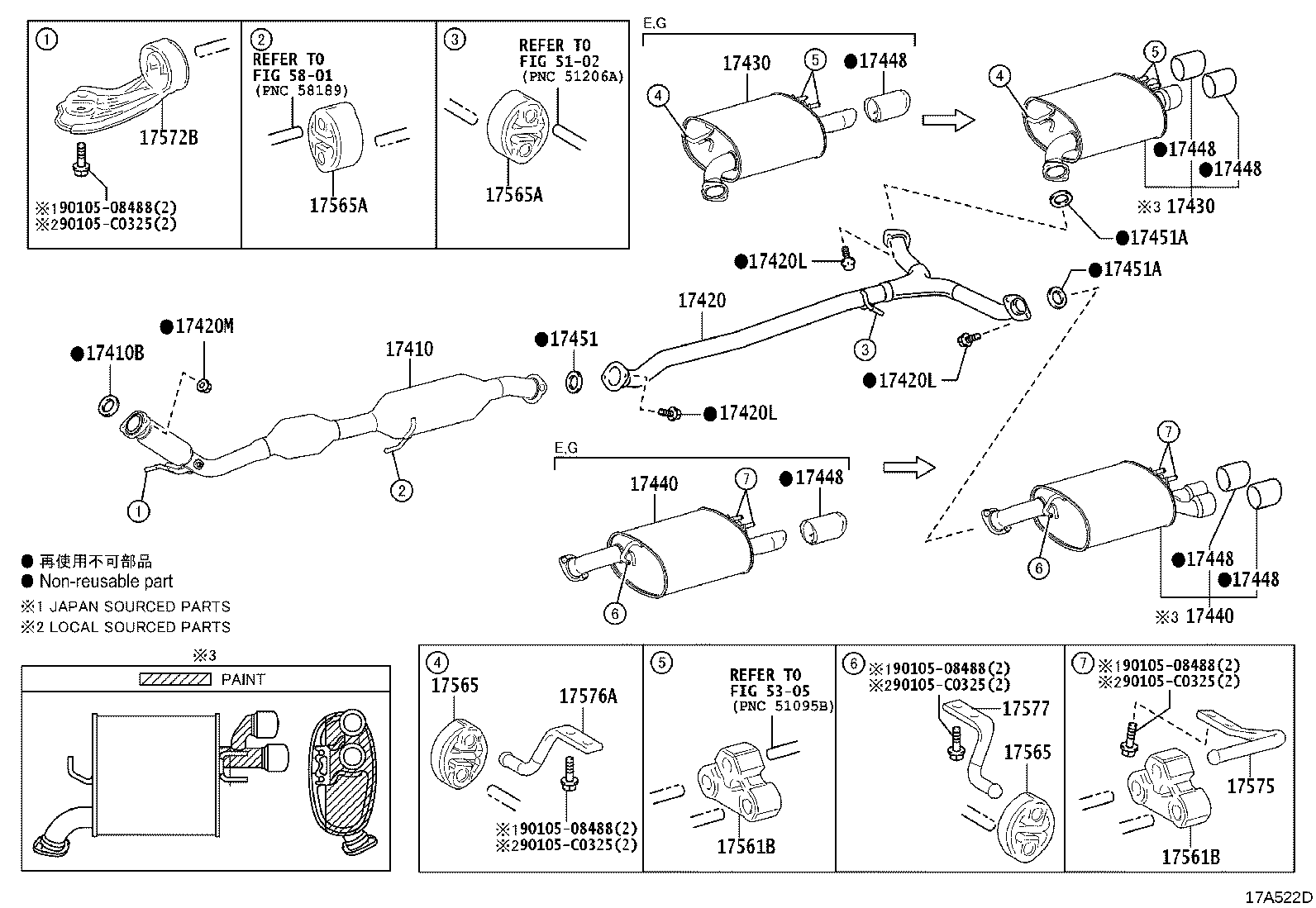

Figure 179865C 179865C 2017-12 → — Figure 179864C 179864C 2017-12 → — Figure 179863D 179863D 2017-12 → — Figure 179862D 179862D 2017-12 → — Figure 17A522D 17A522D 2019-03 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420L Bolt, Flange(FOR EXHAUST PIPE)
17420M Nut, Lock(FOR EXHAUST PIPE)
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
