Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 8 illustrations

Illustrations

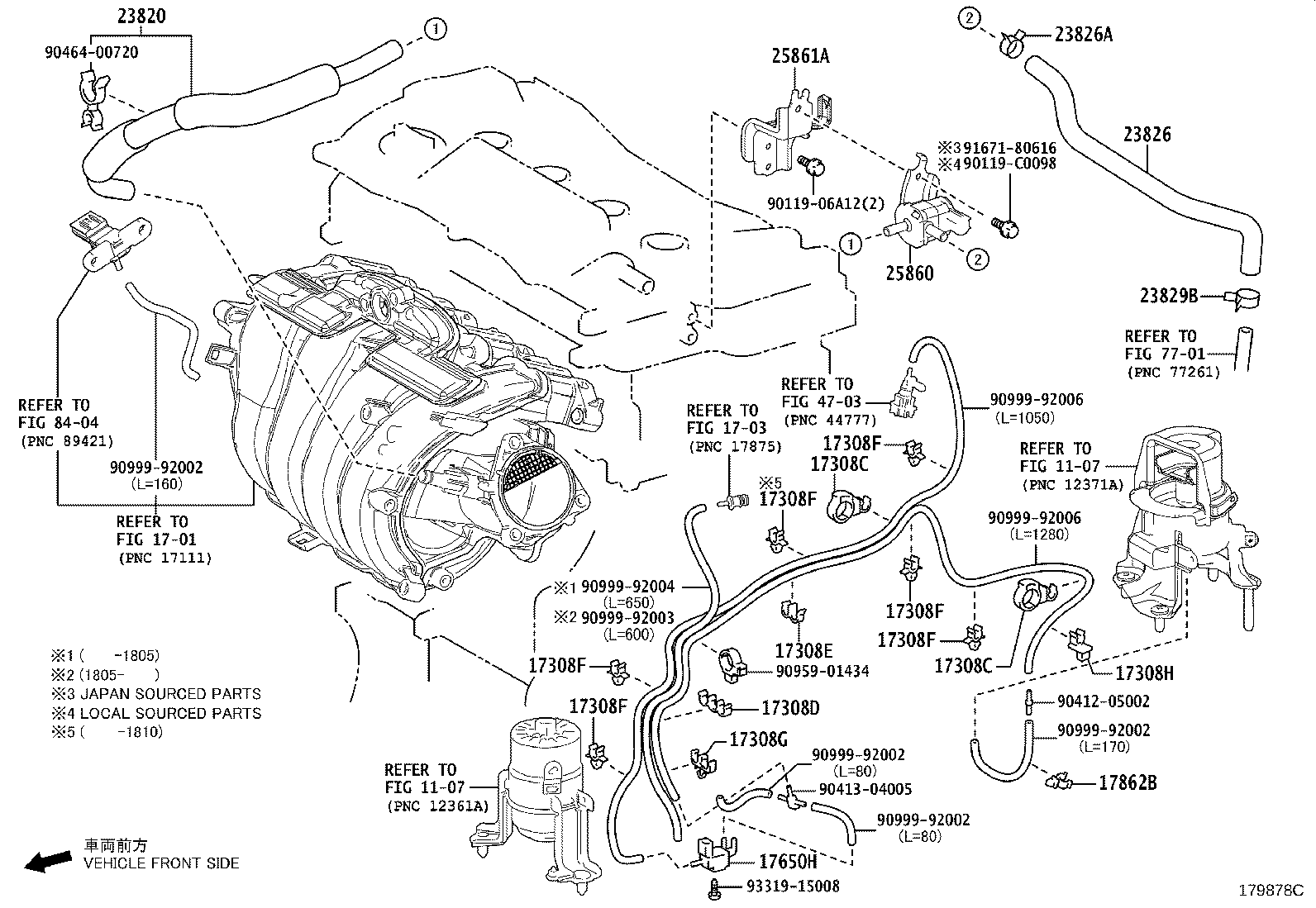

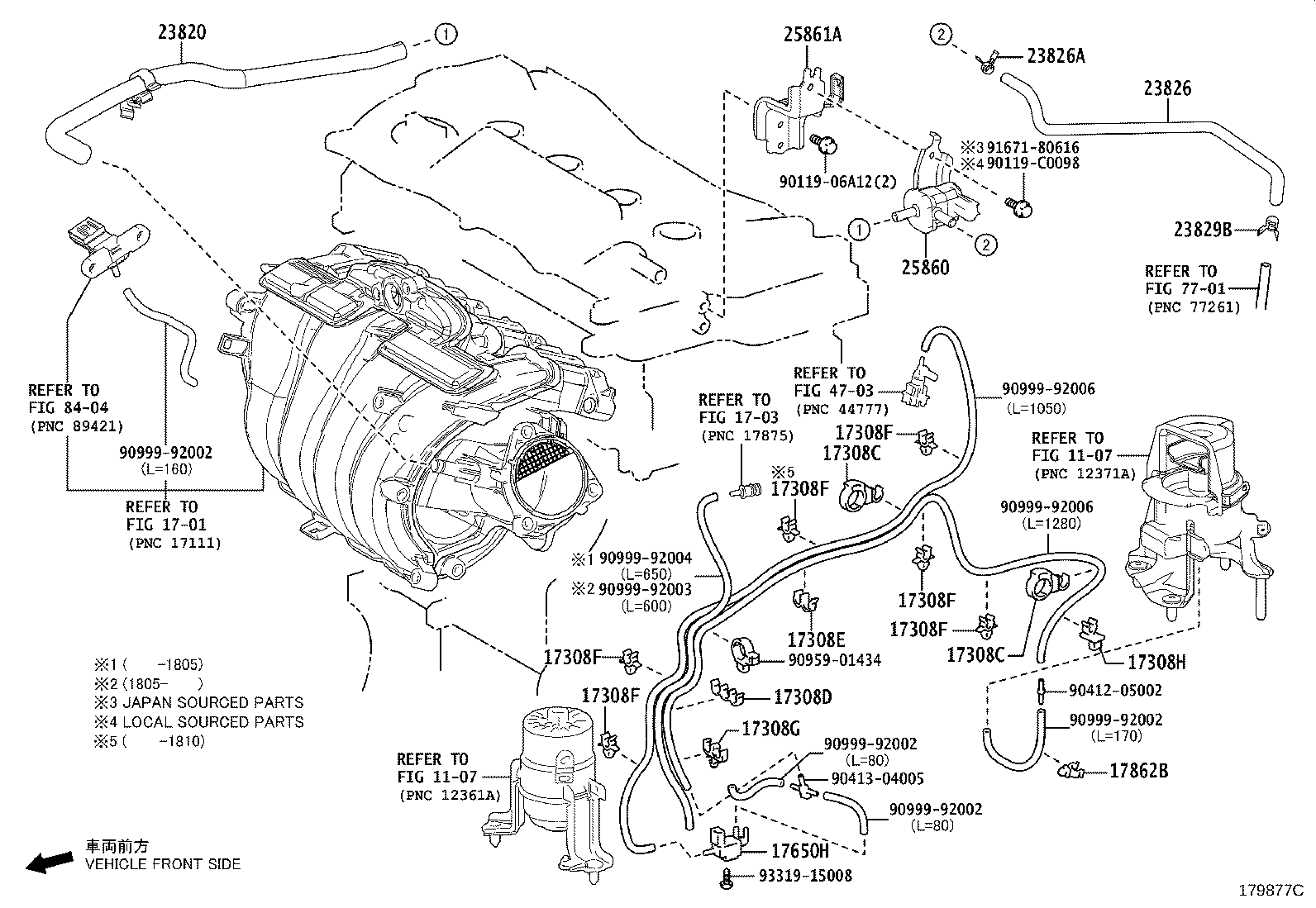

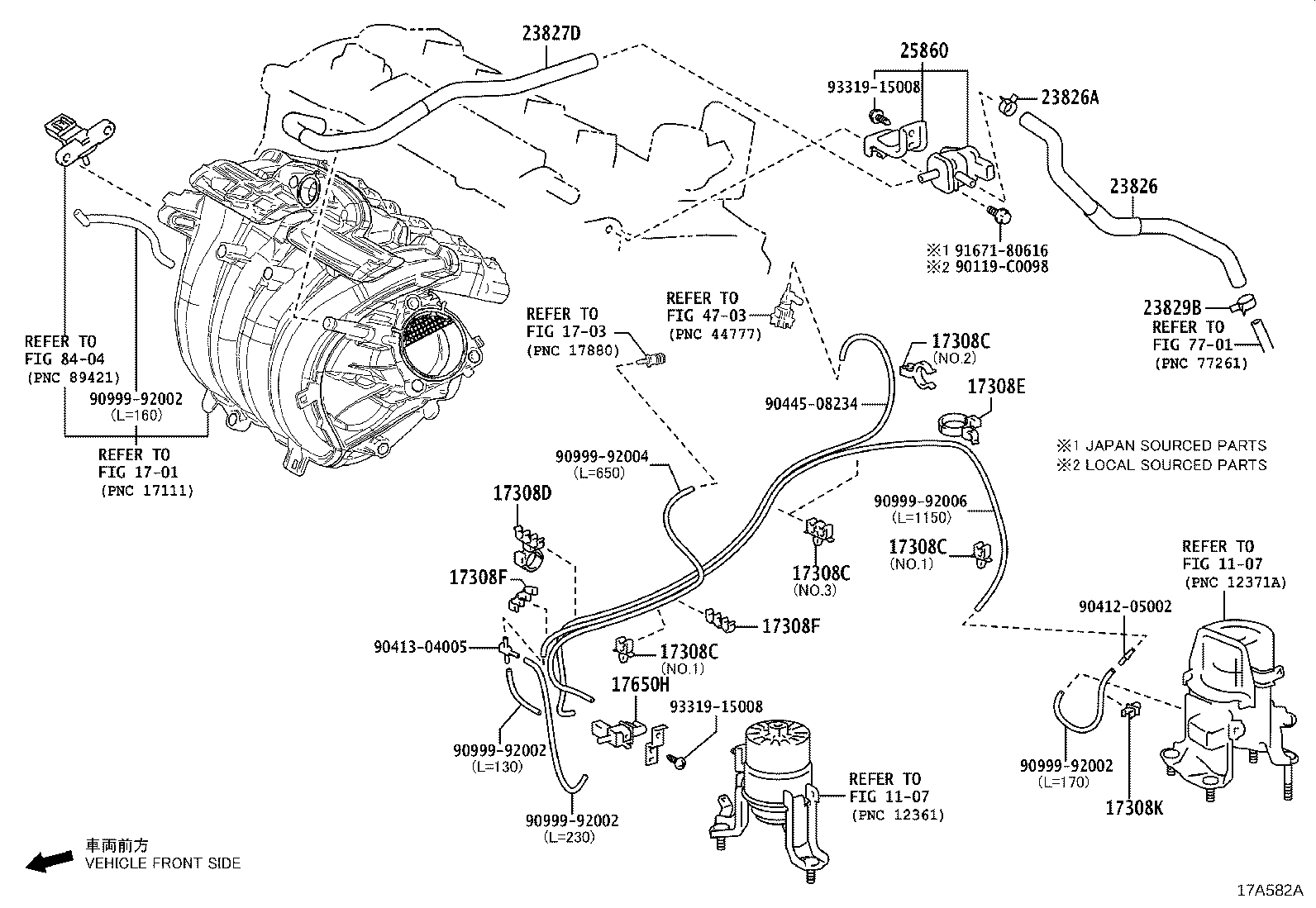

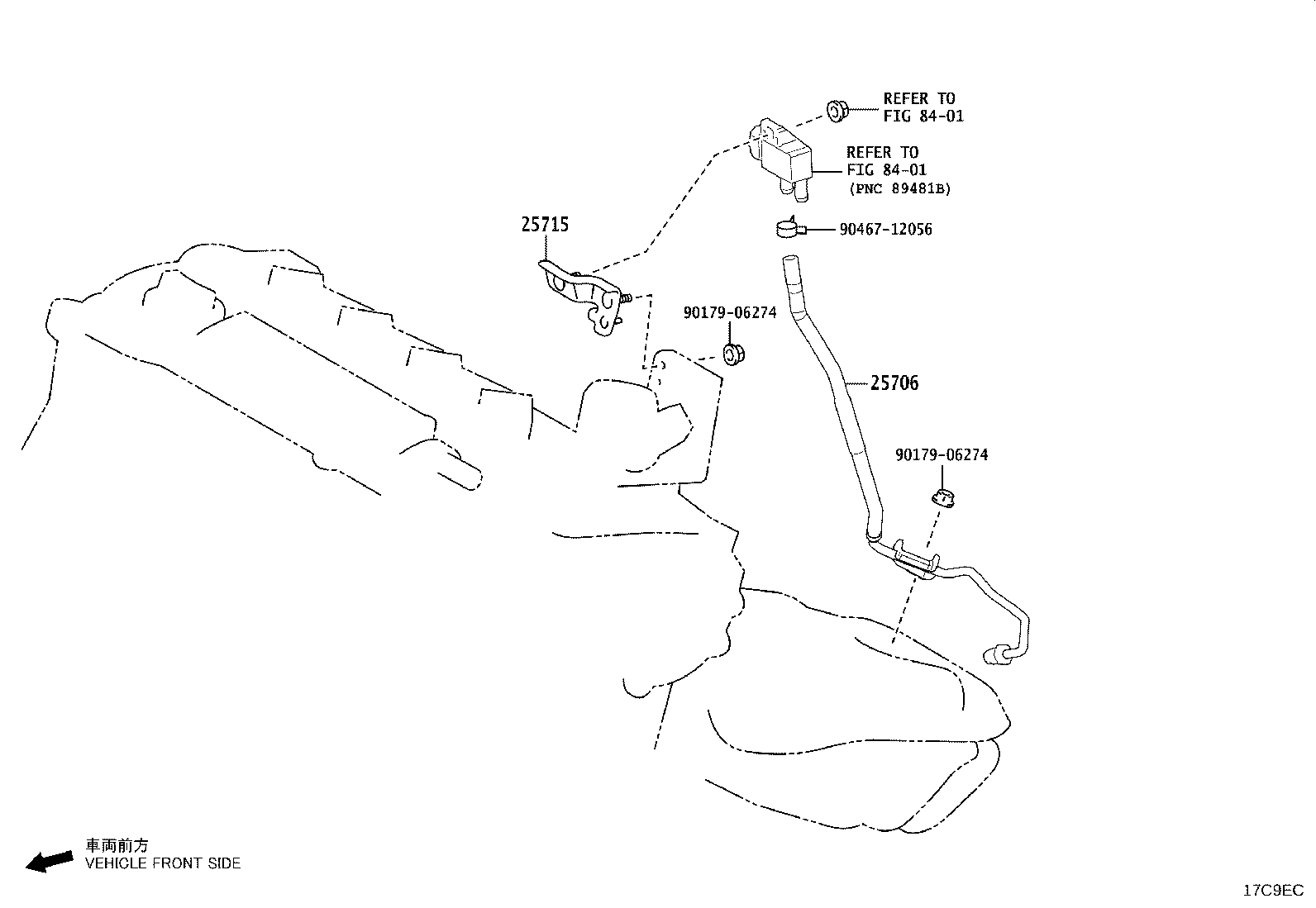

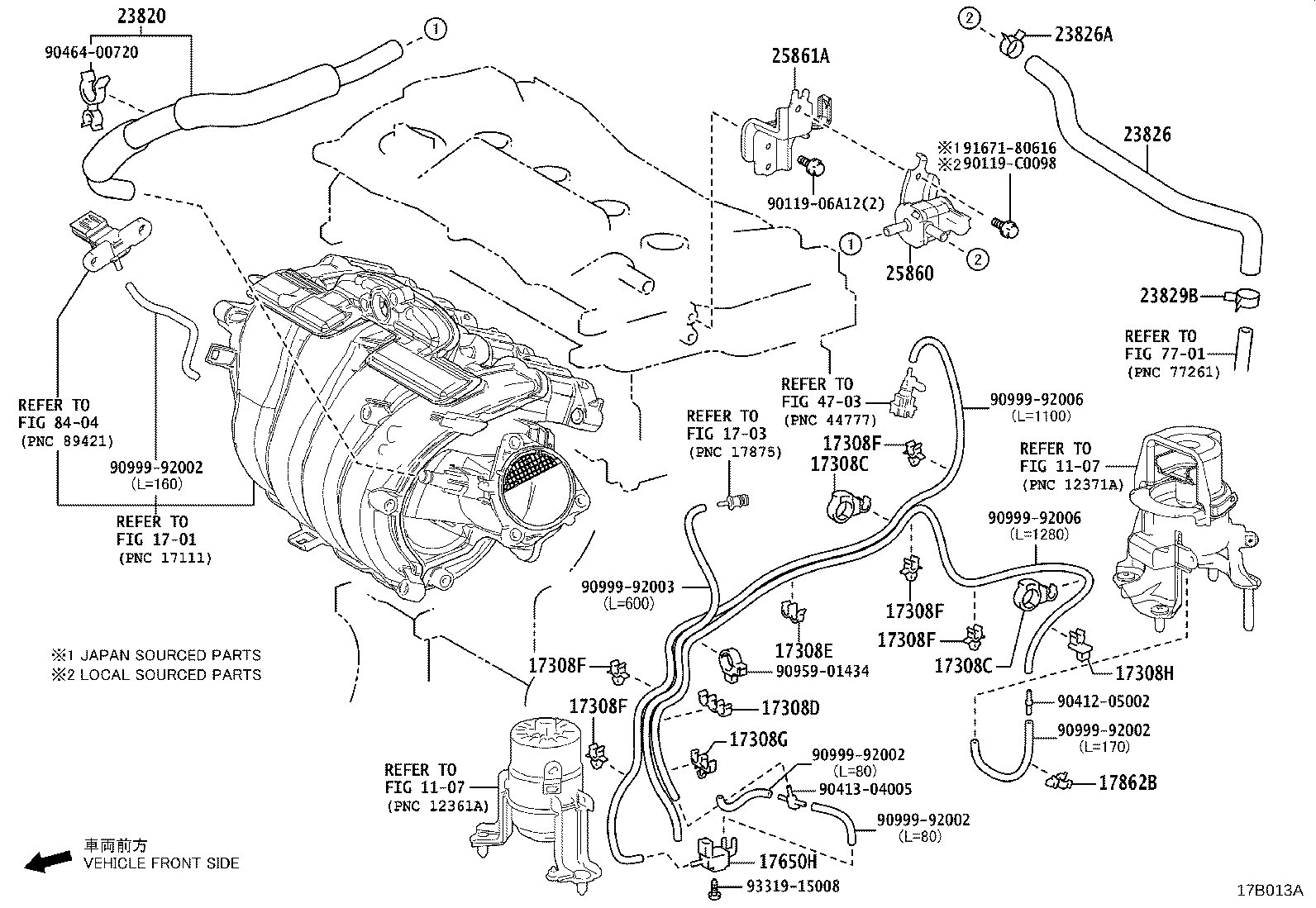

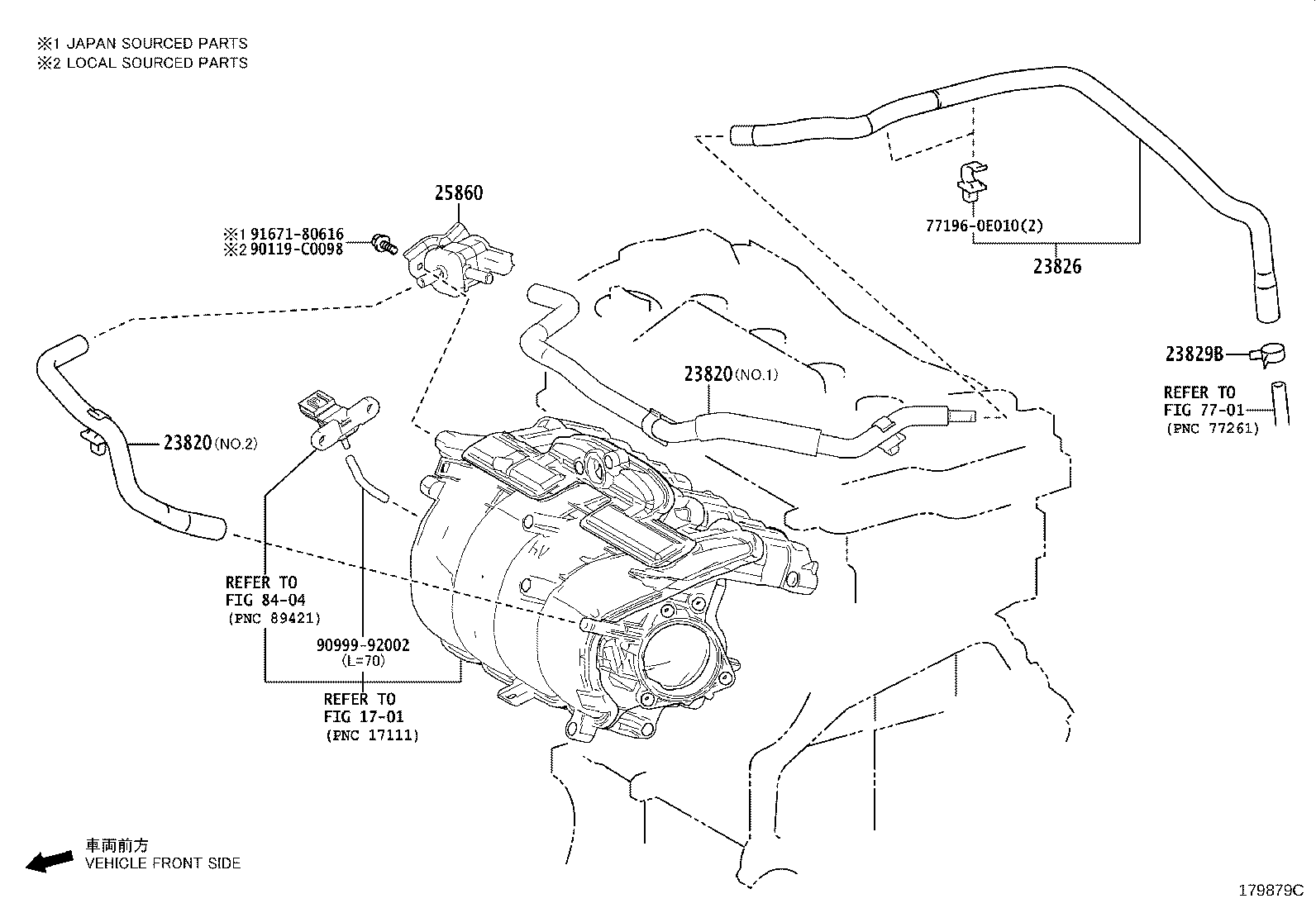

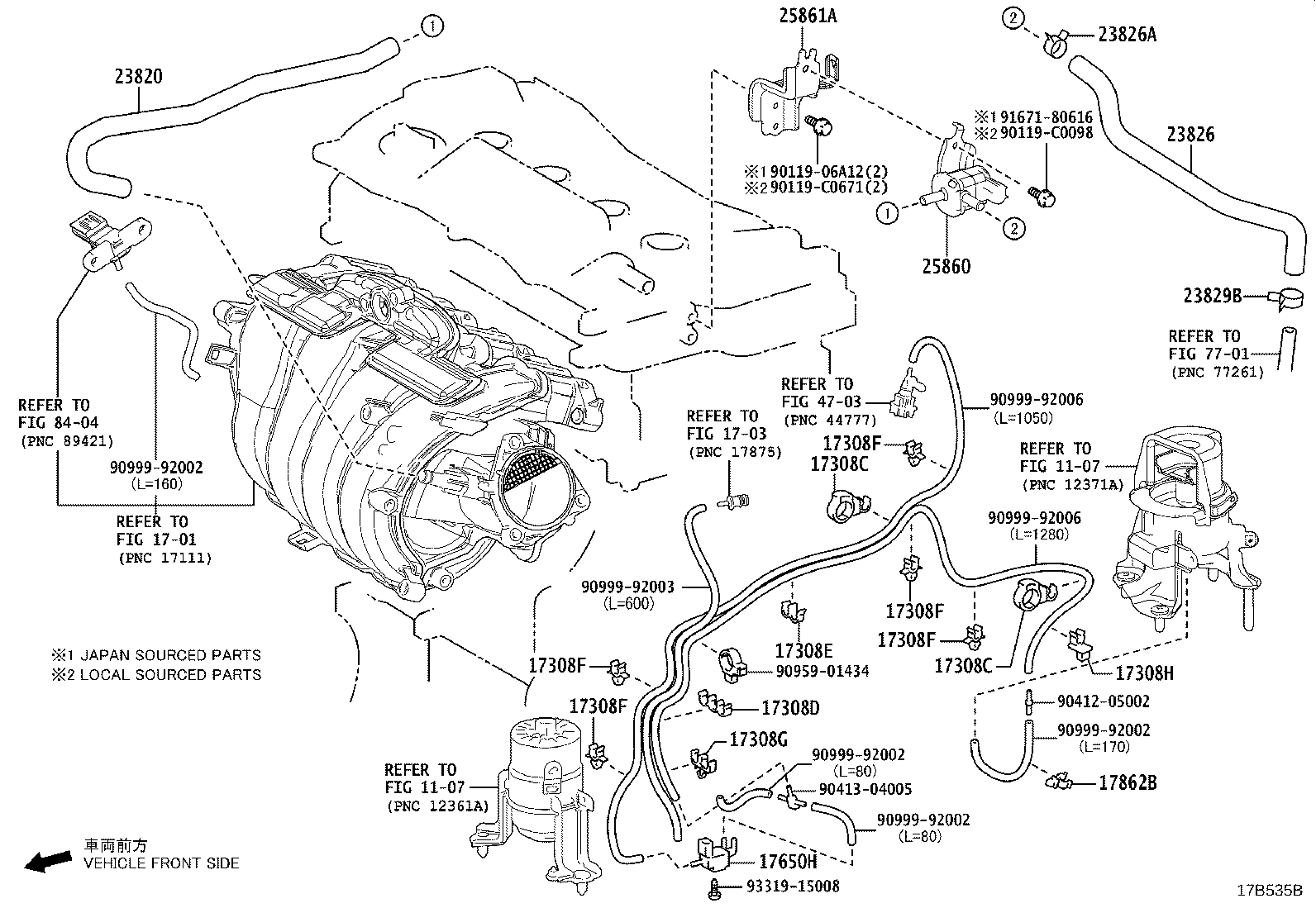

Figure 179880 179880 2017-12 → — Figure 179877C 179877C 2017-12 → 2020-01 Figure 179878C 179878C 2018-07 → 2020-01 Figure 17B013A 17B013A 2020-01 → 2021-03 Figure 17B535B 17B535B 2021-03 → — Figure 179879C 179879C 2017-12 → — Figure 17C9EC 17C9EC 2023-04 → — Figure 17A582A 17A582A 2019-03 → —

Part groups

PNCDescription
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17308K Clamp, NO.7(FOR VACUUM HOSE)
17650H Valve, Vacuum Switching
17862B Clamp, Hose
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827D Hose, Fuel Vapor Feed, NO.2
23827E Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25715 Bracket, Emission Control Valve
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
