Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

9 part groups · 3 illustrations

Illustrations

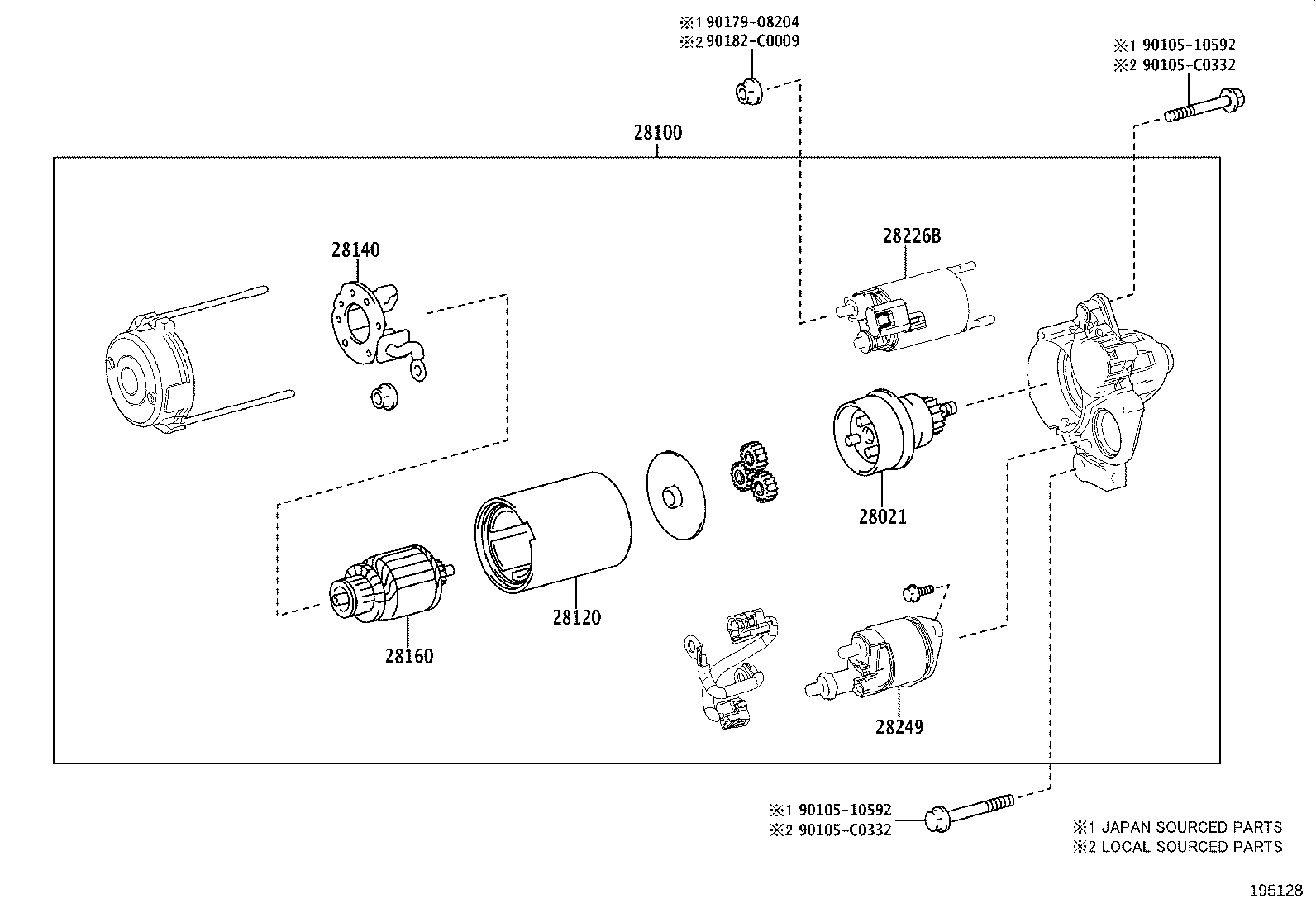

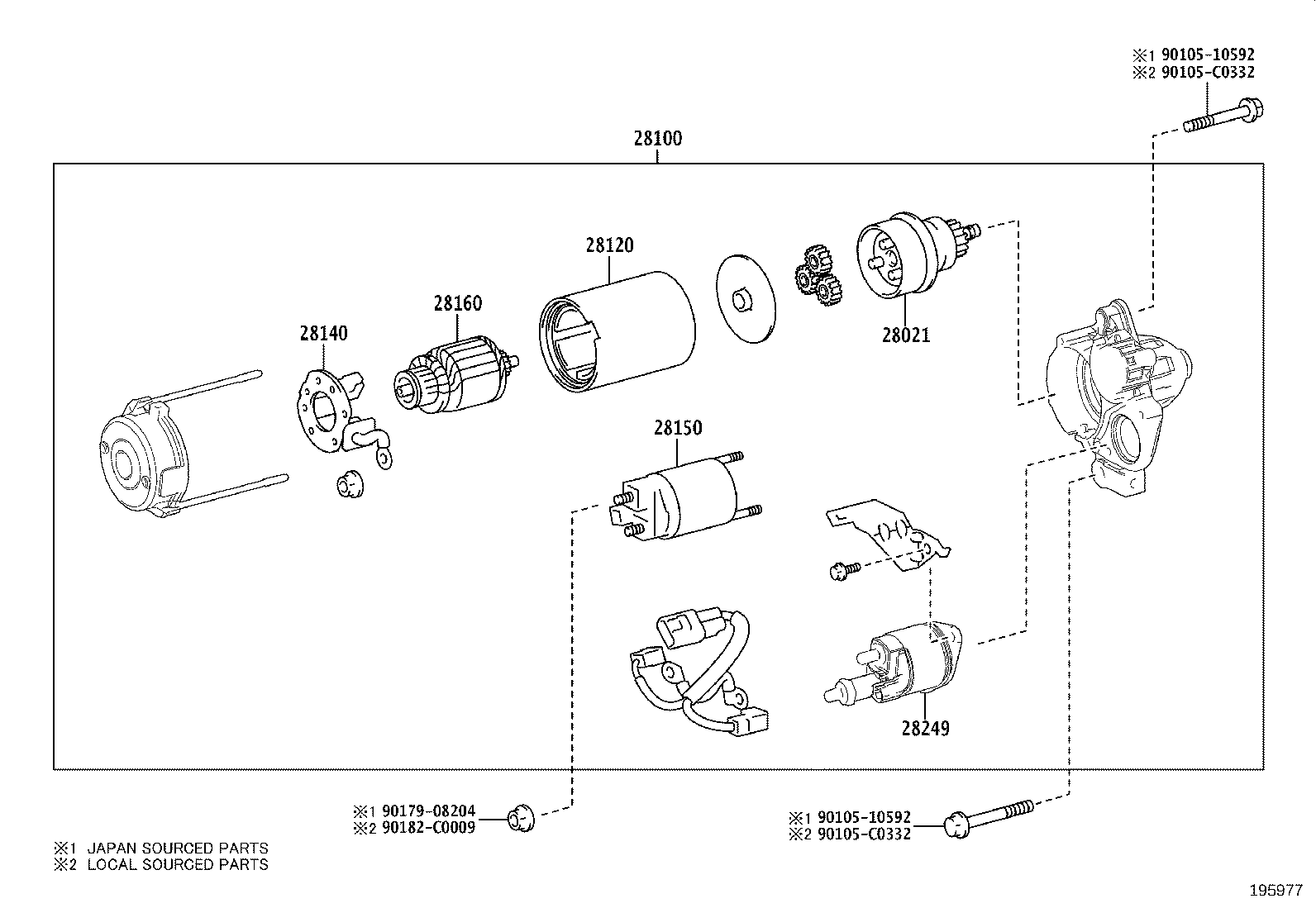

Figure 195110 195110 2017-12 → — Figure 195128 195128 2017-12 → 2021-03 Figure 195977 195977 2021-03 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28226B Starter Kit, Repair Service
28226C Starter Kit, Repair Service, NO.2
28249 Relay, Starter Inrush Current Reduction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
