Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 4 illustrations

Illustrations

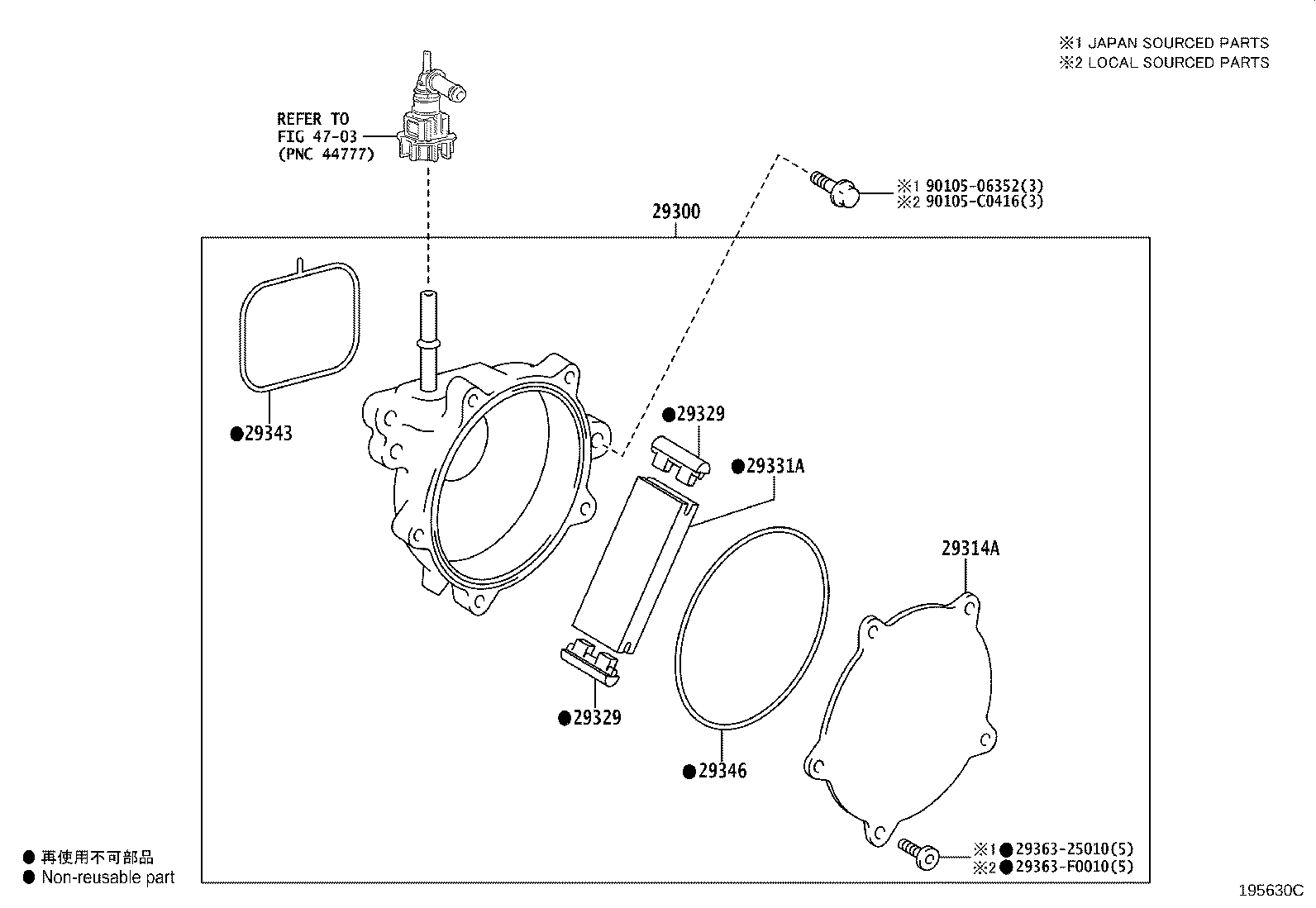

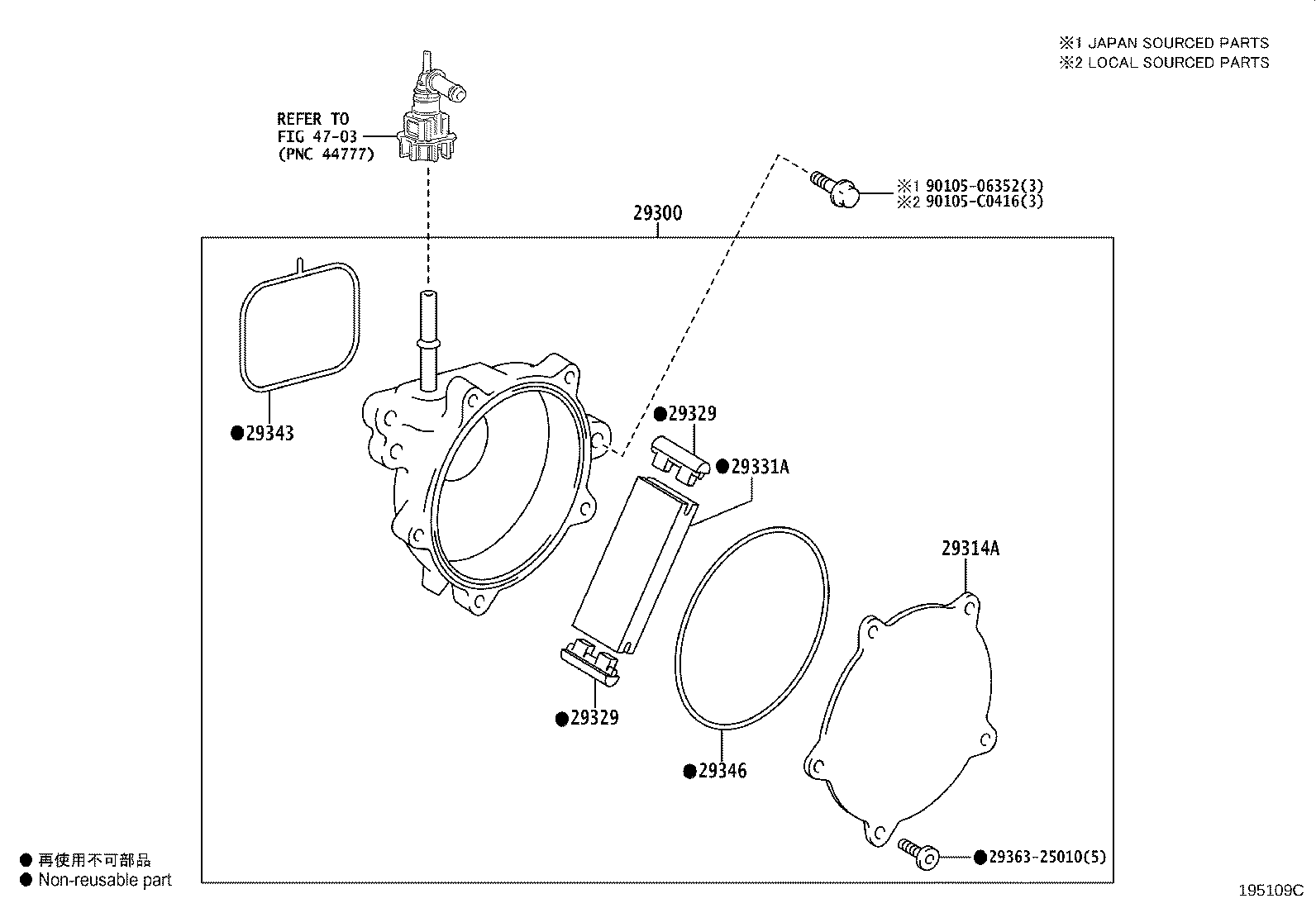

Figure 195108C 195108C 2017-12 → — Figure 195109C 195109C 2017-12 → — Figure 195630C 195630C 2019-03 → — Figure 195841C 195841C 2019-07 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29314A Cover, End
29329 Cap, Vacuum Pump Vane
29331A Vane, Vacuum Pump
29343 Ring, O Vacuum Pump, NO.1
29344 Ring, O Vacuum Pump, NO.2
29345 Ring, O Vacuum Pump, NO.3
29346 Ring, O Vacuum Pump Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
