Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

33 part groups · 4 illustrations

Illustrations

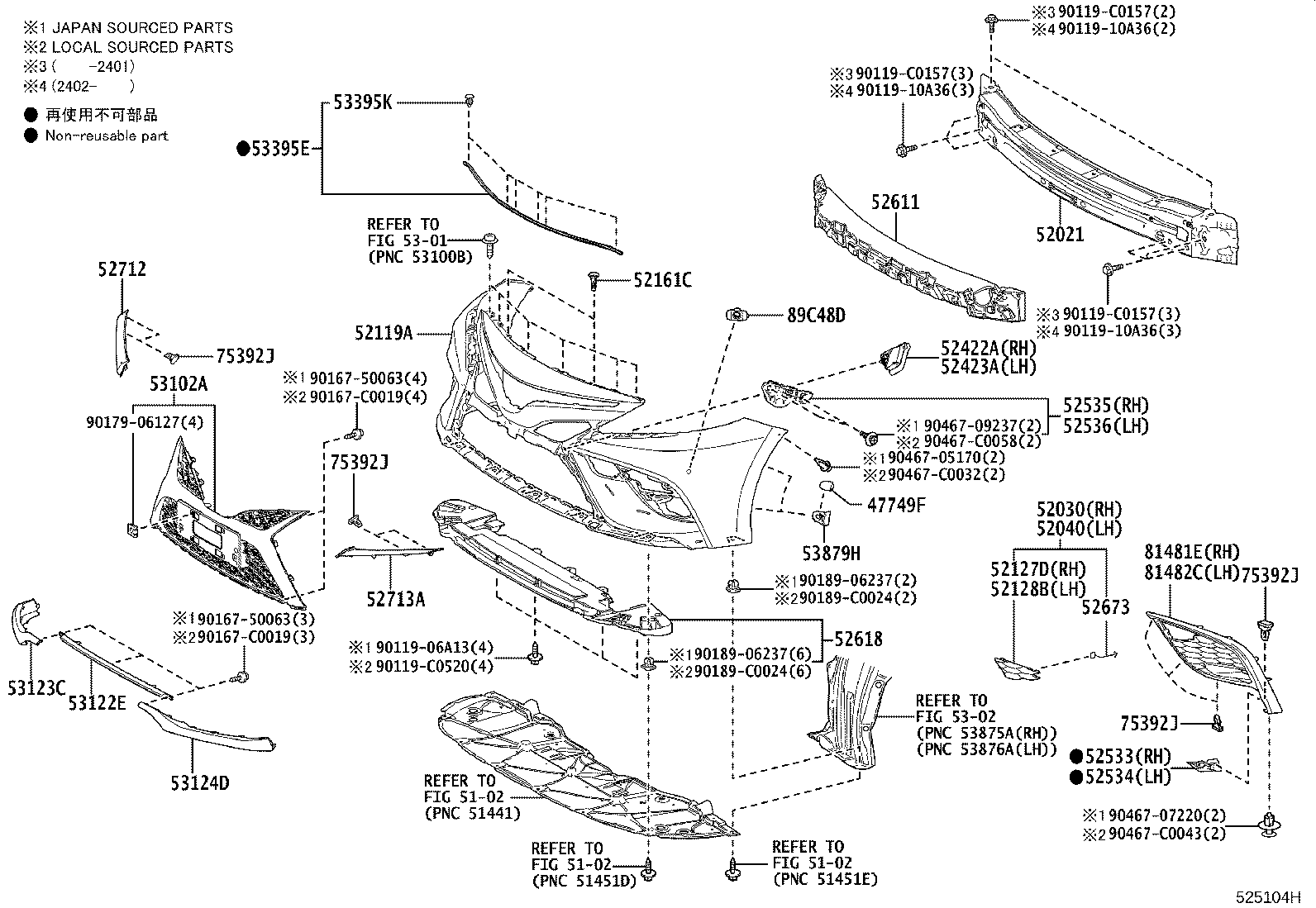

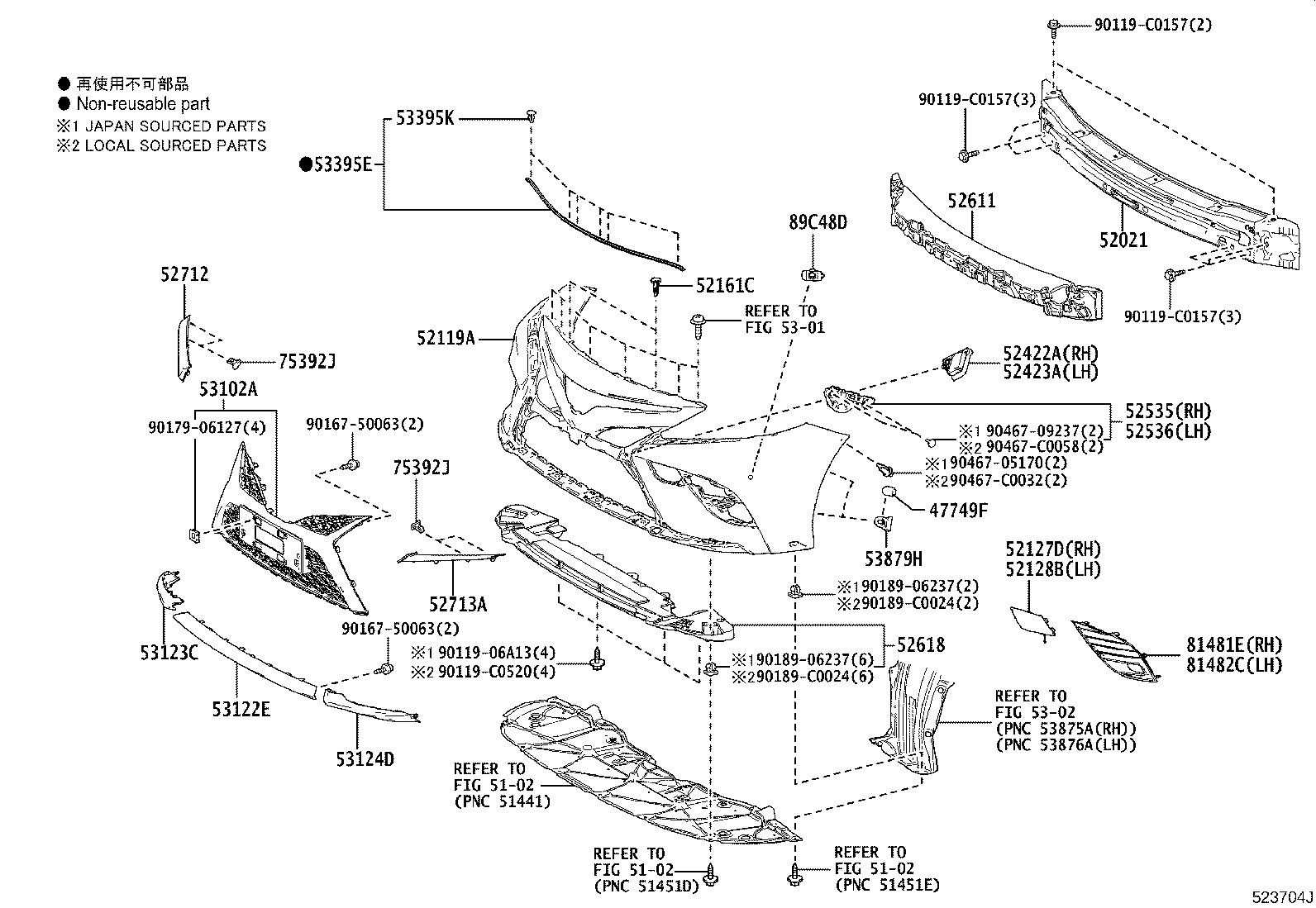

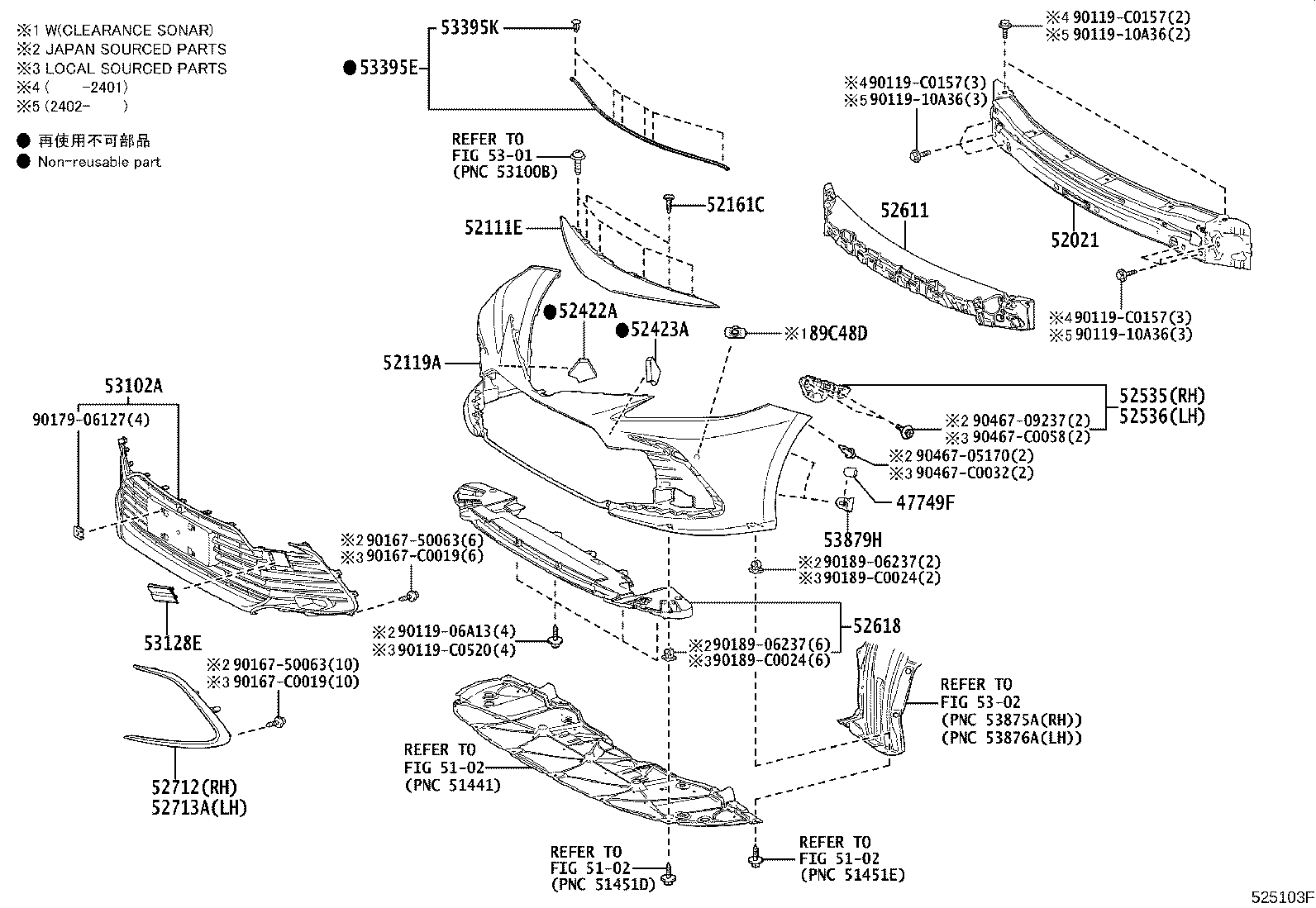

Figure 523703K 523703K 2017-12 → 2021-03 Figure 523704J 523704J 2017-12 → 2021-03 Figure 525103F 525103F 2021-03 → — Figure 525104H 525104H 2021-03 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52111E Bar, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52673 Arm, Front Bumper, NO.1
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53122E Moulding, Radiator Grille, Lower
53123C Moulding, Radiator Grille, Lower RH
53124D Moulding, Radiator Grille, Lower LH
53128E Grille, Radiator, Lower Side LH
53395E Seal, Hood TO Front End Panel
53395K Clip(FOR HOOD TO FRONT END PANEL SEAL)
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
