Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 4 illustrations

Illustrations

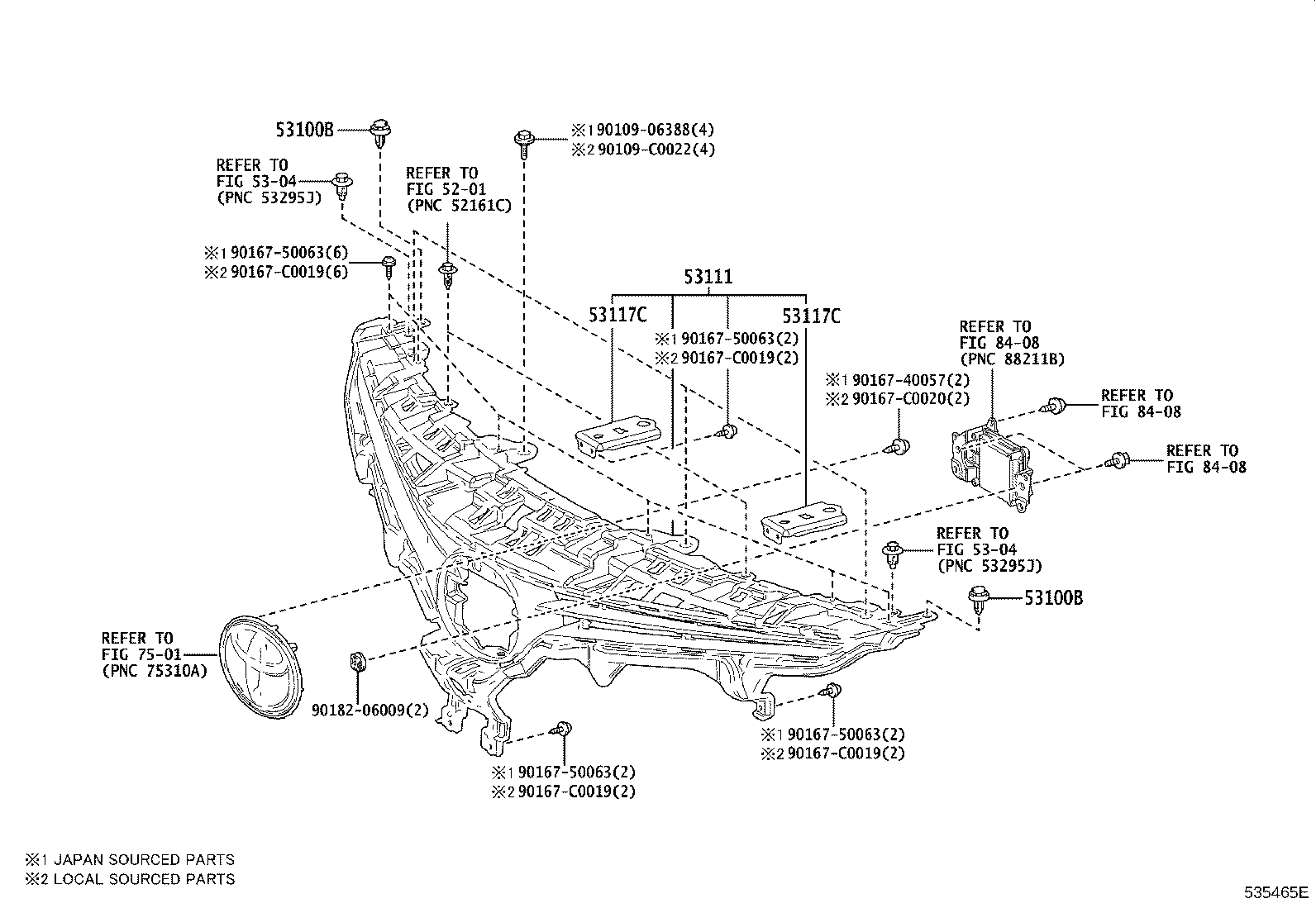

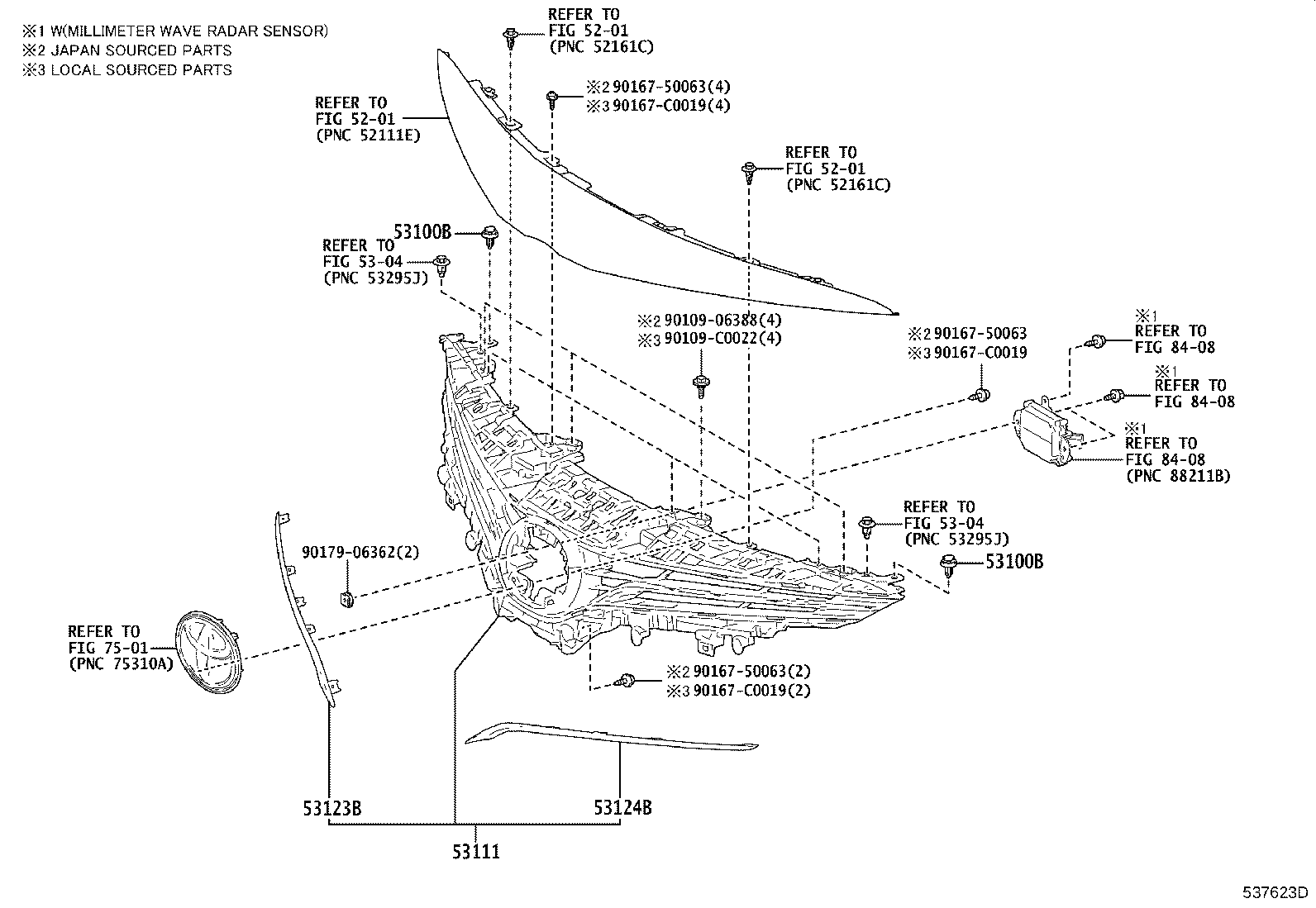

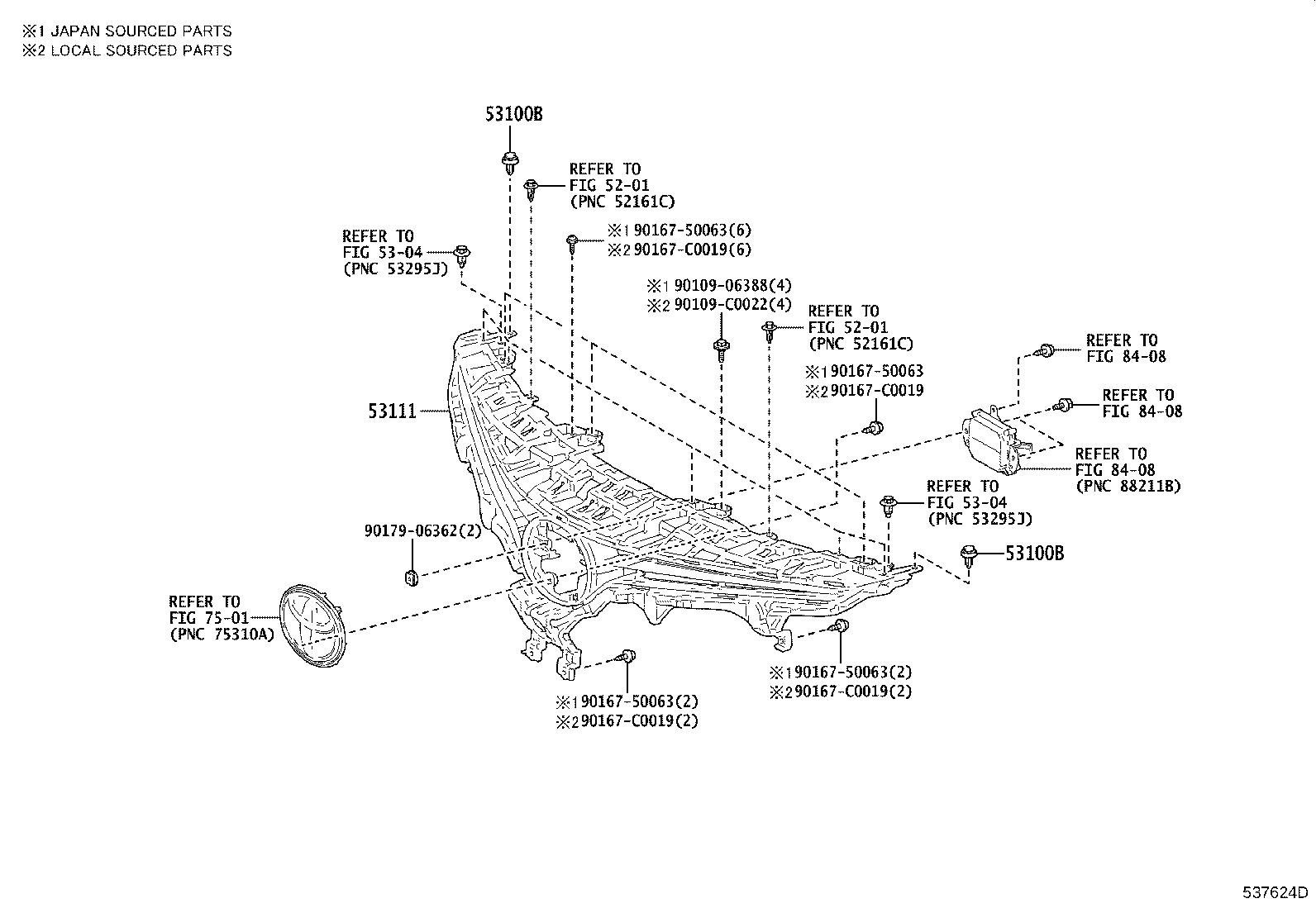

Figure 535464E 535464E 2017-12 → 2021-03 Figure 535465E 535465E 2017-12 → 2021-03 Figure 537623D 537623D 2021-03 → — Figure 537624D 537624D 2021-03 → —

Part groups

PNCDescription
53100B Clip, Radiator Grille
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
