Toyota Camry/Hybrid (CHINA)
2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General
Supported model
Data version 2021-02

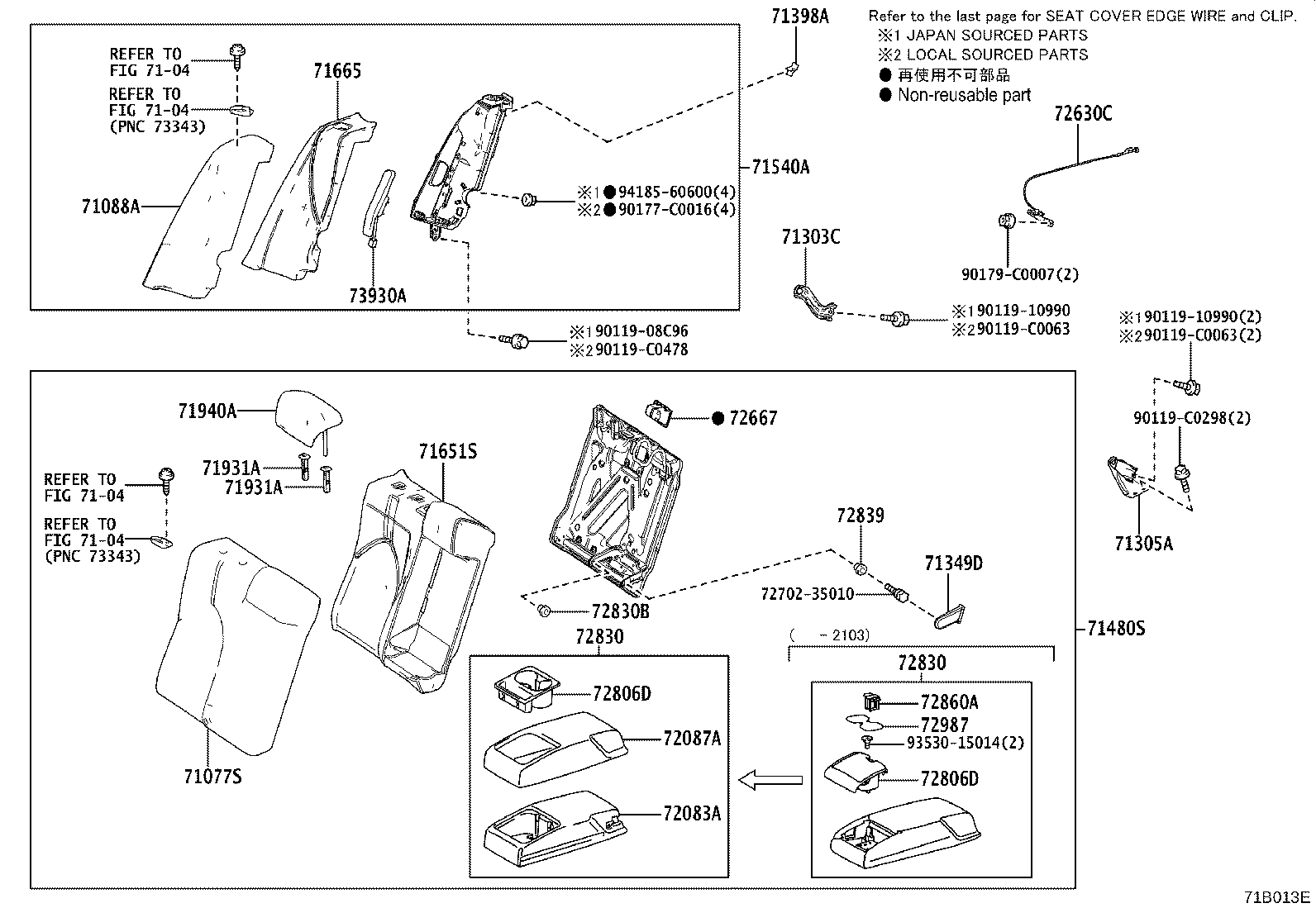

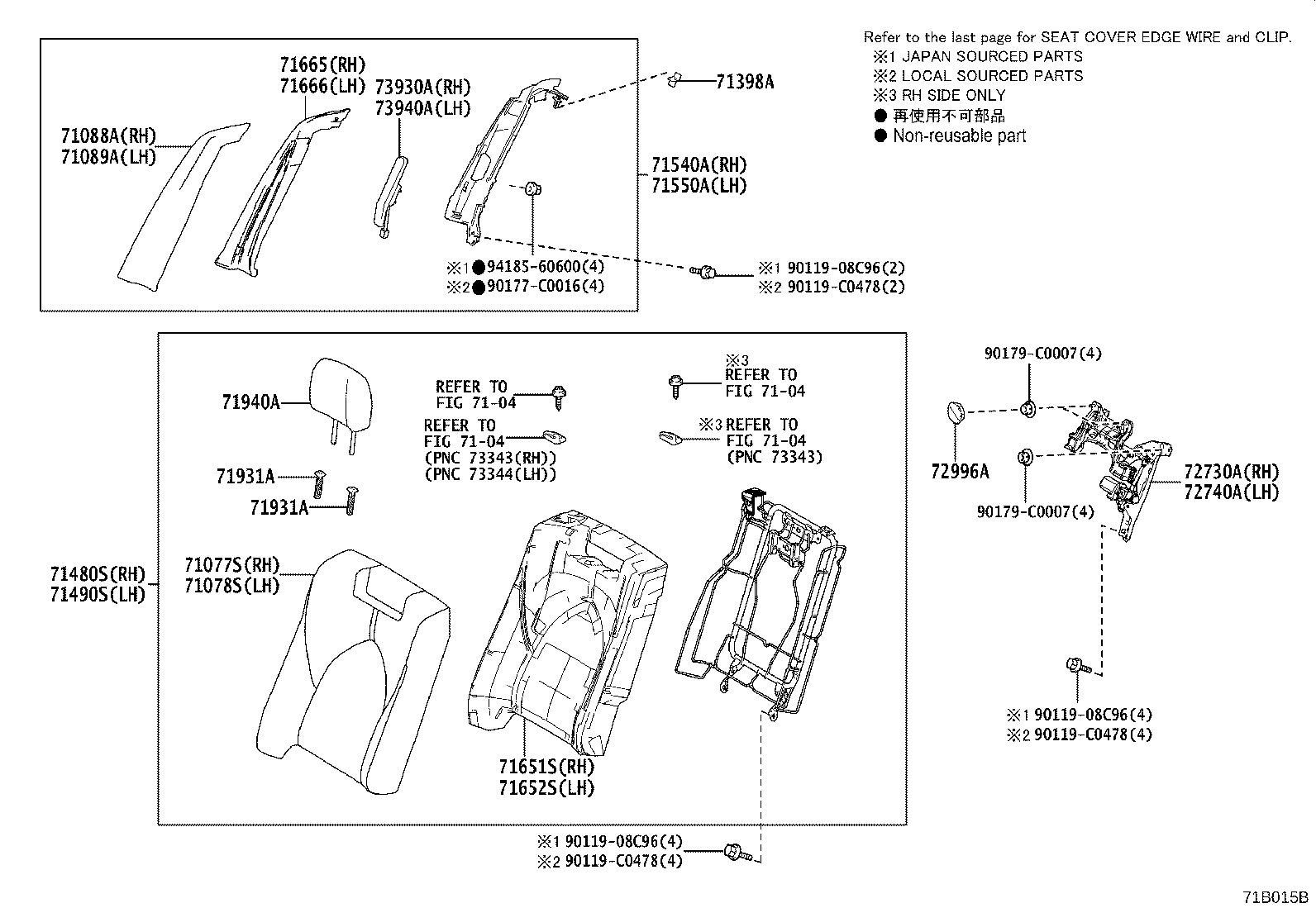

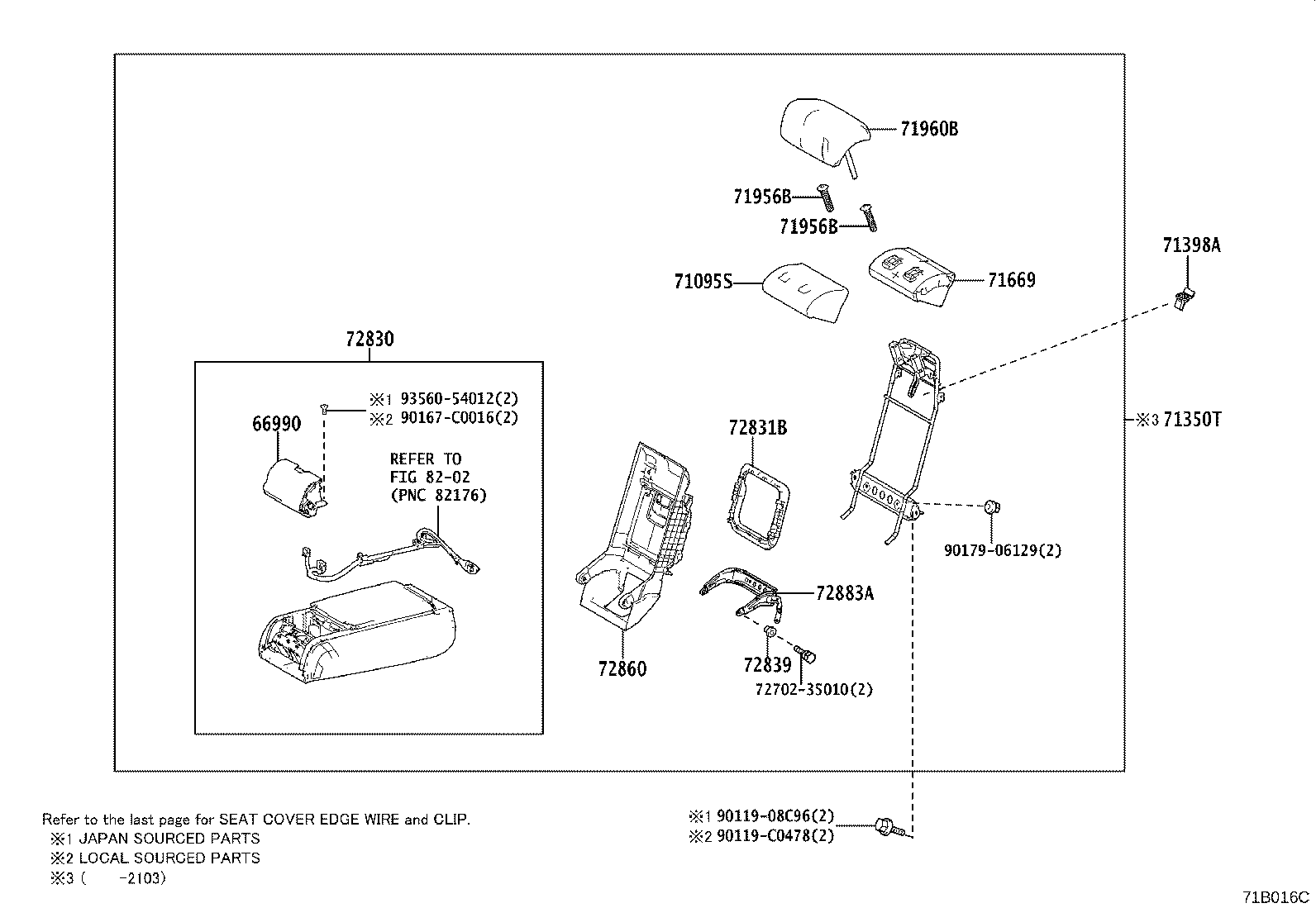

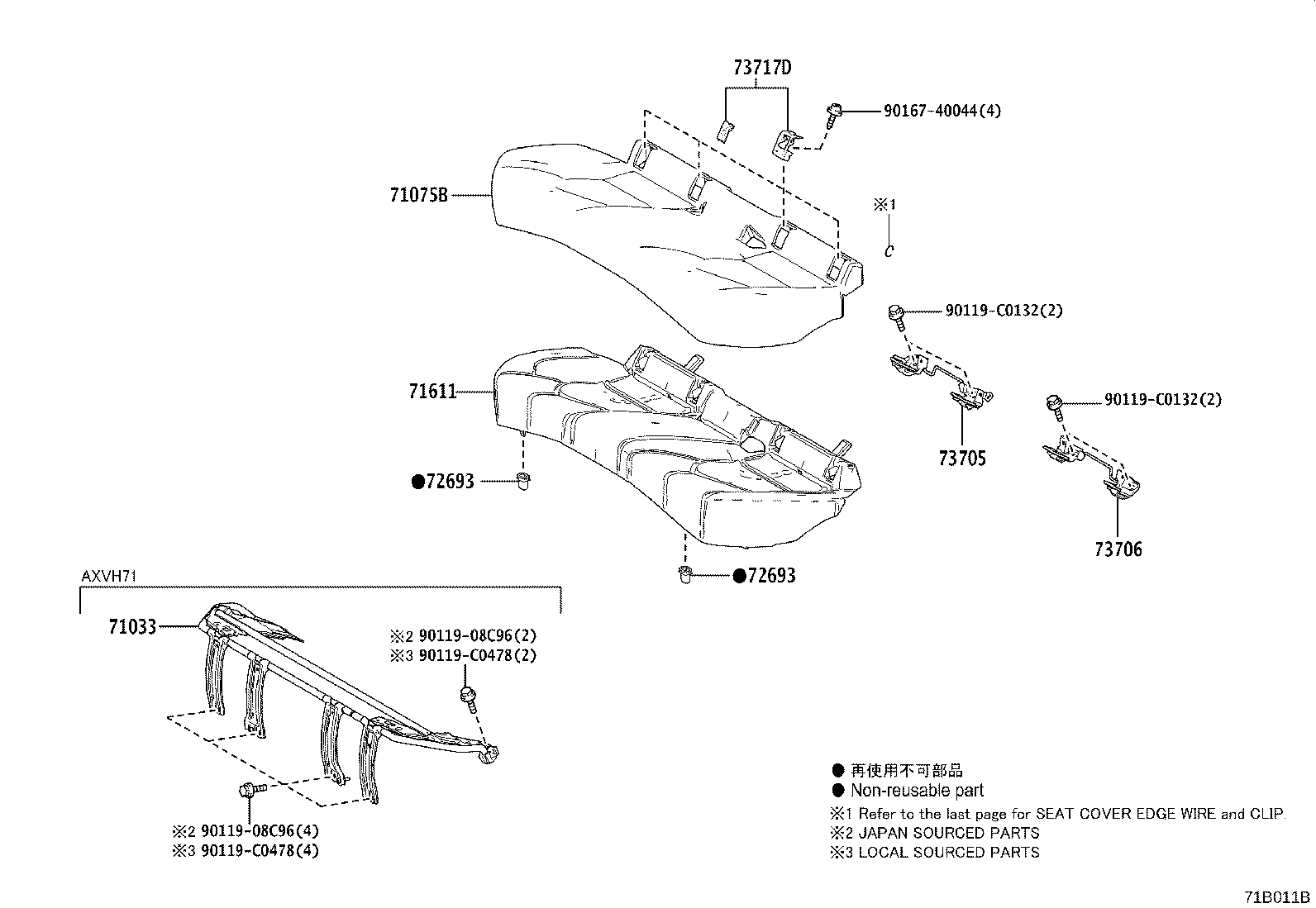

Rear Seat & Seat Track
53 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71088A | Cover Sub-assy, Rear Side Seatback, RH |
| 71089A | Cover Sub-assy, Rear Side Seatback, LH |
| 71095S | Cover Sub-assy, Center Seatback |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71349D | Cover, Rear Seatback Hinge, RH |
| 71350T | Back Assy, Center Seat |
| 71398A | Holder, Rear Seatback |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71665 | Pad, Rear Seatback Side, RH |
| 71666 | Pad, Rear Seatback Side, LH |
| 71669 | Pad, Rear Seatback |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72083A | Pad Sub-assy, Rear Seat Center Armrest |
| 72087A | Cover Sub-assy, Rear Seat Center Armrest |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72806D | Holder Sub-assy, Rear Seat Center Armrest Cup |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
| 72831B | Plate, Rear Seat Center Armrest, NO.1 |
| 72839 | Shim, Rear Seat Armrest Hinge |
| 72860 | Box Assy, Rear Seat Center Armrest |
| 72860A | Box Assy, Rear Seat Center Armrest, NO.2 |
| 72883A | Bracket, Rear Seat Center Armrest, NO.1 |
| 72987 | Cover, Rear Seat Center Armrest |
| 72996A | Cover, Rear Seatback |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
| 73717D | Cover, Child Restraint Seat Tether Anchor |
| 73930A | Airbag Assy, Rear Seat, RH |
| 73940A | Airbag Assy, Rear Seat, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
