Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

16 part groups · 2 illustrations

Illustrations

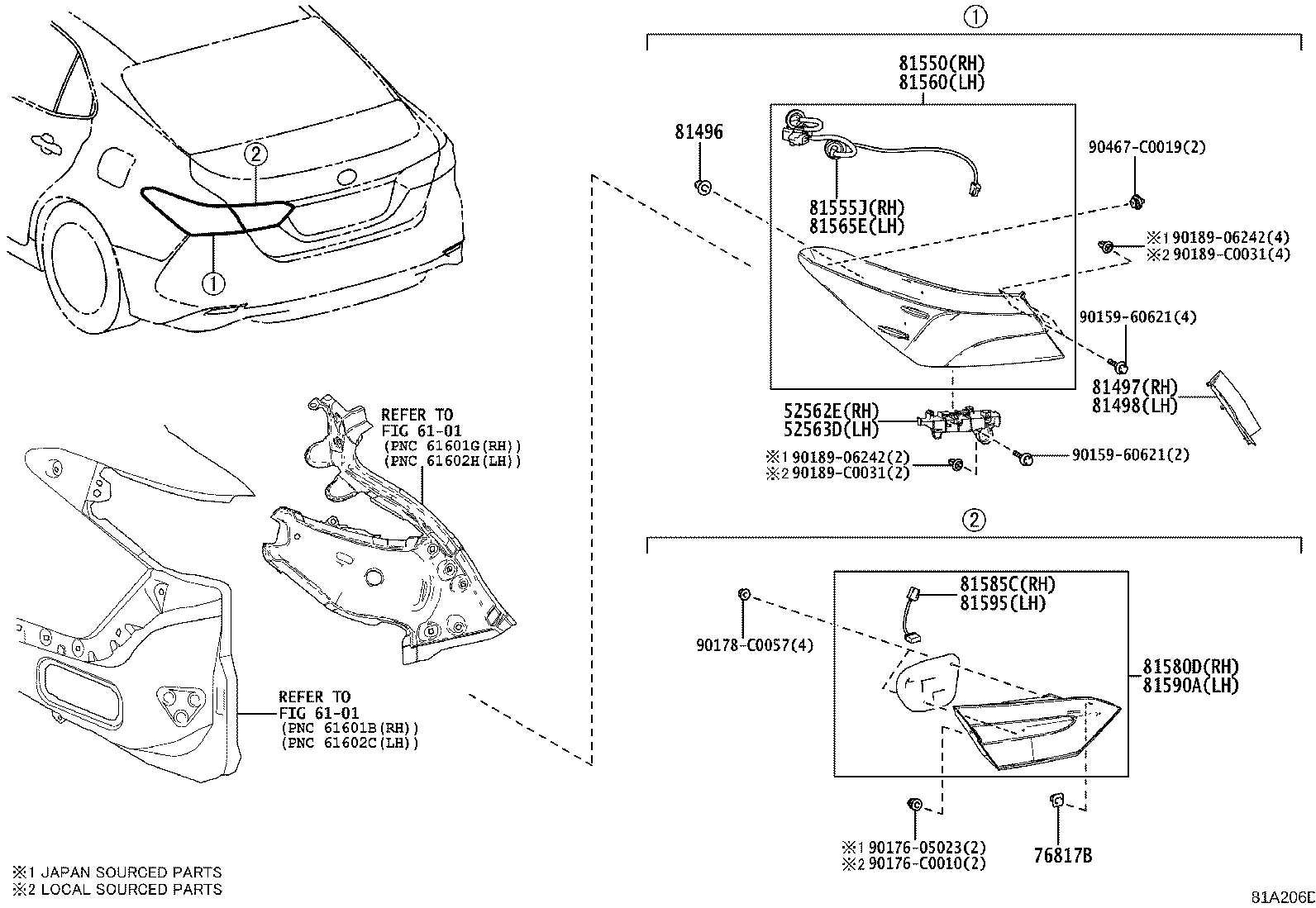

Figure 818416E 818416E 2017-12 → — Figure 81A206D 81A206D 2017-12 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
76817B Clip, Rear Lamp
81496 Guide, Rear Combination Lamp
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81555J Socket & Wire, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81565E Socket & Wire, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81585C Socket & Wire, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81595 Socket & Wire, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
