Toyota Camry/Hybrid (CHINA)
2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General
Supported model
Data version 2021-02
Meter

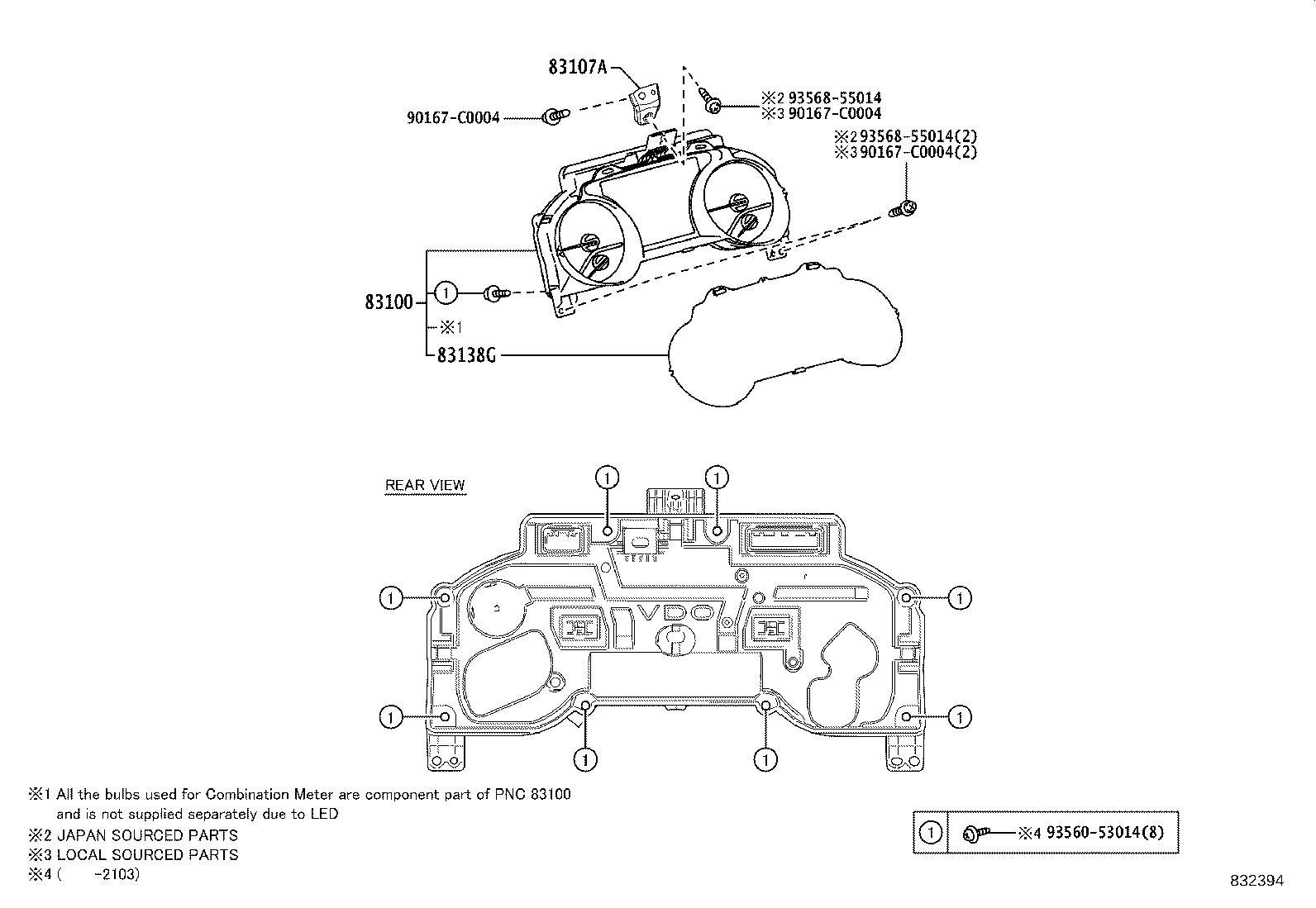

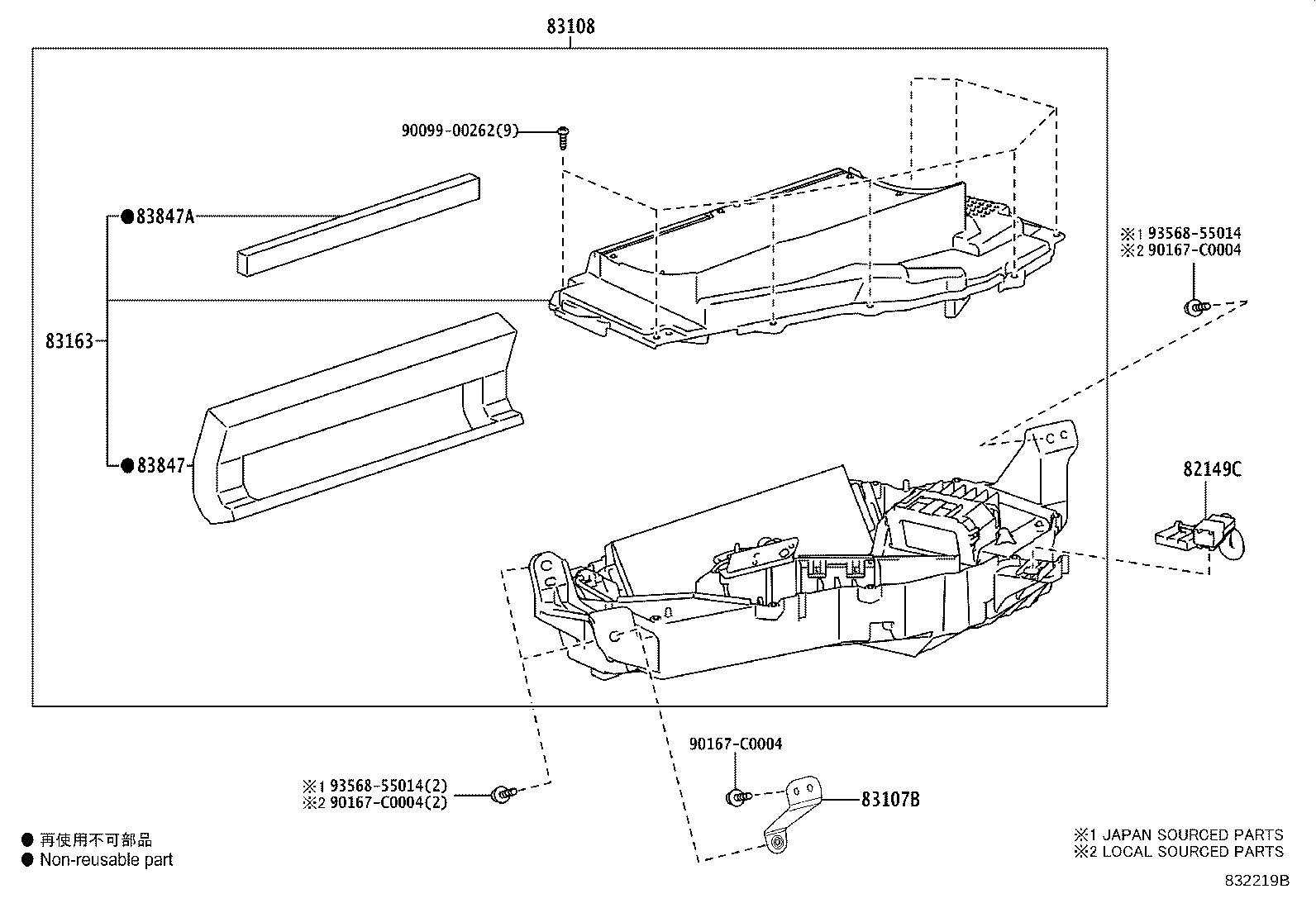

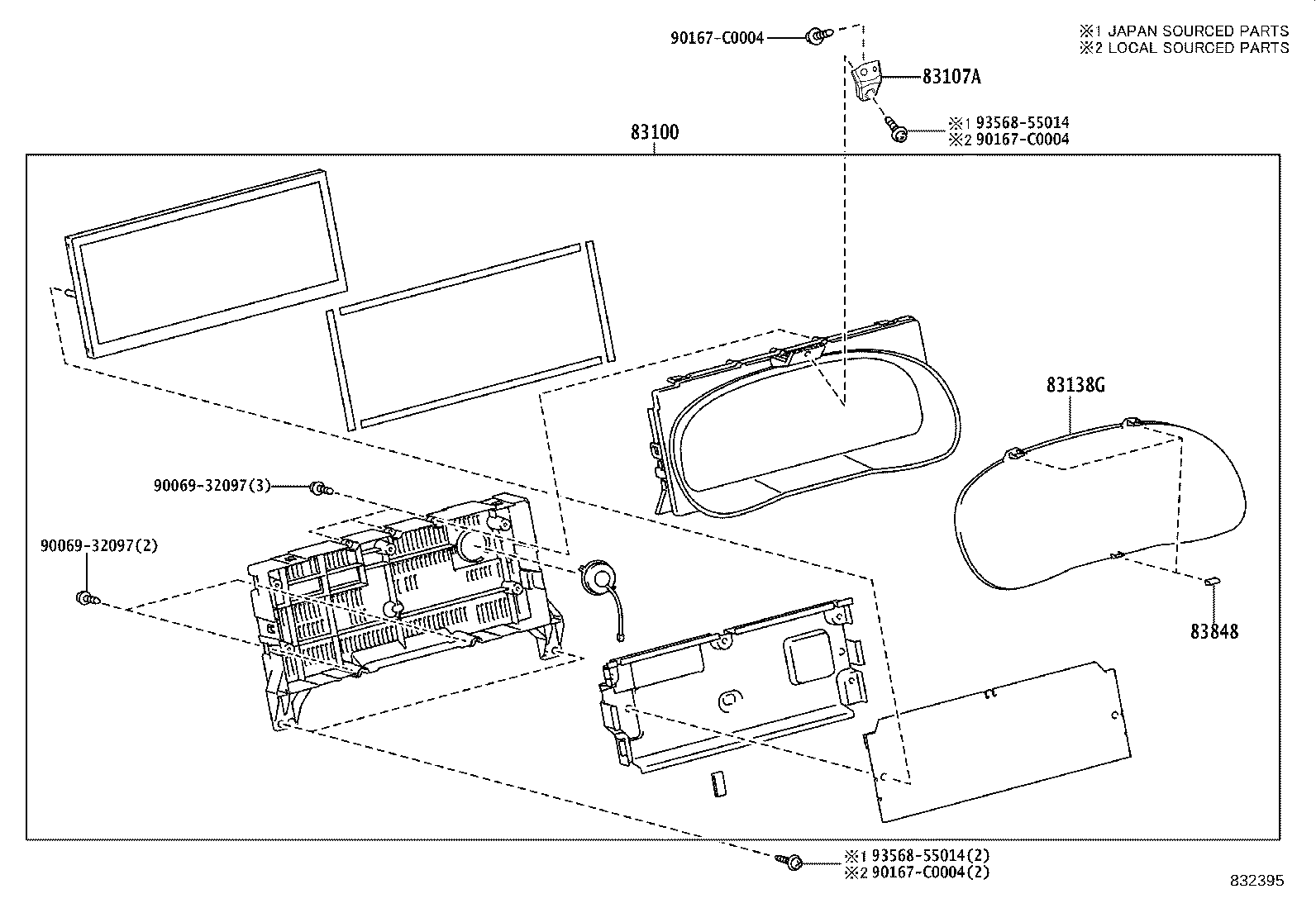

10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82149C | Wire, Meter Mirror |
| 83100 | Meter Assy, Combination |
| 83107A | Bracket Sub-assy, Meter, NO.1 |
| 83107B | Bracket Sub-assy, Meter, NO.2 |
| 83108 | Mirror Sub-assy, Meter |
| 83138G | Glass, Combination Meter |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83847 | Cushion, Combination Speedometer, NO.1 |
| 83847A | Cushion, Combination Speedmeter |
| 83848 | Cushion, Combination Speedometer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
