Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

129 part groups · 13 illustrations

Illustrations

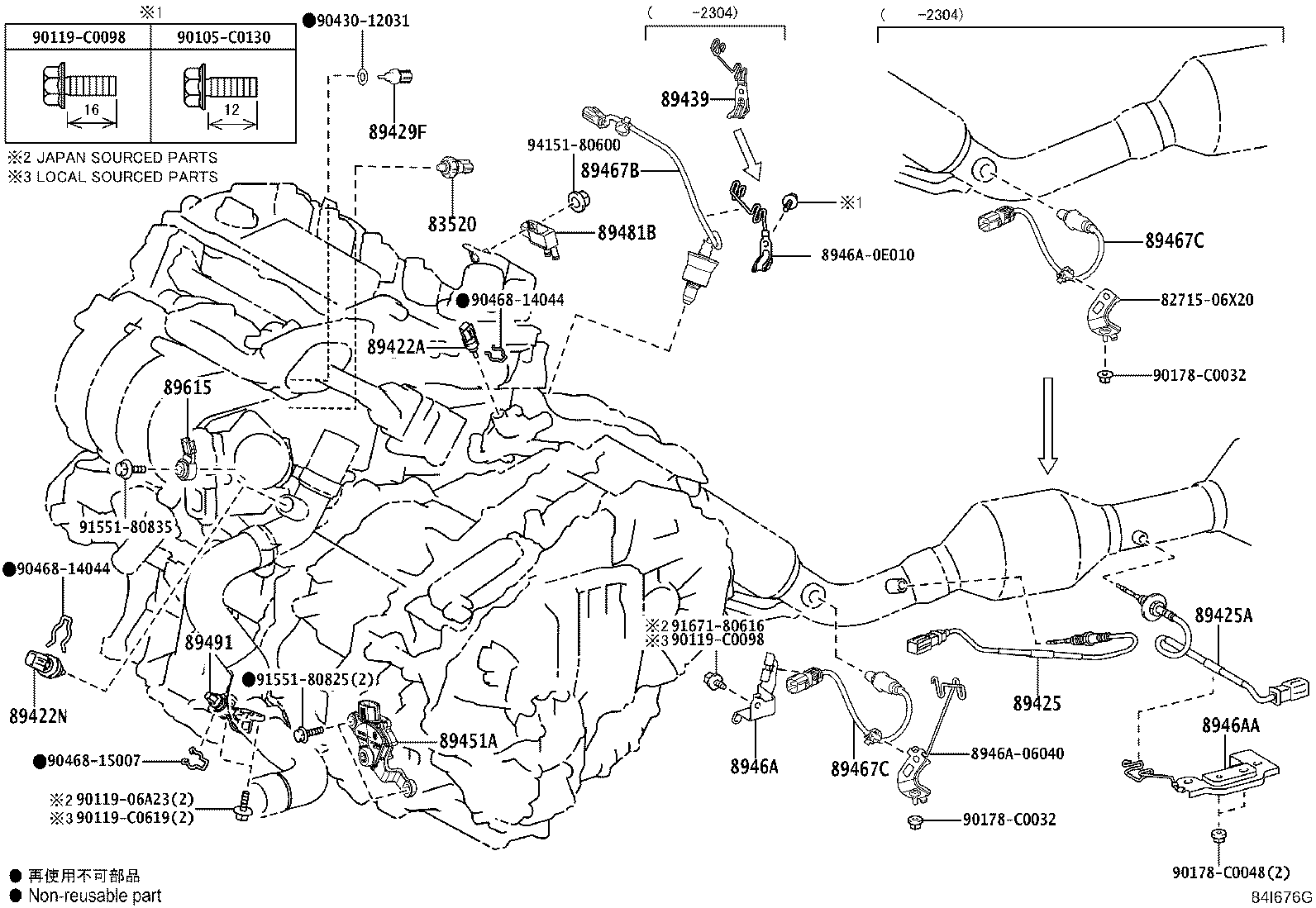

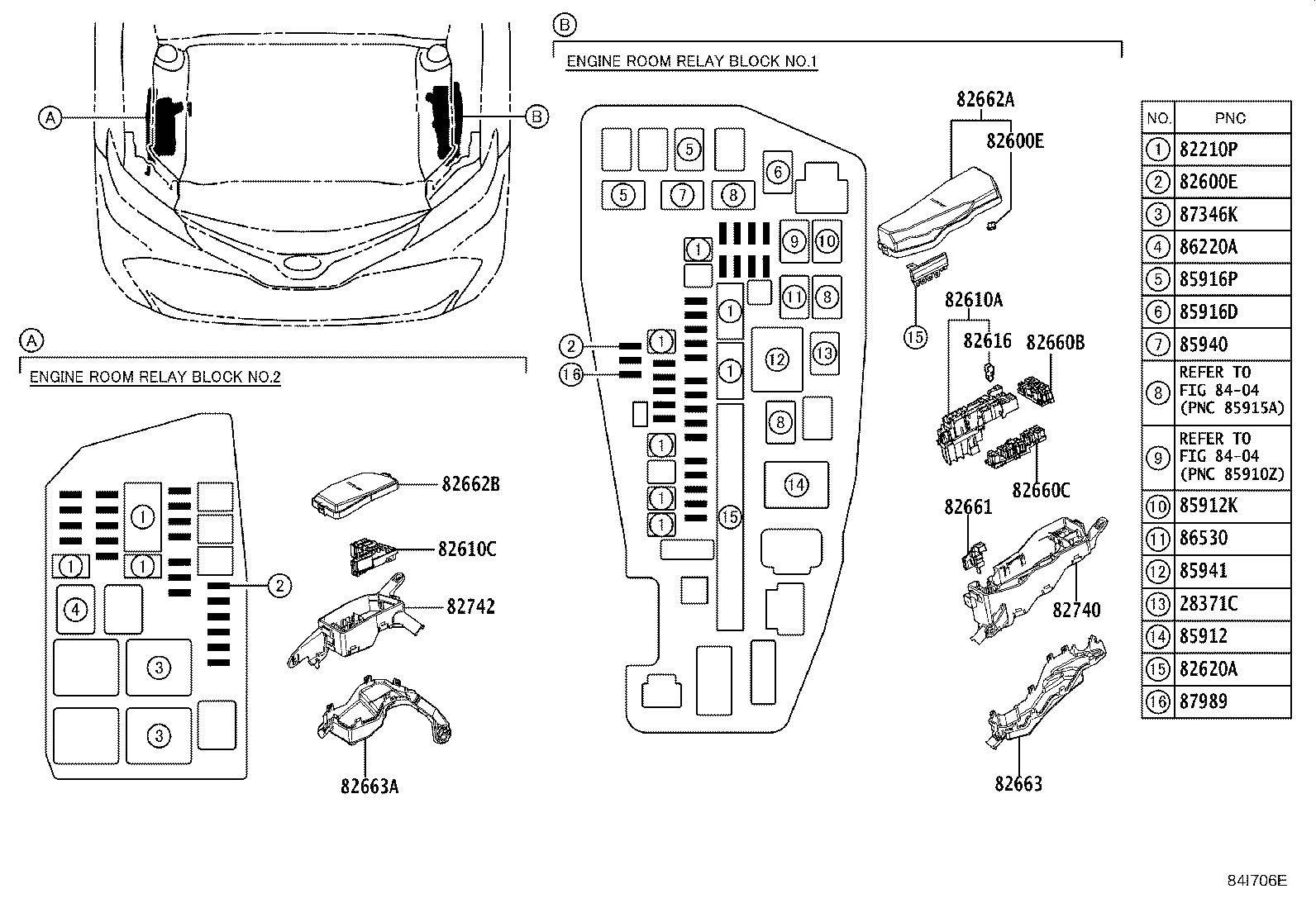

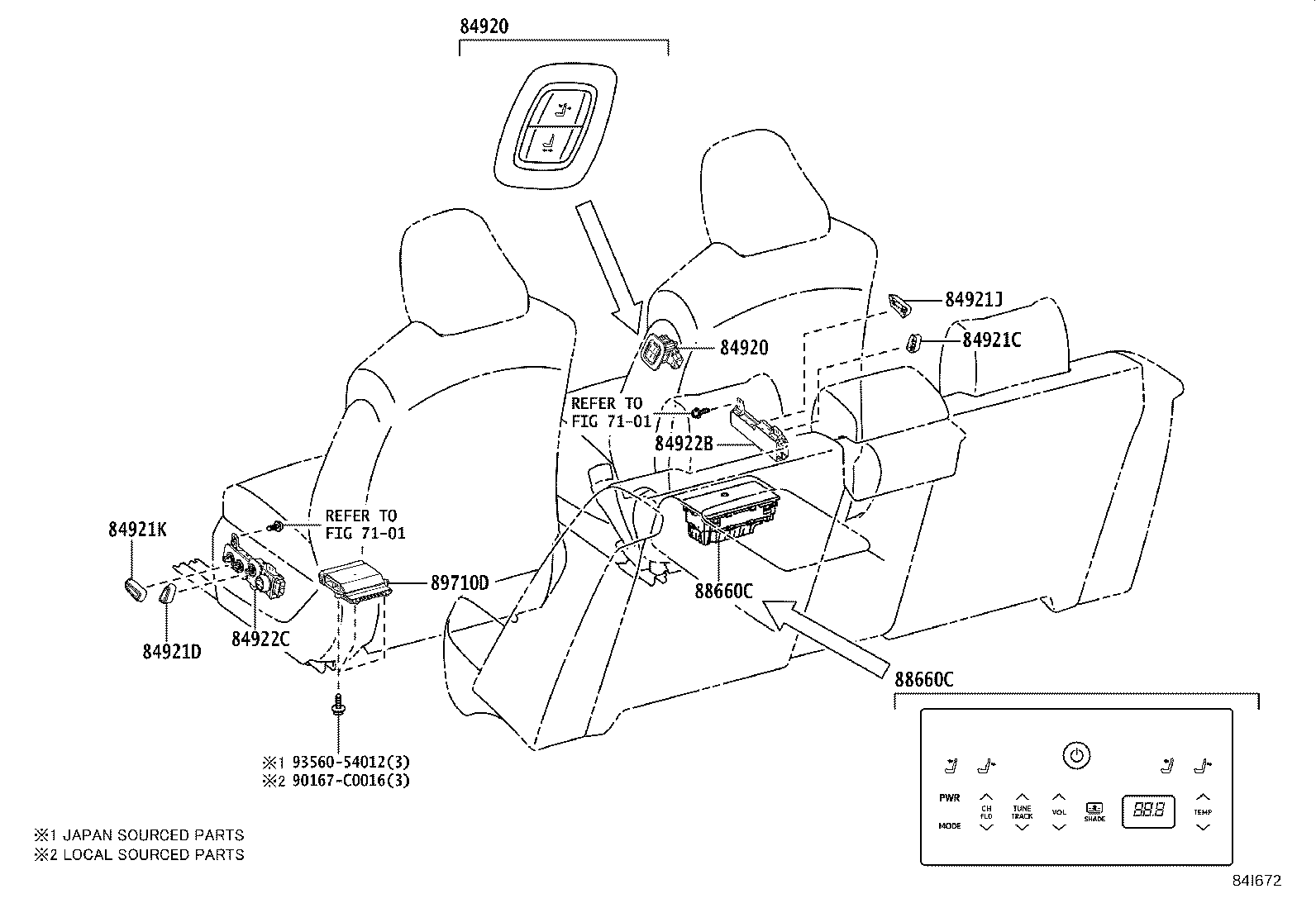

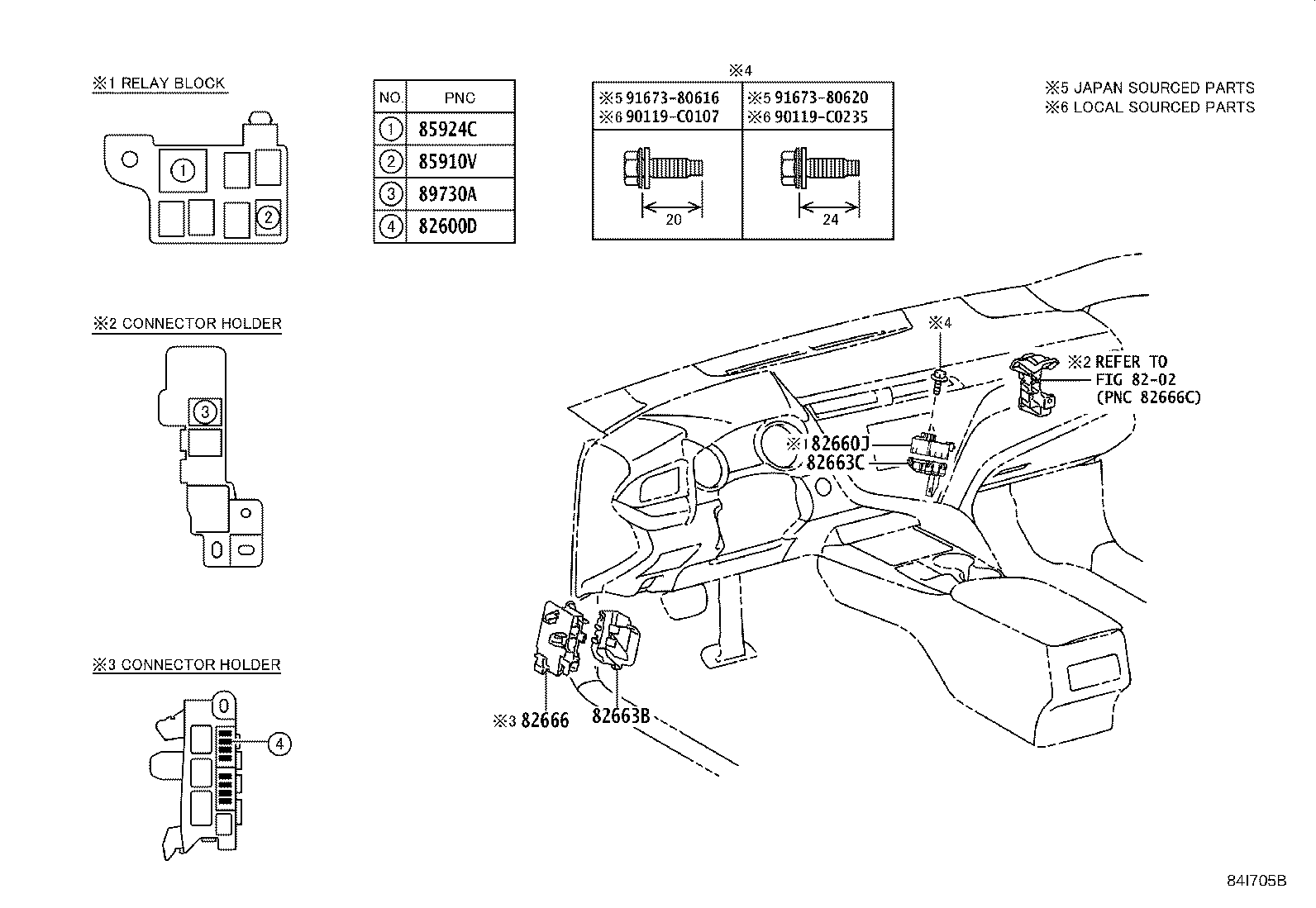

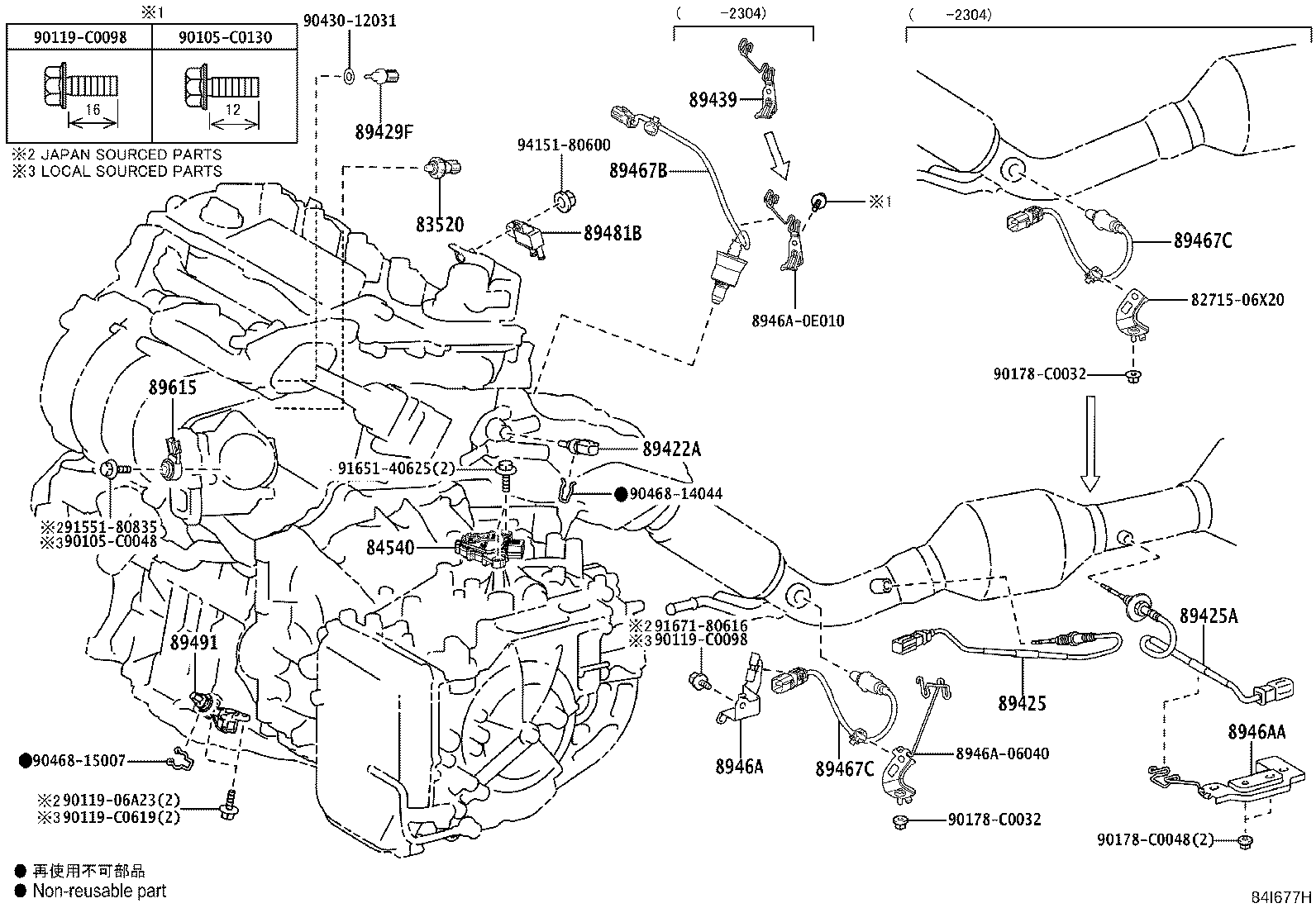

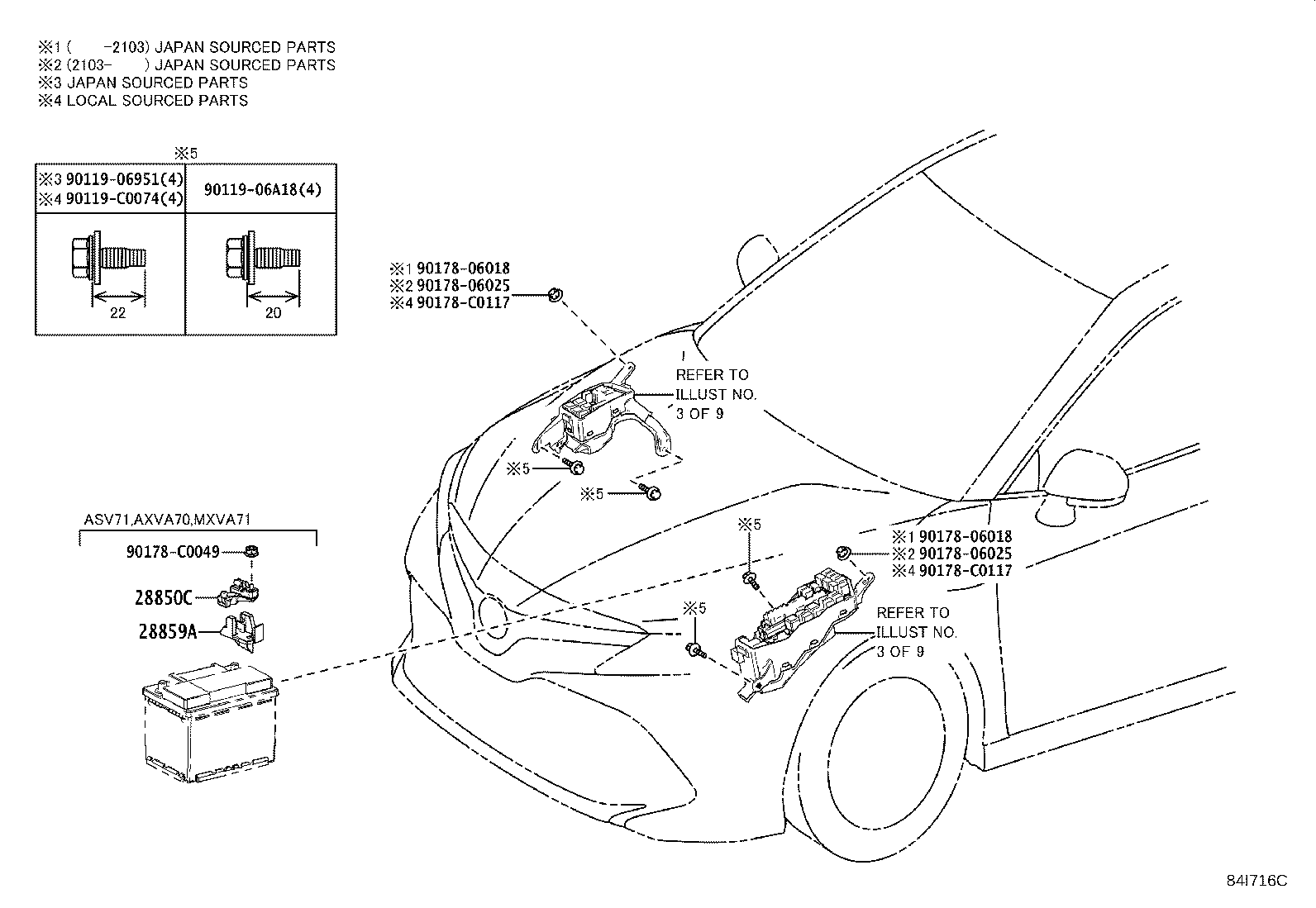

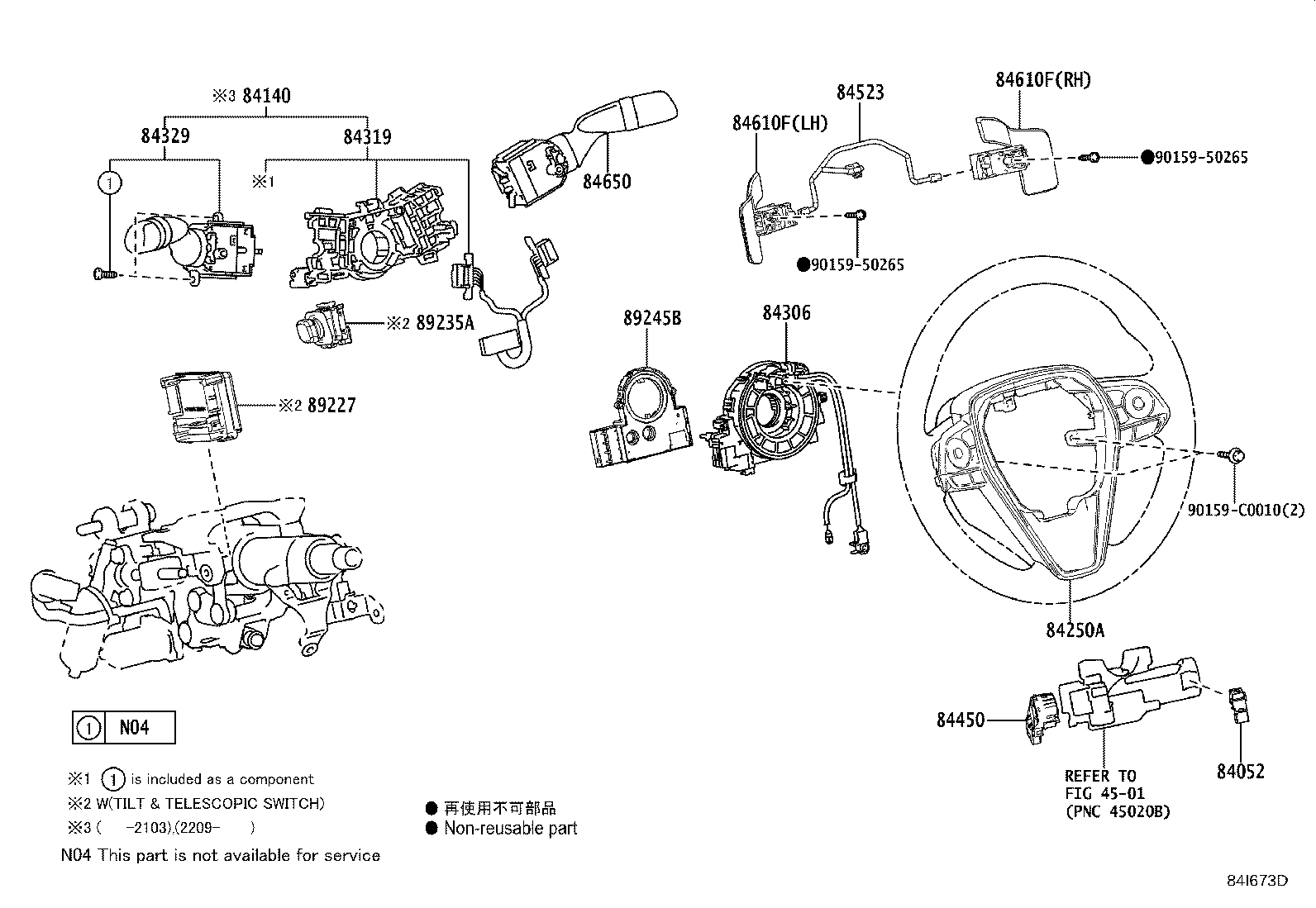

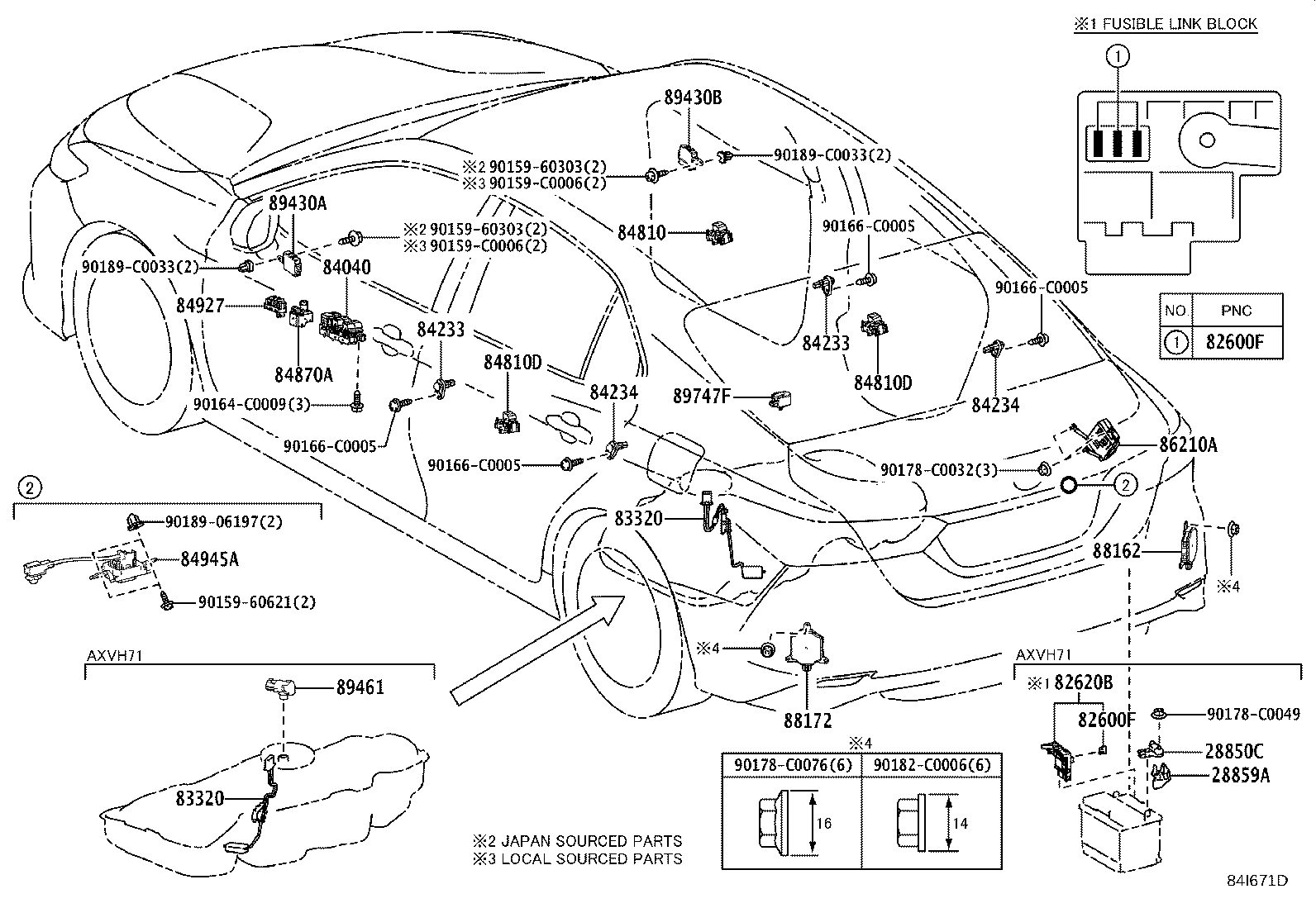

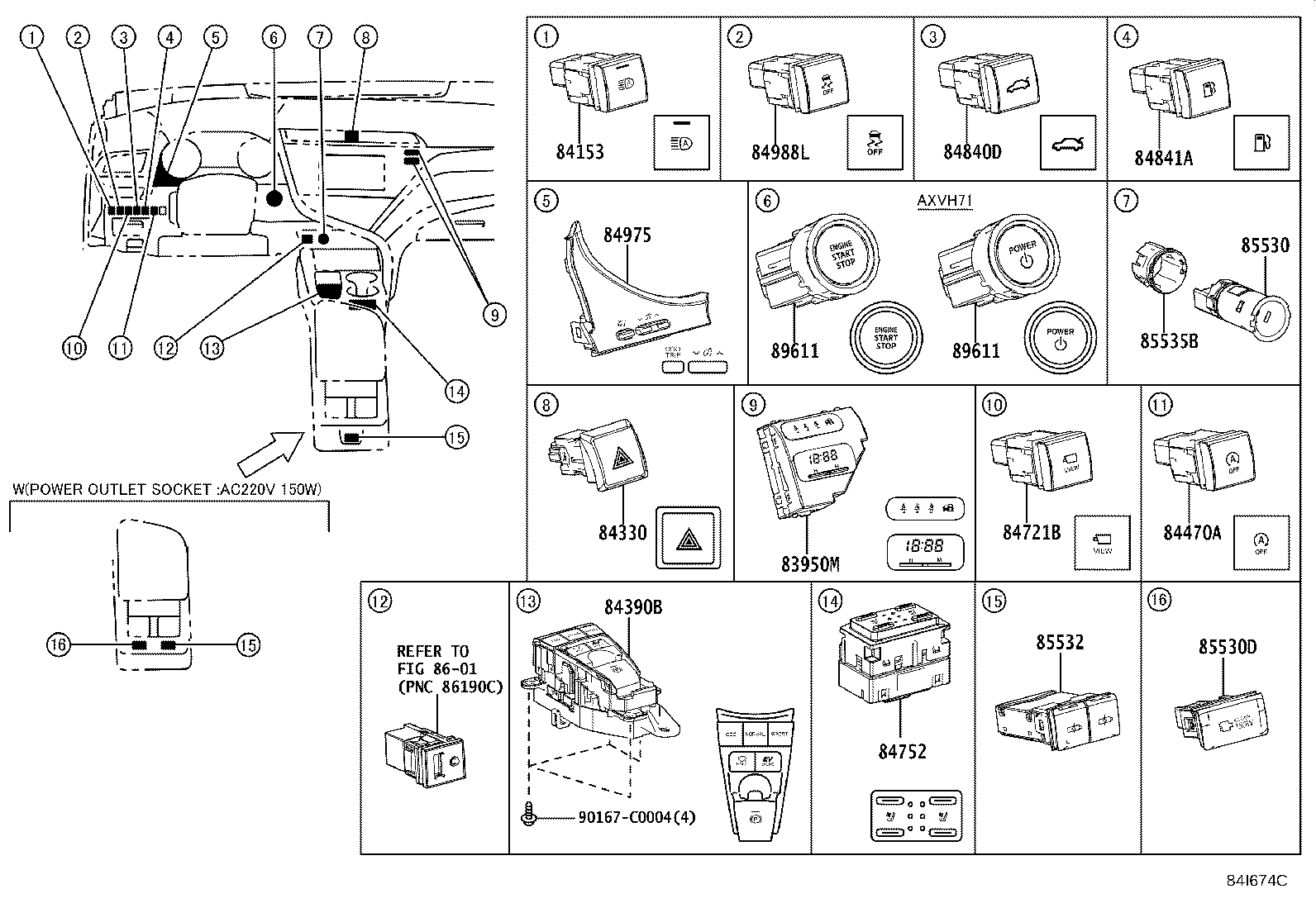

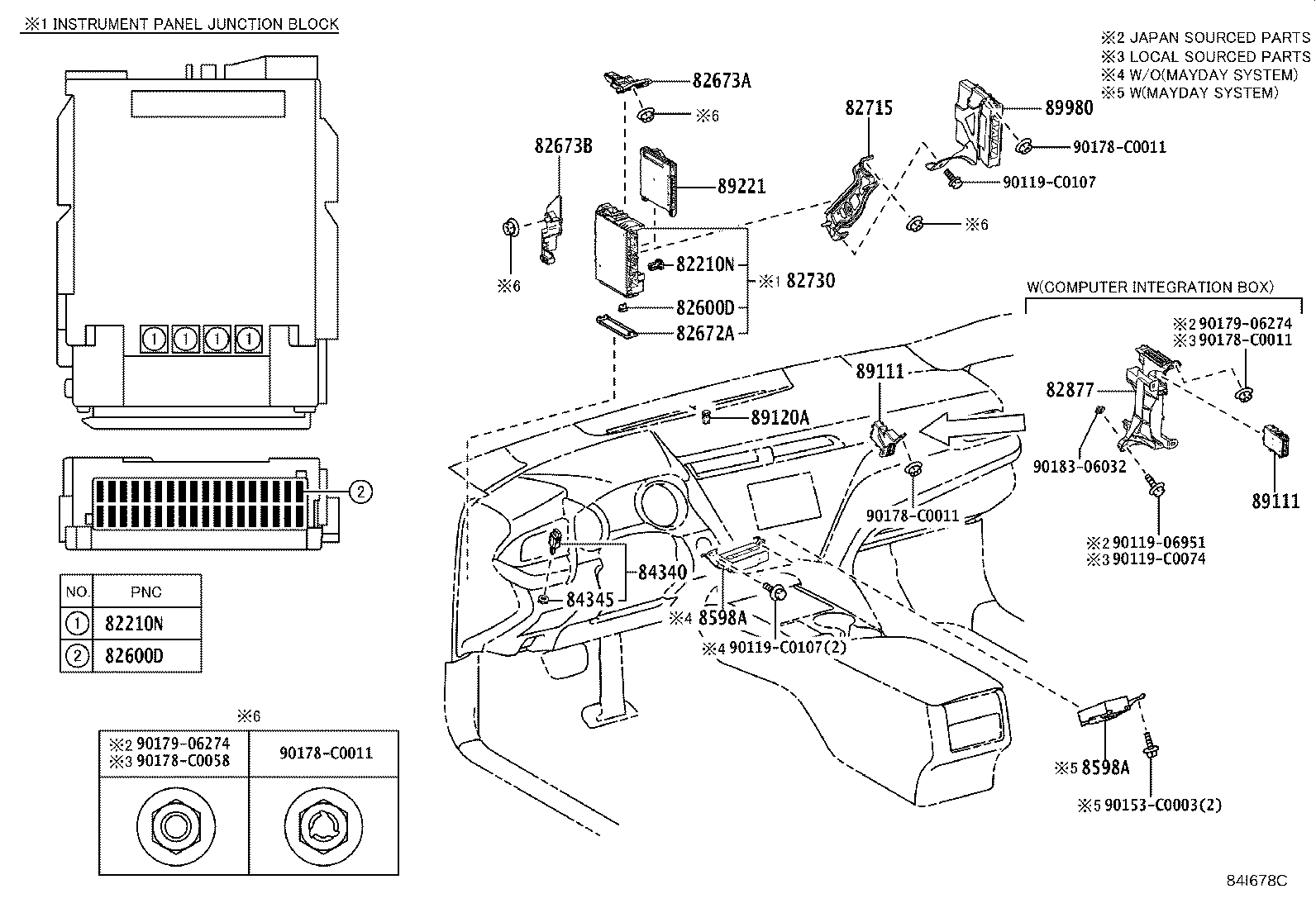

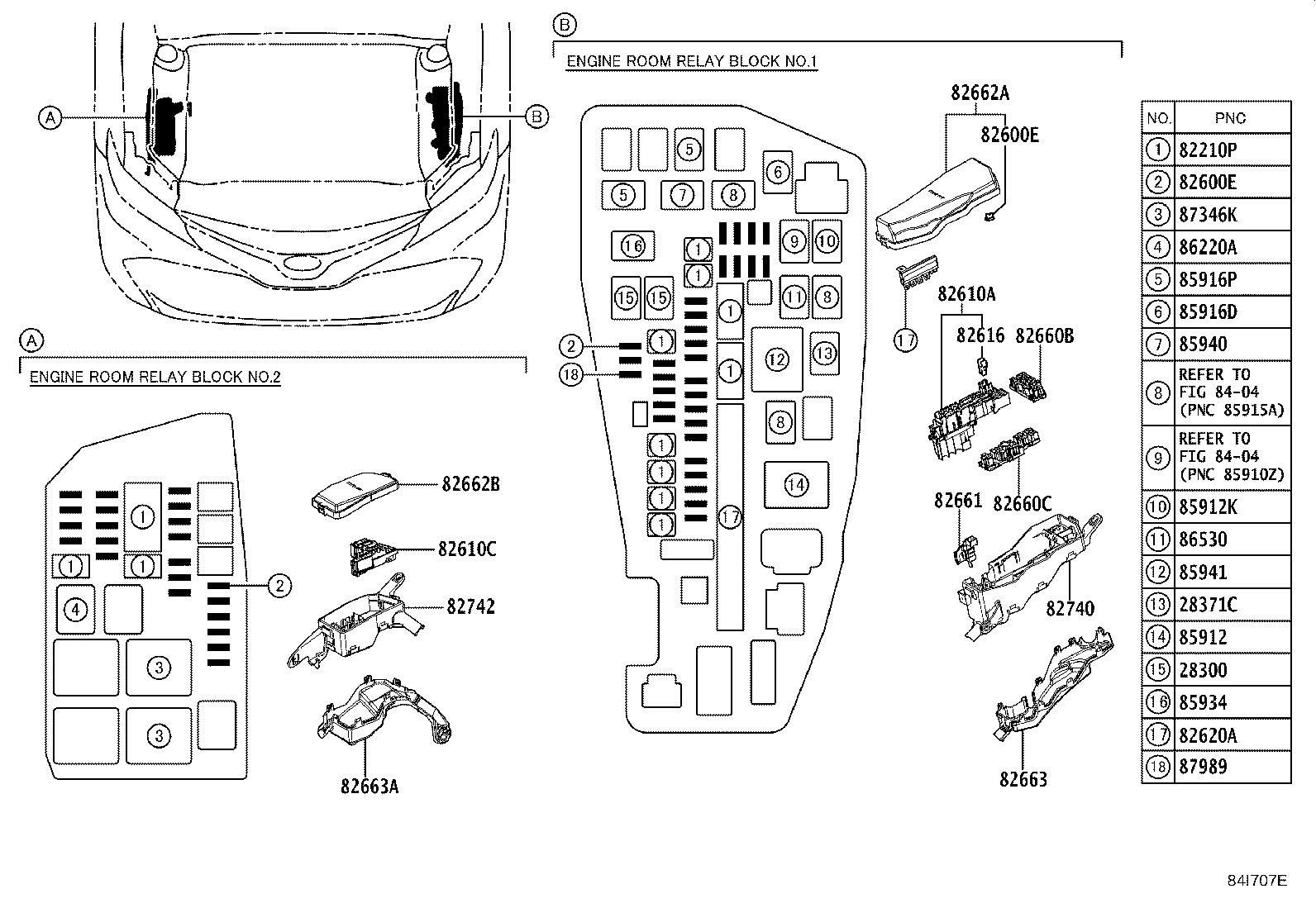

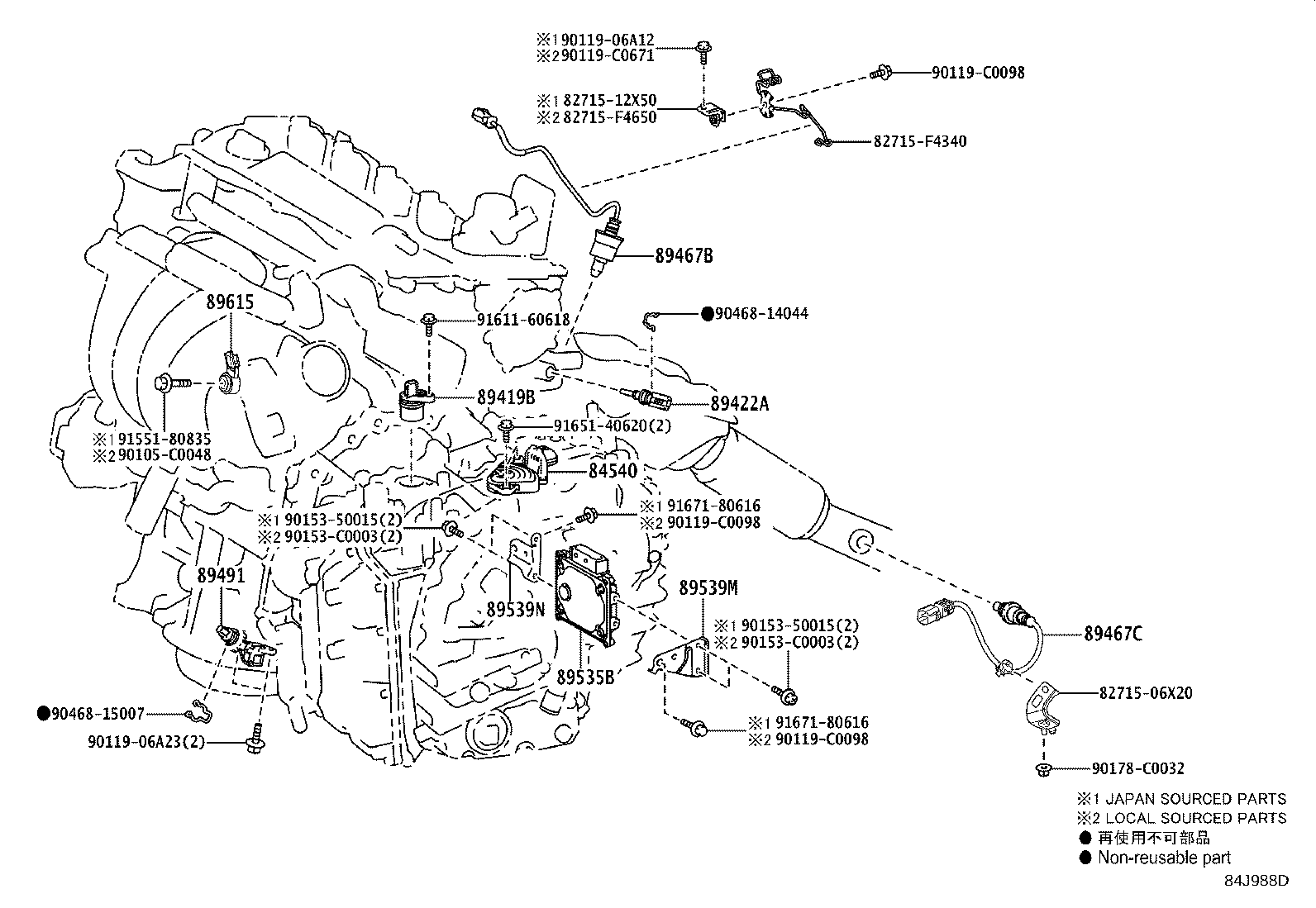

Figure 84I675A 84I675A 2017-12 → — Figure 84I677H 84I677H 2017-12 → — Figure 84I676G 84I676G 2017-12 → — Figure 84J988D 84J988D 2019-03 → — Figure 84I716C 84I716C 2017-12 → — Figure 84I707E 84I707E 2017-12 → — Figure 84I706E 84I706E 2017-12 → — Figure 84I678C 84I678C 2017-12 → — Figure 84I705B 84I705B 2017-12 → — Figure 84I674C 84I674C 2017-12 → — Figure 84I673D 84I673D 2017-12 → — Figure 84I672 84I672 2017-12 → — Figure 84I671D 84I671D 2017-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82660B Block Assy, Relay
82660C Block Assy, Relay
82660J Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82666 Holder, Connector
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83950M Lamp Assy, Telltale
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84721B Switch, Panoramic View Monitor
84752 Switch, Refreshing Seat
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840D Switch Assy, Luggage Door Opening
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84945A Switch, Luggage Electrical Key
84975 Switch, Trip
84988L Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85910V Relay, Seat Heater
85912 Relay, Defogger
85912K Relay, Vvt
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924C Relay, Igct
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85941 Relay, Windshield Washer
8598A Battery, Door Control
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
87989 Relay, Mirror Control
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88660C Switch Assy, Cooler Control
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89419B Sensor, Shift Stroke
89422A Sensor, Water Temperature
89422N Sensor, Water Temperature, NO.2
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89461 Sensor, Vapor Pressure
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
8946A Bracket, Exhaust Sensor Clamp
8946AA Bracket, Exhaust Sensor Clamp, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89710D Computer Assy, Position Control, LH
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89980 Computer Assy, Hybrid Vehicle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
