Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 6 illustrations

Illustrations

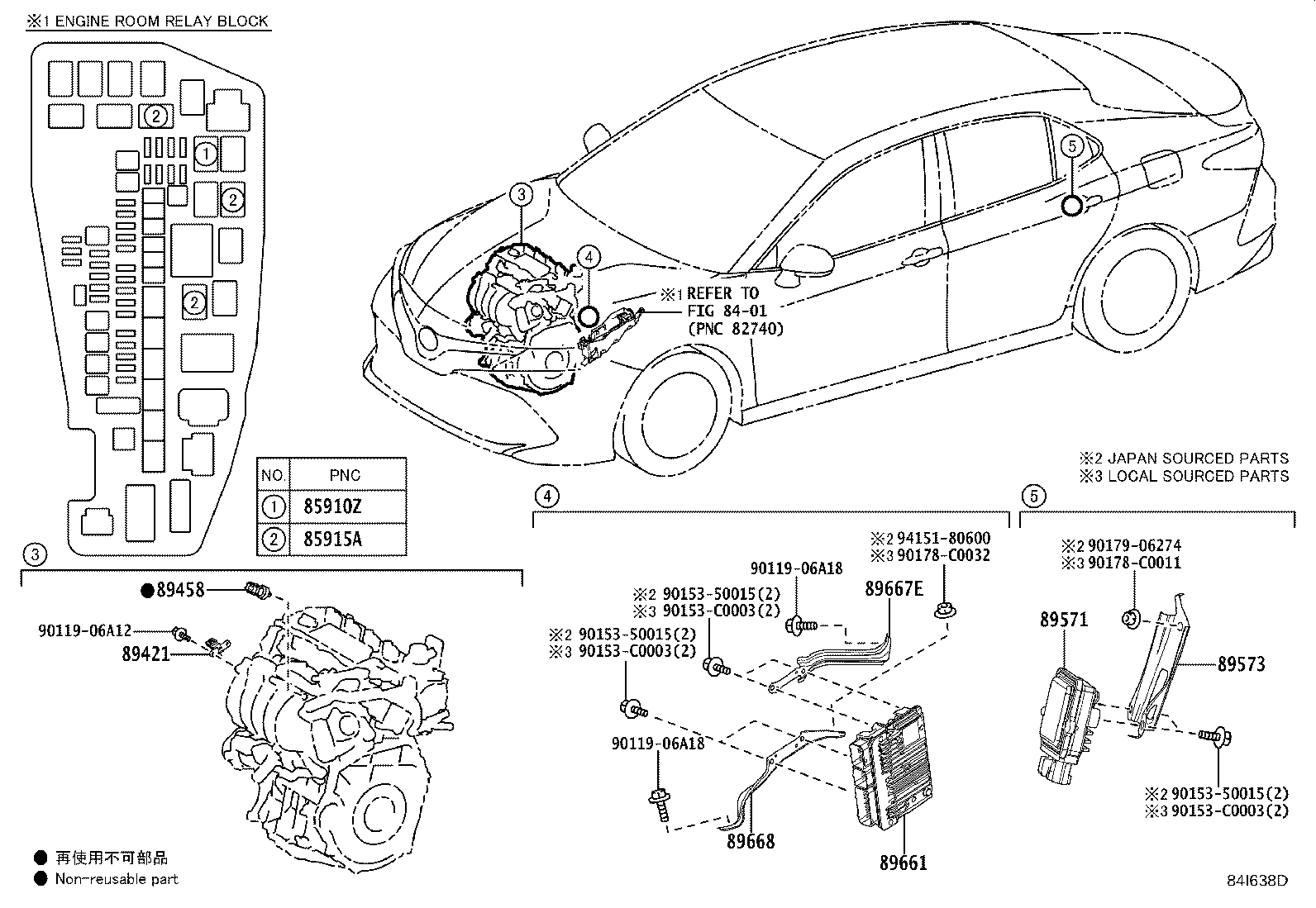

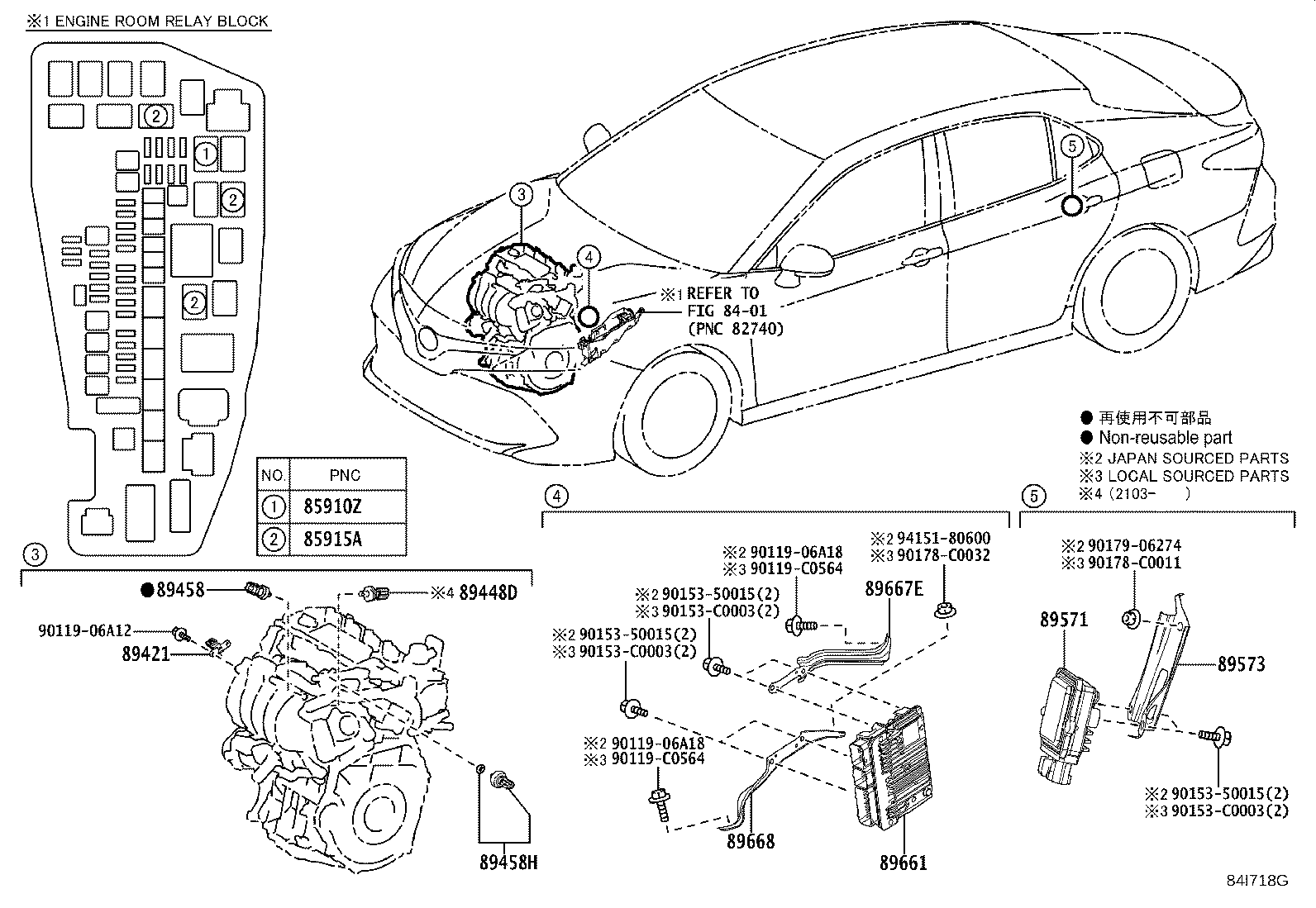

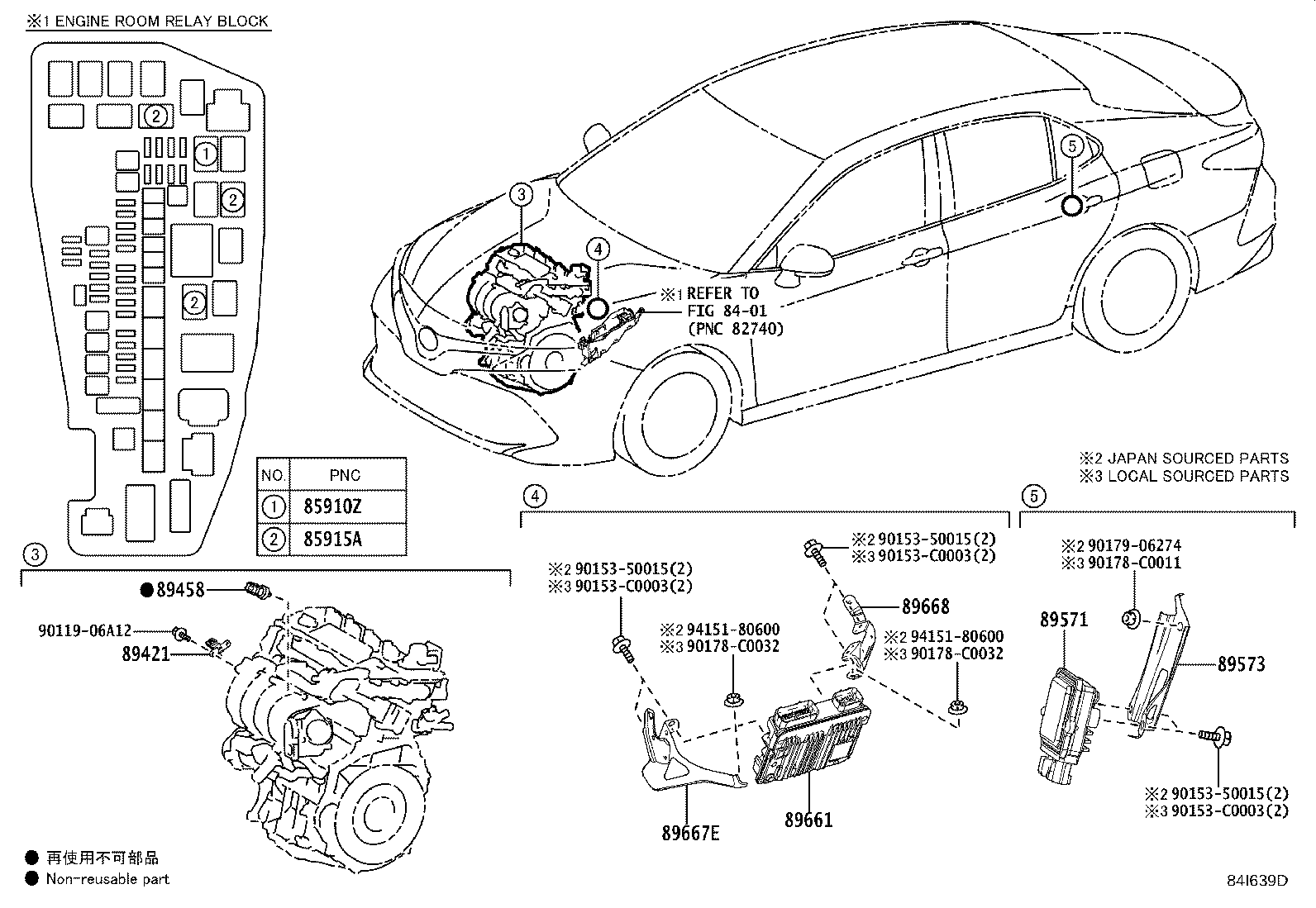

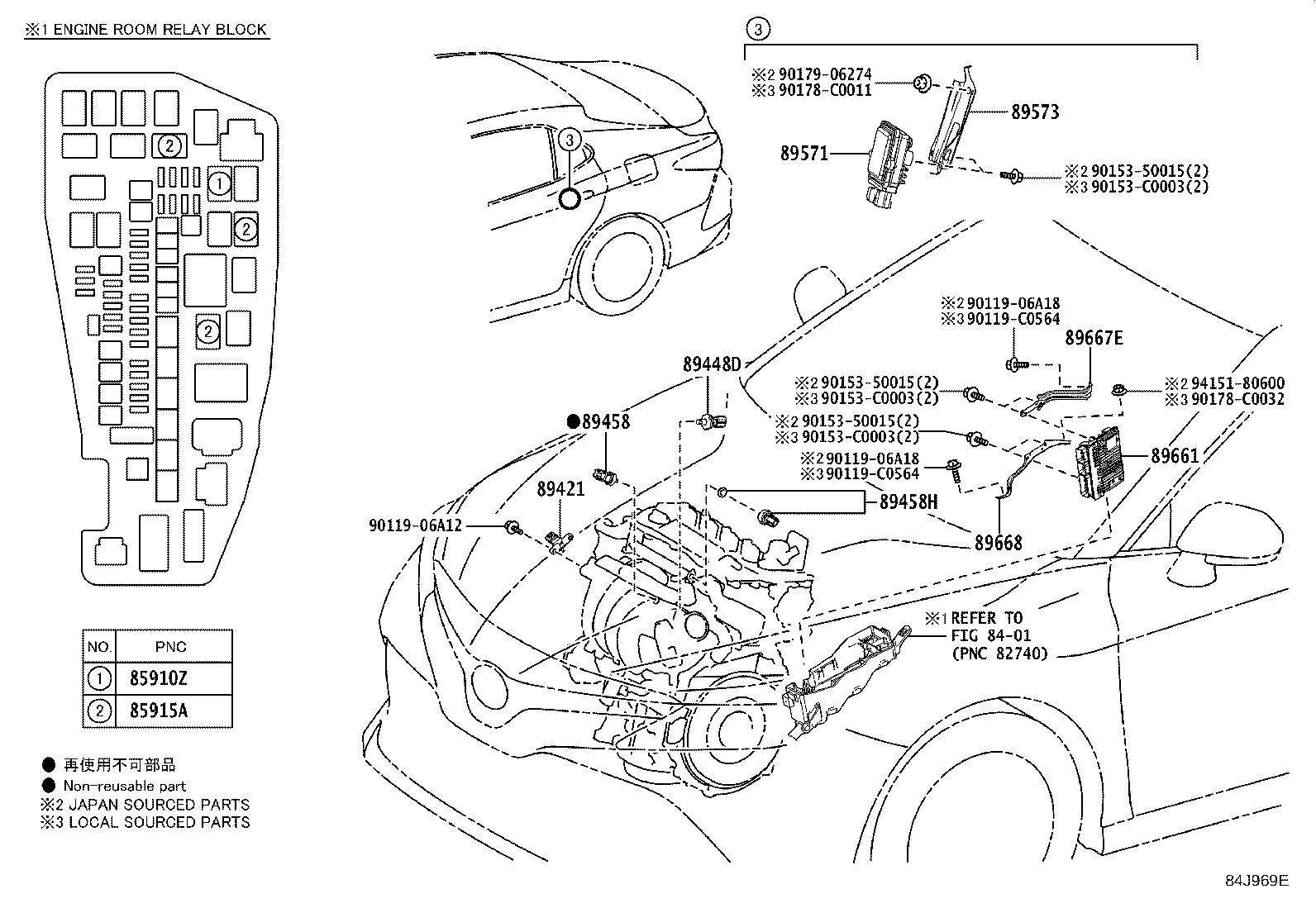

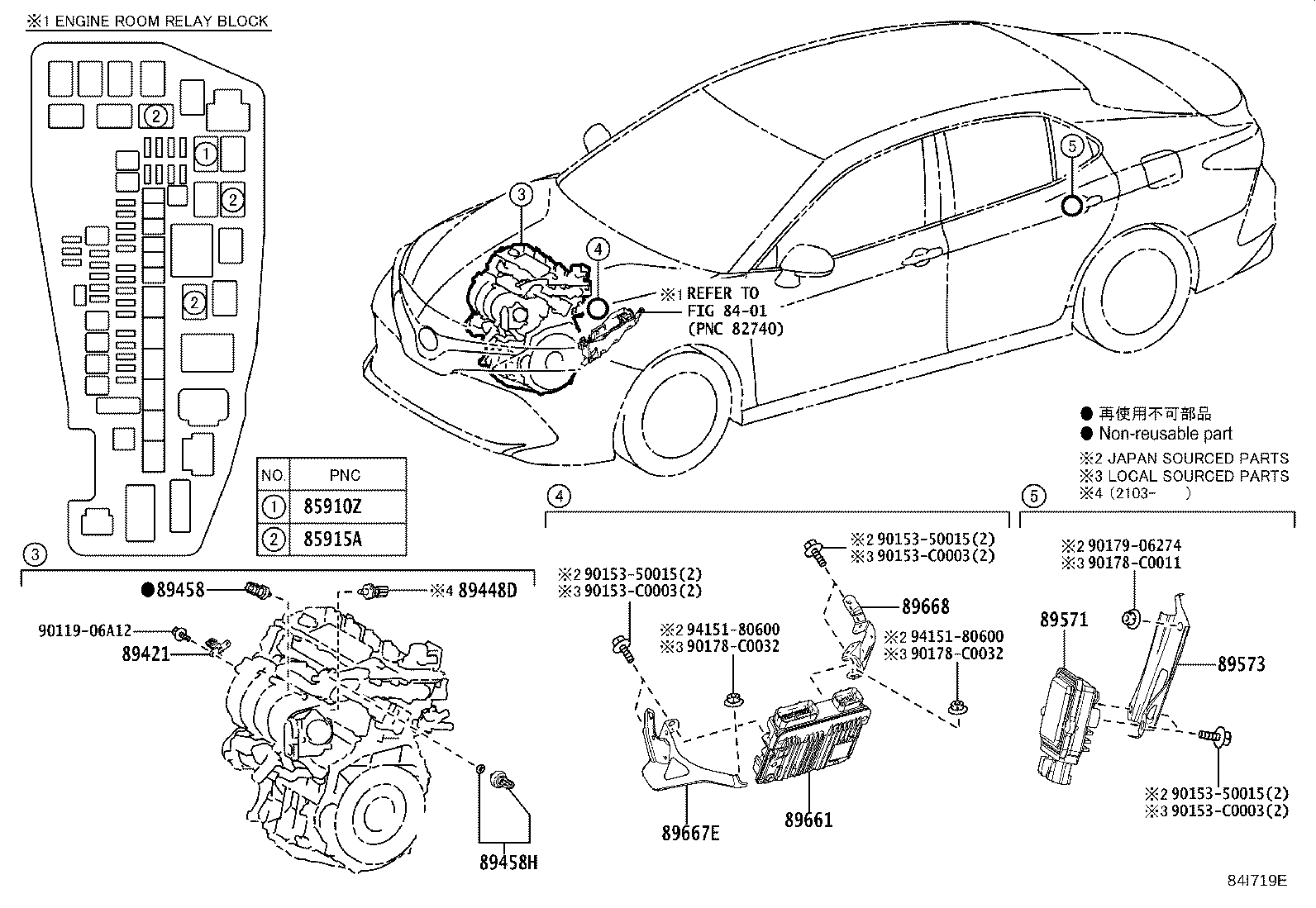

Figure 84I640C 84I640C 2017-12 → — Figure 84I638D 84I638D 2017-12 → 2018-03 Figure 84I718G 84I718G 2018-03 → — Figure 84I639D 84I639D 2017-12 → 2018-03 Figure 84I719E 84I719E 2018-03 → — Figure 84J969E 84J969E 2019-03 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
