Toyota Camry/Hybrid (CHINA)
2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General
Supported model
Data version 2021-02
Radio Receiver & Amplifier & Condenser
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

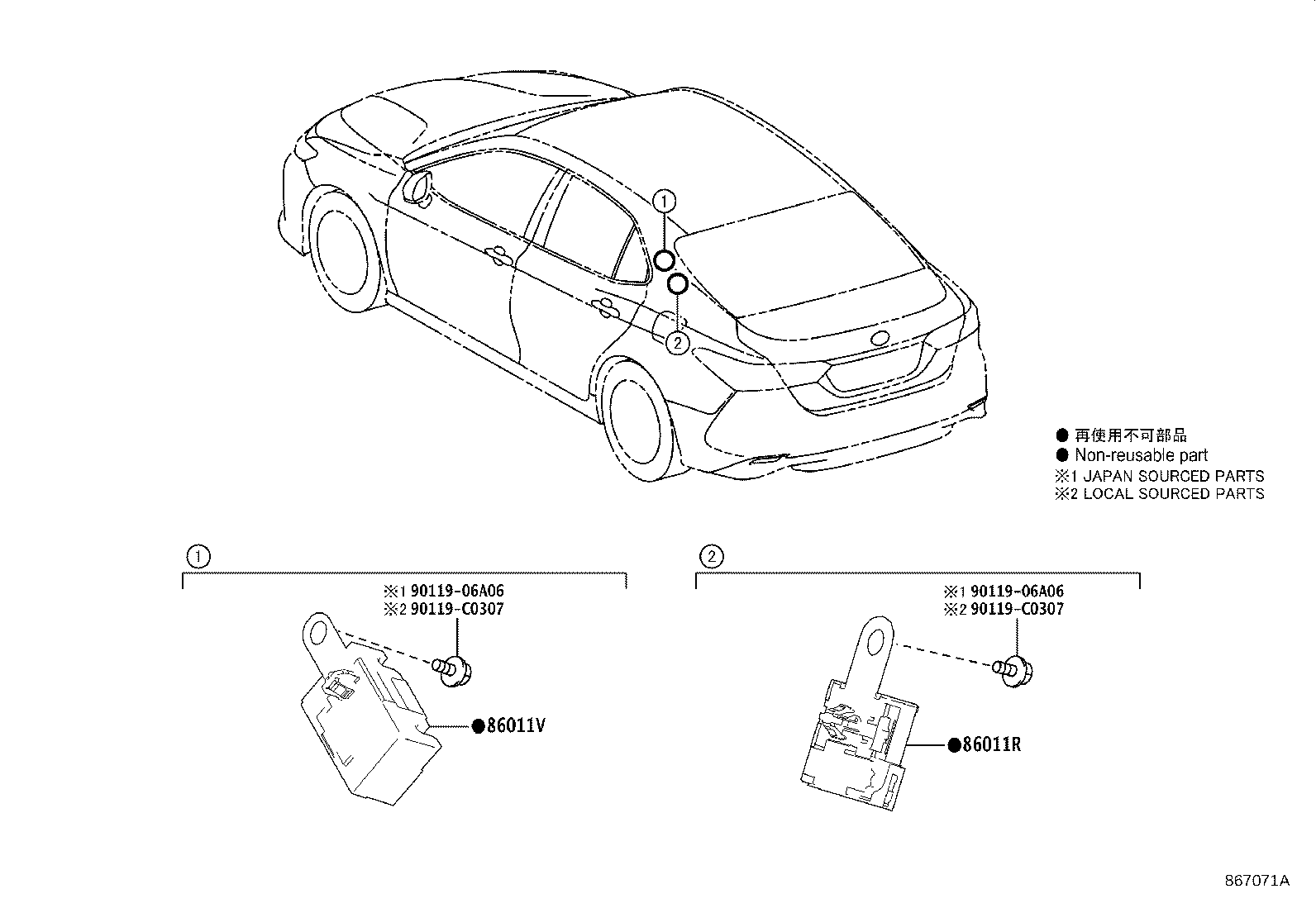

| 86011R | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |

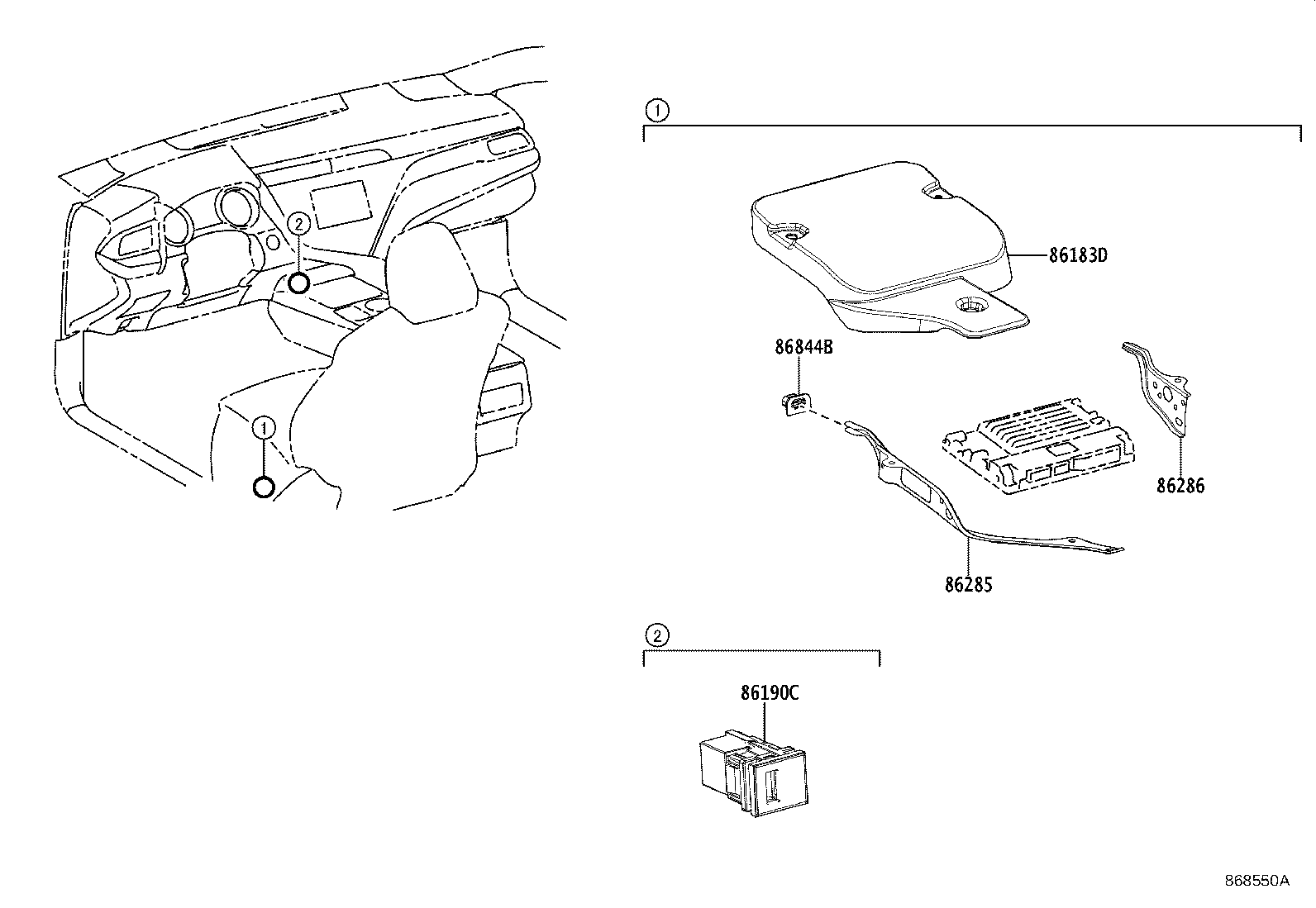

| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86844B | Retainer, Audio Amplifier Cover |
| F1334 | Bracket, Converter Control, NO.1 |
| G92C0A | Converter Assy, Eco-run Vehicle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
