Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 2 illustrations

Illustrations

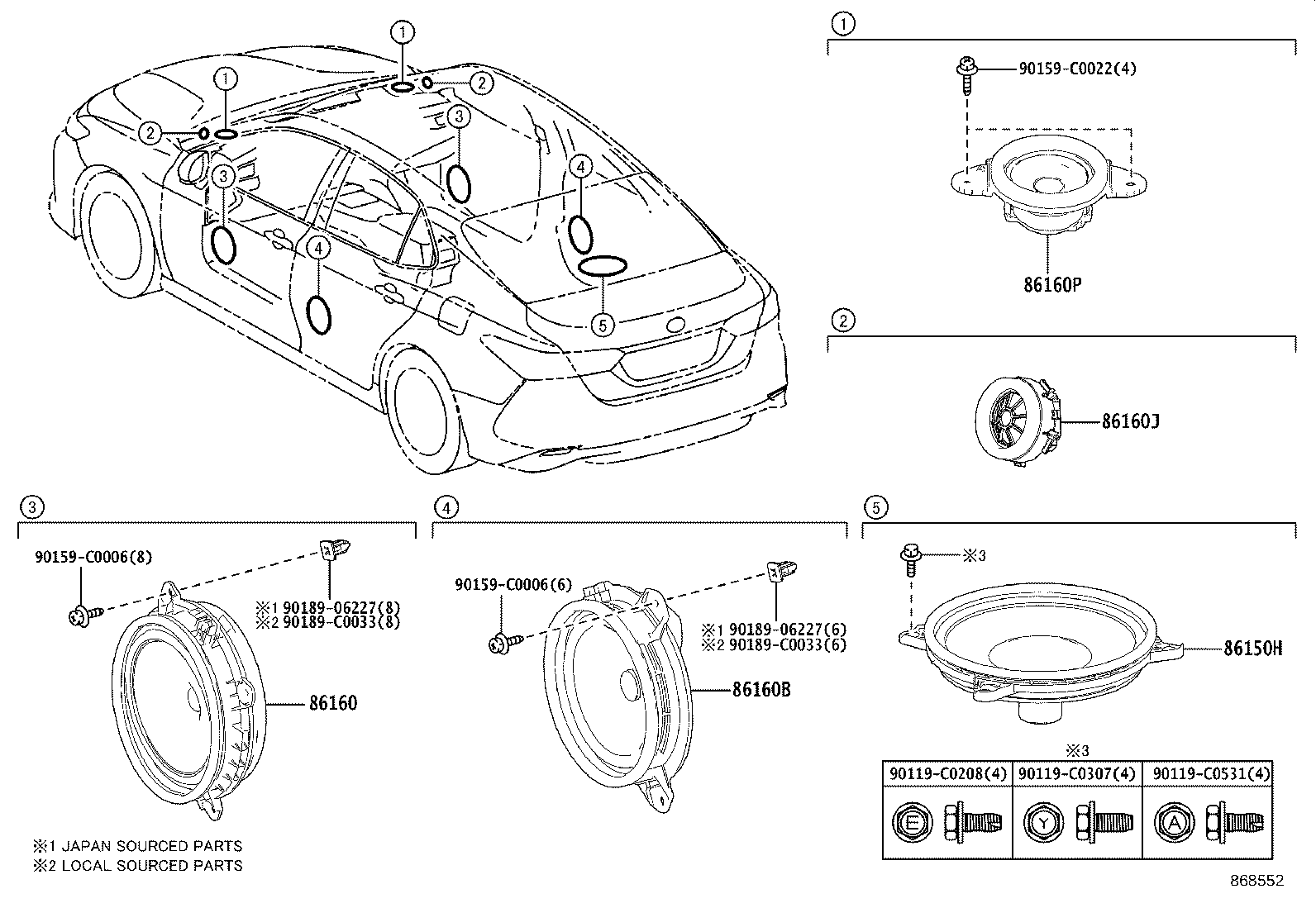

Figure 867065B 867065B 2017-12 → 2021-03 Figure 868552 868552 2021-03 → —

Part groups

PNCDescription
86150H Speaker Assy, W/Bracket
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
