Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

7 part groups · 2 illustrations

Illustrations

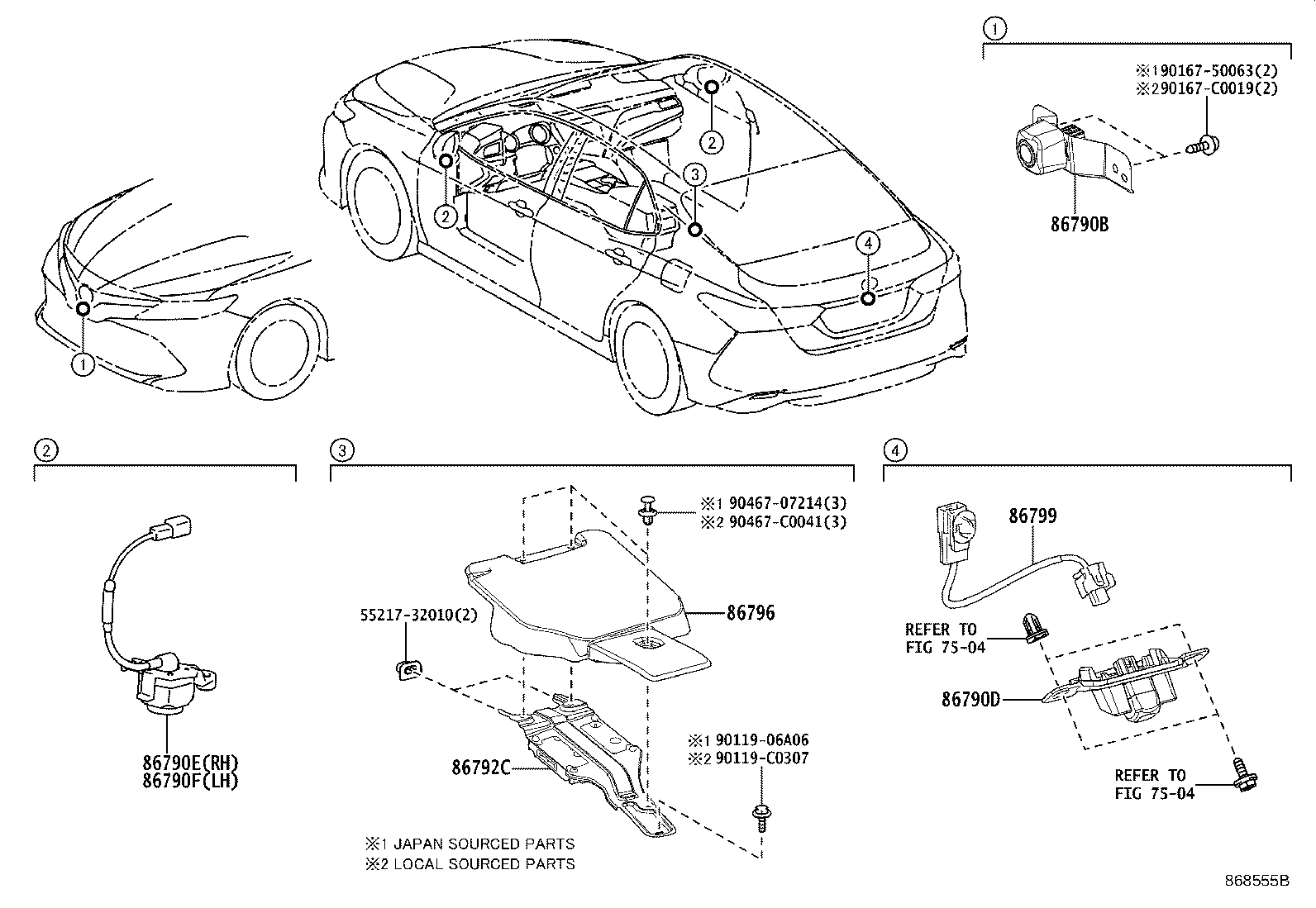

Figure 867081 867081 2017-12 → 2021-03 Figure 868555B 868555B 2021-03 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
86796 Cover, Computer Parking Assist
86799 Wire, Television Camera
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
