Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

8 part groups · 2 illustrations

Illustrations

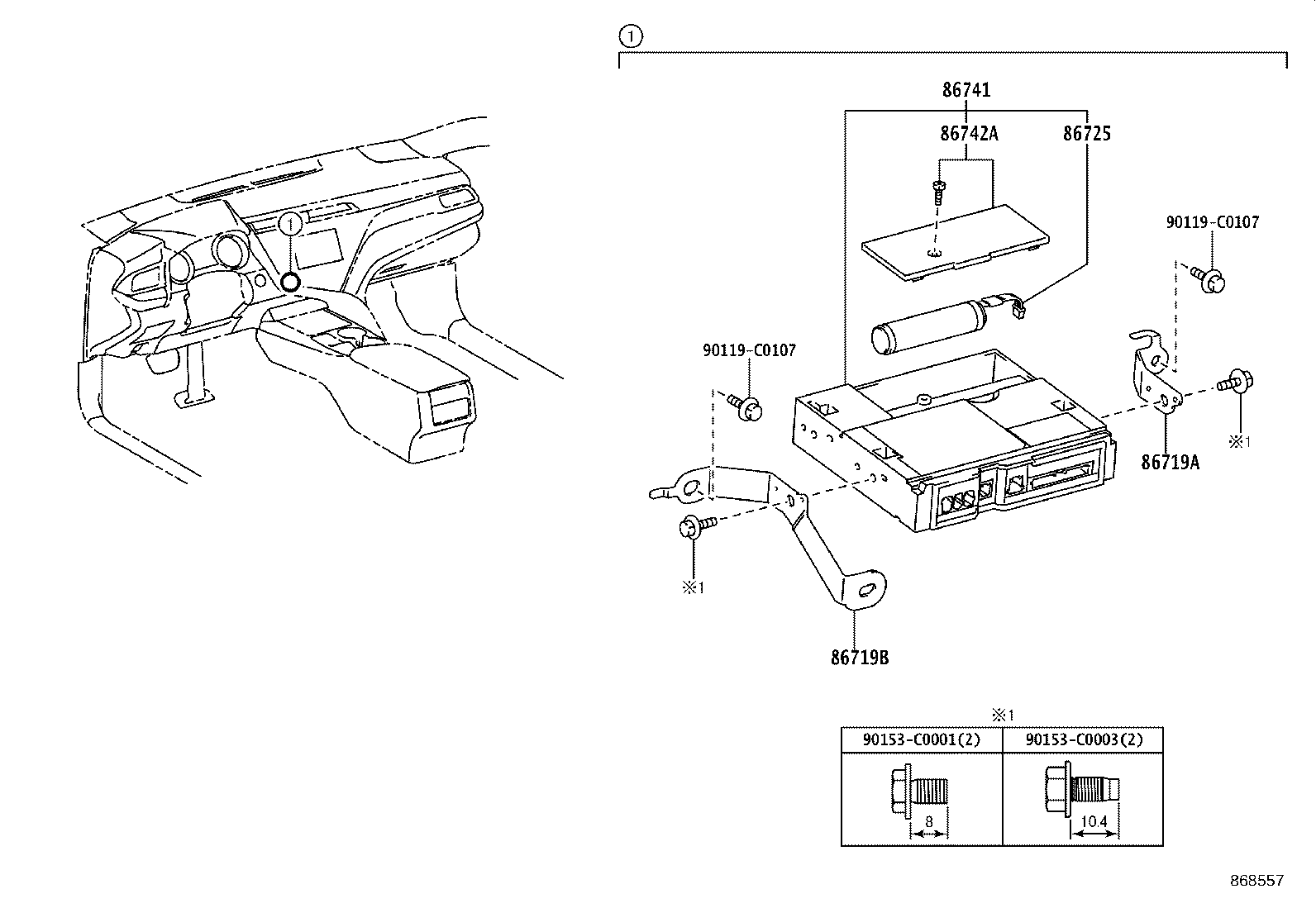

Figure 867072 867072 2017-12 → 2021-03 Figure 868557 868557 2021-03 → —

Part groups

PNCDescription
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86719F Bracket, Telephone NO.4
86725 Battery, Mobilephone
86741 Transceiver, Telephone
86742A Cover, Transceiver
86777 Battery, Mayday
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
