Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

Figure 87G857A

87G857A 2017-12 → 2019-02

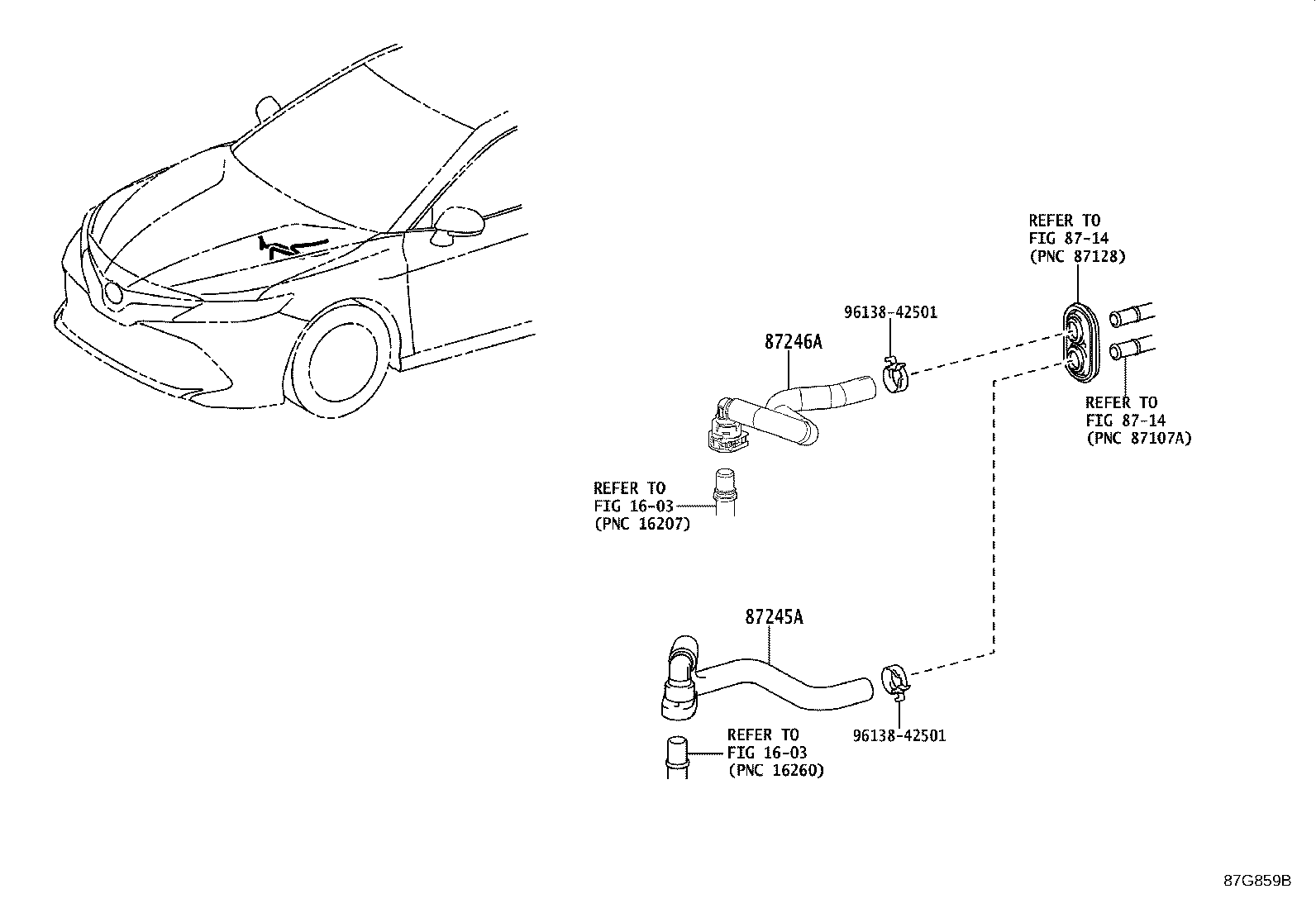

Figure 87G859B

87G859B 2017-12 → —

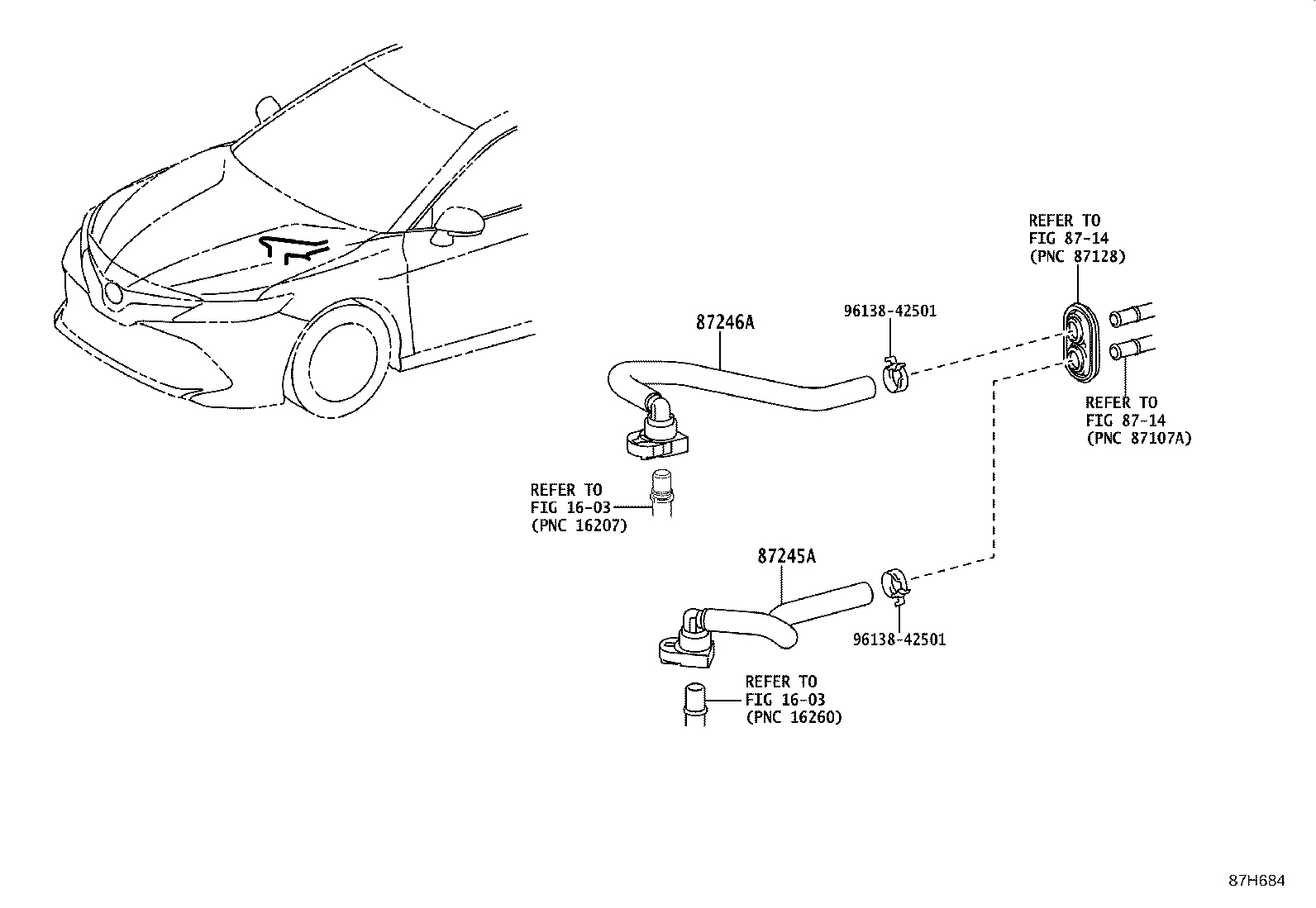

Figure 87H684

87H684 2019-03 → —

Part groups

PNC	Description
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
