Exploded illustration 11H69QB 1201 — not listed in this catalogue 1201 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 11101 — HEAD SUB-ASSY, CYLINDER (5 parts) 11101Z — O RING, CAM POSITION SENSOR (2 parts) 11103 — HOUSING SUB-ASSY, CAMSHAFT (4 parts) 11115 — GASKET, CYLINDER HEAD (2 parts) 11115A — PIN, RING (2 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (2 parts) 11122 — BUSH, INTAKE VALVE GUIDE (4 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (4 parts) 11135 — SEAT, EXHAUST VALVE (3 parts) 11135 — SEAT, EXHAUST VALVE (3 parts) 11151H — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) (3 parts) 11155B — PIN, RING (4 parts) 11159H — GASKET, CAMSHAFT BEARING CAP OIL HOLE (2 parts) 11193 — GASKET, SPARK PLUG TUBE (4 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (4 parts) 11213 — GASKET, CYLINDER HEAD COVER (4 parts) 12108A — GASKET(FOR OIL FILLER CAP) (2 parts) 12180E — CAP ASSY, OIL FILLER (1 parts) 12204C — VALVE SUB-ASSY, VENTILATION (2 parts) 11452E — RING, O(FOR OIL LEVEL GAGE GUIDE) (2 parts) 11452D — GUIDE, OIL LEVEL GAGE (1 parts) 15301B — GAGE SUB-ASSY, OIL LEVEL (1 parts) 15301C — RING, O(FOR OIL LEVEL GAGE) (2 parts) 12282D — HANGER, ENGINE, NO.2 (2 parts) 11102A — SENSOR, CAMSHAFT POSITION (6 parts) 11101Z — O RING, CAM POSITION SENSOR (2 parts) 11102A — SENSOR, CAMSHAFT POSITION (6 parts) 11117G — PLUG, W/HEAD STRAIGHT SCREW, NO.3 (2 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 91552F1040 — not listed in this catalogue 90105C0423 — not listed in this catalogue 12601B — COVER SUB-ASSY, ENGINE, NO.1 (2 parts) 9048014030 — not listed in this catalogue 9010506359 — not listed in this catalogue 90105C0367 — not listed in this catalogue 9011906A12 — not listed in this catalogue 90119C0671 — not listed in this catalogue 9010506359 — not listed in this catalogue 90105C0367 — not listed in this catalogue

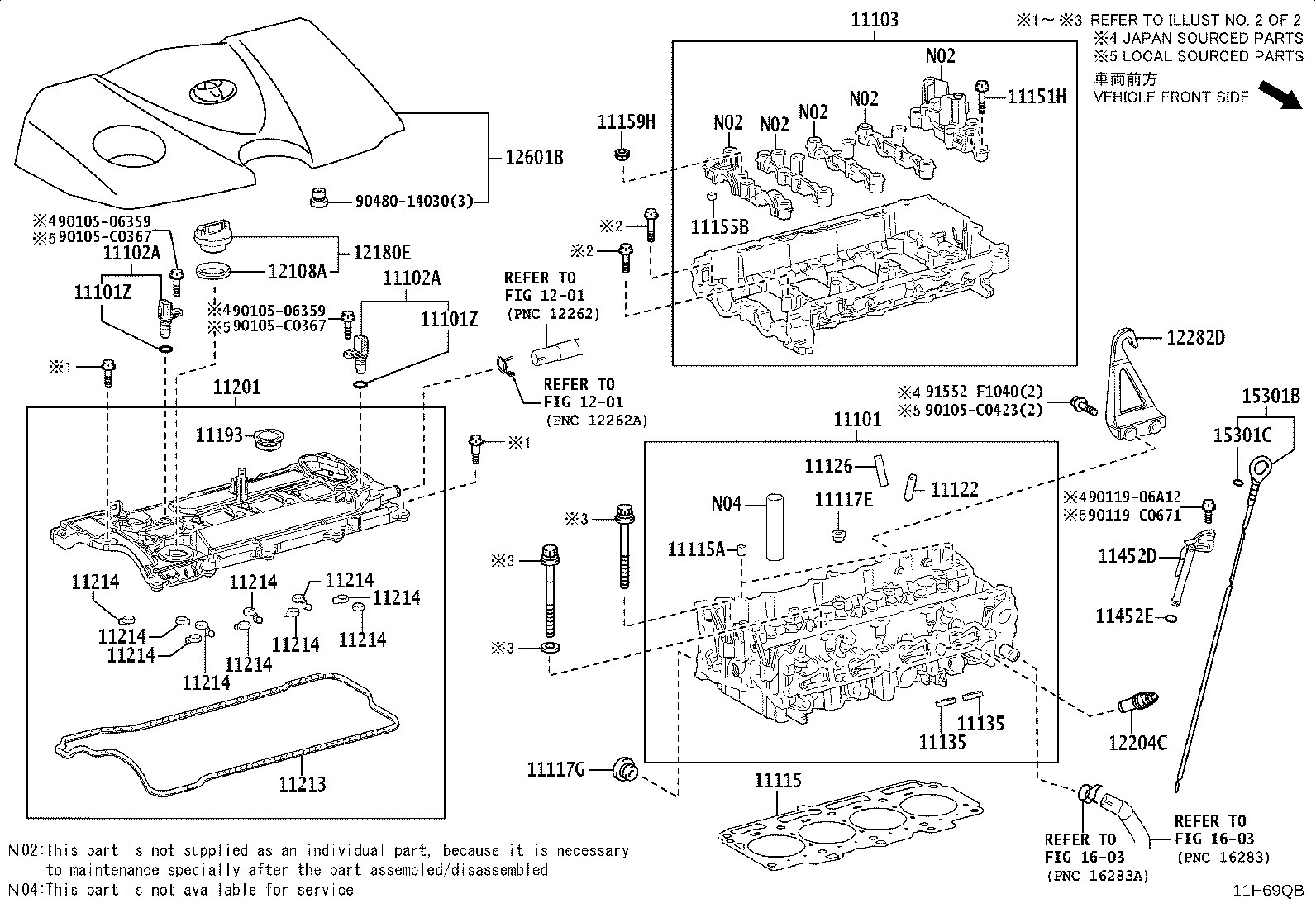

11H69QB · 39 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-F9061 Head Sub-assy, Cylinder
2024-03 → 2024-12 ended
M20 MXVA80 —
11101-F9062 Head Sub-assy, Cylinder
2024-12 → —
M20 MXVA80 —
11101-F9121 Head Sub-assy, Cylinder
2024-03 → 2024-12 ended
M20 MXVH80 —
11101-F9122 Head Sub-assy, Cylinder
2024-12 → —
M20 MXVH80 —
11101-F9130 Head Sub-assy, Cylinder
2024-06 → —
A25 AXVH80 —
11101Z — O Ring, Cam Position Sensor
90301-11038 O Ring, Cam Position Sensor
2024-03 → —
M20 MXVA80,MXVH80 —
90301-11038 O Ring, Cam Position Sensor
2024-06 → —
A25 AXVH80 —
11102A — Sensor, Camshaft Position
90919-05096 Sensor, Camshaft Position
2024-03 → 2024-08 ended
M20 MXVA80,MXVH80 —
90919-05096 Sensor, Camshaft Position
2024-06 → 2024-08 ended
A25 AXVH80 —
90919-05096 note Sensor, Camshaft Position
2024-08 → —
M20 MXVA80,MXVH80 —
90919-05096 note Sensor, Camshaft Position
2024-08 → —
A25 AXVH80 —
90919-C5007 note Sensor, Camshaft Position
2024-08 → —
M20 MXVA80,MXVH80 —
90919-C5007 note Sensor, Camshaft Position
2024-08 → —
A25 AXVH80 —
11103 — Housing Sub-assy, Camshaft
11103-24022 note Housing Sub-assy, Camshaft
2024-03 → —
M20 MXVH80 —
11103-F0070 Housing Sub-assy, Camshaft
2024-06 → —
A25 AXVH80 —
11103-F2051 Housing Sub-assy, Camshaft
2024-03 → —
M20 MXVA80 —
11103-F2110 note Housing Sub-assy, Camshaft
2024-03 → —
M20 MXVH80 —
11115 — Gasket, Cylinder Head
11115-F0020 Gasket, Cylinder Head
2024-06 → —
A25 AXVH80 —
11115-F2020 Gasket, Cylinder Head
2024-03 → —
M20 MXVA80,MXVH80 —
11115A — Pin, Ring
90253-C0002 Pin, Ring
2024-06 → —
A25 AXVH80 —
90253-C0002 Pin, Ring
2024-03 → —
M20 MXVA80,MXVH80 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-C0012 Plug, W/Head Straight Screw, NO.1
2024-03 → —
M20 MXVA80,MXVH80 —
90341-C0012 Plug, W/Head Straight Screw, NO.1
2024-06 → —
A25 AXVH80 —
11117G — Plug, W/Head Straight Screw, NO.3
90341-20012 Plug, W/Head Straight Screw, NO.3
2024-03 → —
M20 MXVA80,MXVH80 —
90341-C0019 Plug, W/Head Straight Screw, NO.3
2024-06 → —
A25 AXVH80 —
11122 — Bush, Intake Valve Guide
11122-31090 note Bush, Intake Valve Guide
2024-03 → —
M20 MXVA80,MXVH80 —
11122-31090 note Bush, Intake Valve Guide
2024-06 → —
A25 AXVH80 —
11123-31090 note Bush, Intake Valve Guide
2024-03 → —
M20 MXVA80,MXVH80 —
11123-31090 note Bush, Intake Valve Guide
2024-06 → —
A25 AXVH80 —
11126 — Bush, Exhaust Valve Guide
11122-47010 note Bush, Exhaust Valve Guide
2024-03 → —
M20 MXVA80,MXVH80 —
11122-47010 note Bush, Exhaust Valve Guide
2024-06 → —
A25 AXVH80 —
11123-47010 note Bush, Exhaust Valve Guide
2024-03 → —
M20 MXVA80,MXVH80 —
11123-47010 note Bush, Exhaust Valve Guide
2024-06 → —
A25 AXVH80 —
11135 — Seat, Exhaust Valve
11135-F0040 note Seat, Exhaust Valve
2024-06 → —
A25 AXVH80 —
11135-F2030 note Seat, Exhaust Valve
2024-03 → —
M20 MXVA80,MXVH80 —
11136-25020 note Seat, Exhaust Valve
2024-06 → —
A25 AXVH80 —
11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009 note Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2024-03 → —
M20 MXVA80,MXVH80 —
90119-C0469 note Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2024-03 → —
M20 MXVA80,MXVH80 —
90119-C0469 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2024-06 → —
A25 AXVH80 —
11155B — Pin, Ring
90253-13005 note Pin, Ring
2024-03 → —
M20 MXVA80,MXVH80 —
90253-13005 note Pin, Ring
2024-06 → —
A25 AXVH80 —
90253-C0004 note Pin, Ring
2024-03 → —
M20 MXVA80,MXVH80 —
90253-C0004 note Pin, Ring
2024-06 → —
A25 AXVH80 —
11159H — Gasket, Camshaft Bearing Cap Oil Hole
11159-F2010 Gasket, Camshaft Bearing Cap Oil Hole
2024-03 → —
M20 MXVA80,MXVH80 —
11159-F2010 Gasket, Camshaft Bearing Cap Oil Hole
2024-06 → —
A25 AXVH80 —
11193 — Gasket, Spark Plug Tube
11193-37030 note Gasket, Spark Plug Tube
2024-03 → —
M20 MXVH80 —
11193-F2020 Gasket, Spark Plug Tube
2024-03 → —
M20 MXVA80 —
11193-F2020 note Gasket, Spark Plug Tube
2024-03 → —
M20 MXVH80 —
11193-F2020 Gasket, Spark Plug Tube
2024-06 → —
A25 AXVH80 —
11201 — Cover Sub-assy, Cylinder Head
11201-24040 note Cover Sub-assy, Cylinder Head
2024-03 → —
M20 MXVH80 —
11201-F0020 Cover Sub-assy, Cylinder Head
2024-06 → —
A25 AXVH80 —
11201-F2041 Cover Sub-assy, Cylinder Head
2024-03 → —
M20 MXVA80 —
11201-F2080 note Cover Sub-assy, Cylinder Head
2024-03 → —
M20 MXVH80 —
11213 — Gasket, Cylinder Head Cover
11213-24020 note Gasket, Cylinder Head Cover
2024-03 → —
M20 MXVH80 —
11213-F0010 Gasket, Cylinder Head Cover
2024-06 → —
A25 AXVH80 —
11213-F2020 Gasket, Cylinder Head Cover
2024-03 → —
M20 MXVA80 —
11213-F2020 note Gasket, Cylinder Head Cover
2024-03 → —
M20 MXVH80 —
11214 — Gasket, Cylinder Head Cover, NO.2
11213-31080 Gasket, Cylinder Head Cover, NO.2
2024-03 → —
M20 MXVA80 —
11213-31080 Gasket, Cylinder Head Cover, NO.2
2024-03 → —
M20 MXVH80 —
11213-31080 Gasket, Cylinder Head Cover, NO.2
2024-06 → —
A25 AXVH80 —
11452D — Guide, Oil Level Gage
11452-F2040 Guide, Oil Level Gage
2024-03 → —
M20 MXVA80,MXVH80 —
11452E — Ring, O(FOR OIL LEVEL GAGE GUIDE)
90301-C0037 note Ring, O(FOR OIL LEVEL GAGE GUIDE)
2024-03 → —
M20 MXVA80,MXVH80 —
96741-19010 note Ring, O(FOR OIL LEVEL GAGE GUIDE)
2024-03 → —
M20 MXVA80,MXVH80 —
12108A — Gasket(FOR OIL FILLER CAP)
90430-35001 Gasket(FOR OIL FILLER CAP)
2024-03 → —
M20 MXVA80,MXVH80 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2024-06 → —
A25 AXVH80 —
12180E — Cap Assy, Oil Filler
12180-0V010 Cap Assy, Oil Filler
2024-03 → —
M20 MXVA80,MXVH80 —
12204C — Valve Sub-assy, Ventilation
12204-F2010 Valve Sub-assy, Ventilation
2024-03 → —
M20 MXVA80,MXVH80 —
12204-F2010 Valve Sub-assy, Ventilation
2024-06 → —
A25 AXVH80 —
12282D — Hanger, Engine, NO.2
12282-F2010 Hanger, Engine, NO.2
2024-03 → —
M20 MXVA80,MXVH80 —
12282-F2010 Hanger, Engine, NO.2
2024-06 → —
A25 AXVH80 —
12601B — Cover Sub-assy, Engine, NO.1
12601-F0130 Cover Sub-assy, Engine, NO.1
2024-06 → —
A25 AXVH80 —
12601-F2040 Cover Sub-assy, Engine, NO.1
2024-03 → —
M20 MXVA80,MXVH80 —
15301B — Gage Sub-assy, Oil Level
15301-F2070 Gage Sub-assy, Oil Level
2024-03 → —
M20 MXVA80,MXVH80 —
15301C — Ring, O(FOR OIL LEVEL GAGE)
90301-C0083 note Ring, O(FOR OIL LEVEL GAGE)
2024-03 → —
M20 MXVA80,MXVH80 —
96741-19005 note Ring, O(FOR OIL LEVEL GAGE)
2024-03 → —
M20 MXVA80,MXVH80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
