Toyota Camry/Hybrid (CHINA)
2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General
Supported model
Data version 2024-05

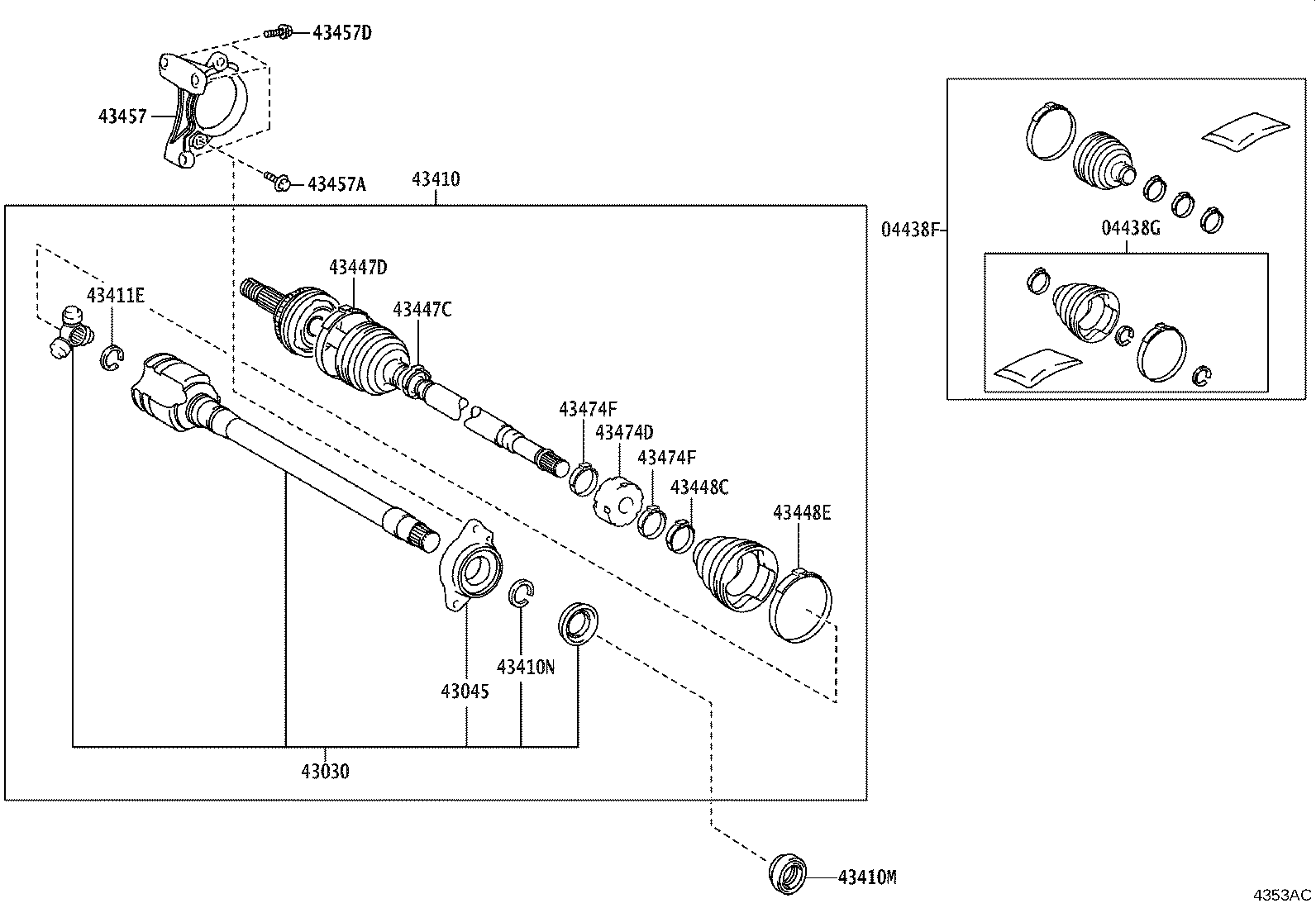

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH | ||||
| 04427-02710 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-03 → —
|
MXVA80 | — | |
| 04427-02A71 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-03 → —
|
AXVH80,MXVH80 | — | |
| 04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH | ||||
| 04437-02640 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43030 — Joint Assy, Front Drive Inboard, RH | ||||
| 43030-06530 |
Joint Assy, Front Drive Inboard, RH
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43045 — Case Sub Assy, Drive Shaft Bearing | ||||
| 43045-0R010 |
Case Sub Assy, Drive Shaft Bearing
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43410 — Shaft Assy, Front Drive, RH | ||||
| 43410-06C40 |
Shaft Assy, Front Drive, RH
2024-03 → —
|
AXVH80,MXVH80 | — | |
| 43410-07100 |
Shaft Assy, Front Drive, RH
2024-03 → —
|
MXVA80 | — | |
| 43410M — Oil Seal, Front Drive Shaft, RH | ||||
| 90311-40047 |
Oil Seal, Front Drive Shaft, RH
2024-03 → —
|
MXVA80 | — | |
| 90311-C0048 |
Oil Seal, Front Drive Shaft, RH
2024-03 → —
|
AXVH80,MXVH80 | — | |
| 43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-38015 note |
Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 90520-C0032 note |
Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 note |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 90520-C0030 note |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42100 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42090 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-28090 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-33140 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43457 — Bracket, Drive Shaft Bearing | ||||
| 43457-06170 |
Bracket, Drive Shaft Bearing
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-C0124 note |
Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90105-C0014 |
Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43474D — Damper, Front Drive Shaft, RH | ||||
| 43474-06500 |
Damper, Front Drive Shaft, RH
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-06420 note |
Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 42345-12090 note |
Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
