Toyota Camry/Hybrid (CHINA)
2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General
Supported model
Data version 2024-05

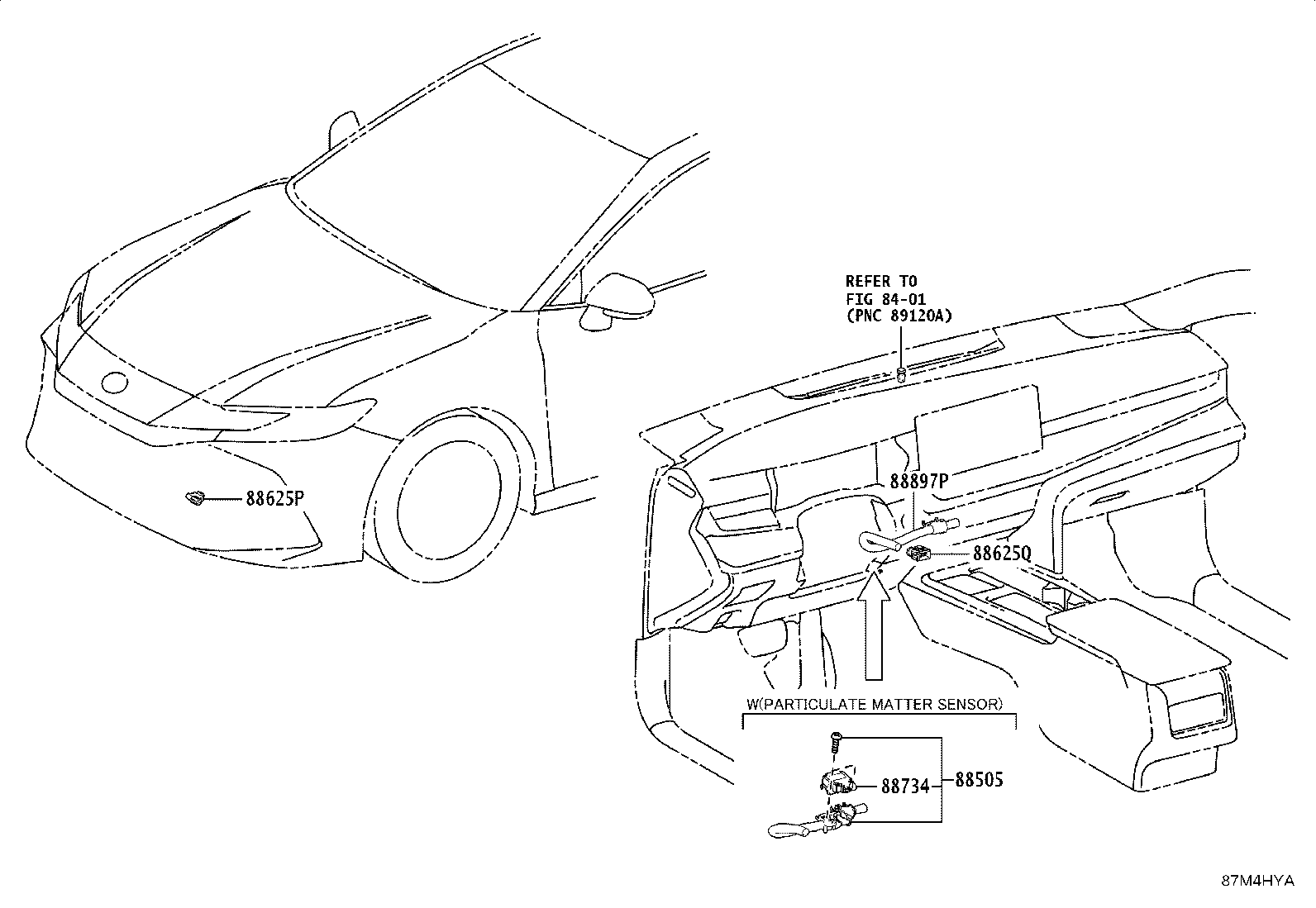

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88505 — Duct Sub-assy,Air Conditioner | ||||
| 88505-06020 note |
Duct Sub-assy,Air Conditioner
2024-03 → —
|
AXVH80,MXVH80 G,S | — | |
| 88505-06020 note |
Duct Sub-assy,Air Conditioner
2024-06 → —
|
AXVH80 G | — | |
| 88625P — Thermistor, Cooler (AMBIENT TEMP. SENSOR) | ||||
| 88790-06040 |
Thermistor, Cooler (AMBIENT TEMP. SENSOR)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-06060 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
| 88734 — Sensor, Air Conditioner Particulate Matter | ||||
| 88734-06010 note |
Sensor, Air Conditioner Particulate Matter
2024-03 → —
|
AXVH80,MXVH80 G,S | — | |
| 88734-06010 note |
Sensor, Air Conditioner Particulate Matter
2024-06 → —
|
AXVH80 G | — | |
| 88897P — Aspirator | ||||
| 88505-06010 |
Aspirator
2024-03 → —
|
AXVH80,MXVA80,MXVH80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
