Toyota Camry/Hybrid (CHINA)

2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

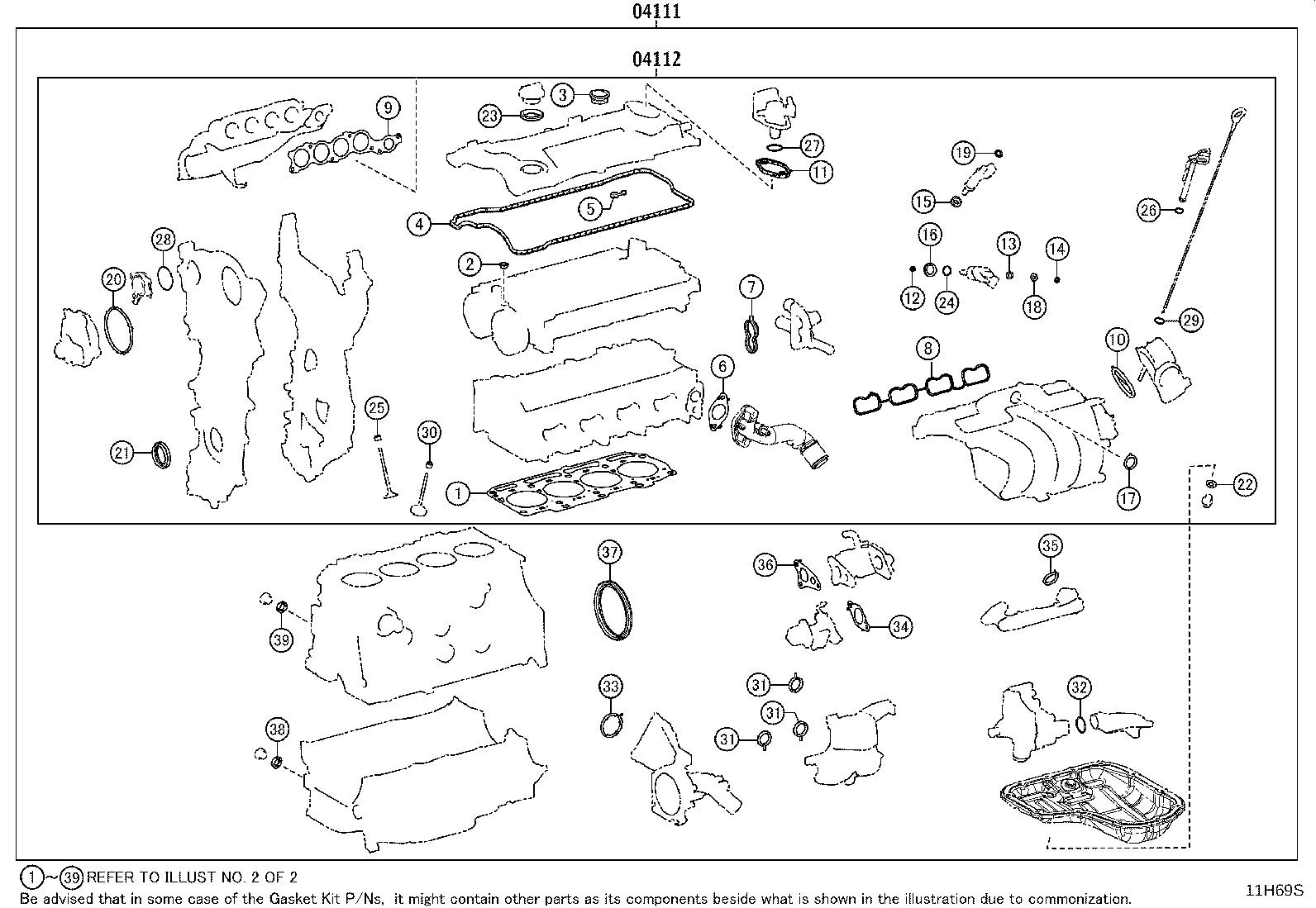

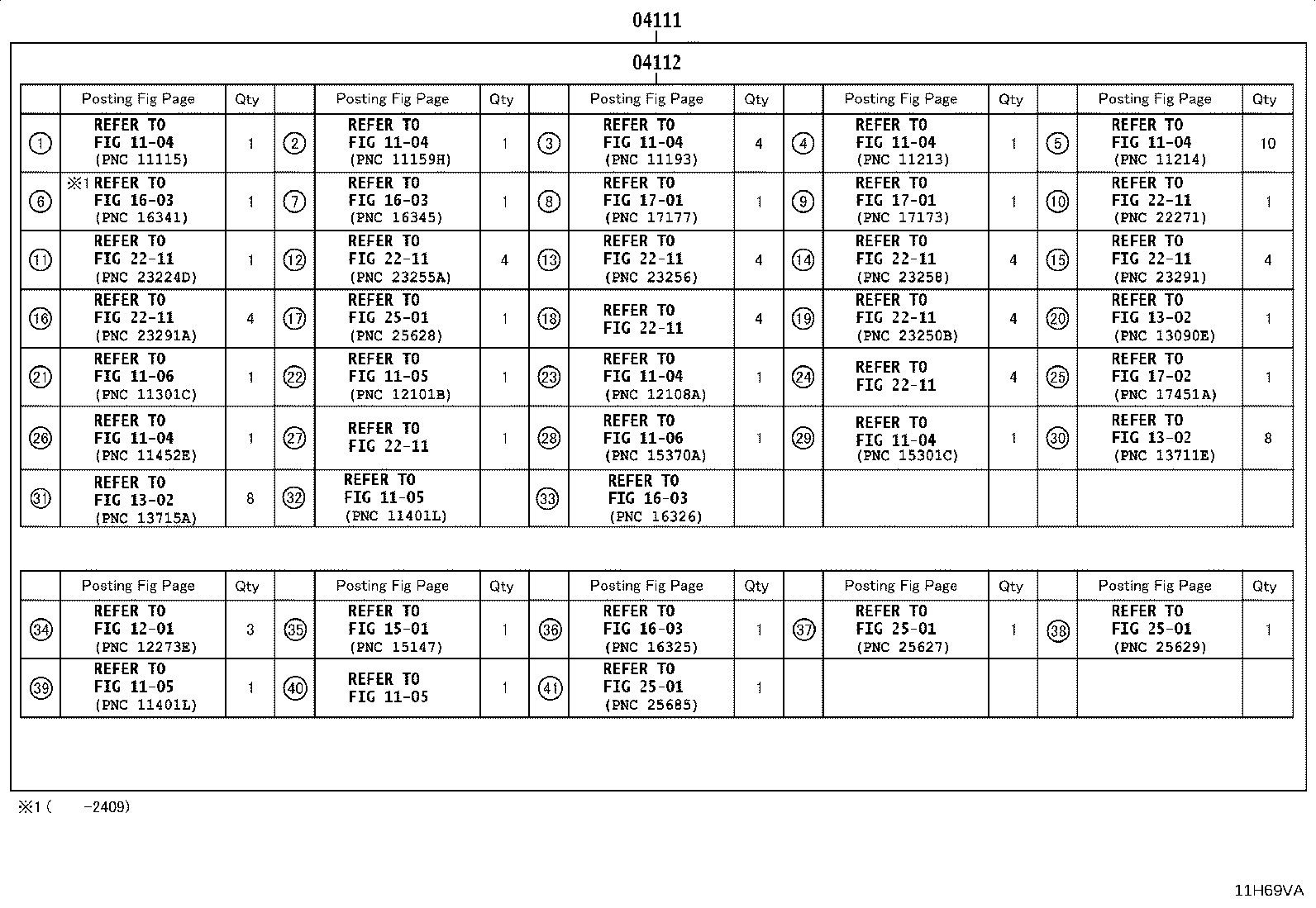

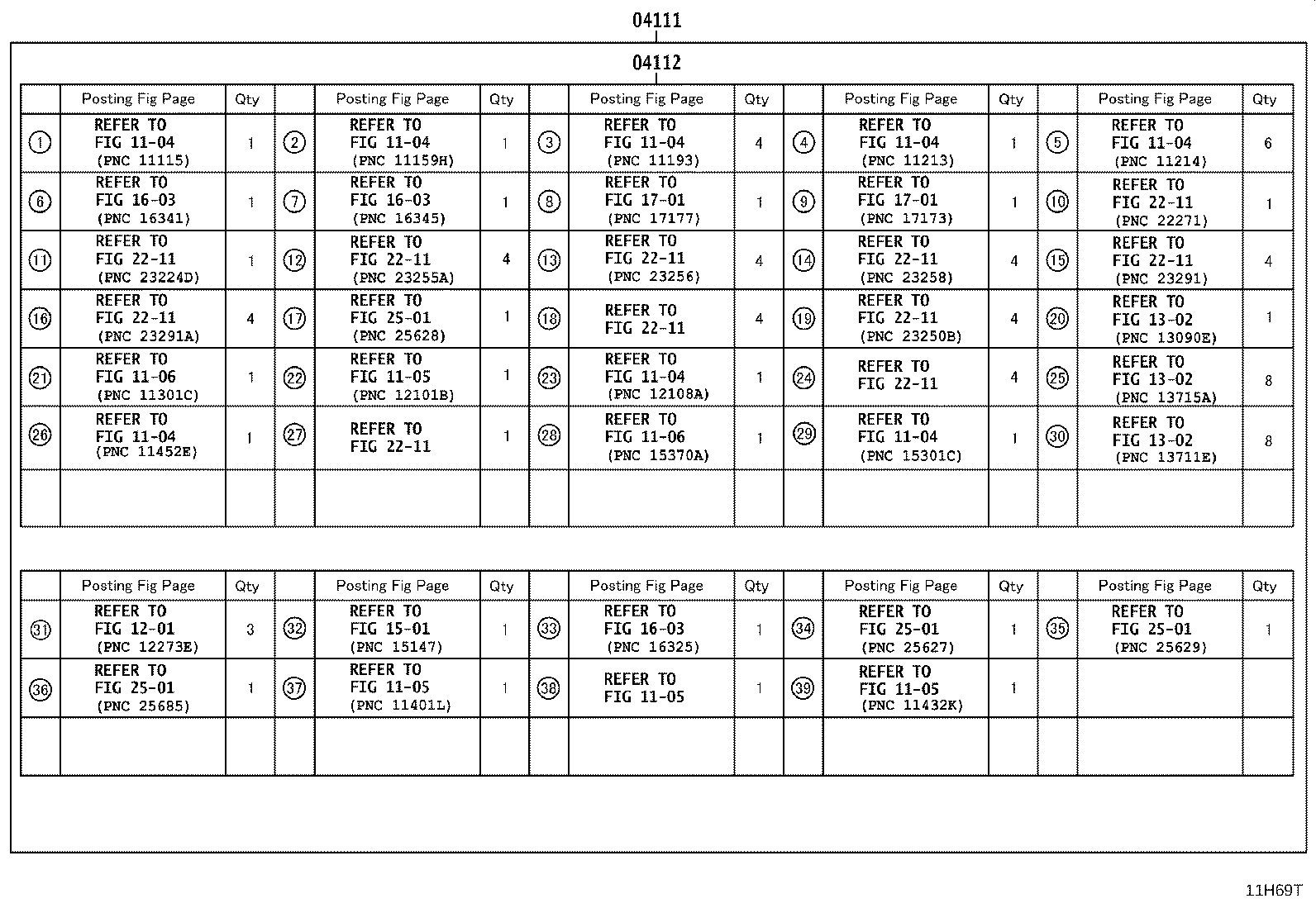

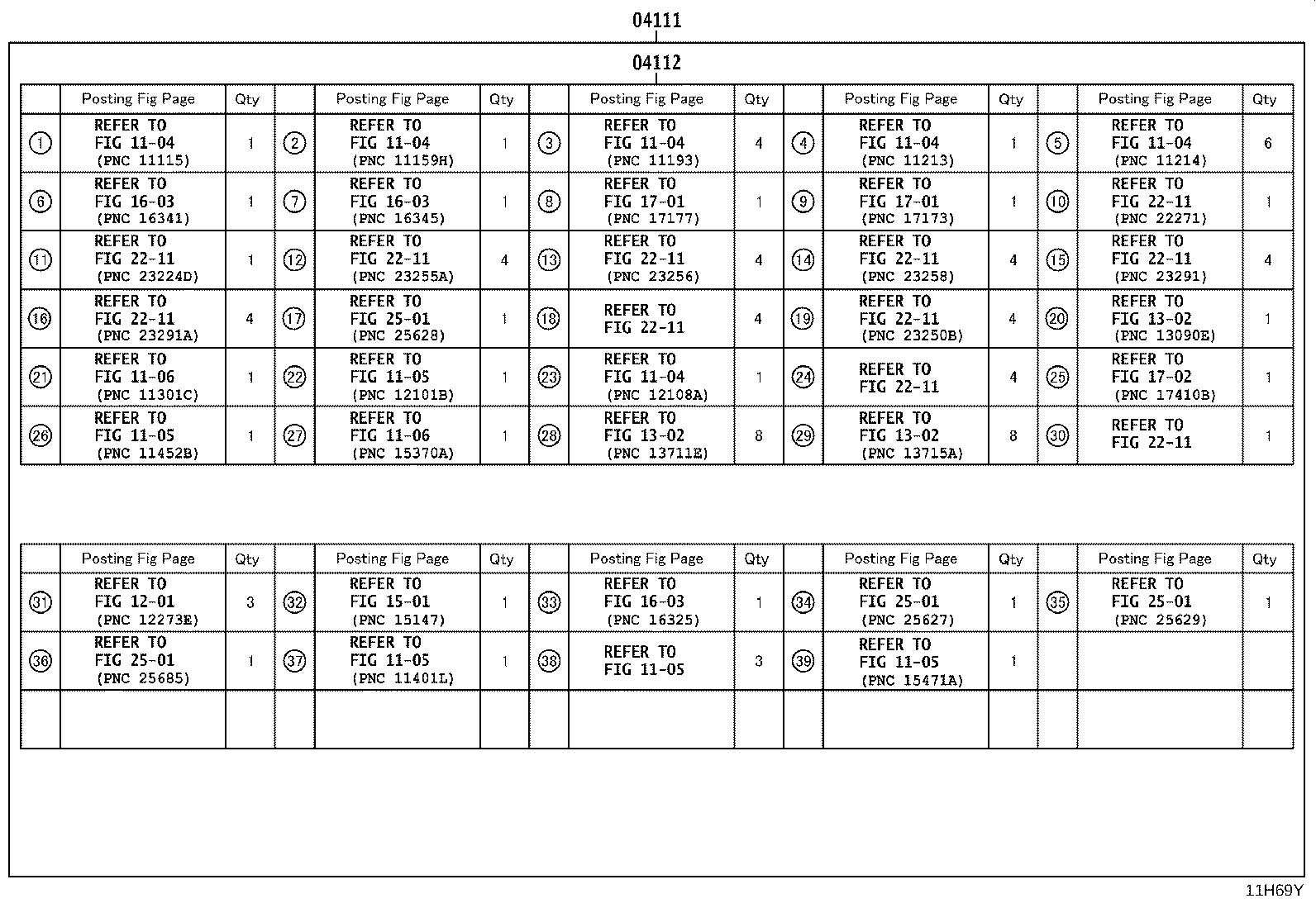

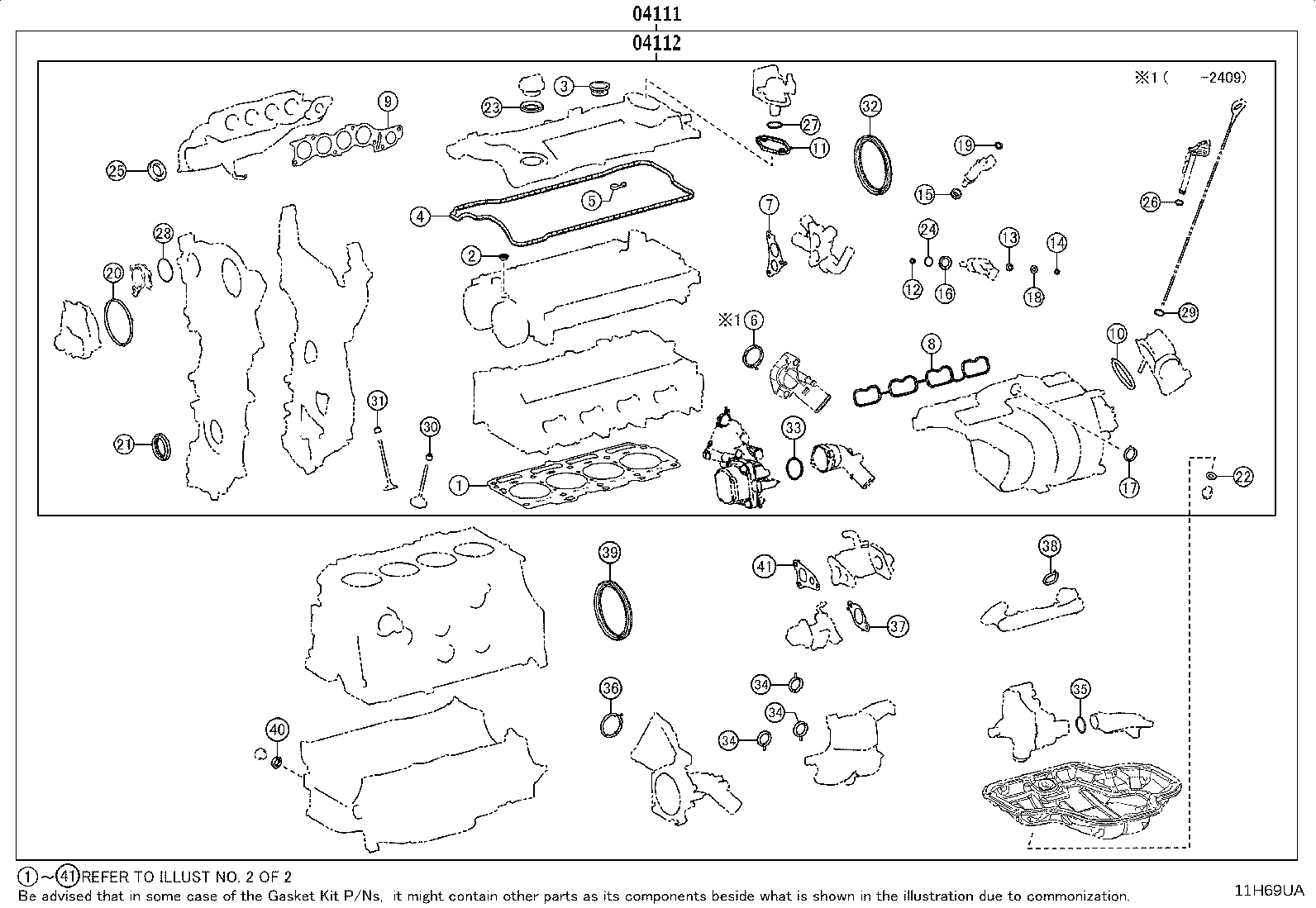

Figure 11H69X 11H69X 2024-06 → — Figure 11H69Y 11H69Y 2024-06 → — Figure 11H69S 11H69S 2024-03 → — Figure 11H69T 11H69T 2024-03 → — Figure 11H69UA 11H69UA 2024-03 → — Figure 11H69VA 11H69VA 2024-03 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
