Toyota Camry/Hybrid (CHINA)
2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General
Supported model
Data version 2024-05

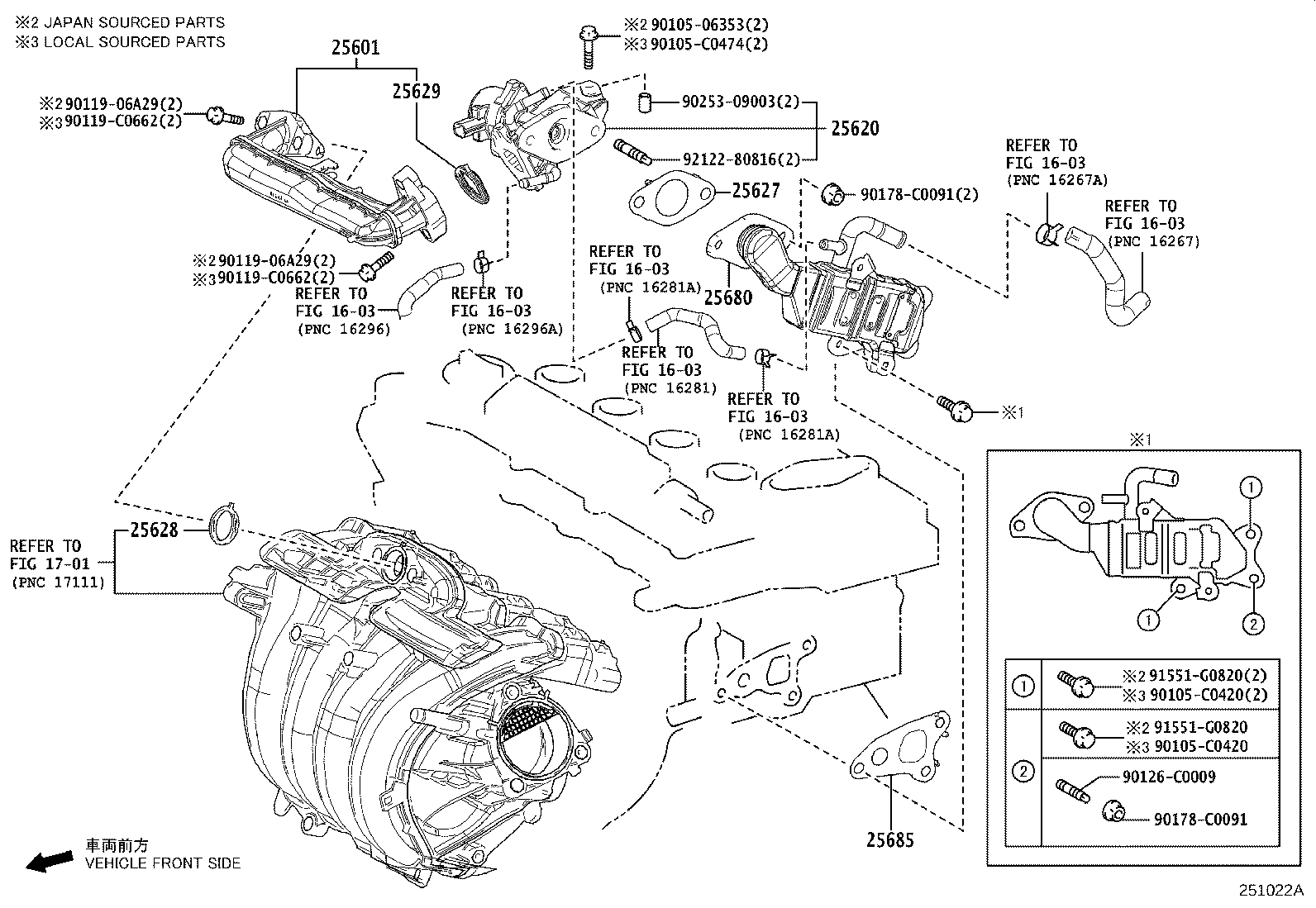

Exhaust Gas Recirculation System
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25620 | Valve Assy, Egr |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25629 | Gasket, Egr Valve Adapter |
| 25680 | Cooler Assy, Egr |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
