Toyota Camry/Hybrid (CHINA)
2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General
Supported model
Data version 2024-05
Instrument Panel & Glove Compartment

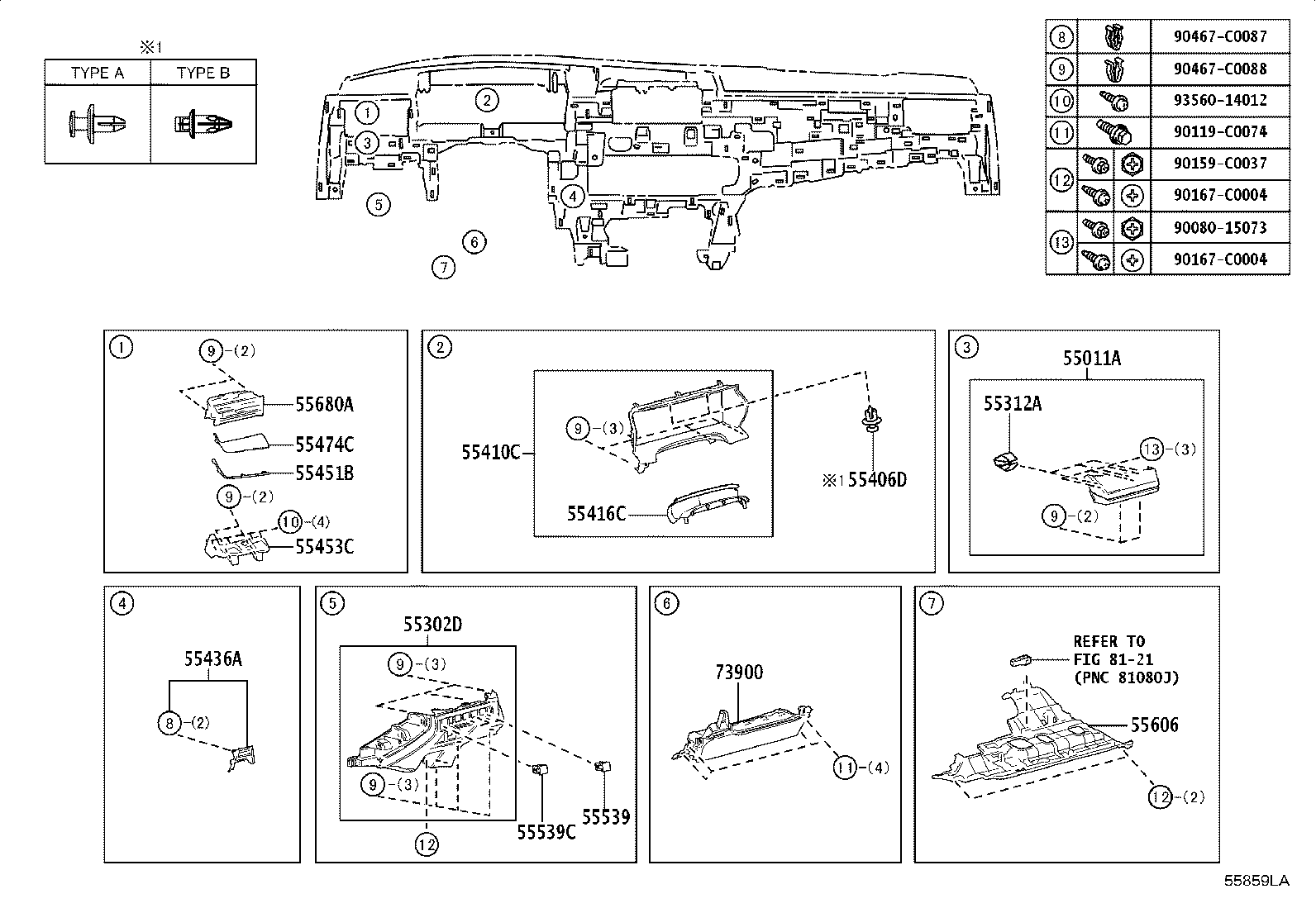

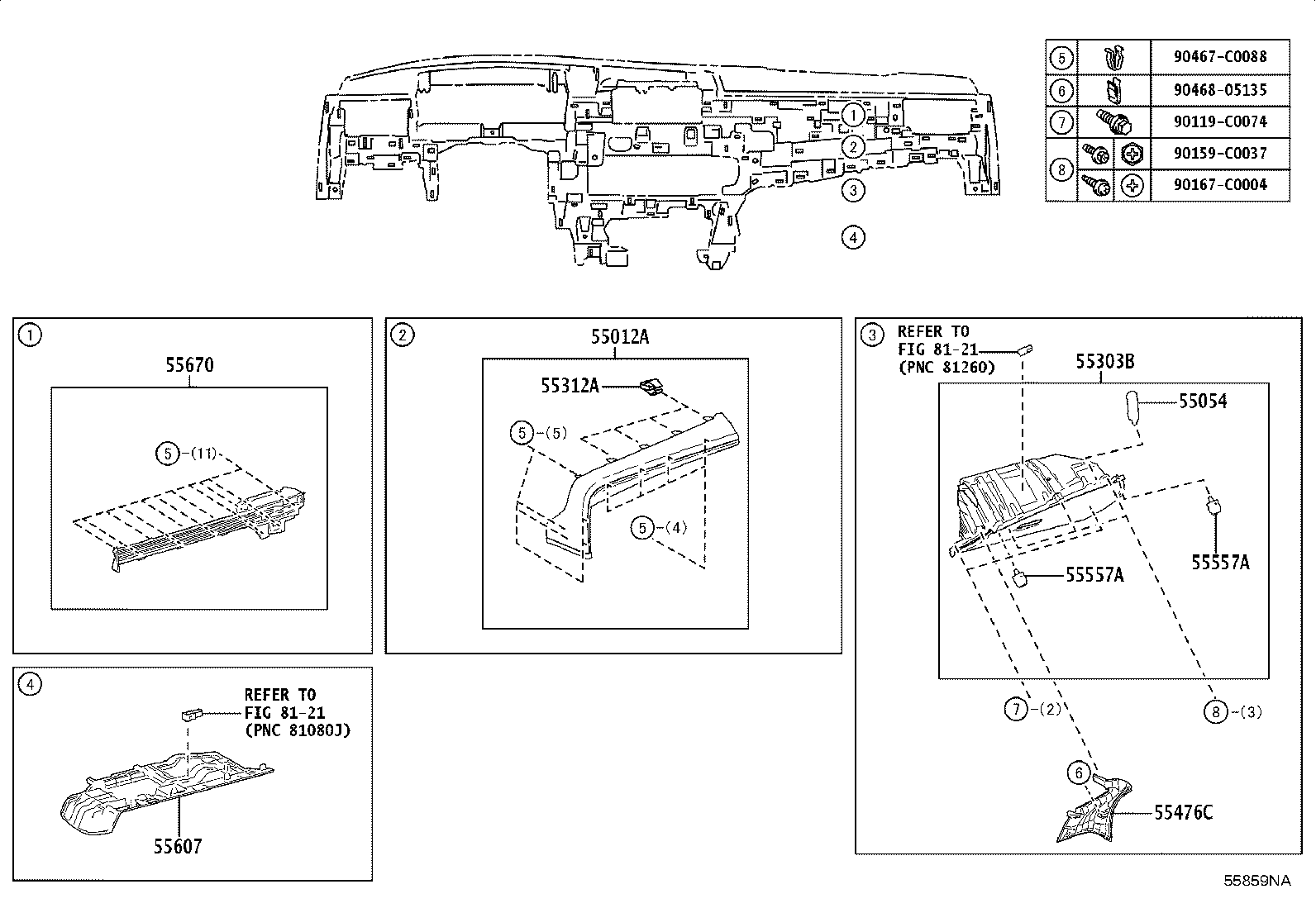

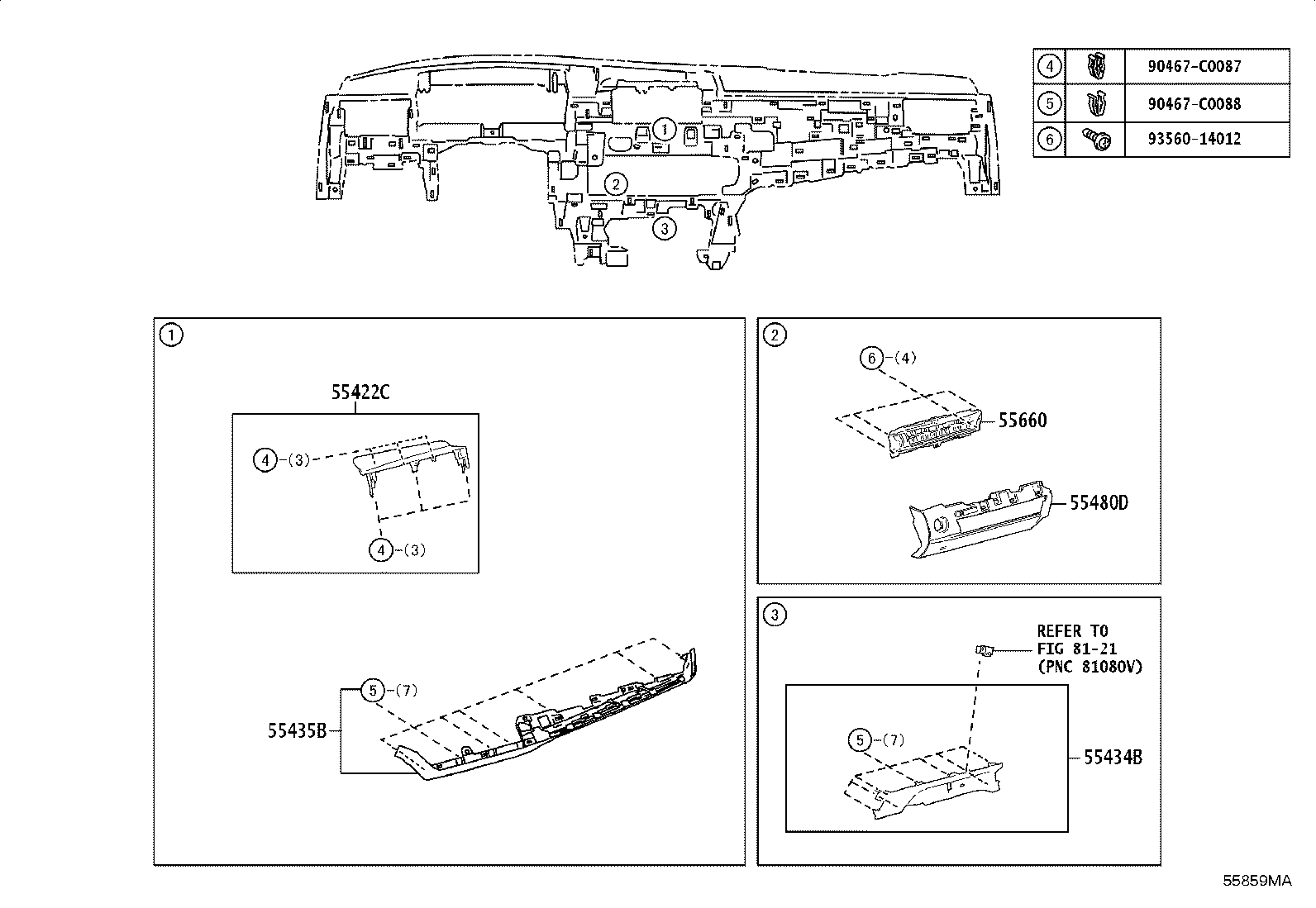

46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302D | Panel Sub-assy, Instrument, Lower, NO.1 |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307E | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308F | Brace Sub-assy, Instrument Panel, NO.3 |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55349A | Cushion, Instrument Panel |
| 55355E | Cushion, Instrument Panel |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55401F | Clip(FOR SAFETY PAD) |
| 55406D | Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55435B | Cluster, Meter Hood, NO.1 |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55451B | Cover, Instrument Panel Safety Pad |
| 55453C | Cover, Instrument Panel Safety Pad, NO.2 |
| 55472C | Panel, Instrument Panel Speaker, NO.1 |
| 55473B | Panel, Instrument Panel Speaker, NO.2 |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55476C | Garnish, Instrument Panel Finish Plate |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
