Toyota Camry/Hybrid (CHINA)

2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

8 part groups · 3 illustrations

Illustrations

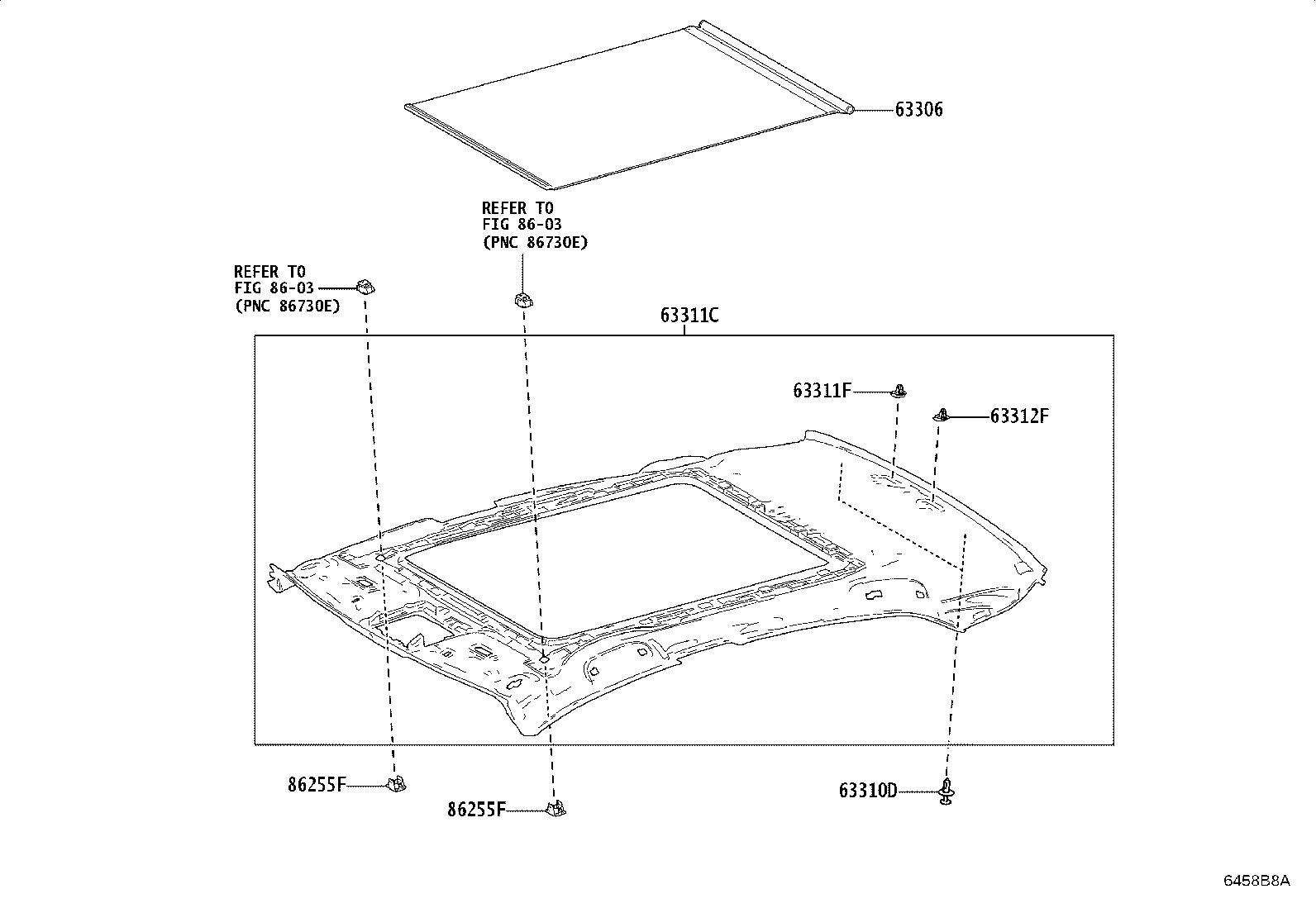

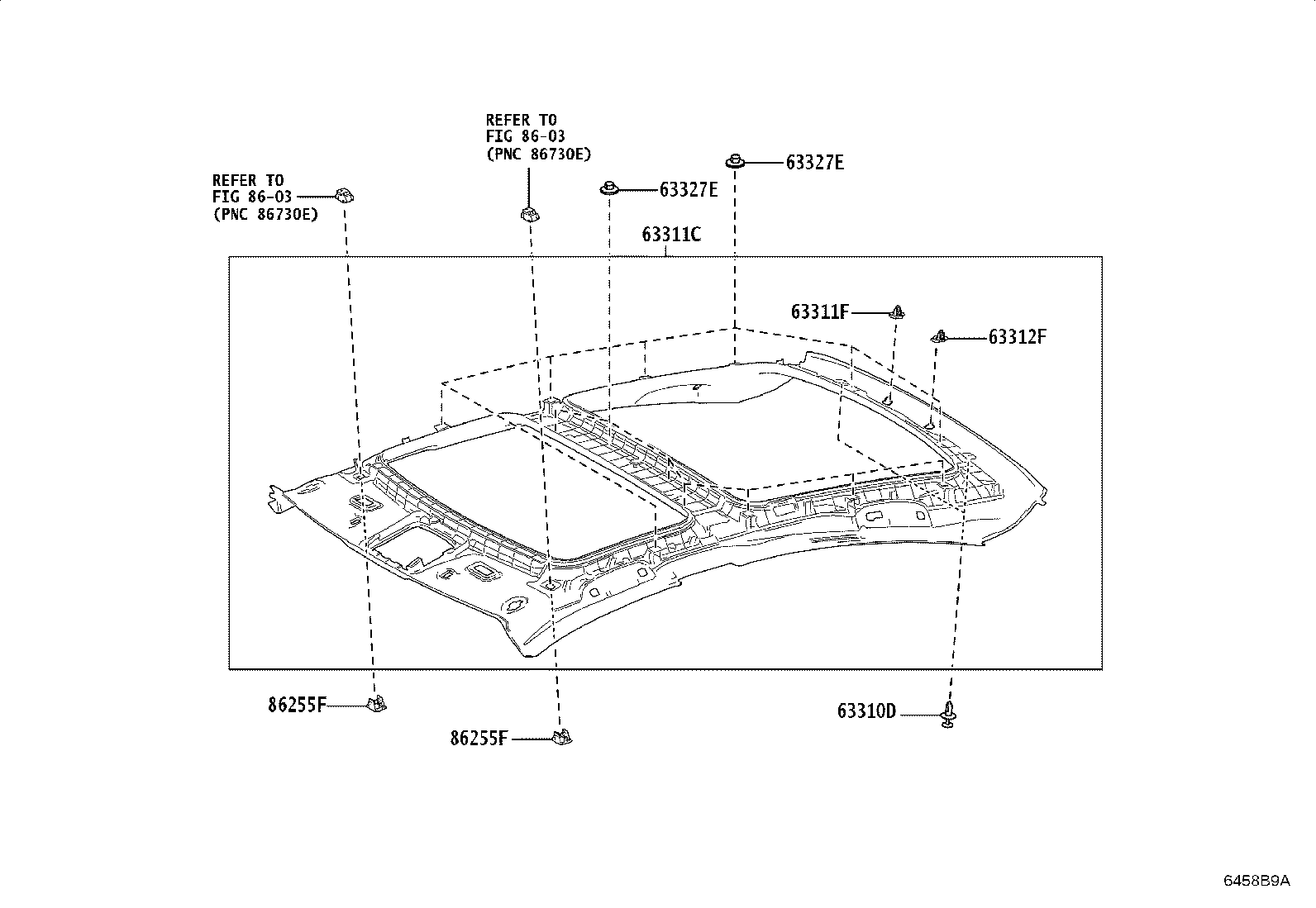

Figure 6458B7A 6458B7A 2024-03 → — Figure 6458B8A 6458B8A 2024-03 → — Figure 6458B9A 6458B9A 2024-03 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63311C Headlining, Roof
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63327E Fastener, Roof Headlining, NO.1
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
