Toyota Camry/Hybrid (CHINA)

2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

50 part groups · 7 illustrations

Illustrations

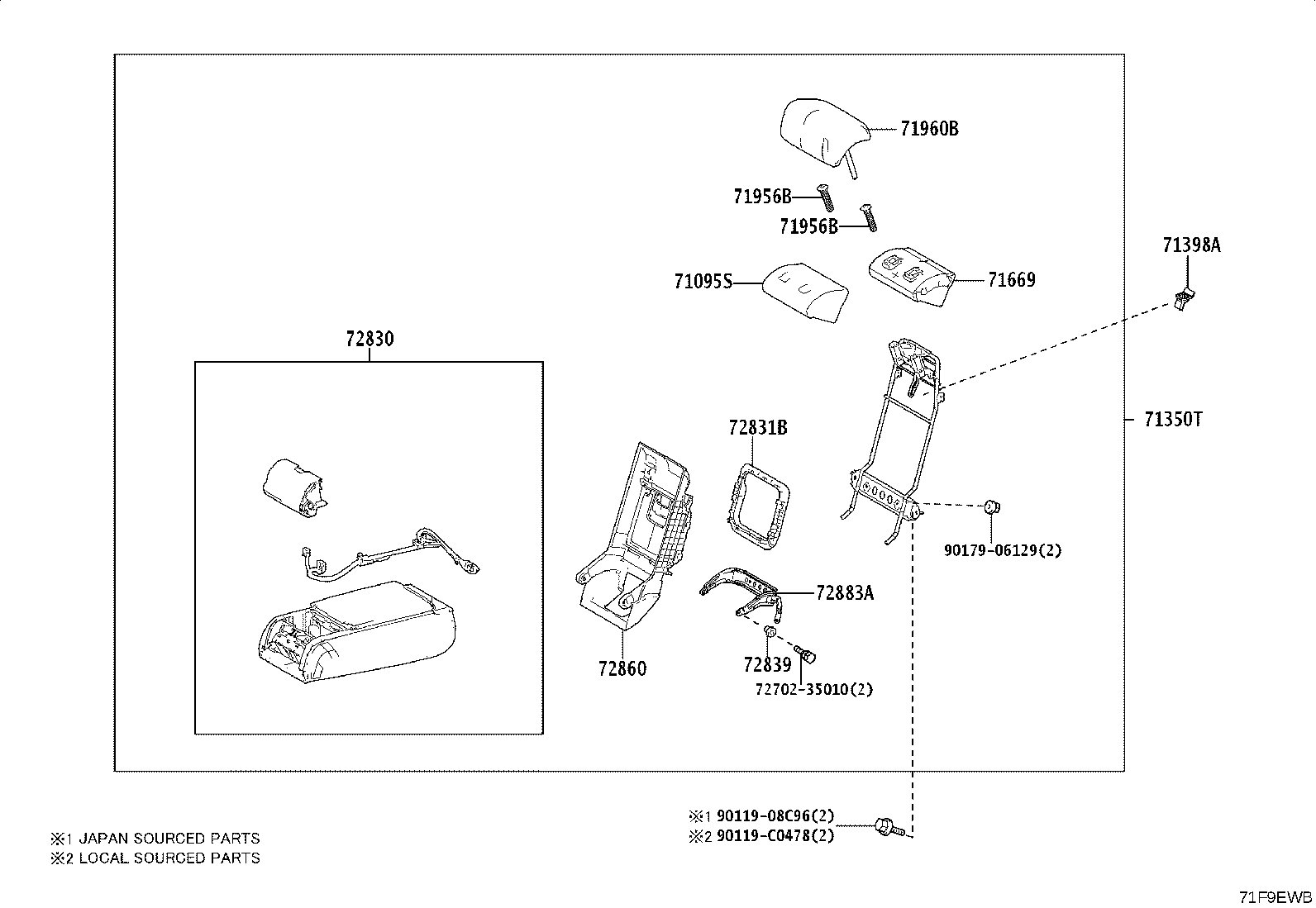

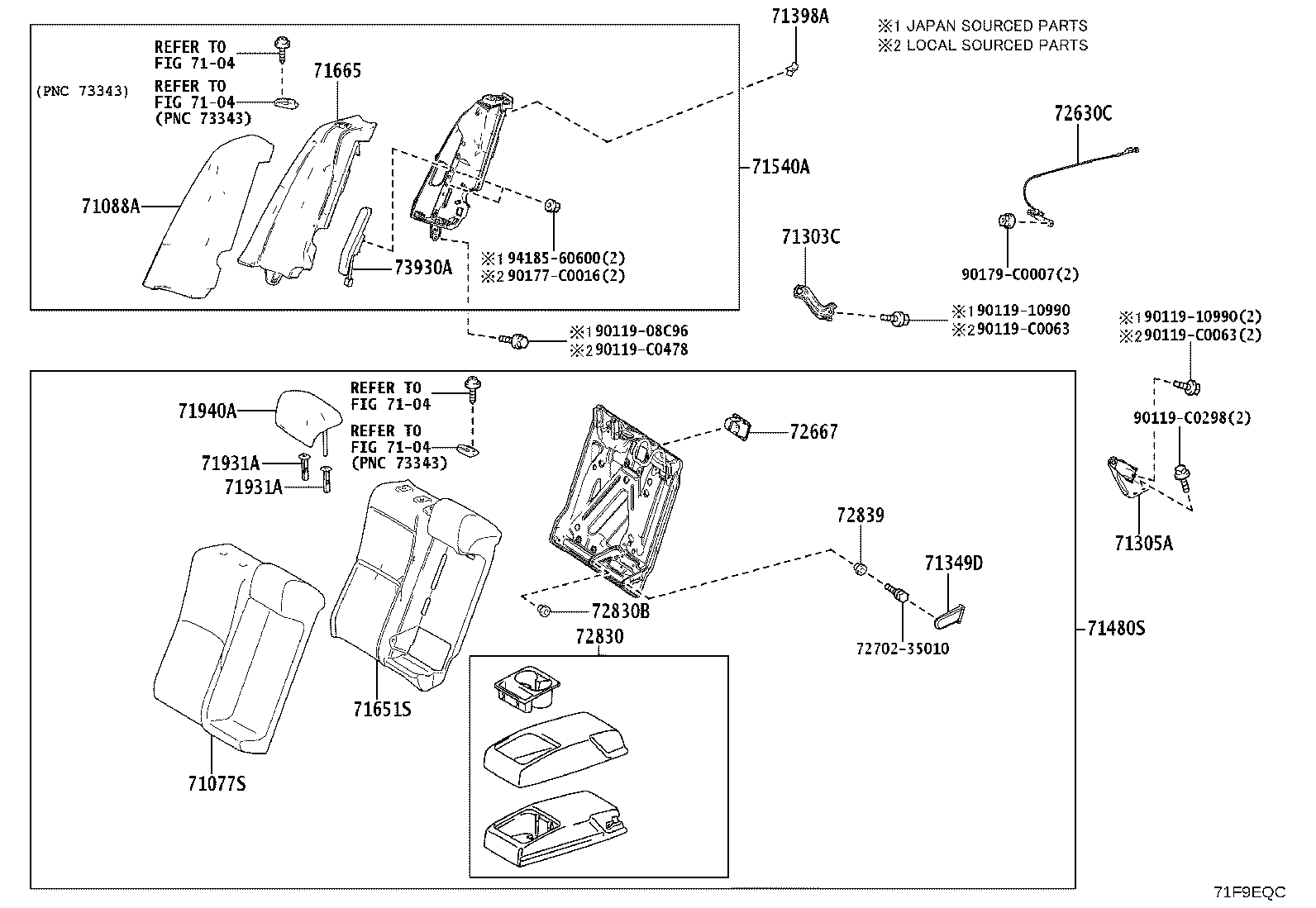

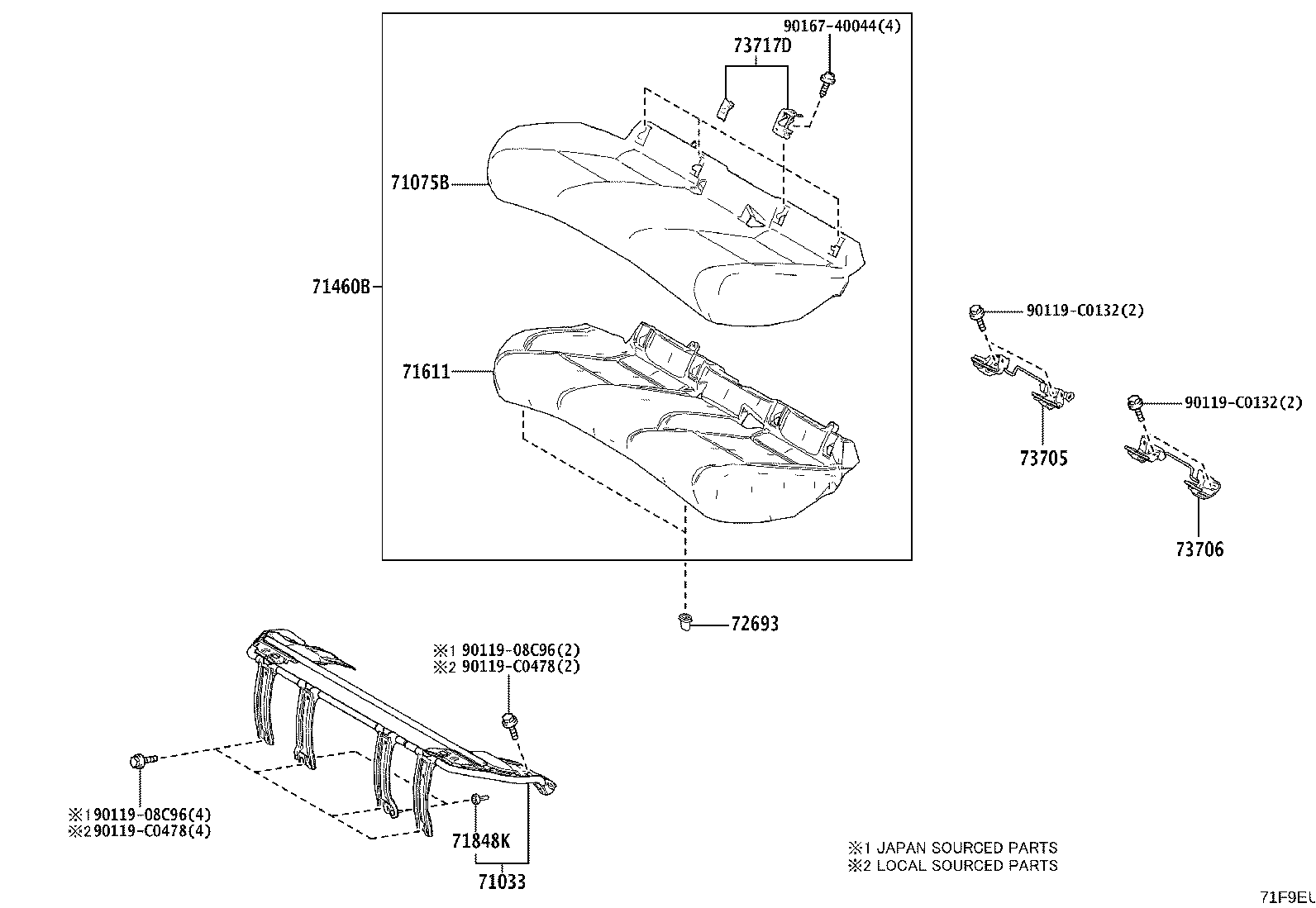

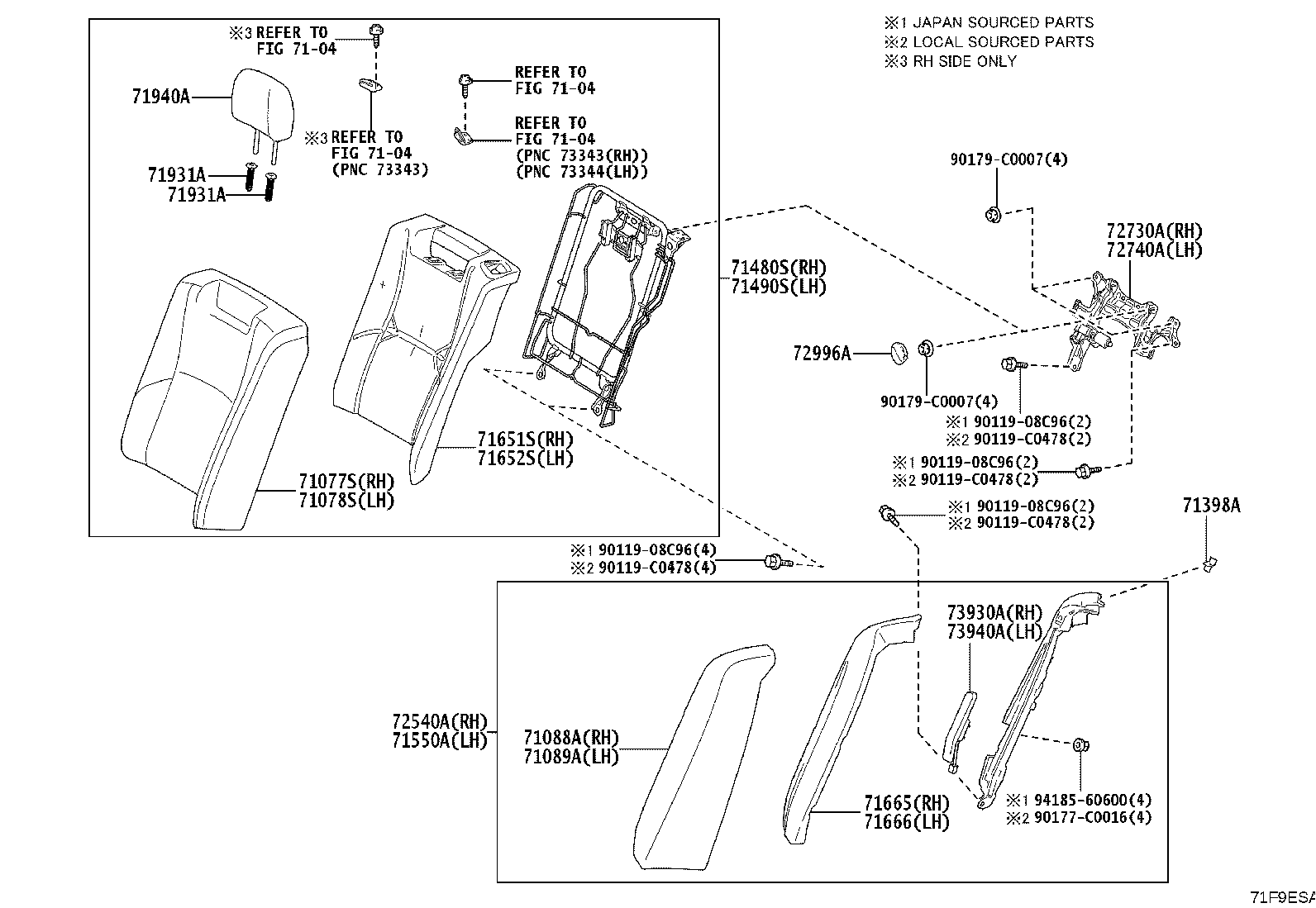

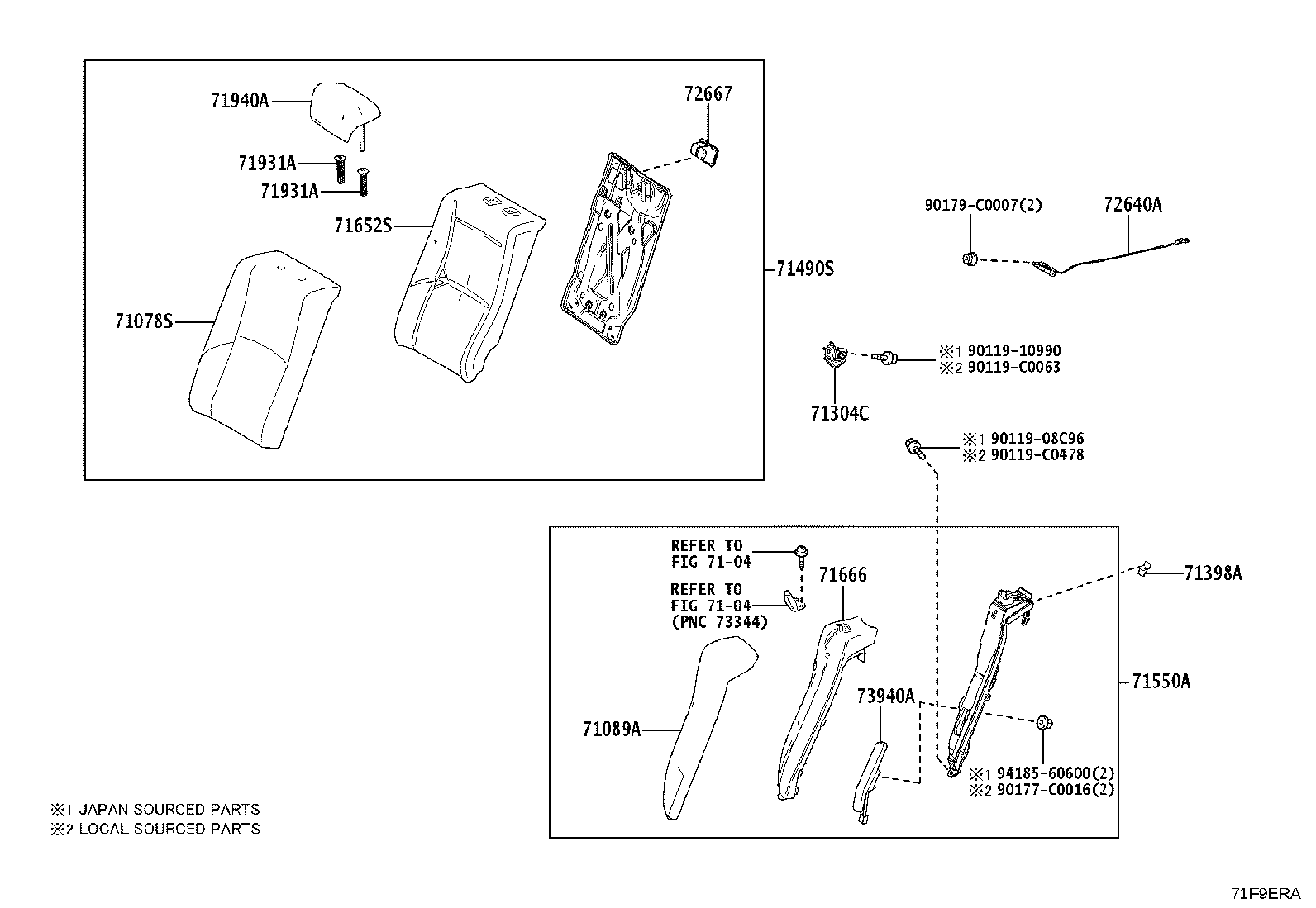

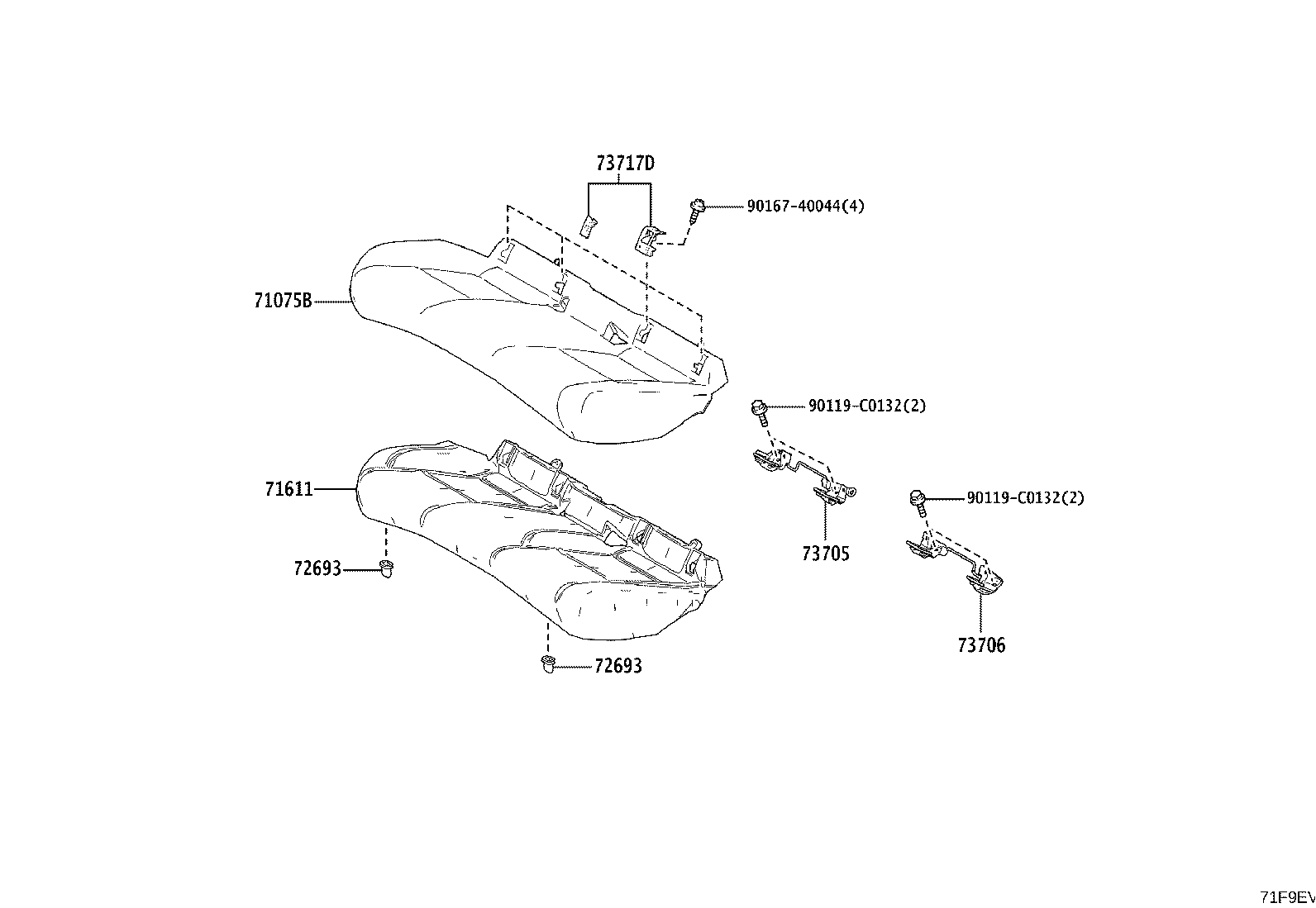

Figure 71F9EPB 71F9EPB 2024-03 → — Figure 71F9EQC 71F9EQC 2024-03 → — Figure 71F9ERA 71F9ERA 2024-03 → — Figure 71F9ESA 71F9ESA 2024-03 → — Figure 71F9EWB 71F9EWB 2024-03 → — Figure 71F9EU 71F9EU 2024-03 → — Figure 71F9EV 71F9EV 2024-03 → —

Part groups

PNCDescription
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71088A Cover Sub-assy, Rear Side Seatback, RH
71089A Cover Sub-assy, Rear Side Seatback, LH
71095S Cover Sub-assy, Center Seatback
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71349D Cover, Rear Seatback Hinge, RH
71350T Back Assy, Center Seat
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71665 Pad, Rear Seatback Side, RH
71666 Pad, Rear Seatback Side, LH
71669 Pad, Rear Seatback
71848K Cap, Seat Adjuster Cover
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667 Bezel, Rear Seatback Lock, Upper
72693 Hook, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72831B Plate, Rear Seat Center Armrest, NO.1
72839 Shim, Rear Seat Armrest Hinge
72860 Box Assy, Rear Seat Center Armrest
72883A Bracket, Rear Seat Center Armrest, NO.1
72996A Cover, Rear Seatback
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73717D Cover, Child Restraint Seat Tether Anchor
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
