Toyota Camry/Hybrid (CHINA)
2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General
Supported model
Data version 2024-05
Meter
6 part groups · 2 illustrations

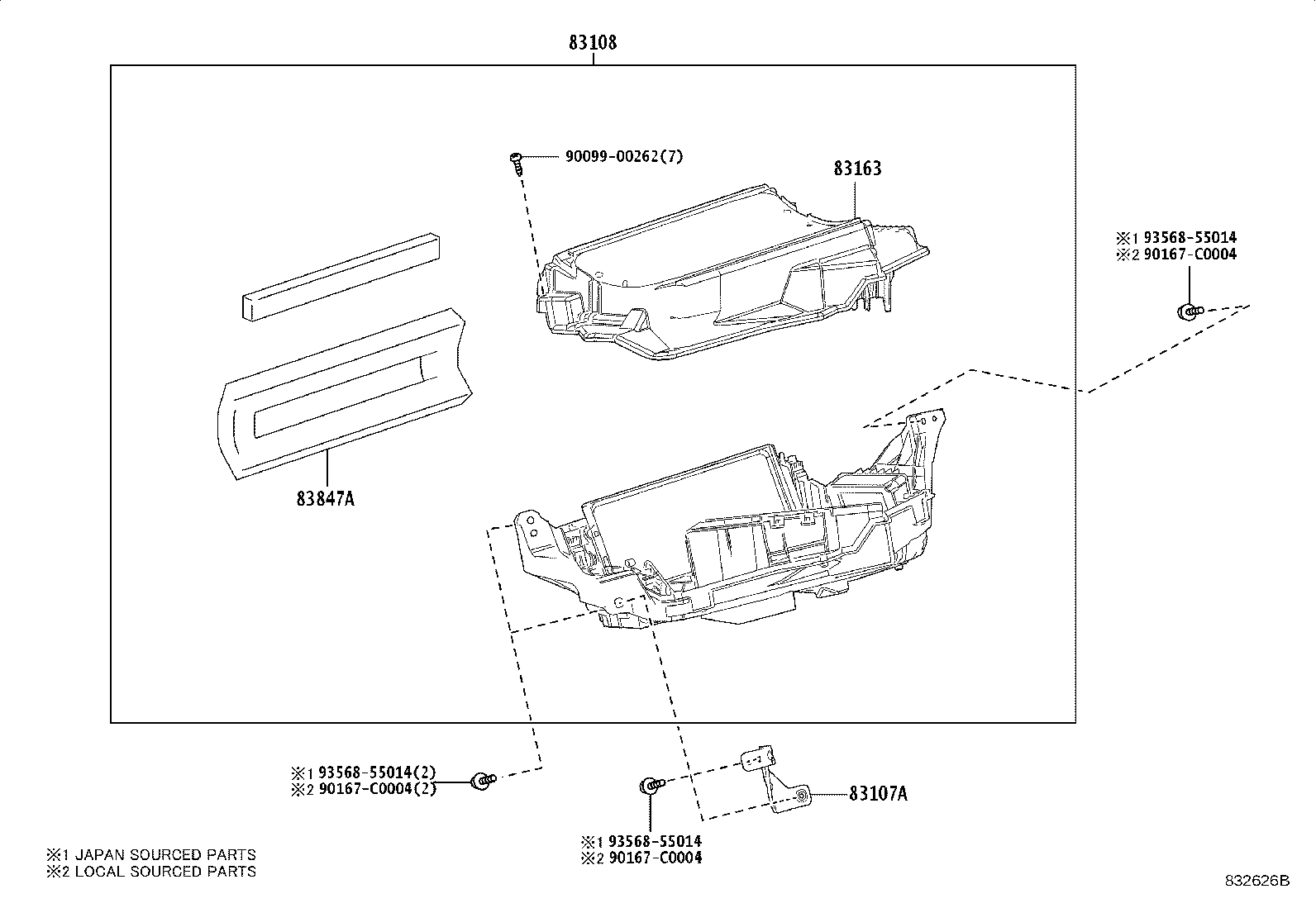

Part groups
| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83107A | Bracket Sub-assy, Meter, NO.1 |
| 83108 | Mirror Sub-assy, Meter |
| 83138G | Glass, Combination Meter |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83847A | Cushion, Combination Speedmeter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
