Toyota Camry/Hybrid (CHINA)
2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General
Supported model
Data version 2024-05

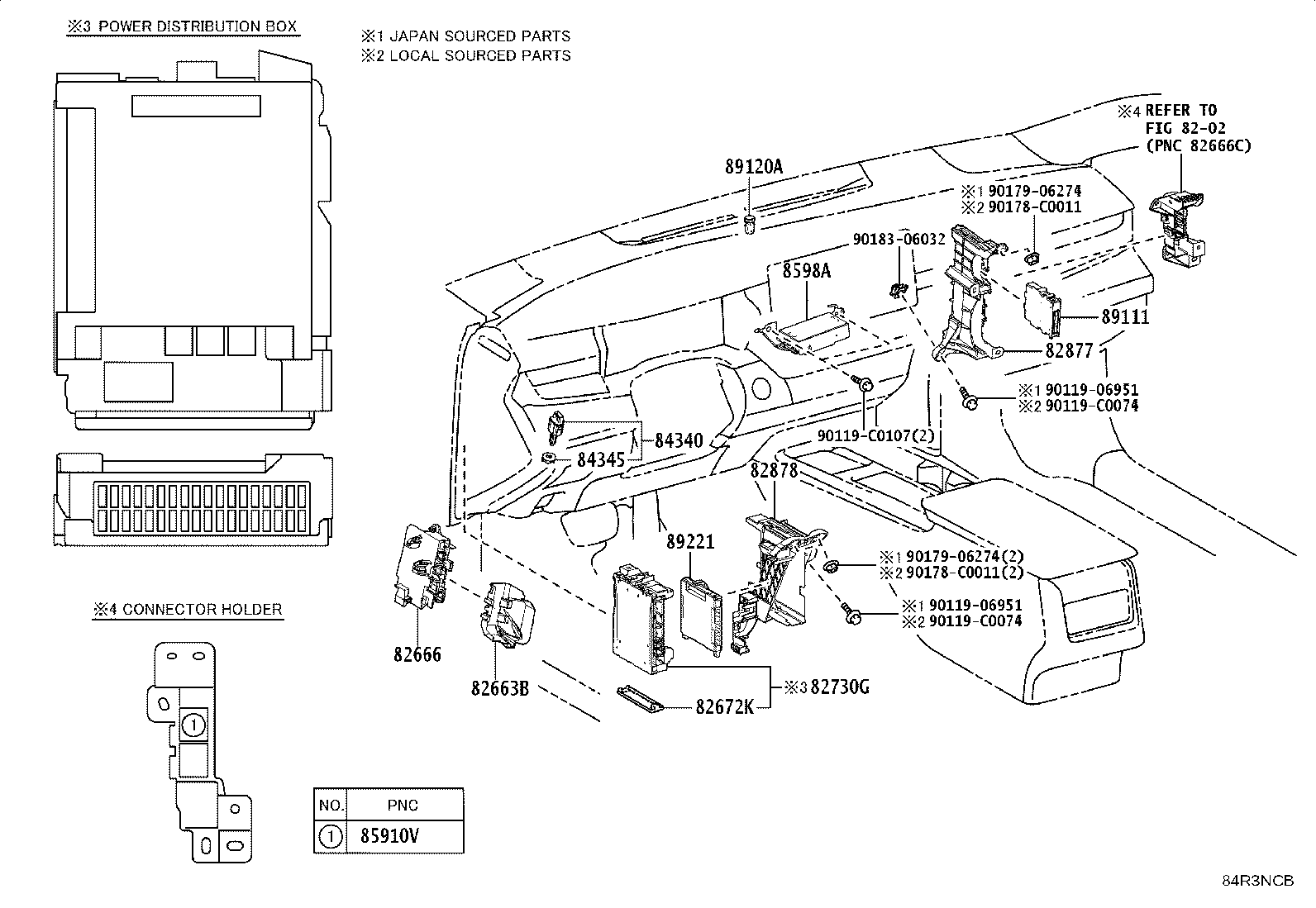

Switch & Relay & Computer
97 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371L | Relay, Igp |

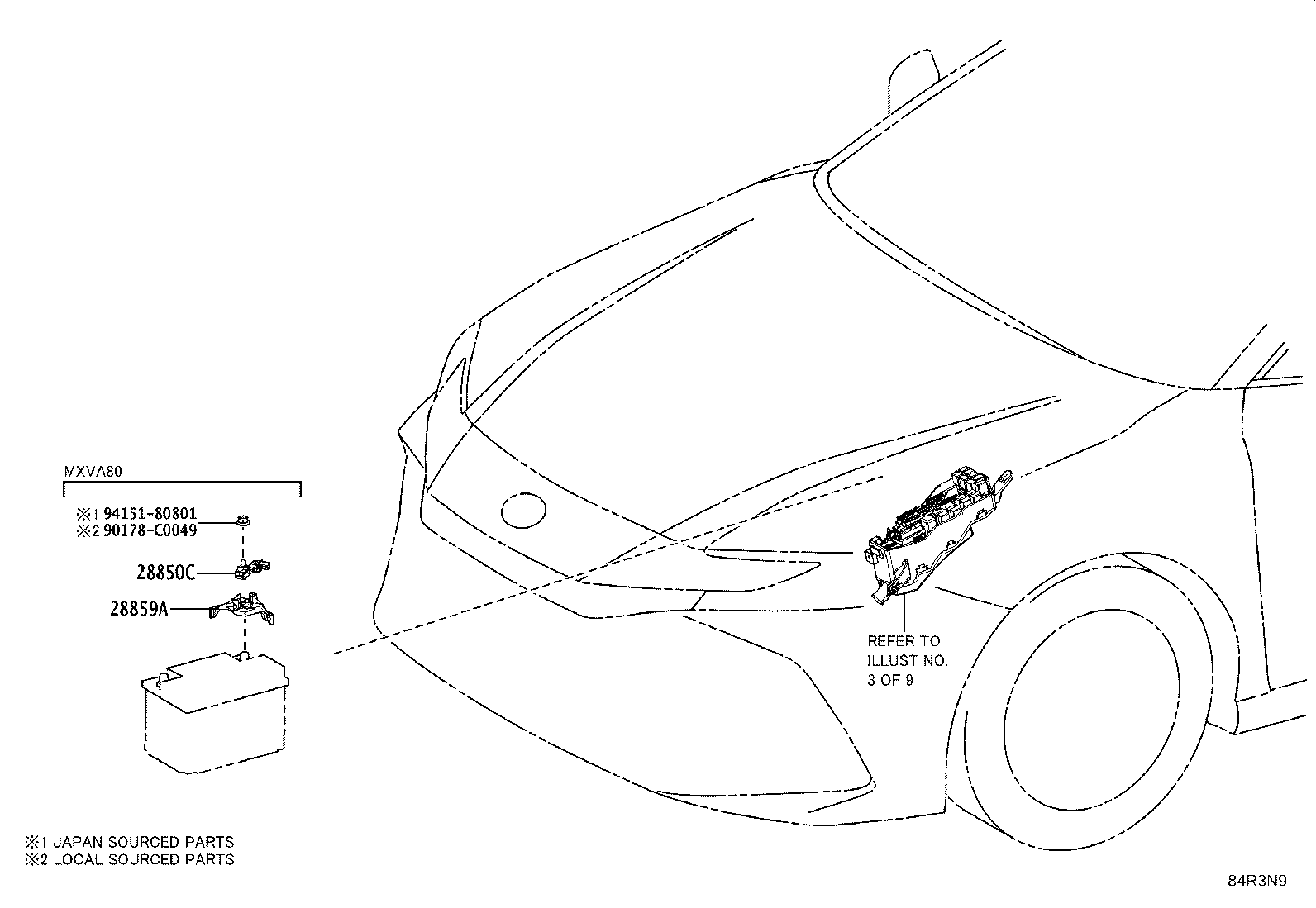

| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 82600E | Engine Room Fuse |
| 82610A | Block Assy, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82672K | Cover, Power Distribution Box |
| 82730G | Box Assy, Power Distribution |

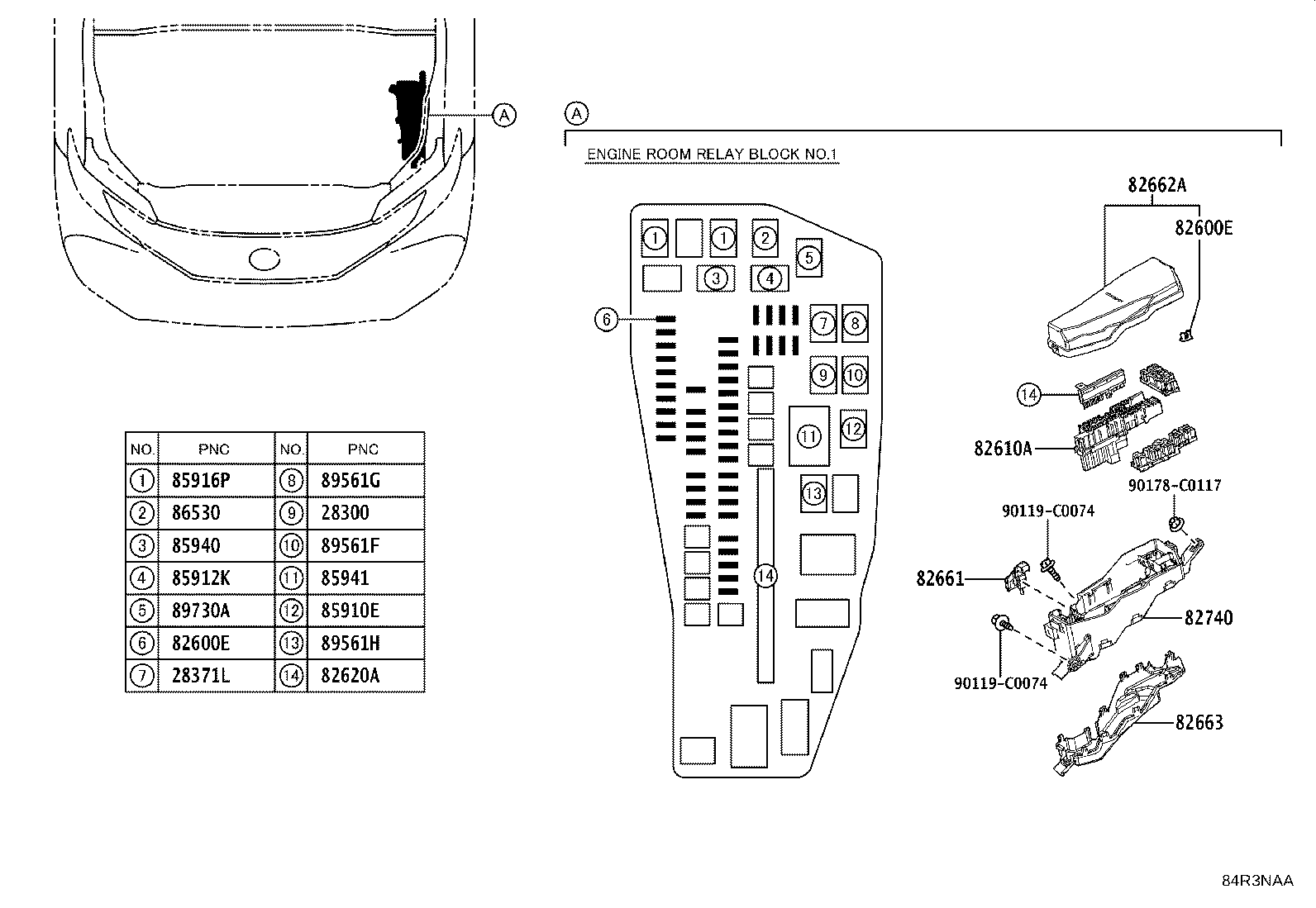

| 82740 | Block Assy, Engine Room Relay |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |

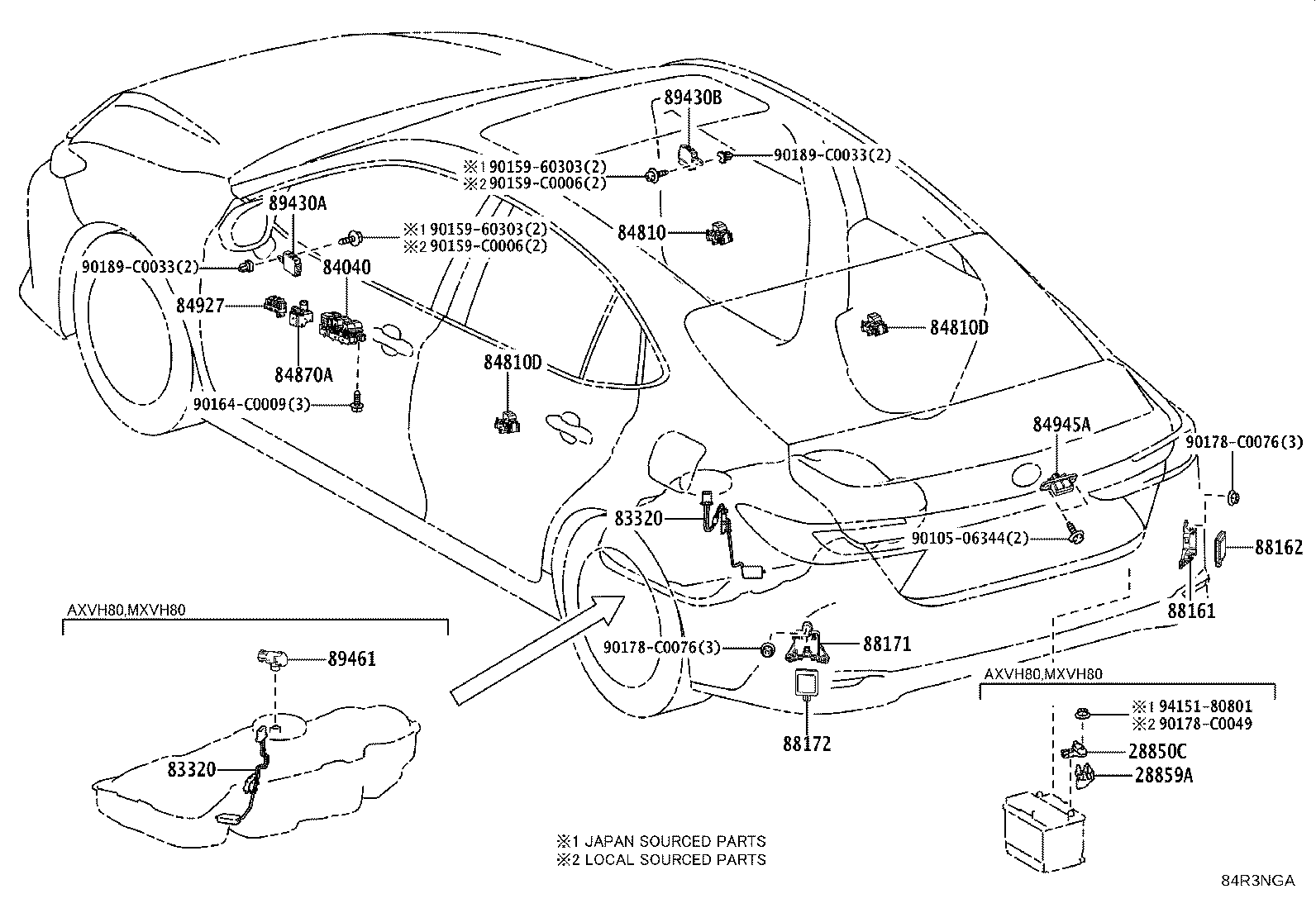

| 84040 | Master Switch Assy,Multiplex Network |

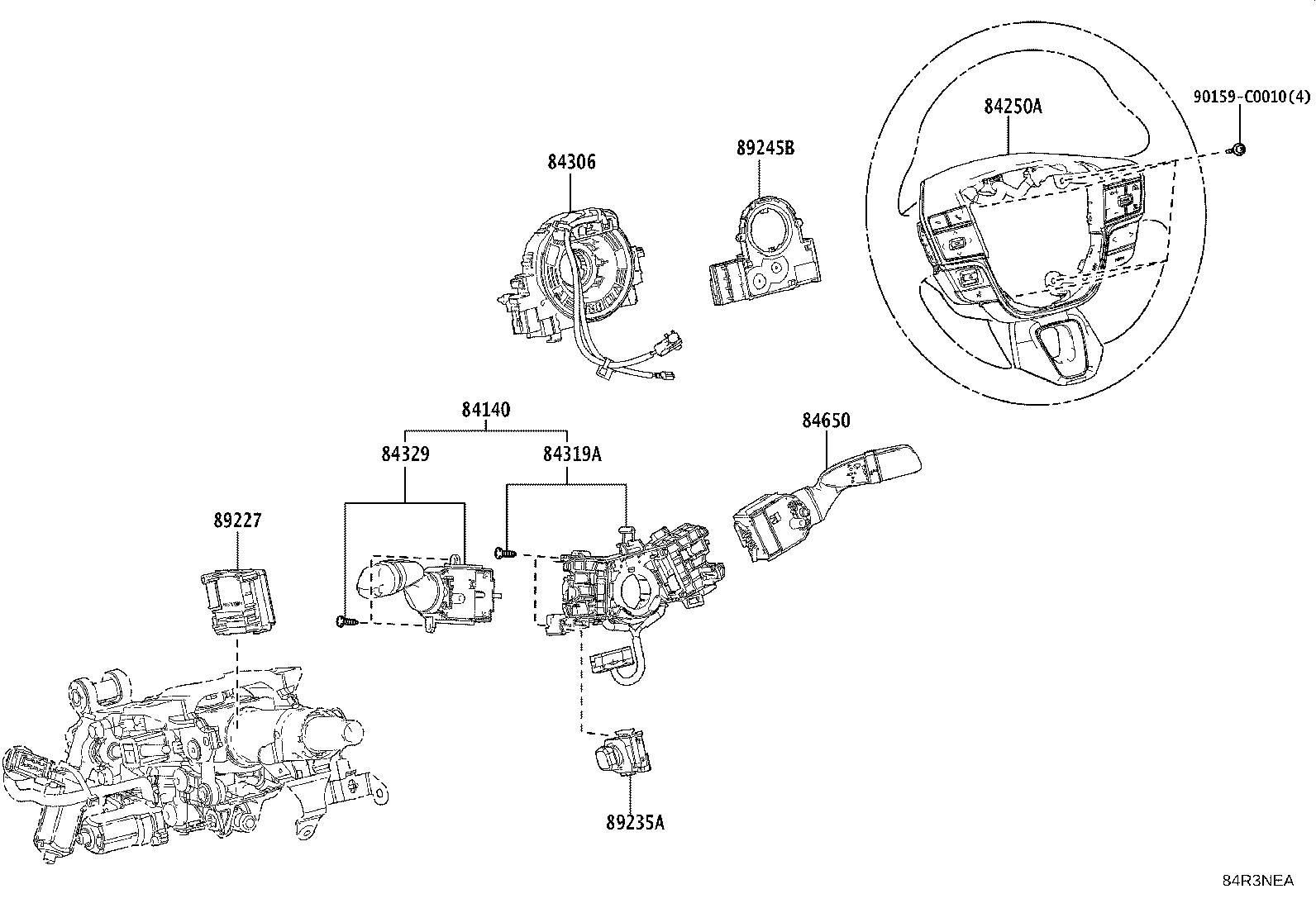

| 84140 | Switch Assy, Headlamp Dimmer |

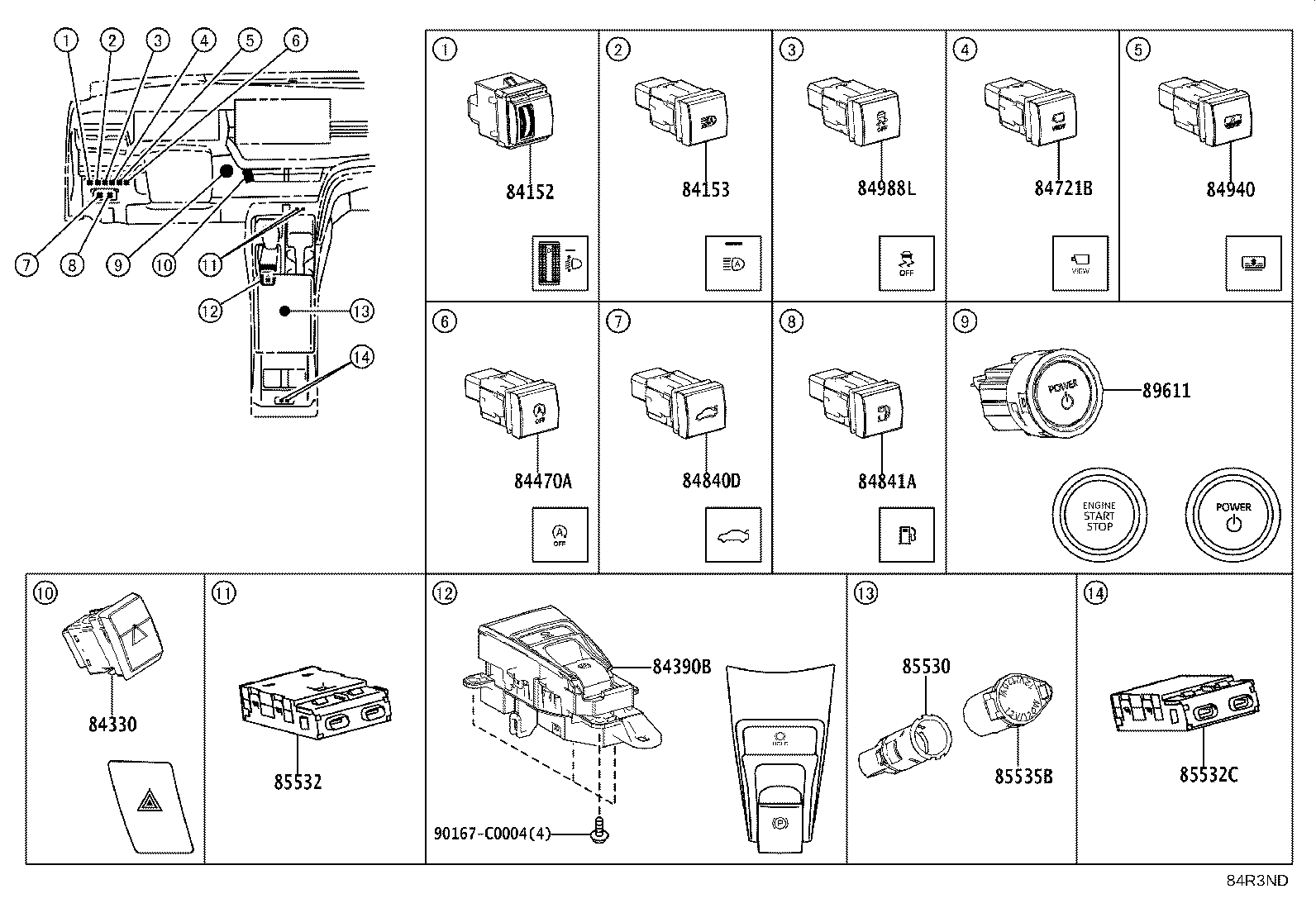

| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319A | Housing, Power Curtain Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84470A | Switch Assy, Ecorun Cancel |
| 84650 | Switch Assy, Windshield Wiper |
| 84721B | Switch, Panoramic View Monitor |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840D | Switch Assy, Luggage Door Opening |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

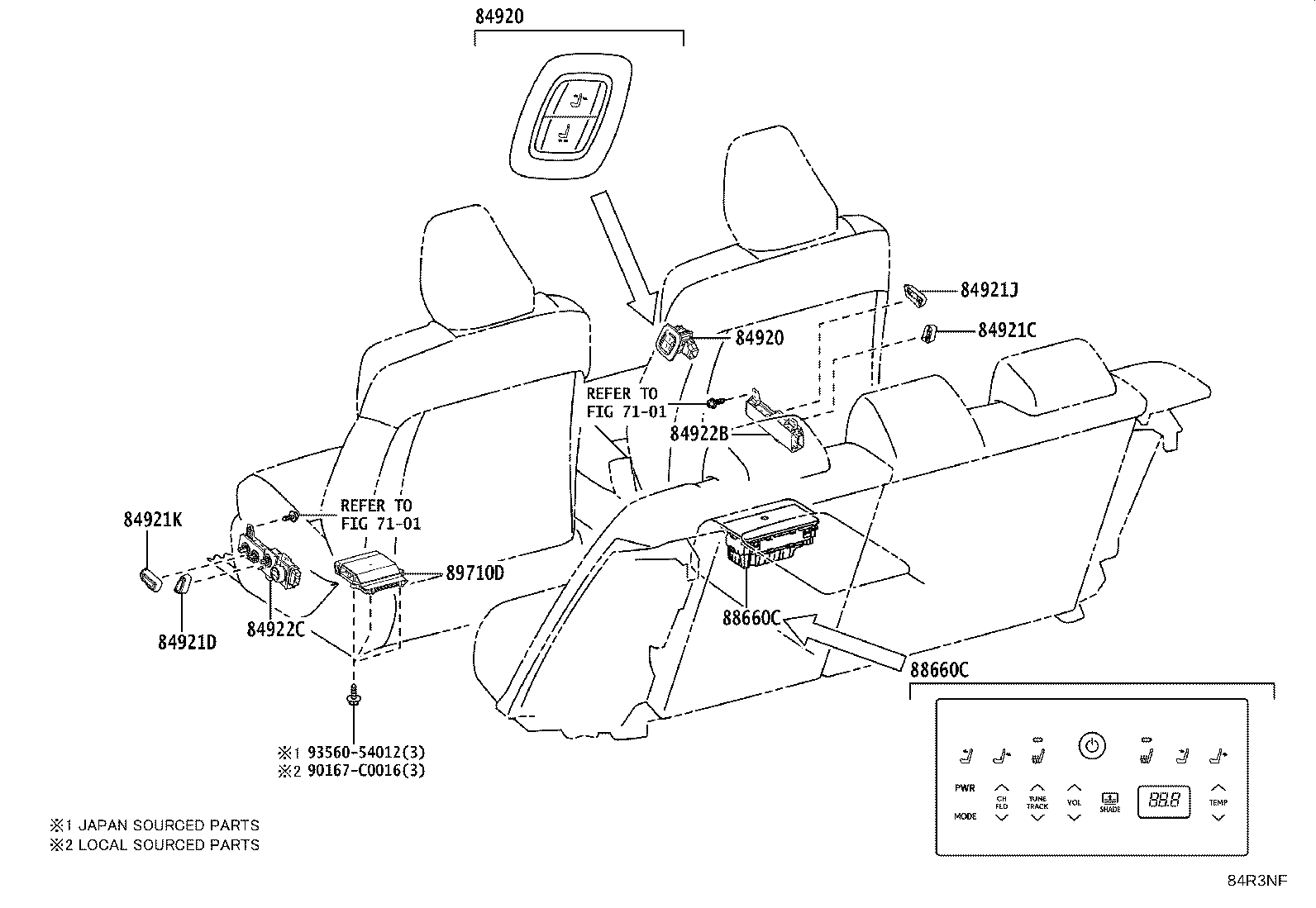

| 84920 | Switch Assy, Power Seat |
| 84921C | Knob, Power Seat Switch, RH |
| 84921D | Knob, Power Seat Switch, LH |
| 84921J | Knob, Power Seat Switch, RH |
| 84921K | Knob, Power Seat Switch, LH |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84940 | Switch Assy, Curtain |
| 84945A | Switch, Luggage Electrical Key |
| 84988L | Switch, Vsc Off |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910E | Relay, Injector |
| 85910V | Relay, Seat Heater |
| 85912K | Relay, Vvt |
| 85916P | Relay, Headlamp |
| 85924C | Relay, Igct |
| 85924K | Relay, Igct, NO.2 |
| 85940 | Relay Assy, Windshield Wiper |
| 85941 | Relay, Windshield Washer |
| 85941A | Relay, Rear Windshield Washer |
| 8598A | Battery, Door Control |
| 86530 | Relay Assy, Horn |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88660C | Switch Assy, Cooler Control |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89419B | Sensor, Shift Stroke |
| 89422A | Sensor, Water Temperature |
| 89422N | Sensor, Water Temperature, NO.2 |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 89451A | Sensor, Shift Lever Position |
| 89461 | Sensor, Vapor Pressure |

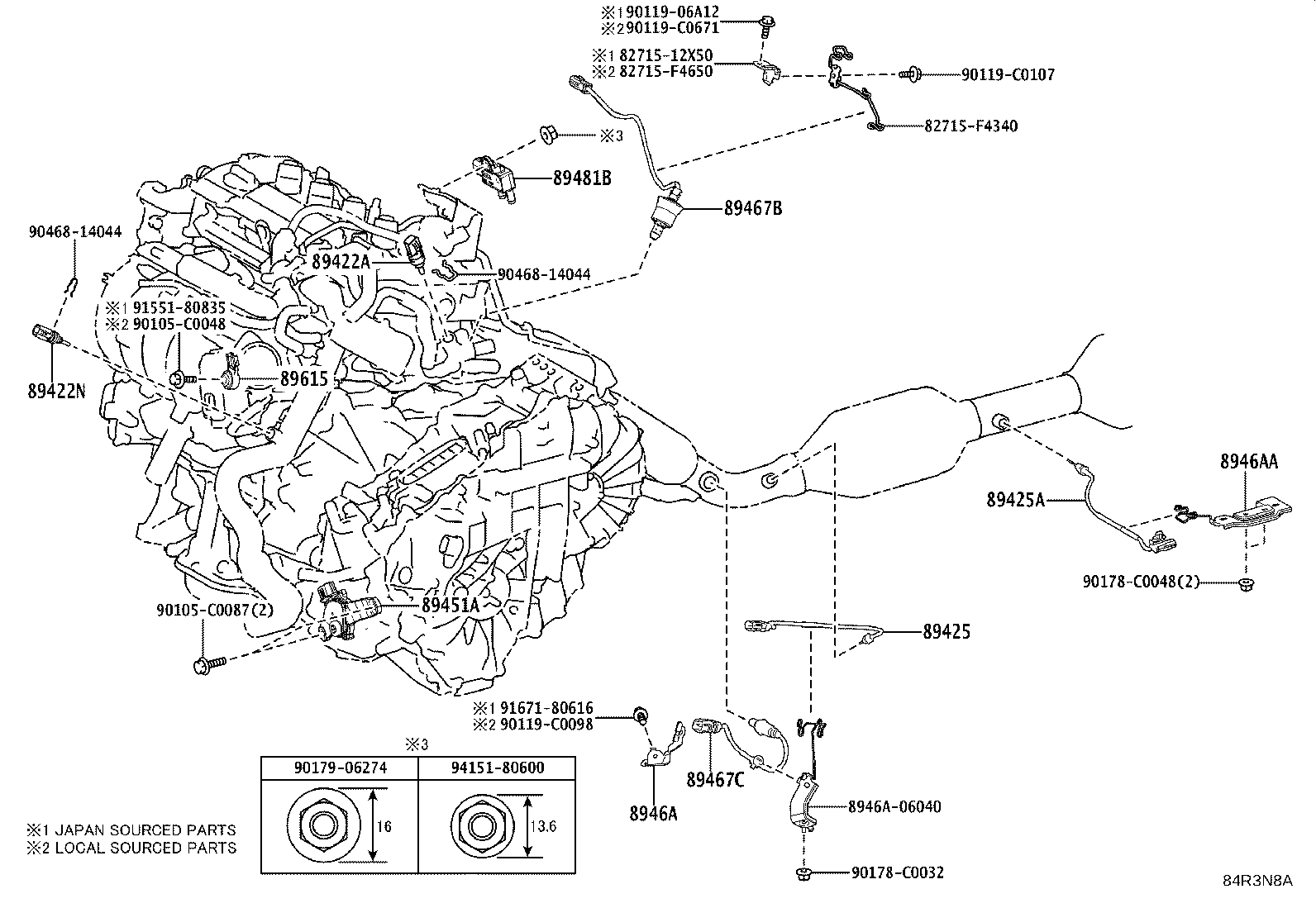

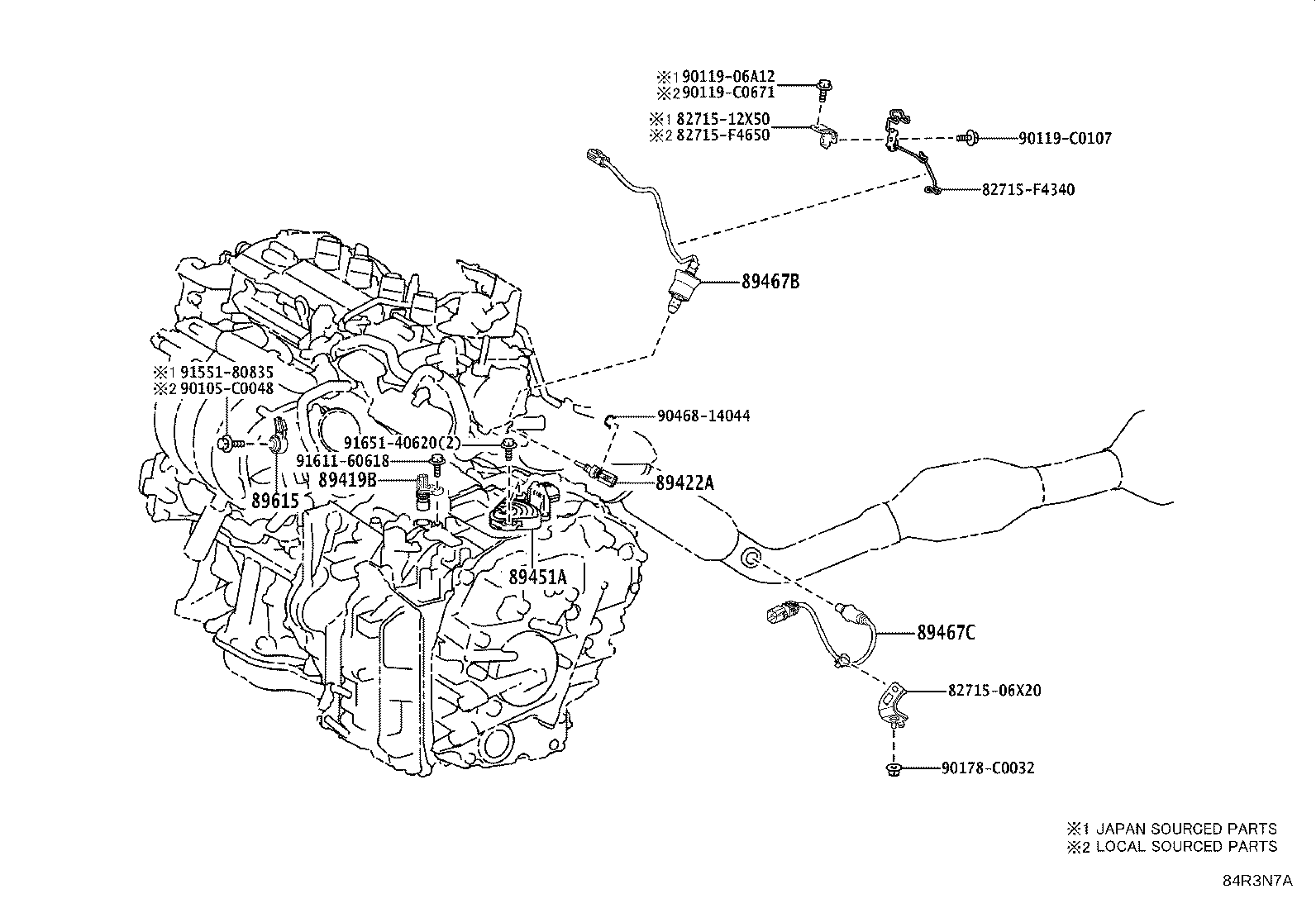

| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 8946AA | Bracket, Exhaust Sensor Clamp, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710D | Computer Assy, Position Control, LH |
| 89730A | Relay(FOR SECURITY WARNING) |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
