Toyota Camry/Hybrid (CHINA)

2024-03 → present · chassis AXVH80,MXVA80,MXVH80 · catalogue 280340 · General

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

21 part groups · 2 illustrations

Illustrations

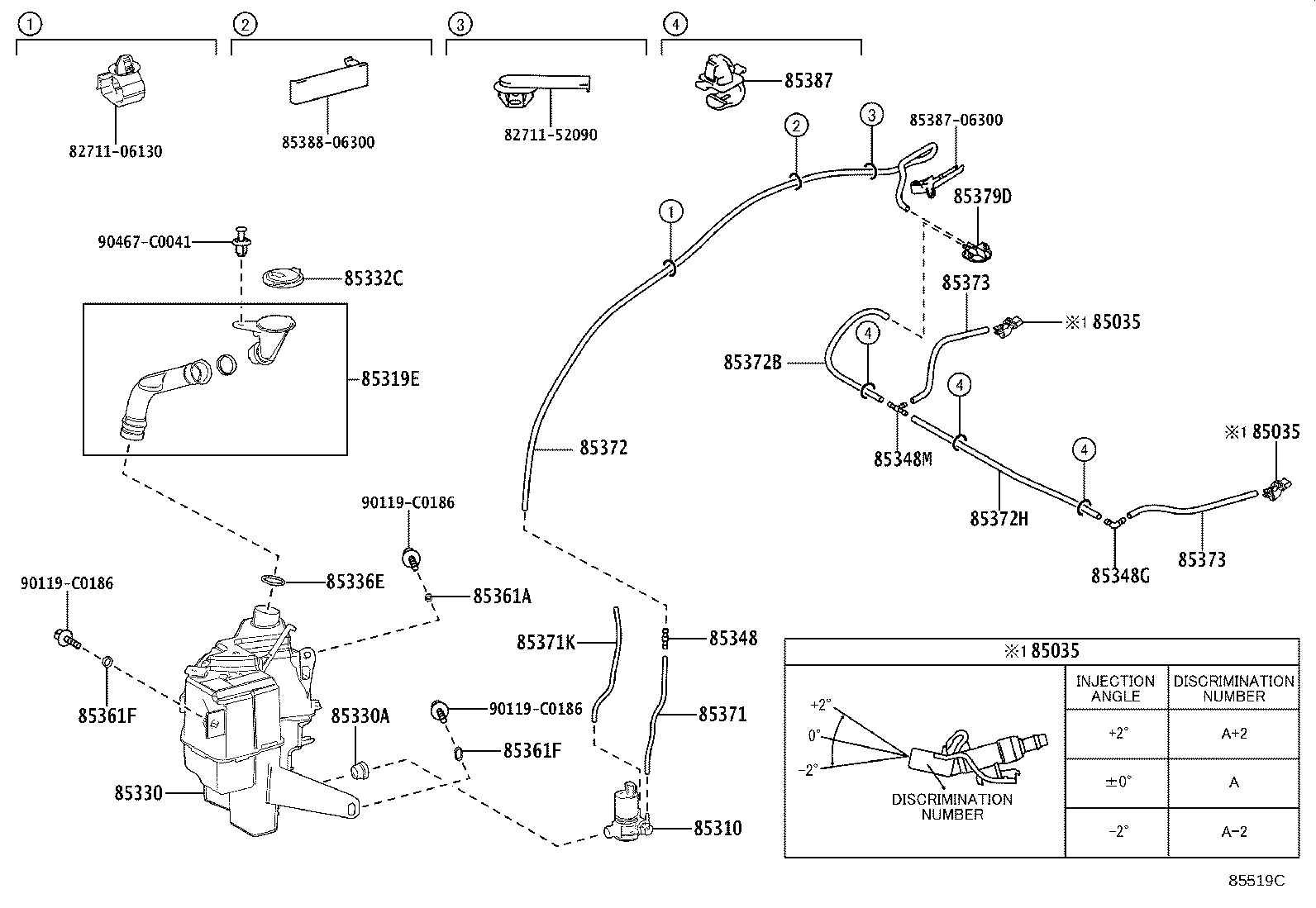

Figure 85519B 85519B 2024-03 → — Figure 85519C 85519C 2024-06 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319E Inlet Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332C Cap, Front Washer Tank
85336E Packing, Windshield Washer Inlet Hose
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85361A Bracket, Windshield Washer, NO.1
85361B Bracket, Windshield Washer, NO.2
85361F Bracket, Windshield Washer, NO.3
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371K Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85379D Grommet, Washer, A
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
