Toyota Camry
1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281330 · General
Discontinued model
Data version 1989-04
Manifold

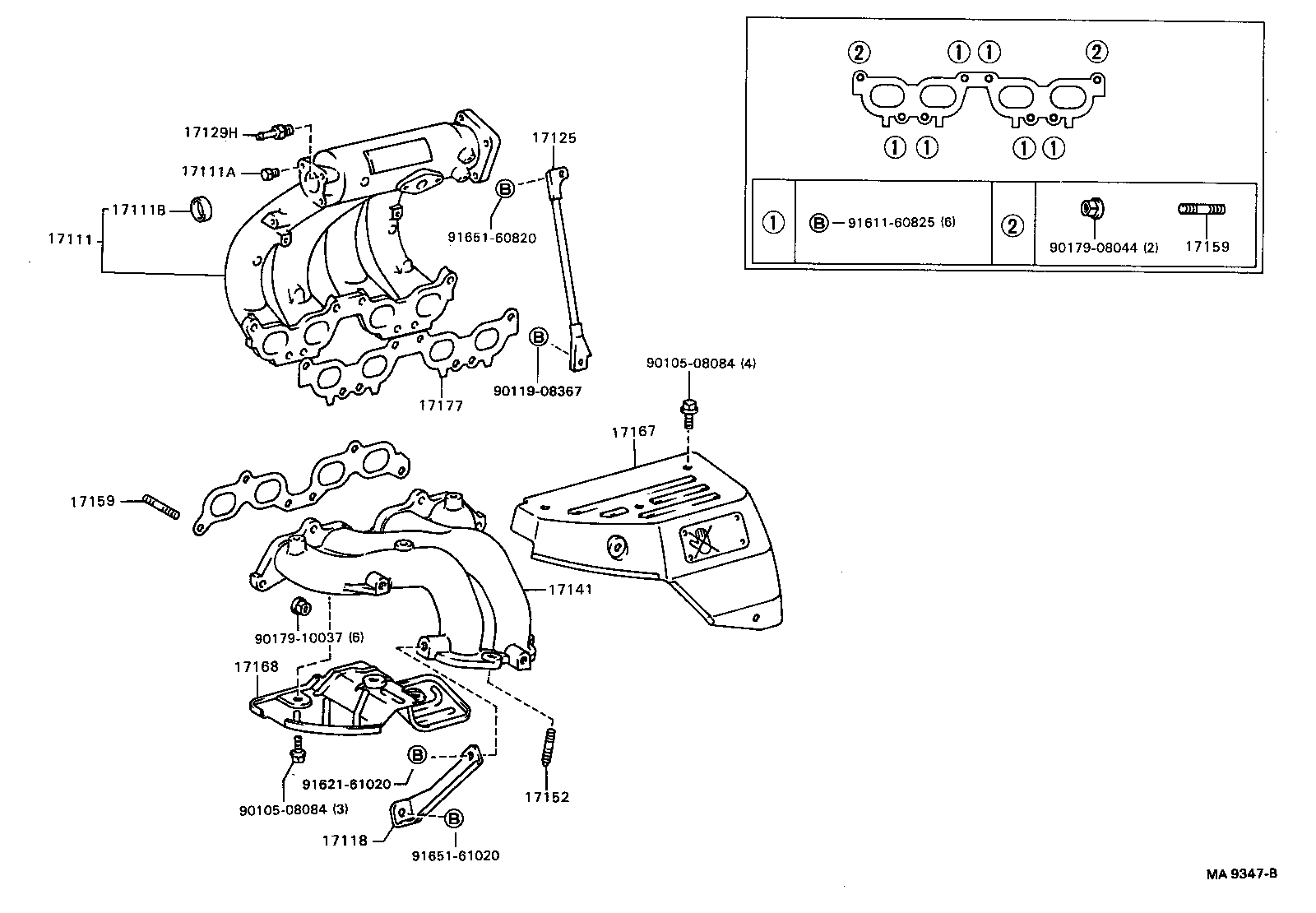

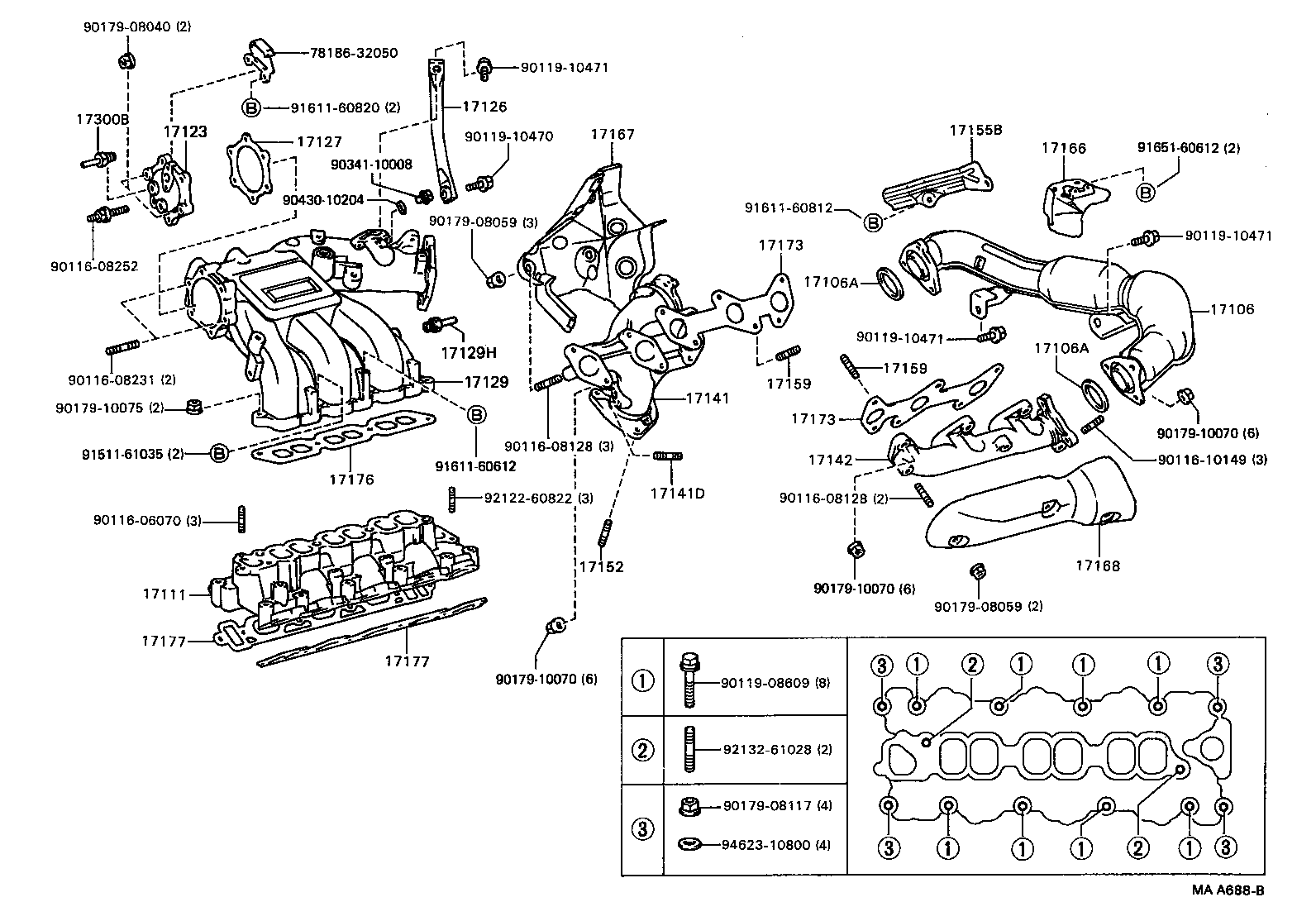

36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 16305 | Outlet Sub-assy, Water By-pass |
| 17106 | Pipe Sub-assy, Exhaust Crossover |
| 17106A | Gasket, Exhaust Pipe |
| 17110A | Union, Vacuum Hose |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17123 | Cover, Surge Tank |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17127 | Gasket, Surge Tank Cover |
| 17129 | Tank, Intake Air Surge |
| 17129H | Union, NO.4 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17155B | Insulator, Exhaust Manifold Heat, NO.5 |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17166 | Insulator, Exhaust Manifold Heat,NO.4 |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17300B | Union(FOR INTAKE AIR CONTROL VALVE) |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25509 | Insulator Sub-assy, Manifold Convertor |
| 25576 | Gasket, Manifold Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
