Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281330 · General

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 3 illustrations

Illustrations

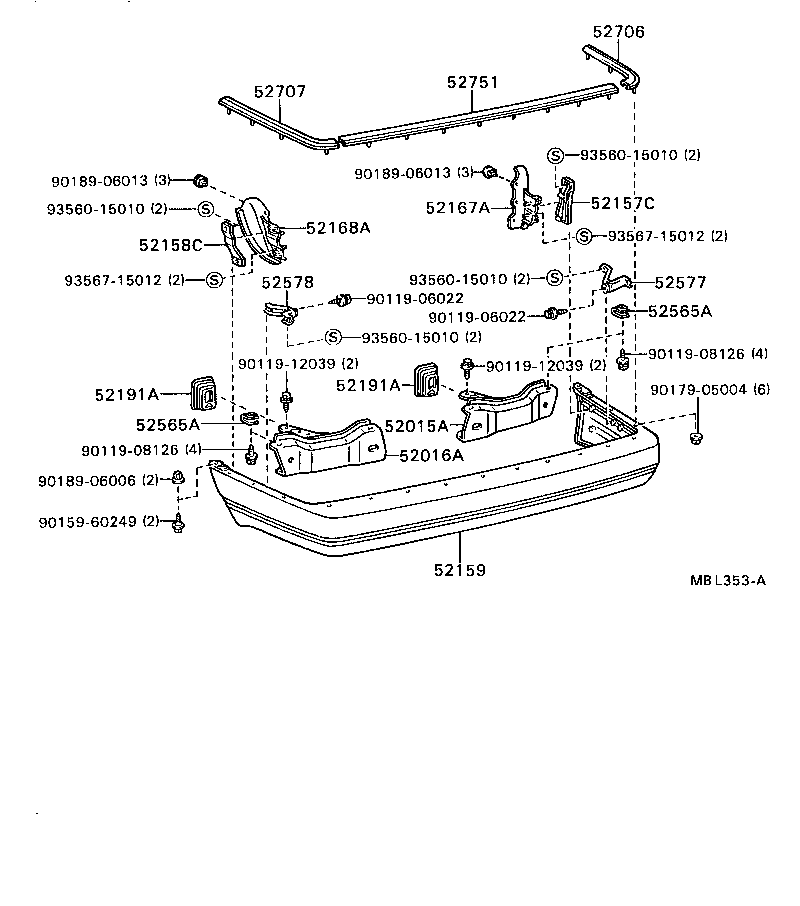

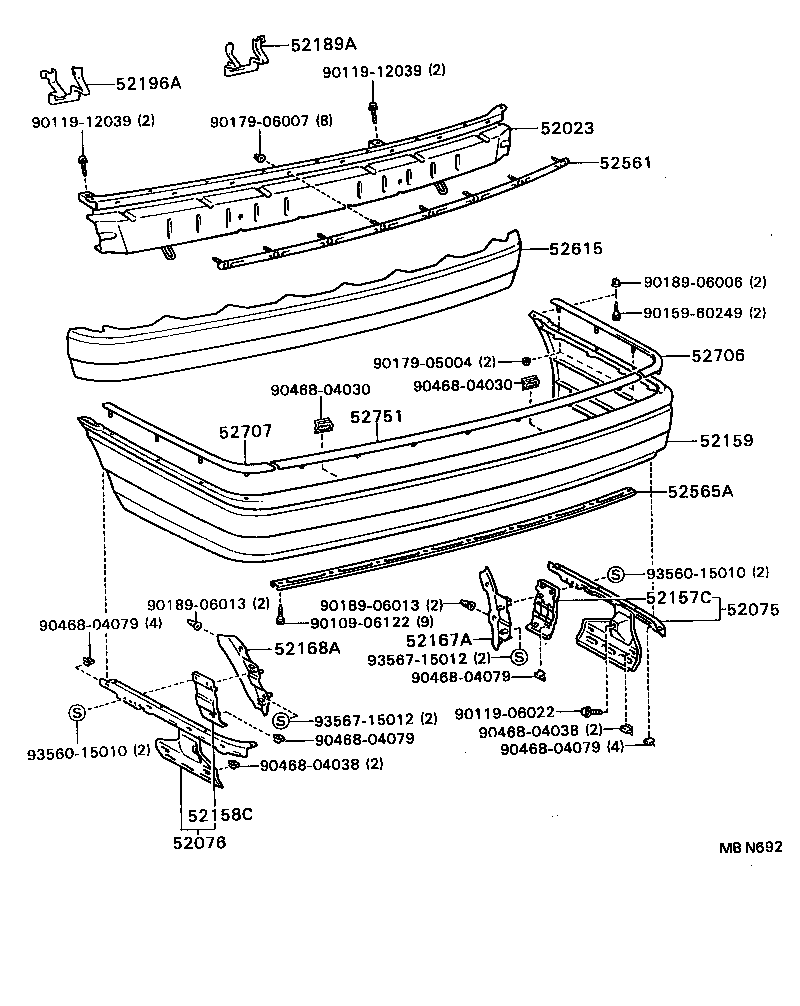

Figure MBL352A MBL352A 1986-11 → — Figure MBN692 MBN692 1988-02 → — Figure MBL353A MBL353A 1986-11 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52075 Retainer Sub-assy, Rear Bumper Side, RH
52076 Retainer Sub-assy, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52189A Protector, Rear Bumper Arm Edge, RH
52191A Seal, Rear Bumper Arm
52196A Protector, Rear Bumper Arm Edge, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52615 Absorber, Rear Bumper Energy
52706 Moulding Sub-assy, Rear Bumper Side, RH
52707 Moulding Sub-assy, Rear Bumper Side, LH
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
