Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281340 · General

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

21 part groups · 2 illustrations

Illustrations

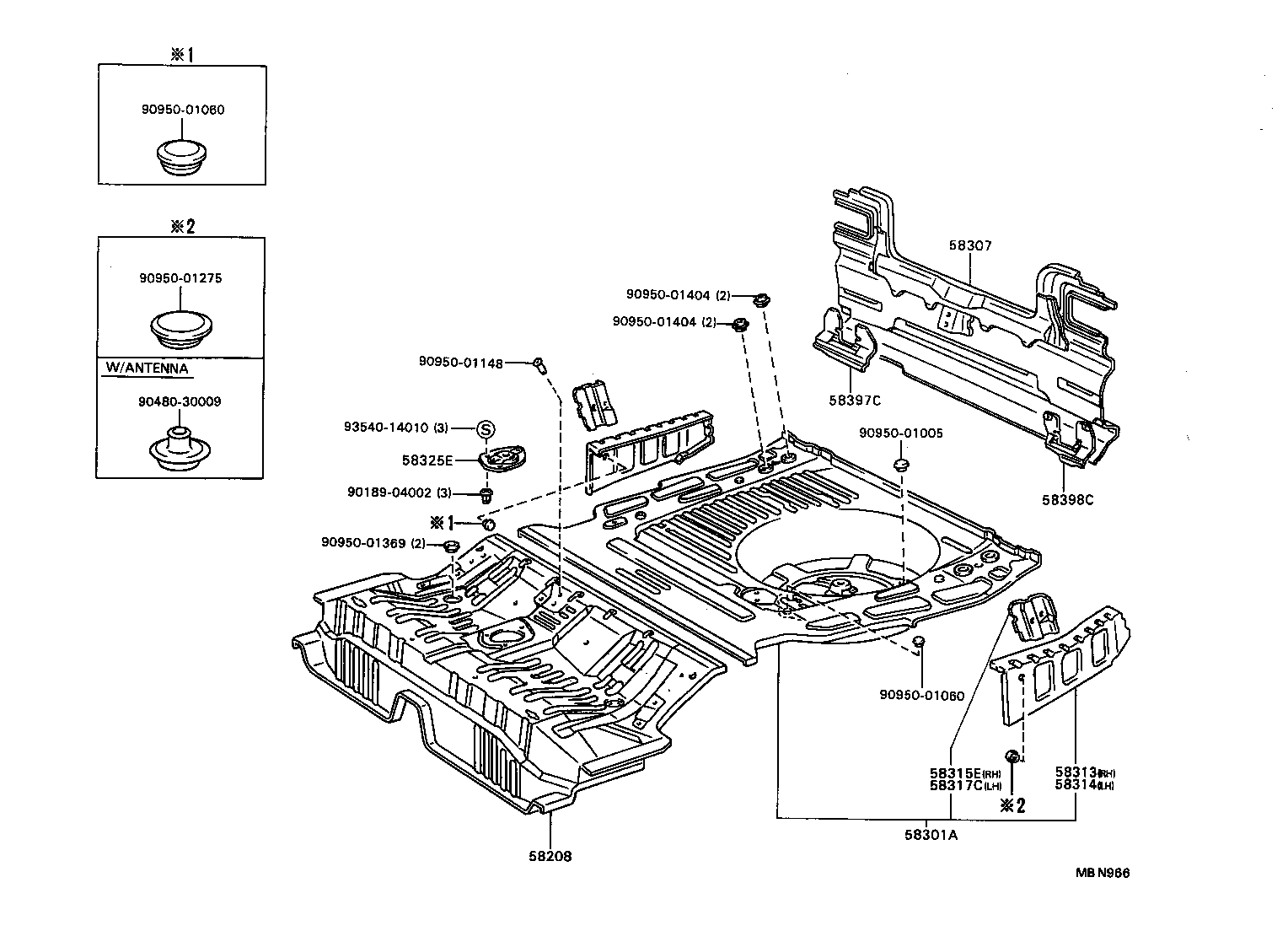

Figure MBN952 MBN952 1988-08 → — Figure MBN966 MBN966 1988-08 → —

Part groups

PNCDescription
57206A Member Sub-assy, Front Floor Cross, NO.2
58027A Reinforce Sub-assy, Seat Belt Anchor
58102A Reinforcement Sub-assy, Front Floor
58111 Pan, Front Floor
58131A Bracket, Front Floor Heat Insulator, NO.1
58171 Reinforcement, Parking Brake Base
58191 Footrest, Front Floor
58207 Bracket Sub-assy, Parking Brake Cable, NO.1
58208 Pan, Center Floor
58301A Panel Sub-assy, Rear Floor
58307 Panel Sub-assy, Body Lower Back
58313 Panel, Rear Floor Side, RH
58314 Panel, Rear Floor Side, LH
58315E Extension Rear Floor Side Panel, Front RH
58317C Extension, Rear Floor Side Panel, Rear LH
58325E Cover, Rear Floor Service Hole
58367 Bracket, Fuel Tube Clamp
58369B Bracket, Fuel Tube, NO.3
58396A Bracket, Wire Harness Clamp
58397C Cover, Body Lower Back, RH
58398C Cover, Body Lower Back, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
