Toyota Camry
1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281340 · General
Discontinued model
Data version 1992-05

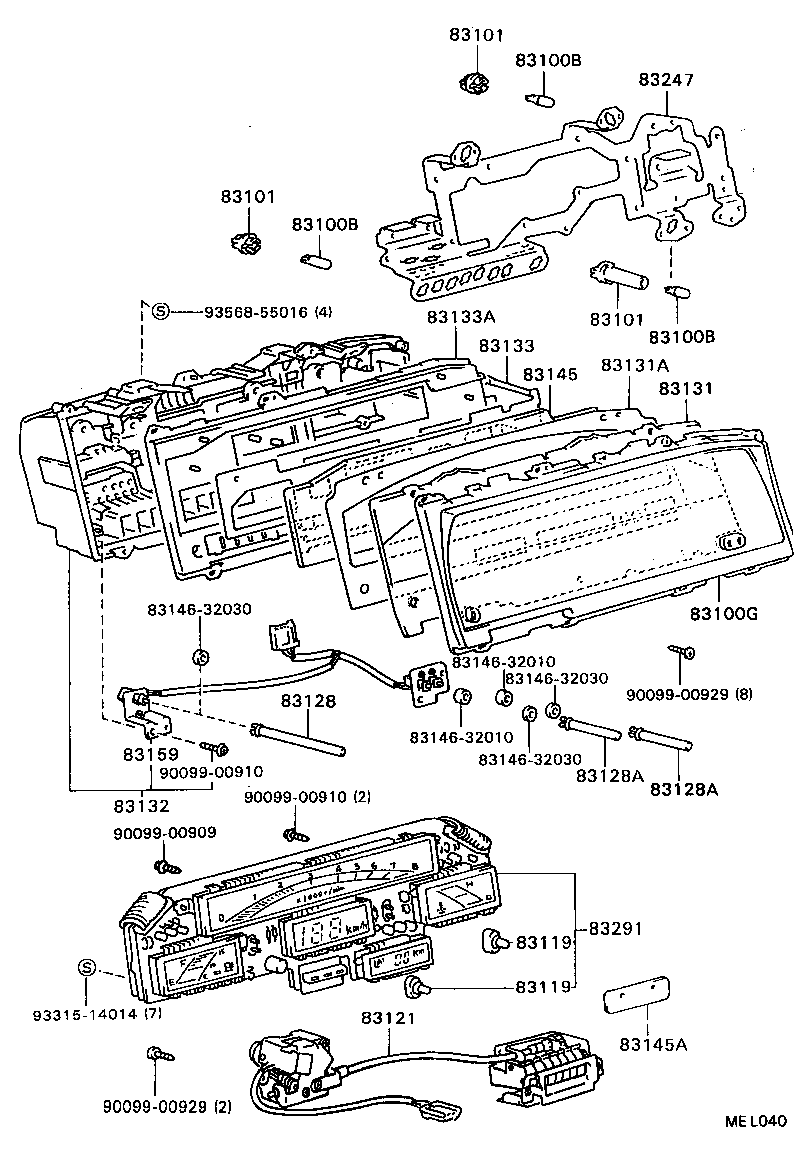

Meter
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83128A | Knob, Meter |
| 83131 | Dial, Meter, NO.1 |
| 83131A | Dial, Meter, NO.2 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83159 | Switch, Meter, NO.1 |
| 83189 | Bracket, Meter |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83291 | Computer, Combination Meter |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
