Toyota Camry
1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281340 · General
Discontinued model
Data version 1992-05
Switch & Relay & Computer
65 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 28371 | Relay, Ignition, NO.1 |
| 28371A | Relay, Bulb Check |
| 81980 | Flasher Assy, Turn Signal |

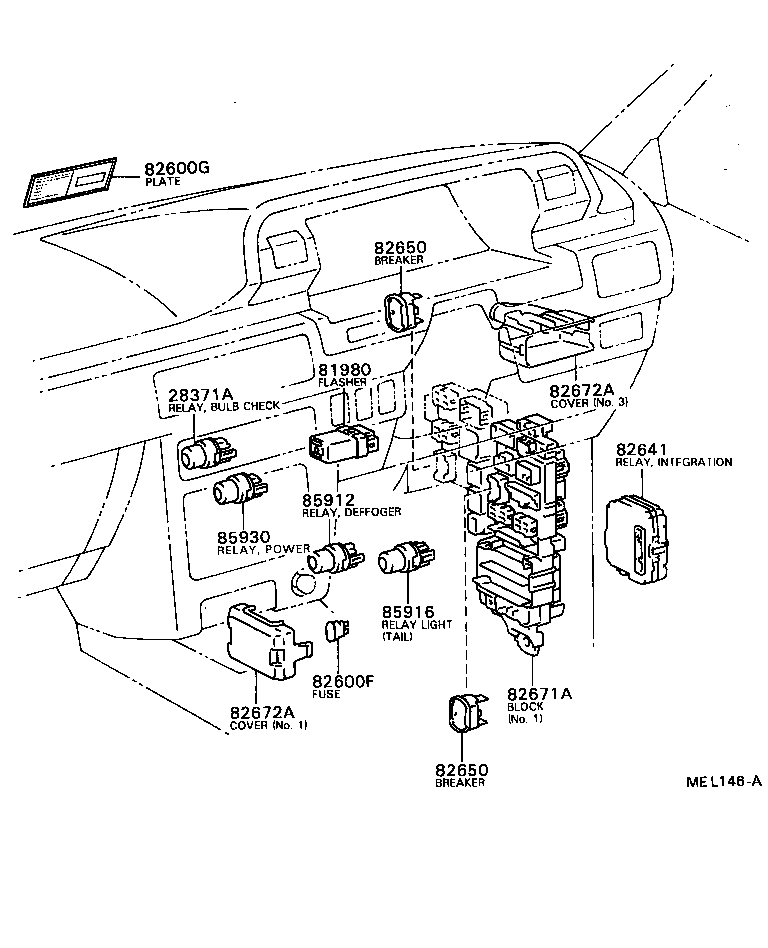

| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82602 | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84242 | Switch, Glove Box Lamp |

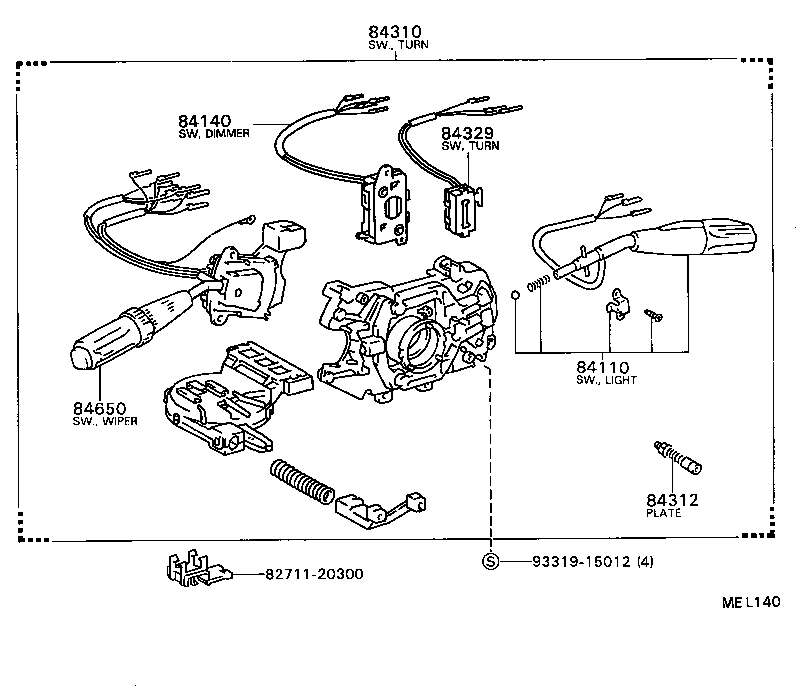

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84329 | Switch, Turn Signal |

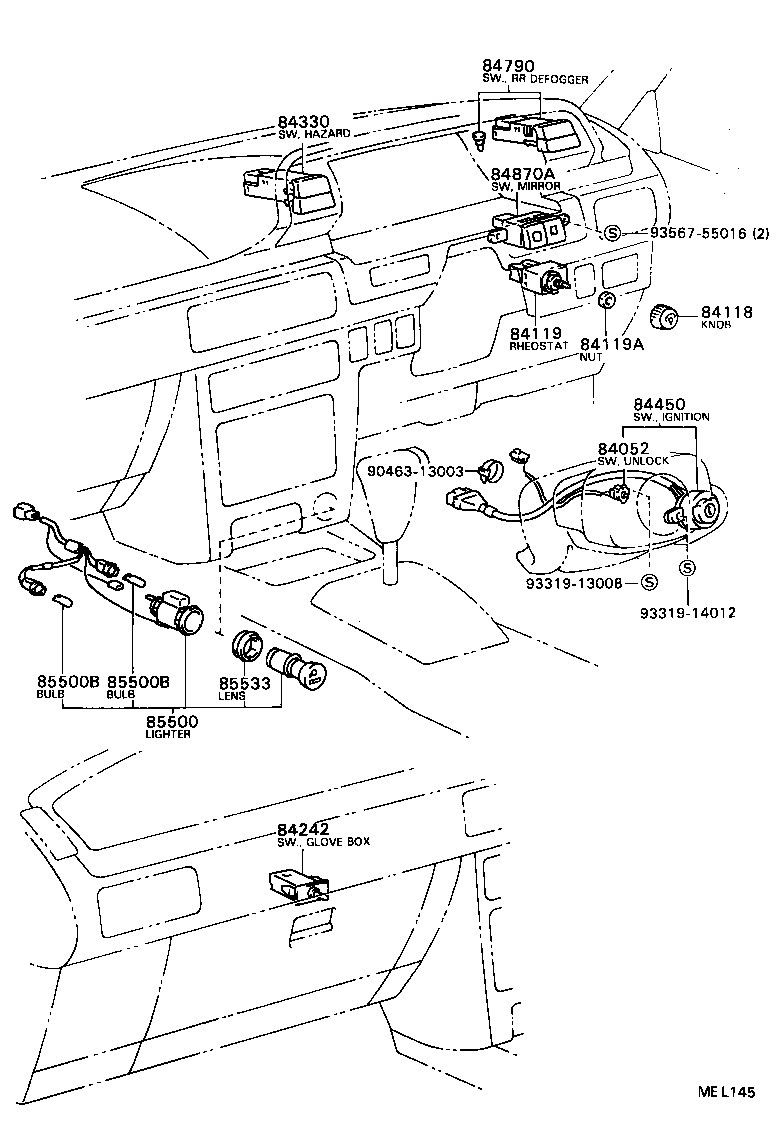

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84532 | Switch, Room Lamp Retainer |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84742 | Switch, Slide Roof Limit |
| 84790 | Switch Assy, Rear Window Defogger |

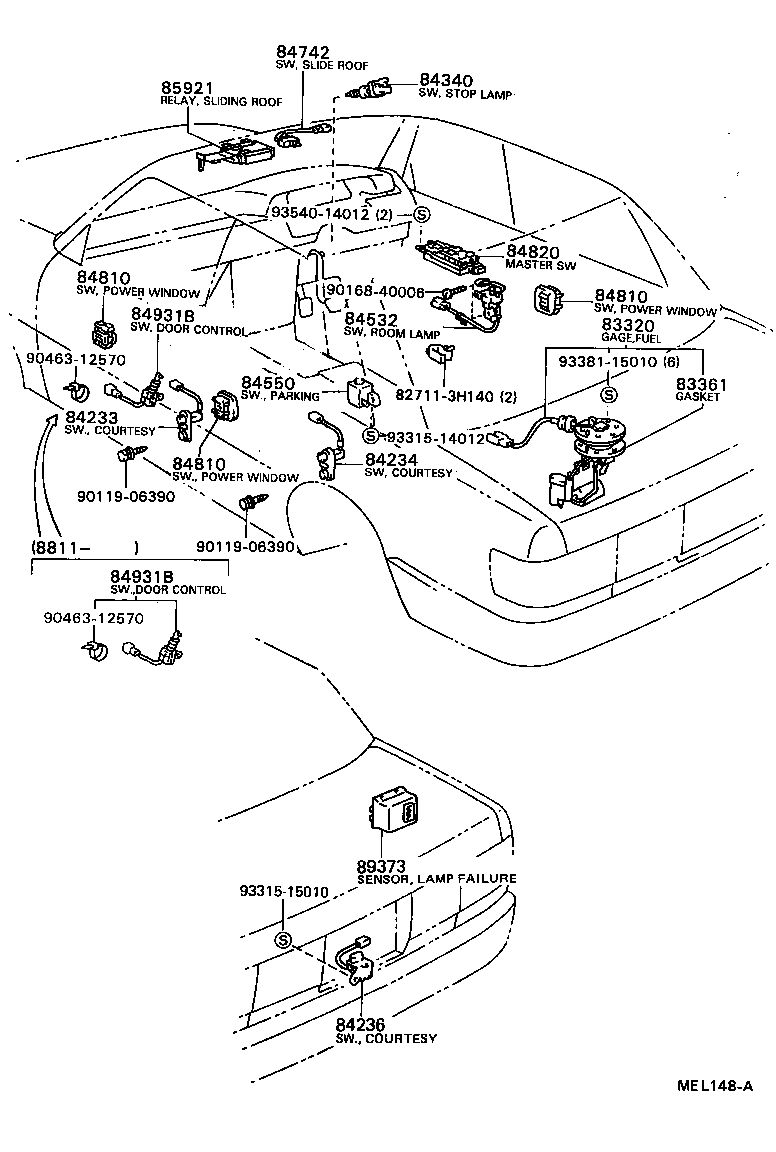

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84931B | Switch, Door Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916 | Relay, Light Control |
| 85921 | Relay, Sliding Roof Control |
| 85927 | Relay, Cooling Fan |
| 85930 | Relay Assy, Power Window |
| 85966 | Relay,Cornering Lamp Control |

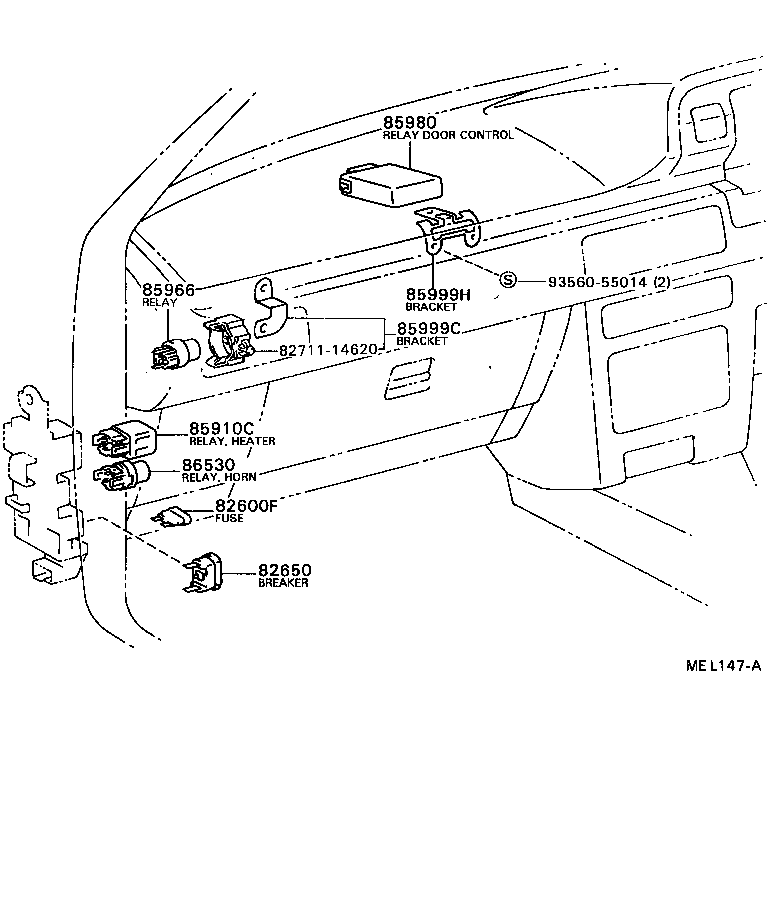

| 85980 | Relay Assy, Door Control |
| 85999C | Bracket, Relay, NO.3 |
| 85999H | Bracket, Relay |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 88630R | Relay Assy, Cooler, NO.3 |
| 89373 | Sensor, Lamp Failure Indicator |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
