Toyota Camry (JPP/SED)

1992-08 → 2001-04 · chassis SXV1#,VCV10,MCV10 · catalogue 281350 · General

Discontinued model Data version 2001-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

11 part groups · 3 illustrations

Illustrations

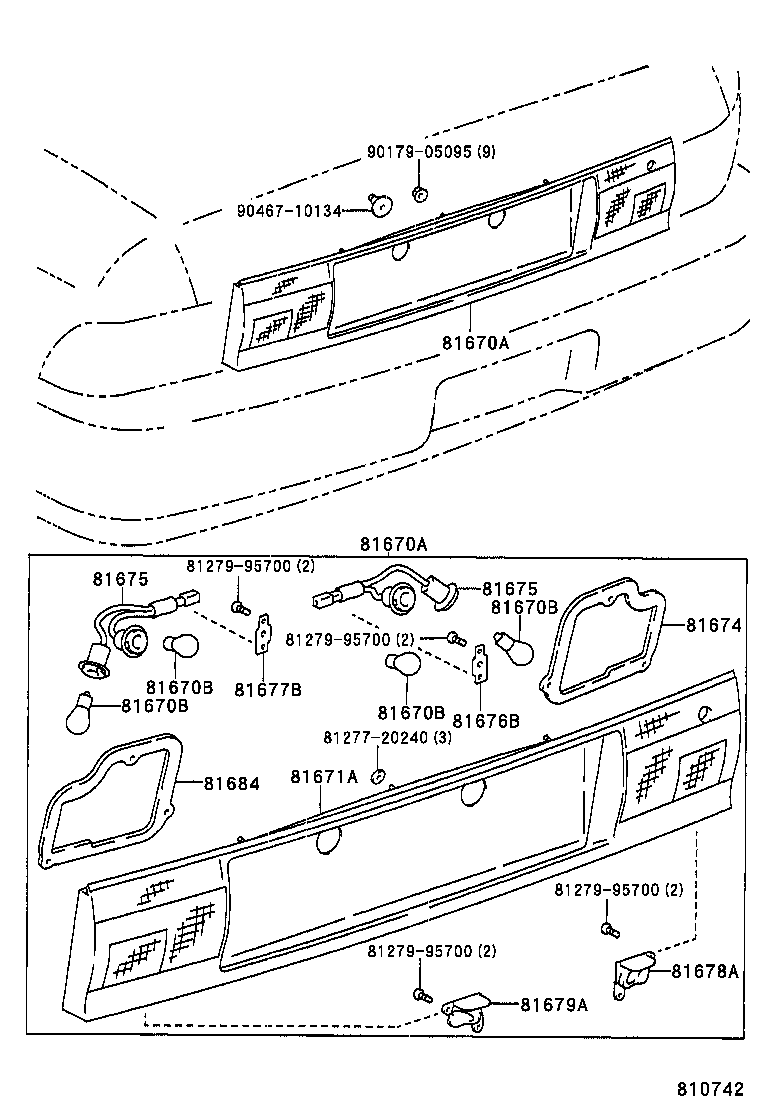

Figure 810738 810738 1992-08 → 1994-08 Figure 810740 810740 1994-08 → 1996-08 Figure 810742 810742 1992-08 → —

Part groups

PNCDescription
81670A Lamp Assy, Back-up
81670B Bulb(FOR BACK-UP LAMP)
81671A Lens & Body, Back-up Lamp
81671B Garnish, Back-door, Outside
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81676B Bracket, Back-up Lamp
81677B Bracket, Back-up Lamp
81678A Cover, Back UP Lamp, RH
81679A Cover, Back UP Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
