Toyota Camry (JPP/SED)
1992-08 → 2001-04 · chassis SXV1#,VCV10,MCV10 · catalogue 281350 · General
Discontinued model
Data version 2001-10
Heating & Air Conditioning - Control & Air Duct
22 part groups · 5 illustrations
Part groups

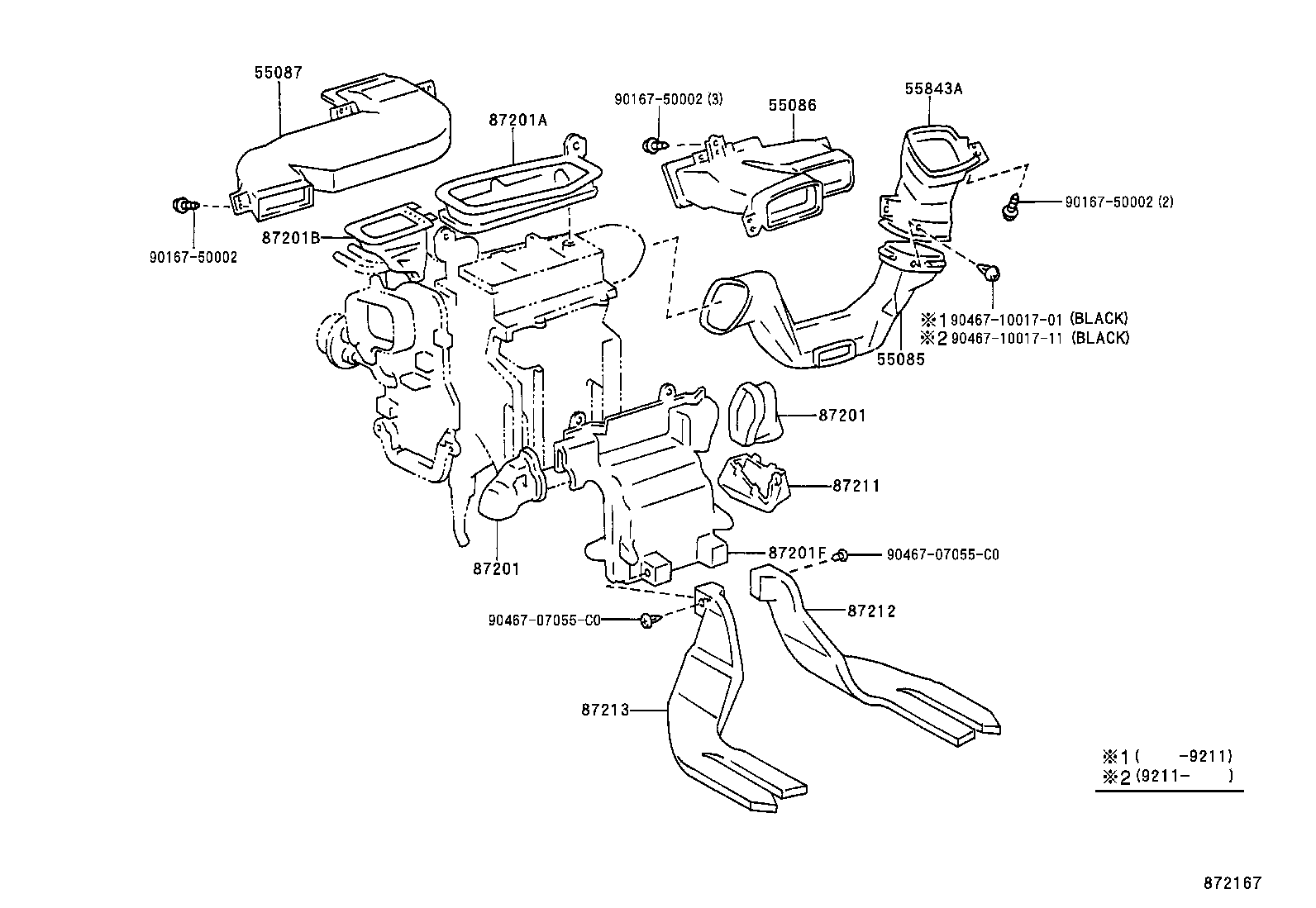

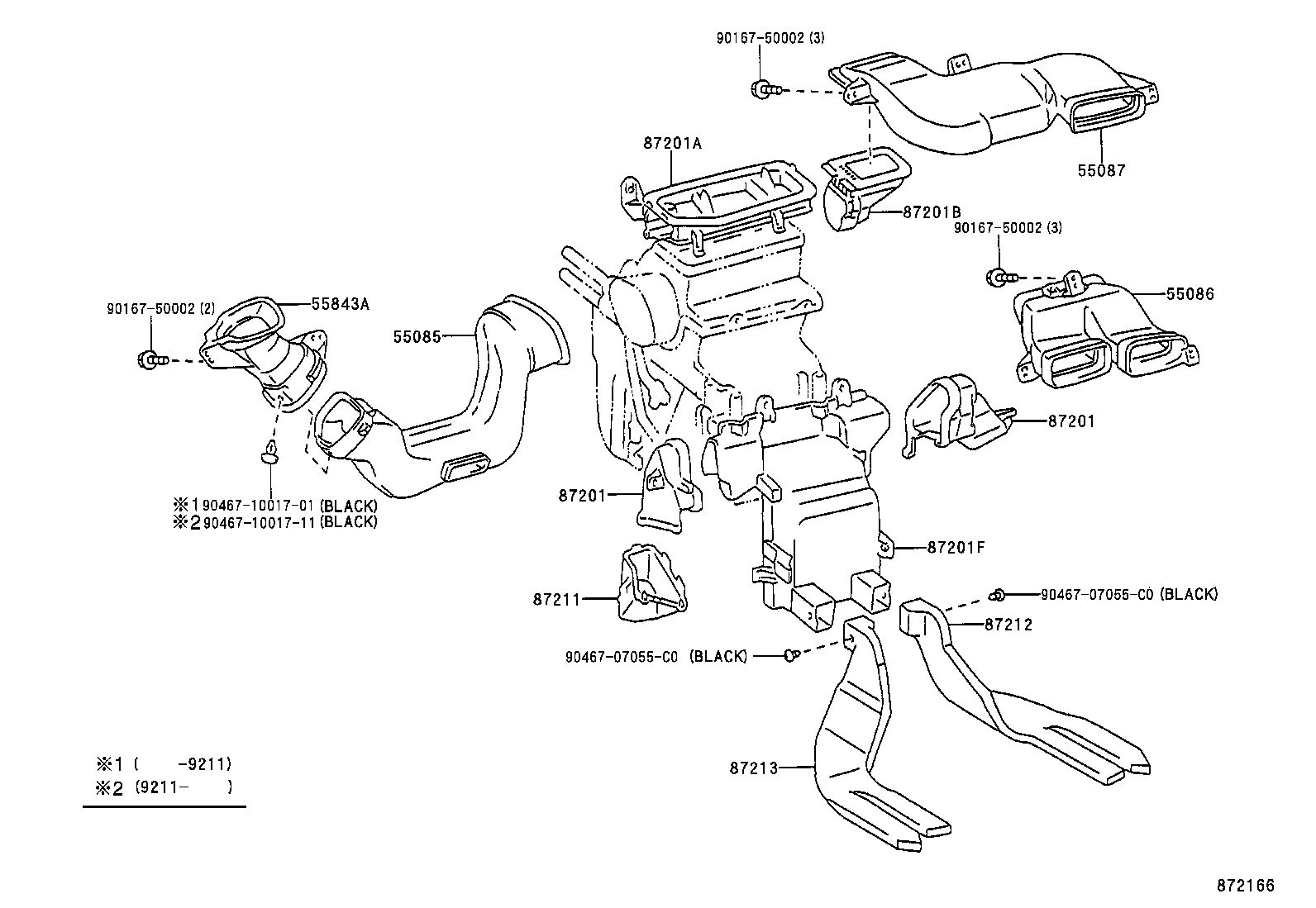

| PNC | Description |
|---|---|
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55087 | Duct Sub-assy, Heater TO Register, NO.4 |
| 55538A | Cover, Cooler Switch Hole |
| 55843A | Duct, Heater TO Register, NO.1 |

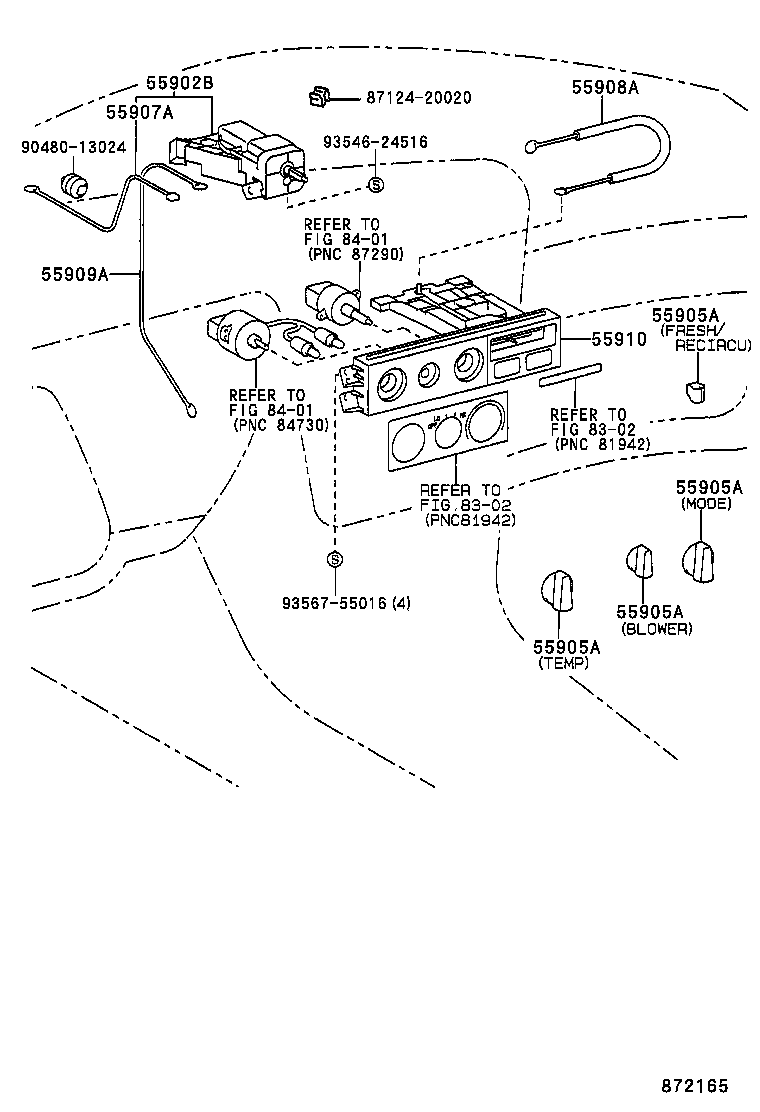

| 55900 | Control Assy, Air Conditioner |
| 55900B | Bulb, Air Conditioner Control |
| 55902B | Control Sub-assy, Heater |
| 55905A | Knob, Heater Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201A | Duct Sub-assy, Air |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87211 | Duct, Air, NO.1 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |

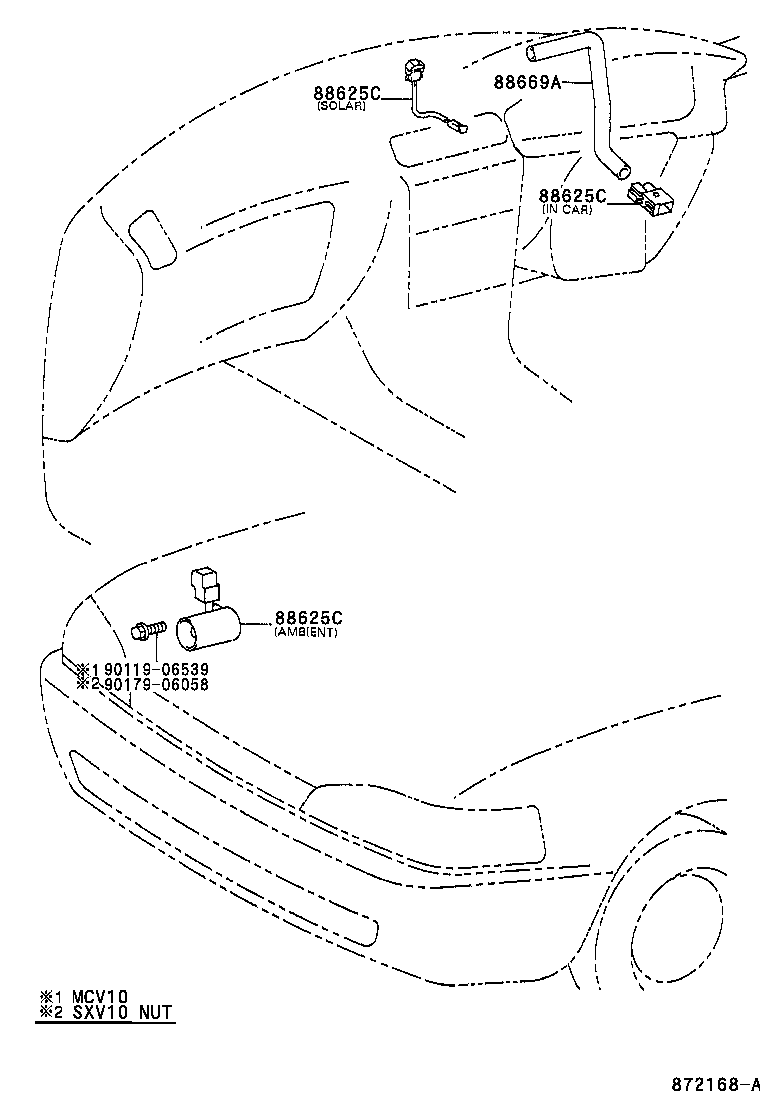

| 88625C | Thermistor, Cooler |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
