Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 3 illustrations

Illustrations

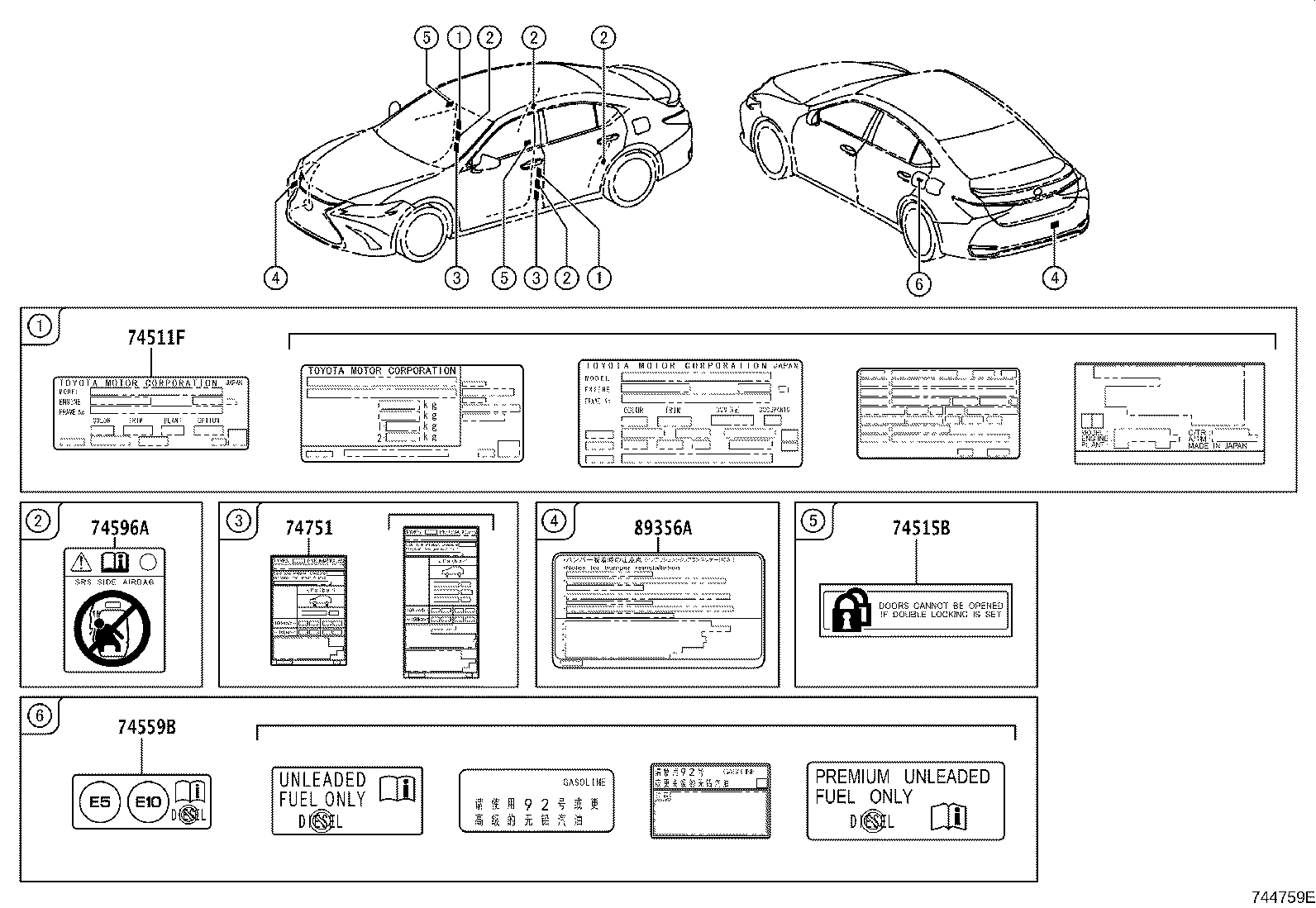

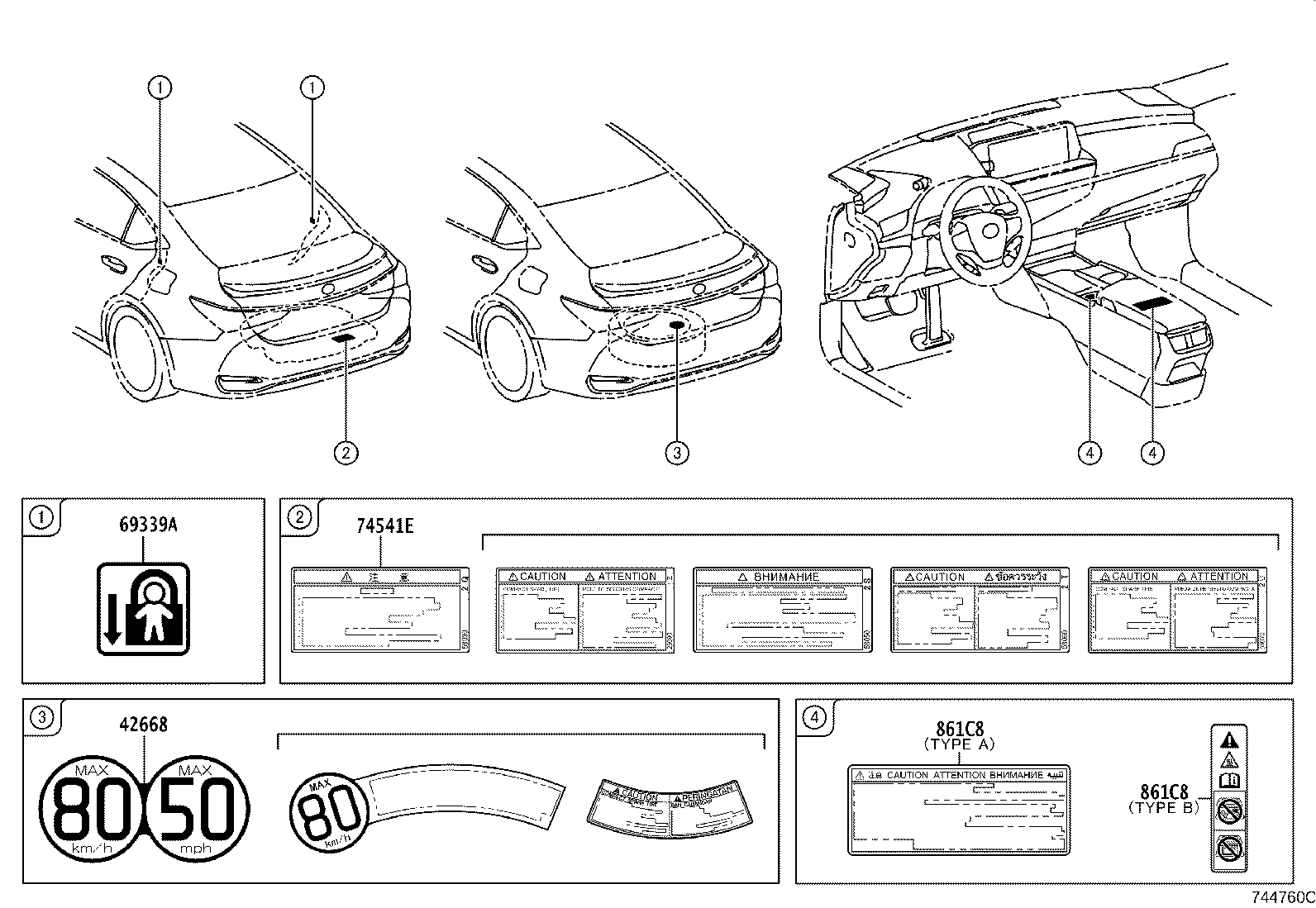

Figure 744758D 744758D 2018-06 → — Figure 744759E 744759E 2018-06 → — Figure 744760C 744760C 2018-06 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
42668 Label, Compact Spare Tire Caution
47288 Label, Brake Fluid Notice
69339A Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
88723E Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
89356A Label, Clearance Warning Information
G9118E Label, Electric Vehicle Unit Controller Caution, NO.1
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
