Toyota Lexus ES300
2001-07 → 2006-03 · chassis MCV30 · catalogue 282370 · General
Discontinued model
Data version 2006-10

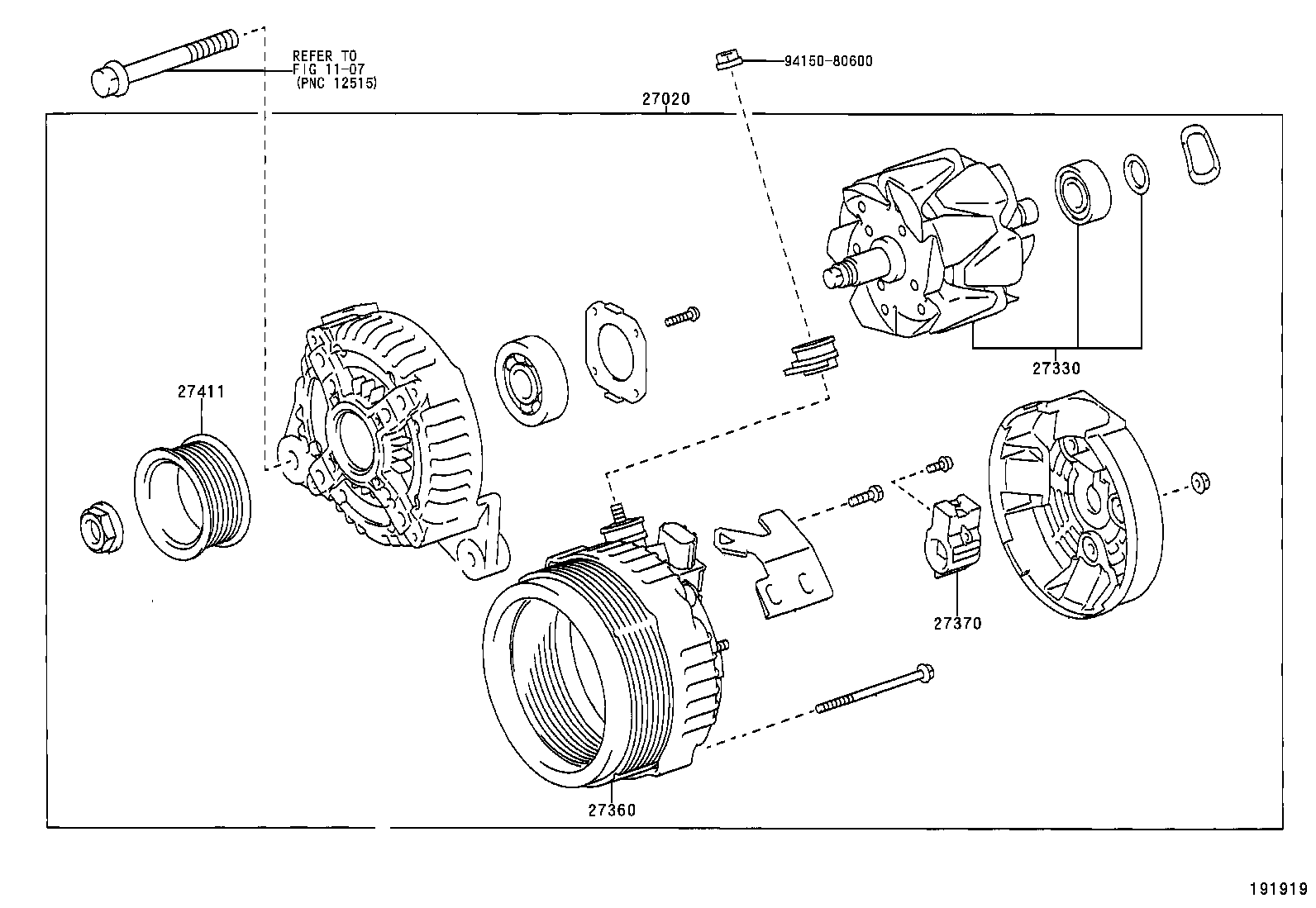

Alternator
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27330 | Rotor Assy, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27360 | Coil Assy, Alternator |
| 27370 | Holder Assy, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
