Toyota Lexus ES300

2001-07 → 2006-03 · chassis MCV30 · catalogue 282370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 2 illustrations

Illustrations

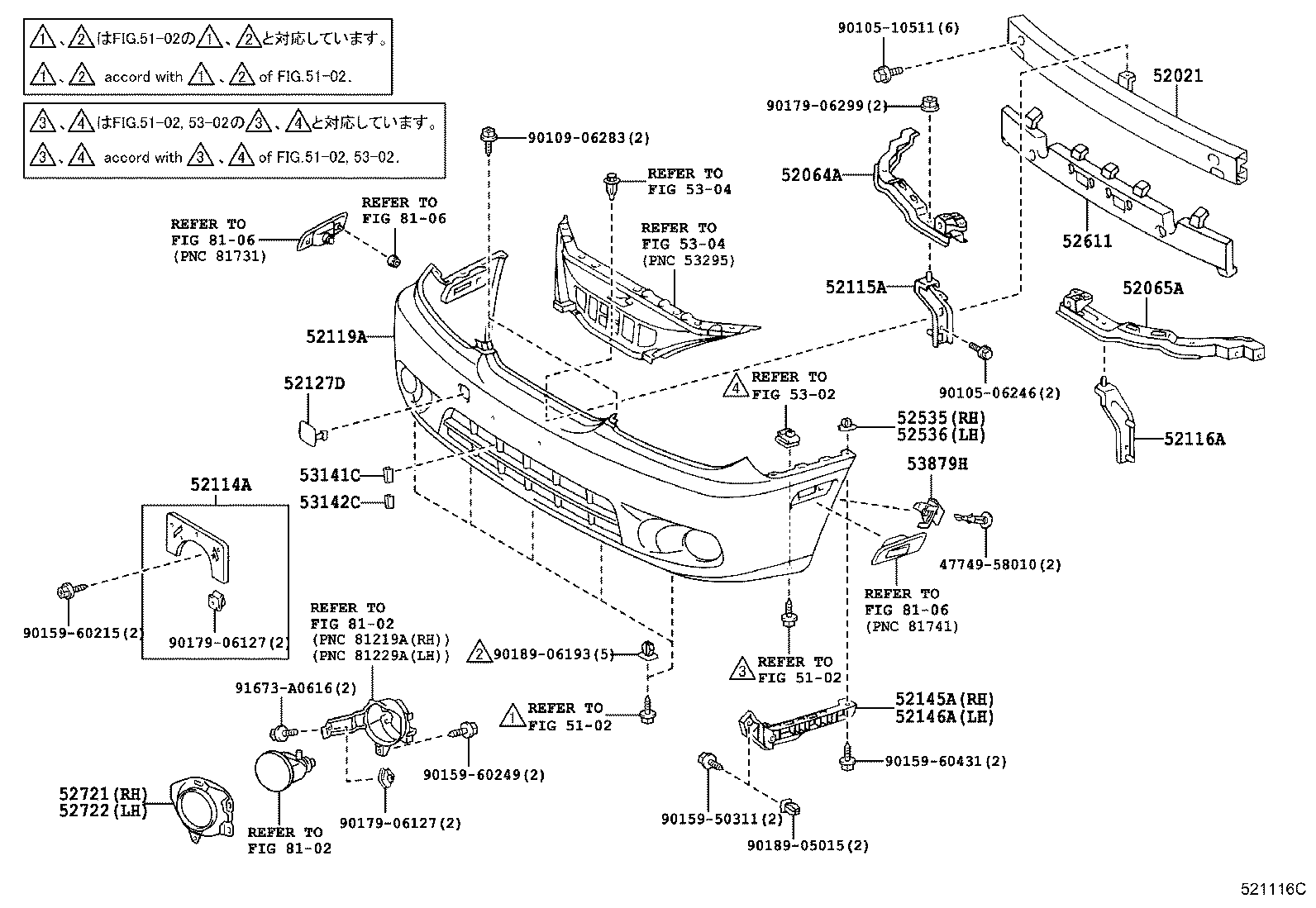

Figure 520759I 520759I 2001-07 → 2004-06 Figure 521116C 521116C 2004-06 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52064A Bar Sub-assy, Front Bumper Side, RH
52065A Bar Sub-assy, Front Bumper Side, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
