Toyota Lexus ES300

2001-07 → 2006-03 · chassis MCV30 · catalogue 282370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

8 part groups · 3 illustrations

Illustrations

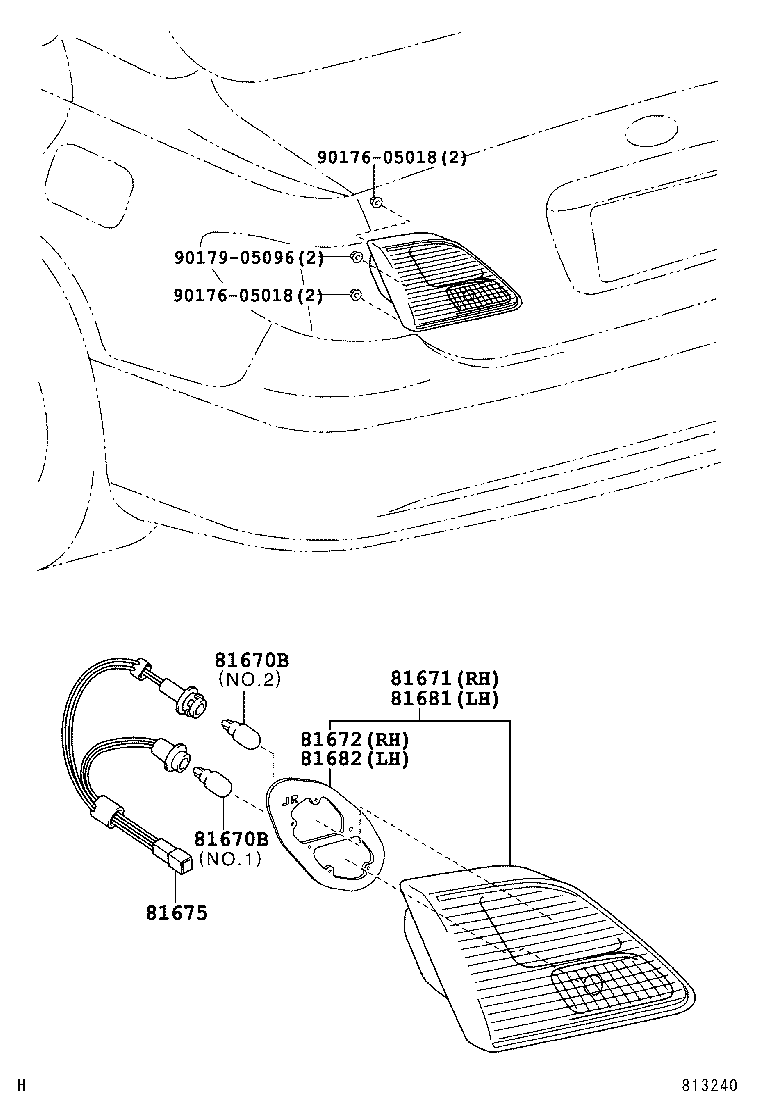

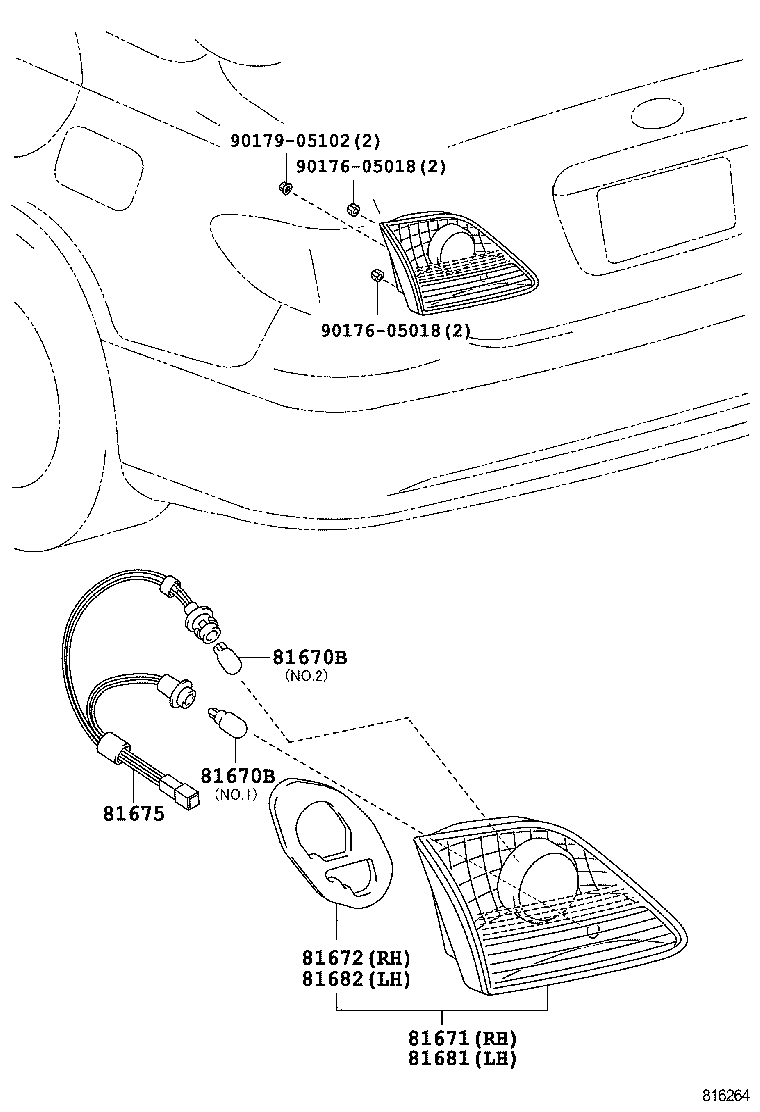

Figure 811836B 811836B 2001-07 → 2004-06 Figure 813240 813240 2001-07 → 2004-06 Figure 816264 816264 2004-06 → —

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81675 Socket & Wire, Back-up Lamp
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81682 Gasket, Back UP Lamp Lens, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
