Toyota Lexus ES300

2001-07 → 2006-03 · chassis MCV30 · catalogue 282370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

15 part groups · 4 illustrations

Illustrations

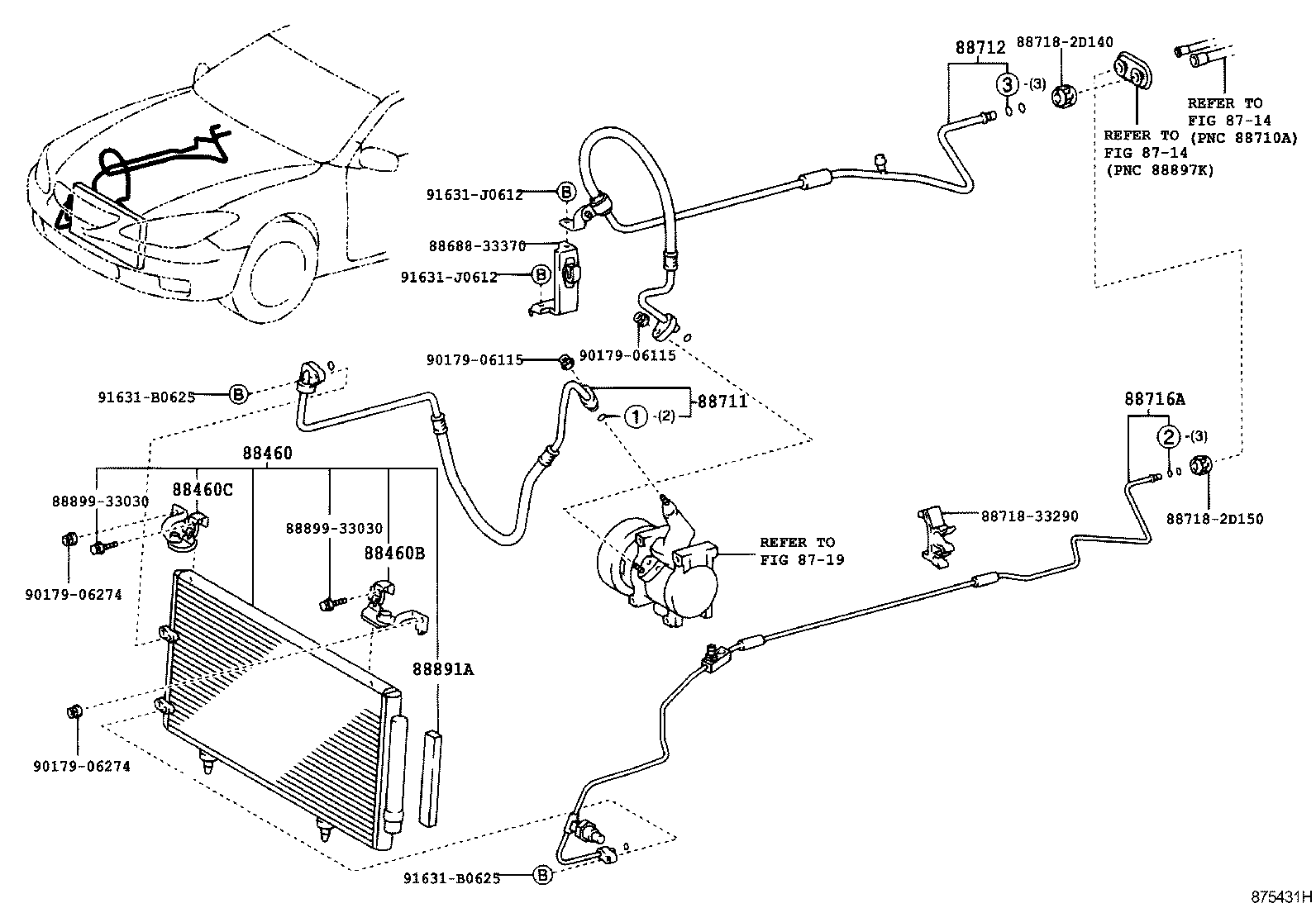

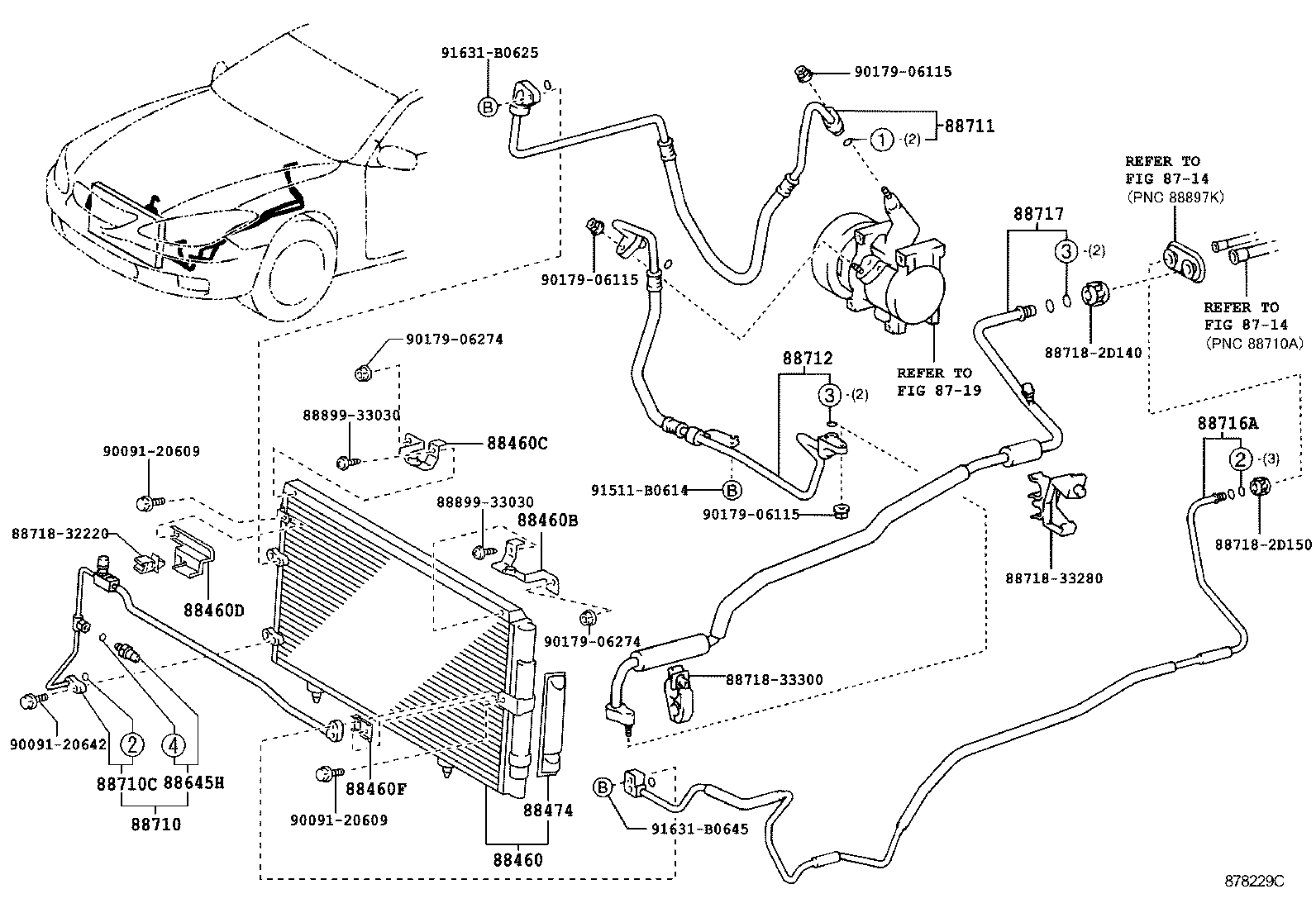

Figure 875029L 875029L 2001-07 → 2003-12 Figure 878229C 878229C 2003-12 → — Figure 875431H 875431H 2001-07 → — Figure 875854 875854 2001-07 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88461A Core, Cooler Condenser
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88717 Pipe, Cooler Refrigerant Suction, NO.1
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
