Toyota Lexus ES240/350

2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

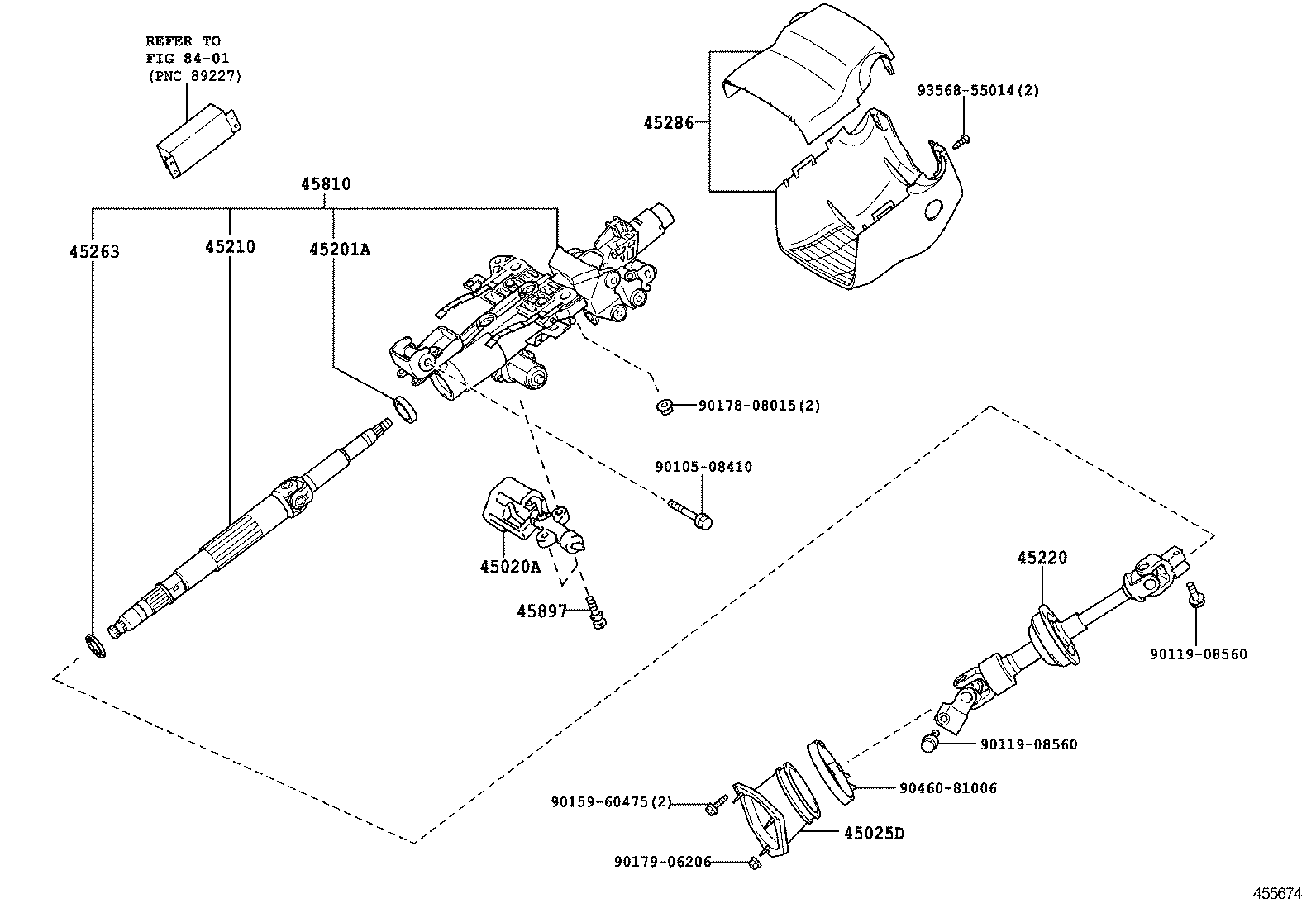

Figure 454484A 454484A 2006-05 → 2010-11 Figure 455674 455674 2010-11 → —

Part groups

PNCDescription
45020A Actuator Assy, Steering Lock
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45210 Shaft Assy, Steering Main
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45263 Ring, Steering Column, NO.1
45286 Cover, Steering Column
45810 Gear Assy, Tilt Steering, W/Motor
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
