Toyota Lexus ES240/350
2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General
Supported model
Data version 2012-04

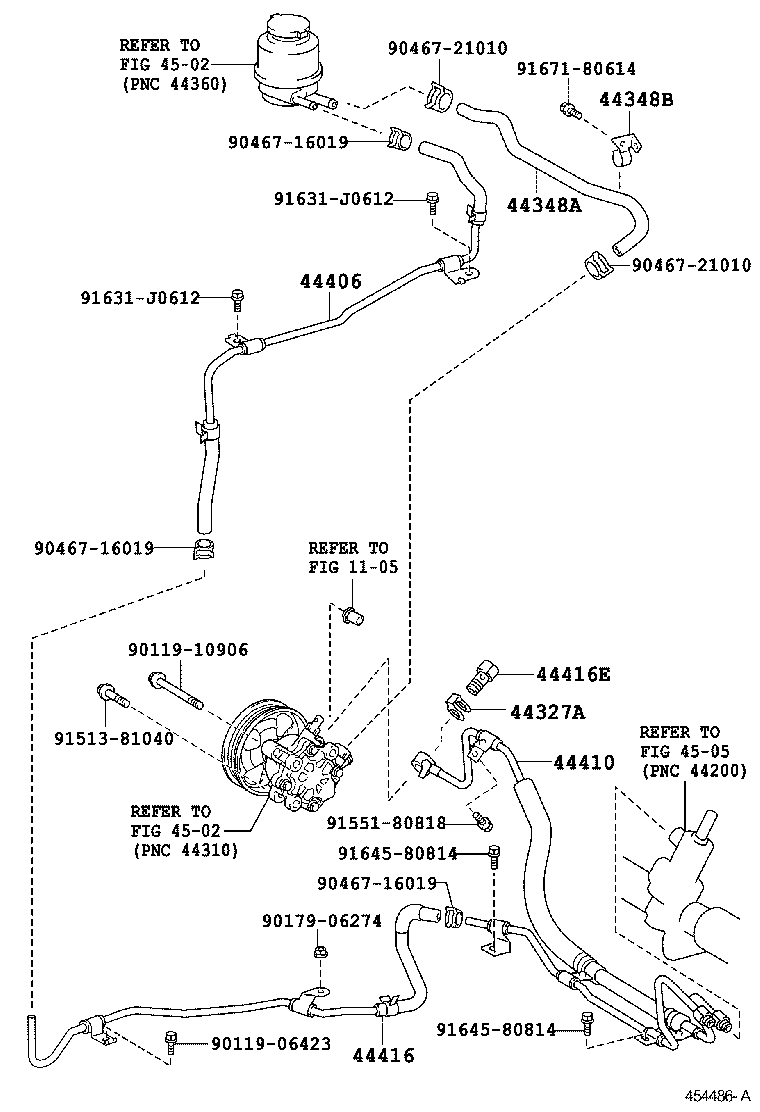

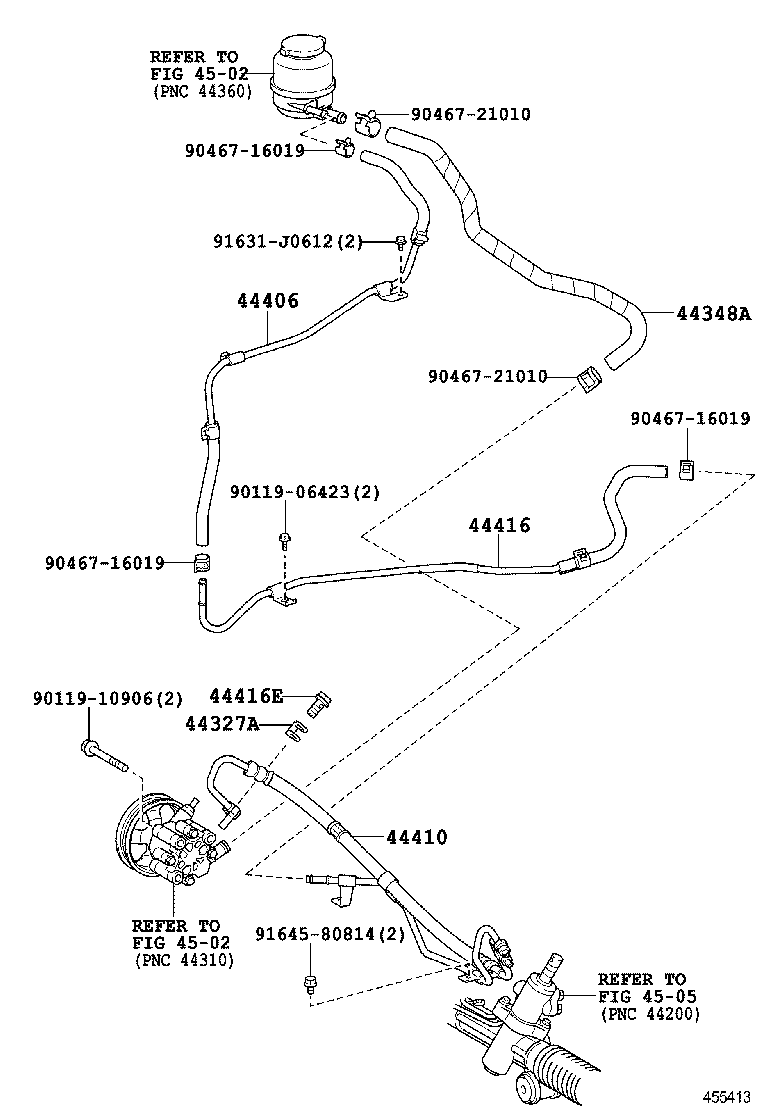

Power Steering Tube
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44416E | Bolt, Union(FOR RETURN TUBE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
