Toyota Lexus ES240/350
2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General
Supported model
Data version 2012-04

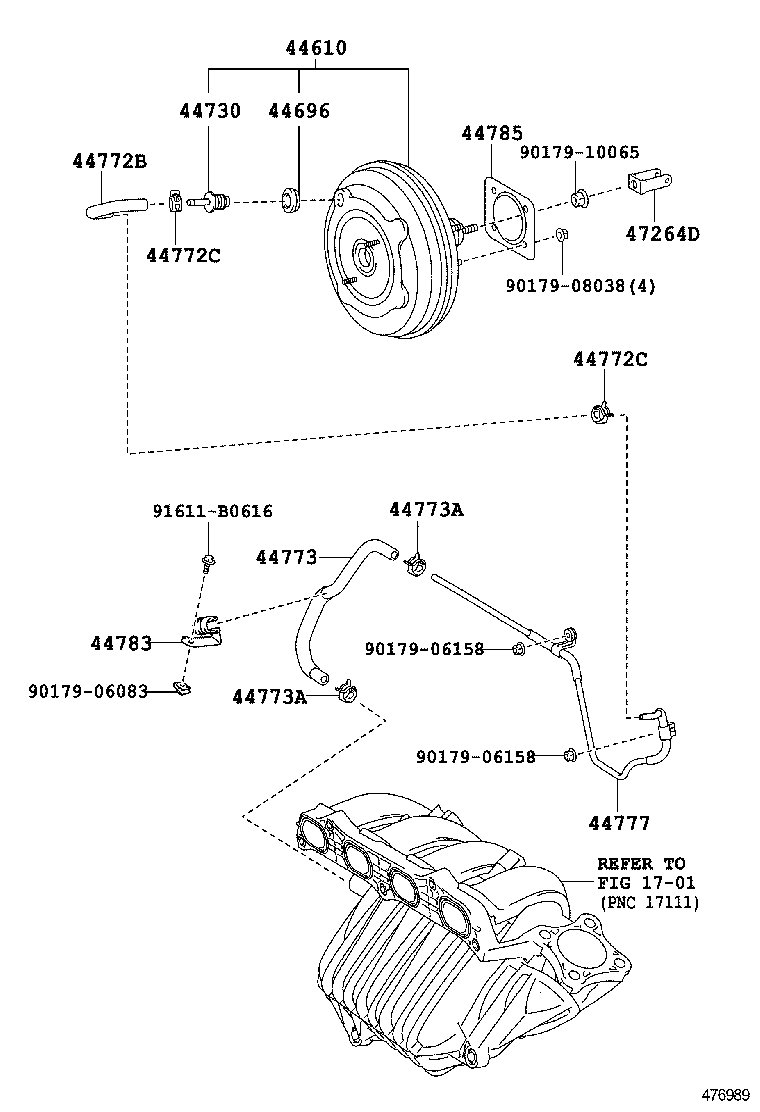

Brake Booster & Vacuum Tube
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44772C | Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) |
| 44773 | Hose, Vacuum, NO.2 |
| 44773A | Clip, NO.1(FOR VACUUM HOSE, NO.2) |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
