Front Bumper & Bumper Stay

17 part groups · 4 illustrations

Illustrations

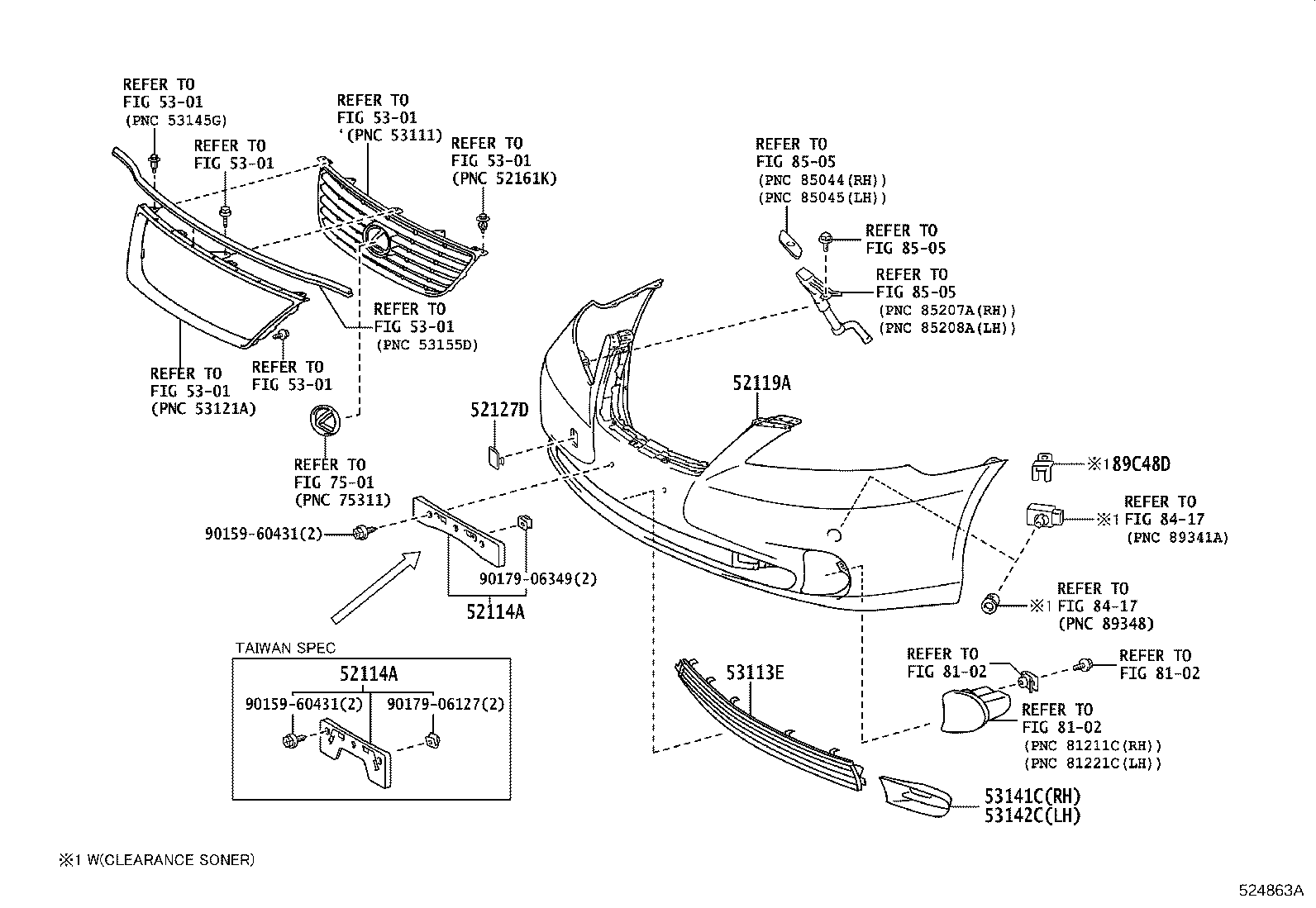

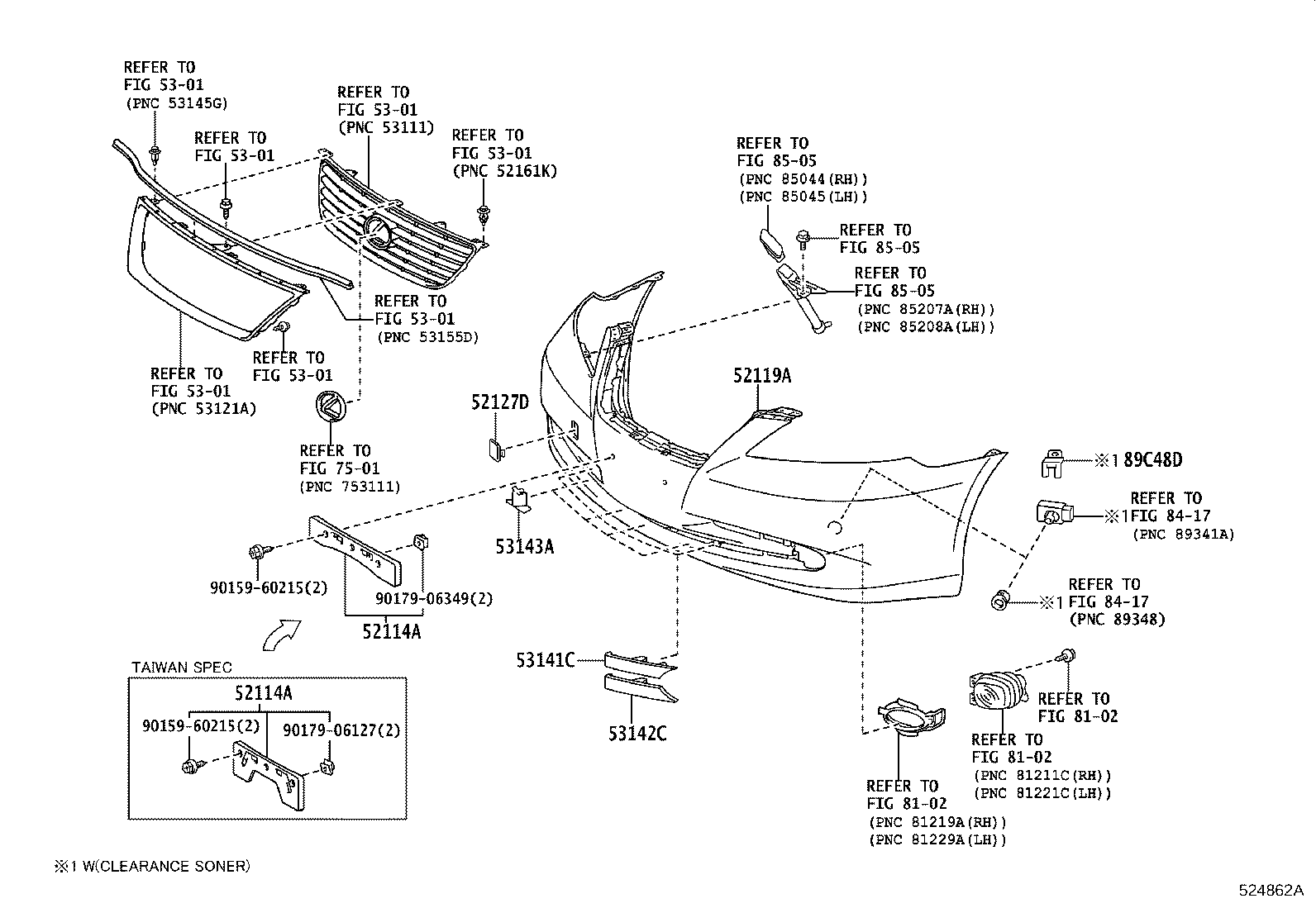

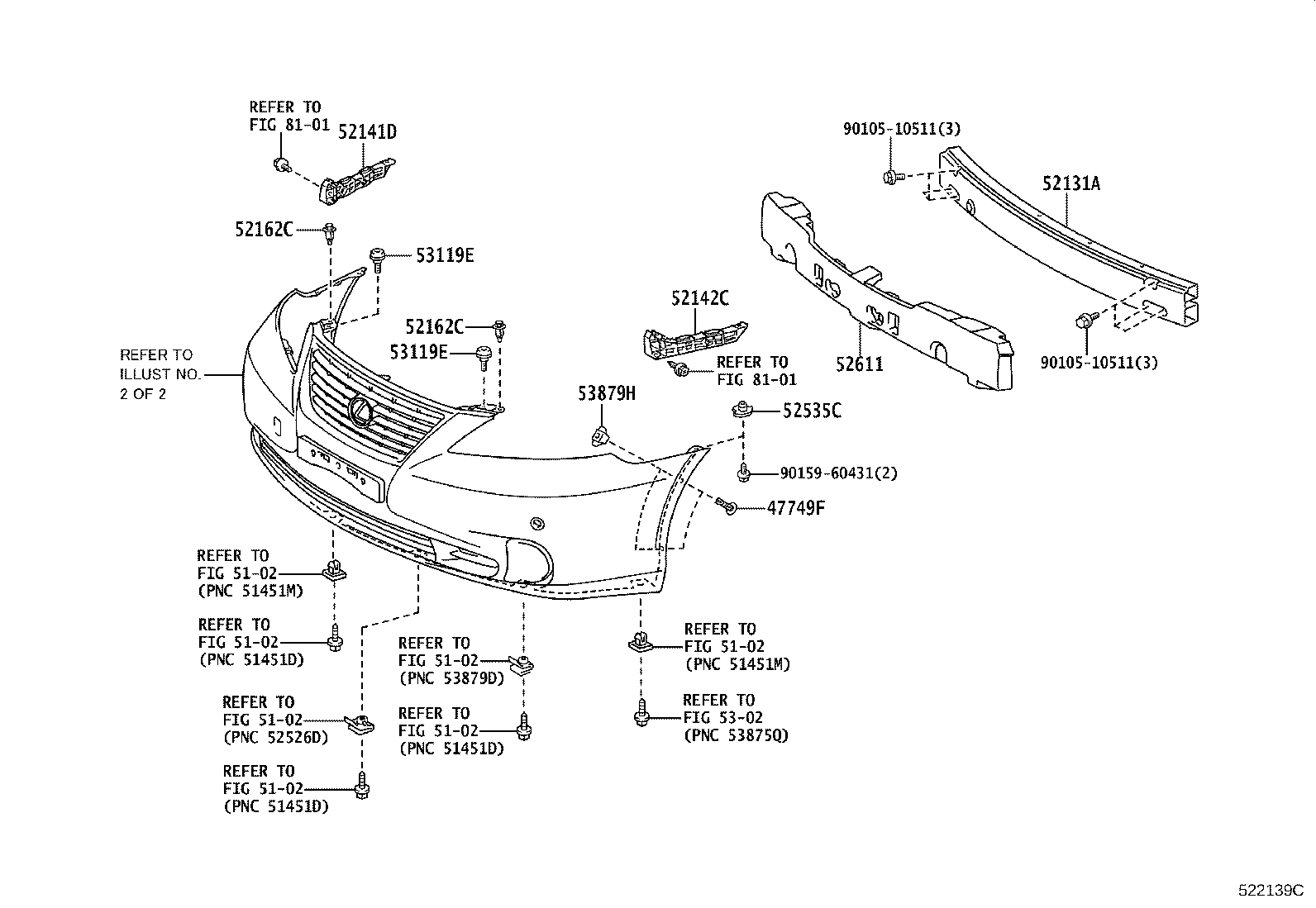

Figure 521539N 521539N 2006-05 → 2009-08 Figure 524862A 524862A 2006-05 → 2009-08 Figure 522139C 522139C 2009-08 → — Figure 524863A 524863A 2009-08 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52131A Reinforcement, Front Bumper
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52162C Piece, Front Bumper
52535C Retainer, Front Bumper Side
52611 Absorber, Front Bumper Energy
53113E Grille, Radiator, Lower NO.2
53119E Protector, Radiator Grille
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53143A Garnish, Radiator Grille, NO.3
53879H Retainer, Front Fender Liner
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
