Toyota Lexus ES240/350

2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 2 illustrations

Illustrations

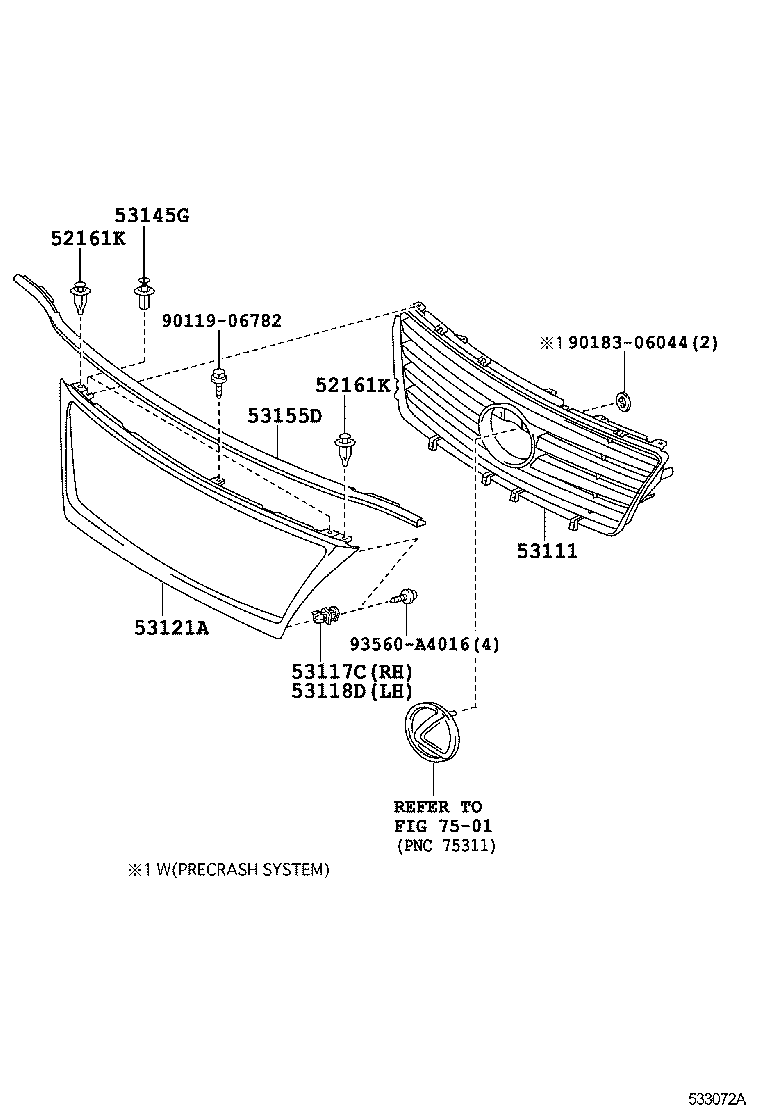

Figure 532209C 532209C 2006-05 → 2009-08 Figure 533072A 533072A 2009-08 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53118D Retainer, Radiator Grille, NO.2
53121A Moulding, Radiator Grille
53145G Clip, Radiator Grille
53155D Seal, Radiator Grille, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
