Toyota Lexus ES240/350

2006-05 → 2012-06 · chassis ACV40,GSV40 · catalogue 282380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 2 illustrations

Illustrations

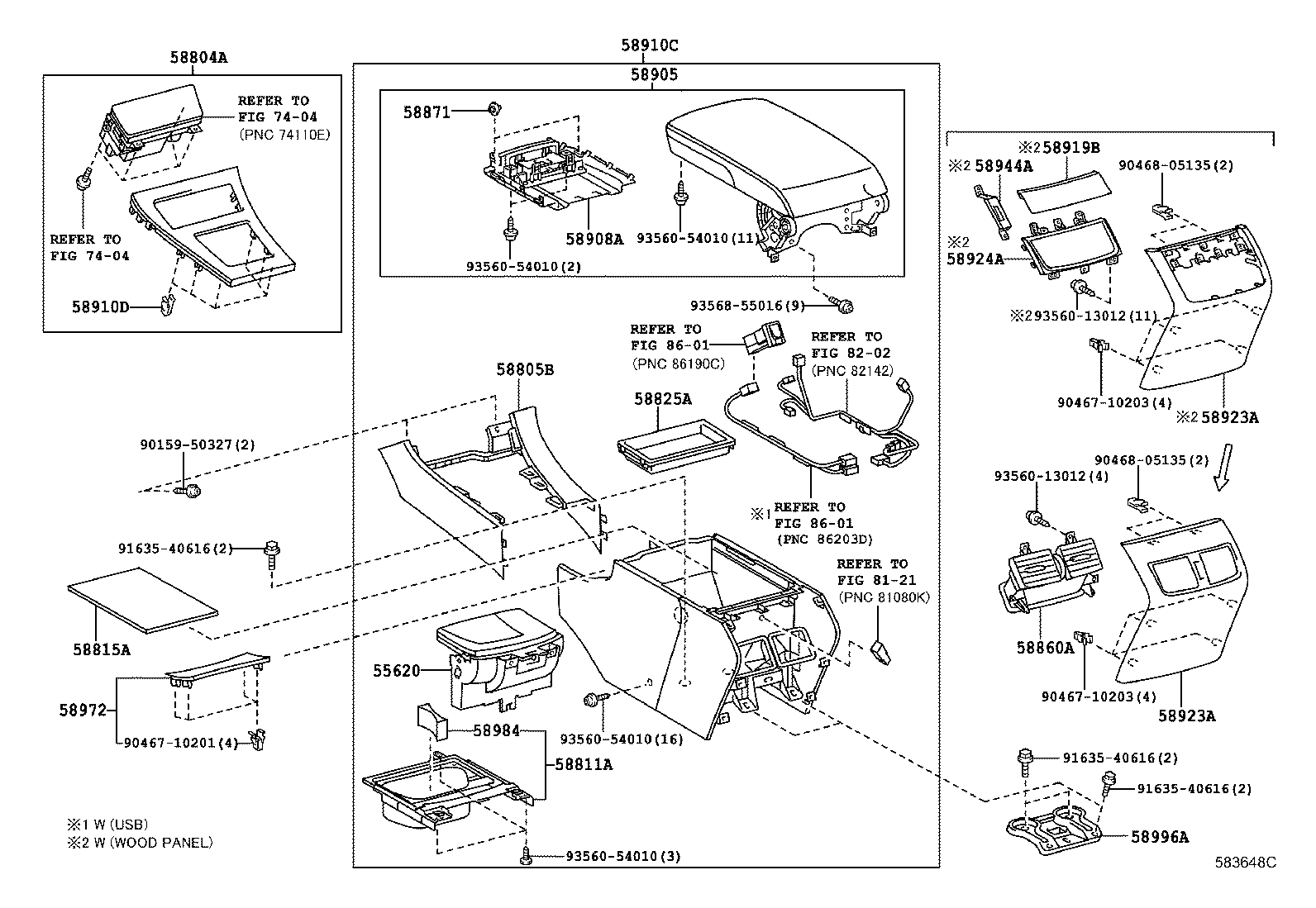

Figure 582598D 582598D 2006-05 → 2009-08 Figure 583648C 583648C 2009-08 → —

Part groups

PNCDescription
55620 Holder Assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58805B Panel Sub-assy, Console, Lower
58811A Box, Console, Front
58815A Carpet, Console Box
58825A Pocket, Console Box
58860A Register Assy, Console Box
58871 Cushion, Console Box
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58919B Plate, Console Box
58923A Panel, Console Rear End
58924A Panel, Console Rear End, NO.2
58944A Cover, Console, Rear
58972 Base, Heater Seat Switch Console
58984 Retainer, Upper Console
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
